About this part

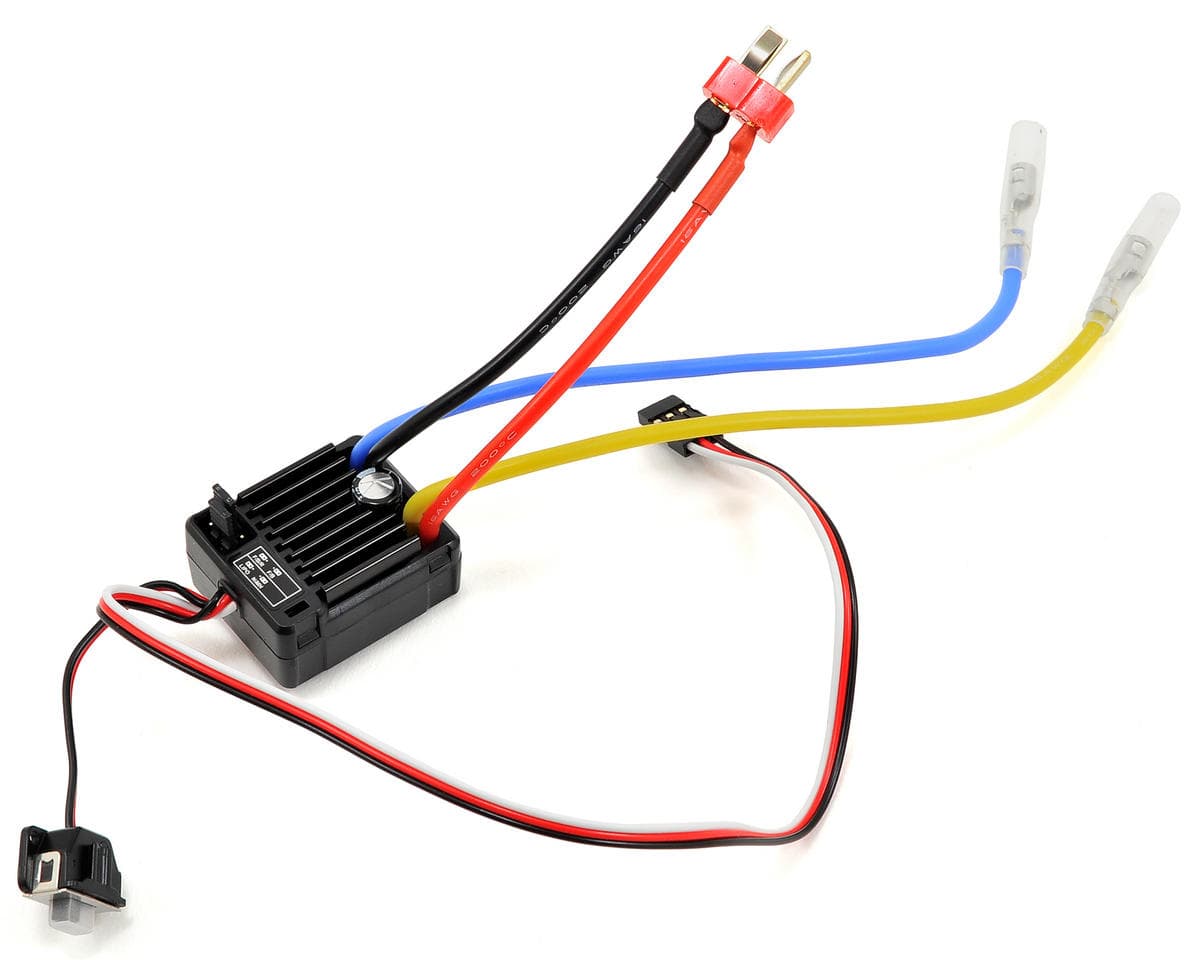

This is the Team Associated SC550 Sensored Brushed ESC. The latest electronics technology along with the design and engineering experience that is responsible for 29 World Championship titles has been incorporated into the design of Reedy’s SC550 Brushed RTR ESC.
Water-resistance means maximum reliability and compact footprint allows for easy installation in most 1/10 vehicles. Drivers can opt for forward/brake/reverse or forward/brake only operation as well as LiPo or NiMH modes, depending on the type of battery being used.
World-class reliability, user-friendliness, and an economical price make the SC550 an excellent alternative to costlier and more complicated brushless systems.
Features:
- LiPo low-voltage cutoff protection
- Programmable run mode
- Fully proportional brakes
- Durable case with aluminum heat sink
- Water resistant
- Heavy-duty silicone wires
- Low-resistance T-plug battery connector
- Bullet motor connectors
Specifications:
Cells: 2 LiPo, 6 NiMH
Suggested Applications: 1:10 buggy, truck, touring car
Resistance: .0008 Ohms
Brakes: Proportional
Motor Limit: 540/550 15-turn
Reversible: Yes
Low Voltage Cutoff: Yes
Dimensions: 36x30x18mm
Weight: 40g (1.4 oz.)
Power Wires: 16-Gauge Silicone
Connector:
- Battery: T-plug
- Motor: Bullet
