About this part
Beadlock Wheels Overview:
Upgrade your scale rig with REEFS RC Granite 1.9" Beadlock Wheels — precision-machined, portal-friendly, and built for both performance and eye-catching deep dish style.

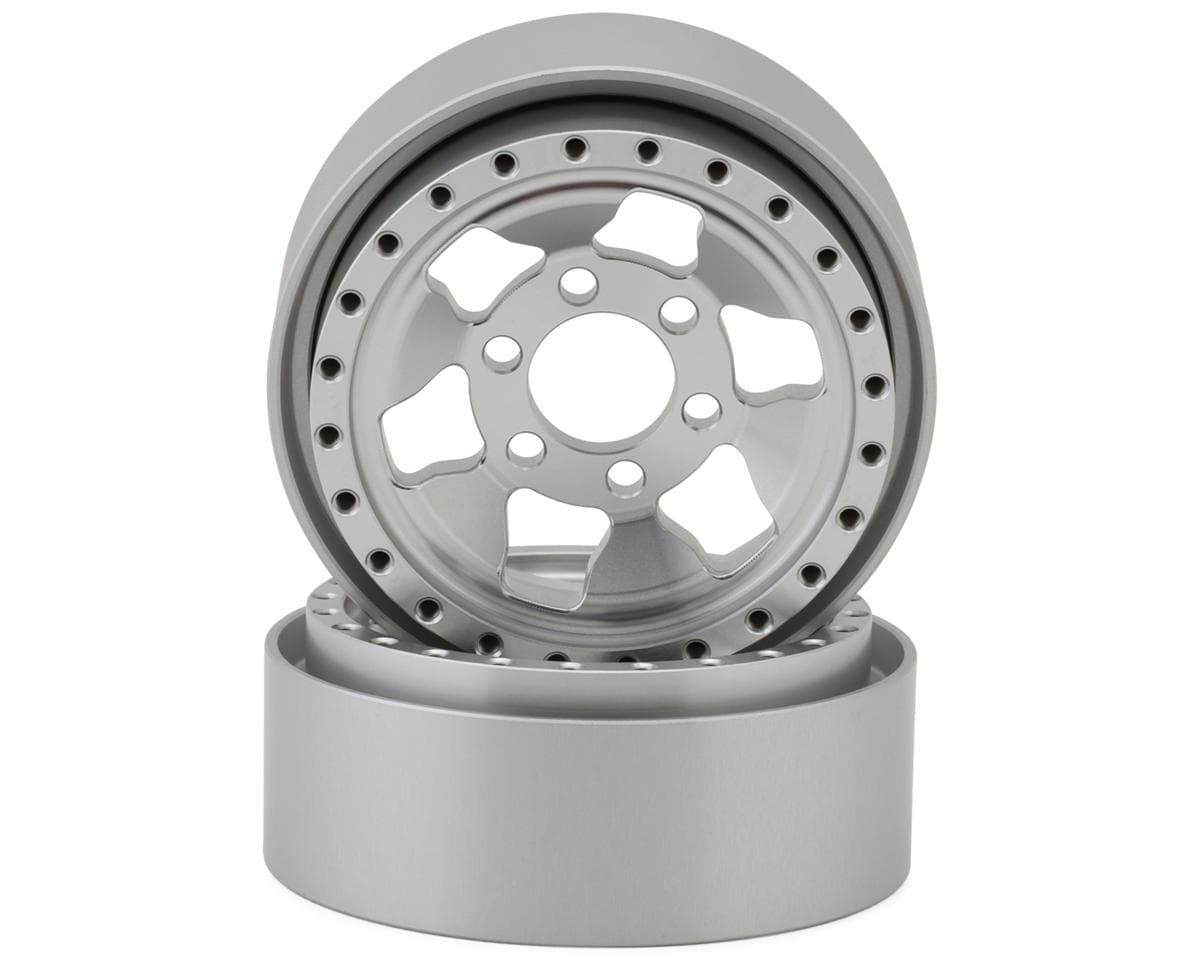

About the Granite 1.9" Beadlock Wheels
Precision, Scale Realism & Performance
The REEFS RC Granite 1.9" Beadlock Wheels deliver serious performance with stunning scale looks. Crafted from precision-machined aluminum, these wheels feature a deep dish, low-offset design that’s compatible with portal axles up to 43mm in diameter. With a narrow 19mm tire mounting width (25mm overall), they reduce tire and foam shift for consistent traction. Swapping tires is a breeze thanks to a smart 6-screw system. Each pair includes black anodized beadlock rings, internal clamping rings, machined aluminum hubs, and stainless steel hardware — everything needed for durability, performance, and ease of maintenance on your scale crawler.
Features:
- Deep dish, low-offset design
- Fits portal axles up to 43mm
- Machined aluminum construction
- Black anodized beadlock rings
- Narrow 19mm mounting width
- Reduces tire and foam movement
- Only 6 screws for quick changes
- Includes hubs, rings, and hardware

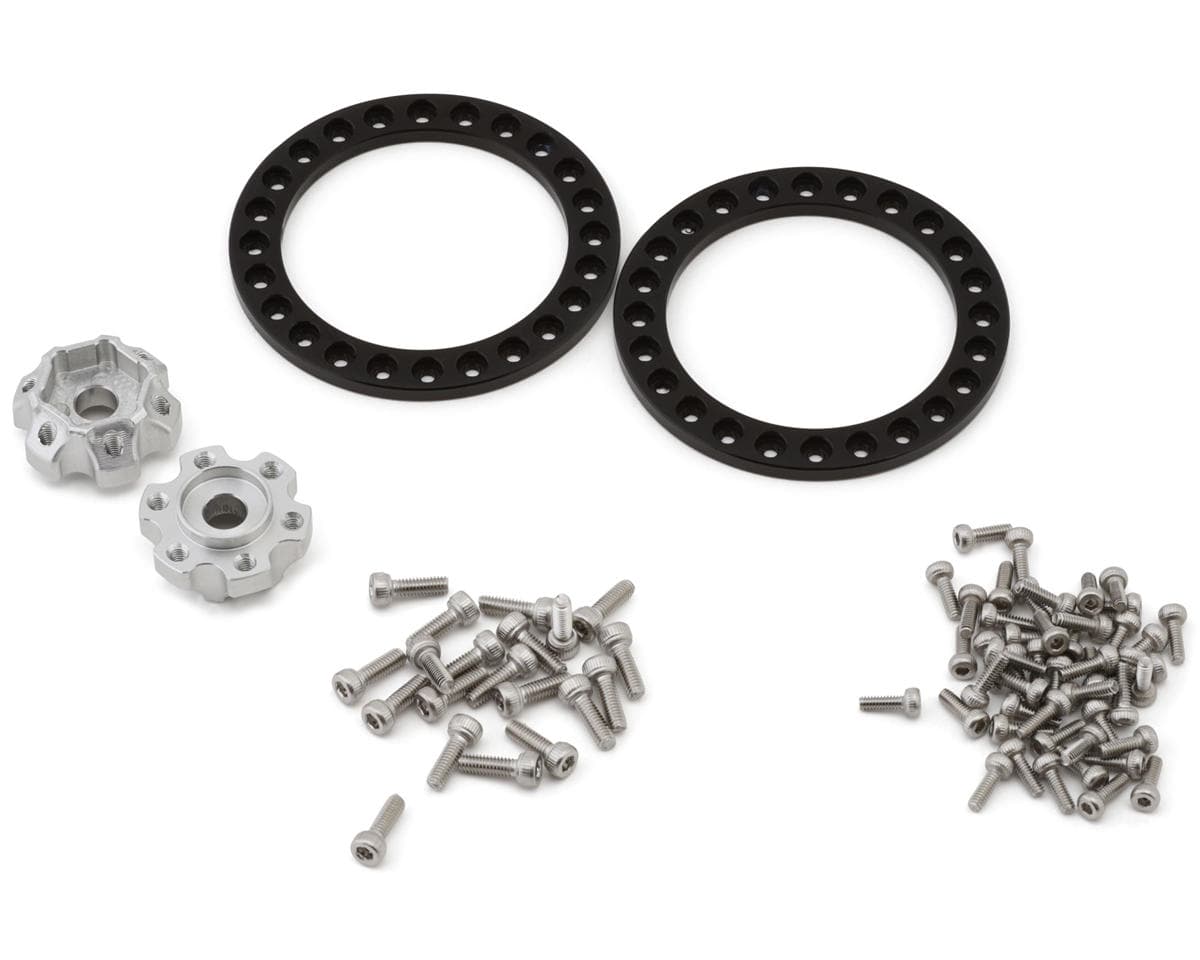

Includes:
- (2) Granite 1.9" Rock Crawler Beadlock Wheels
- (2) 2 Dot 4mm Machined Aluminum 6 Hole Hubs
- (2) Black anodized Beadlock Rings
- (2) 1.9in Aluminum 6 hole back ring
- (2) Machined aluminum Internal clamping ring
- (24) 2.5 Stainless Steel SHCS (Hub Hardware)
- (48) 2mm Stainless Steel SHCS Beadlock Ring Hardware
Specifications:
| Wheel Diameter | 1.9in |
|---|---|
| Wheel Width | 0.75in (19mm) |
| Overall Width | 0.98in (25mm) |
| Offset | 0.08in (2mm) |
| Material | Machined aluminum |
