About this part

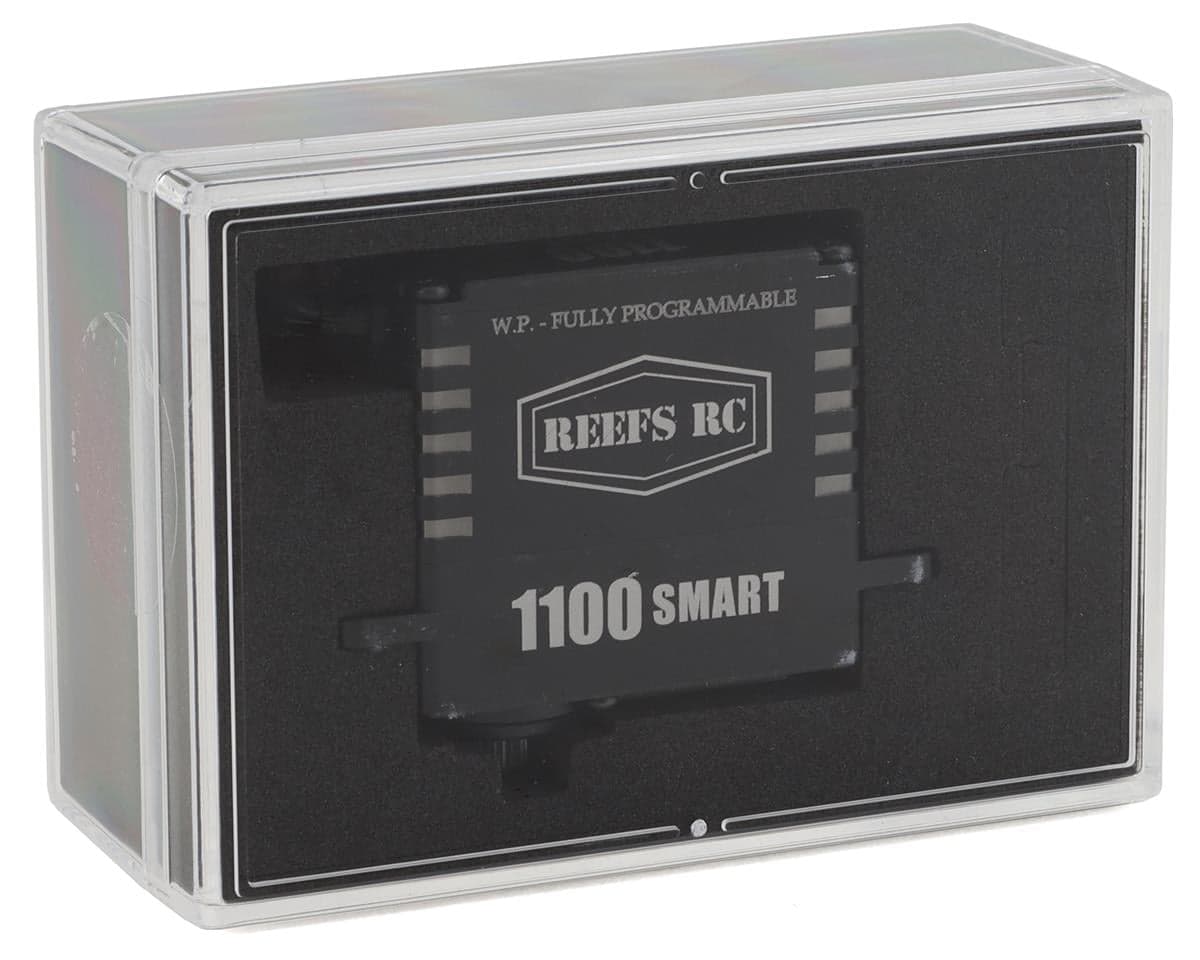

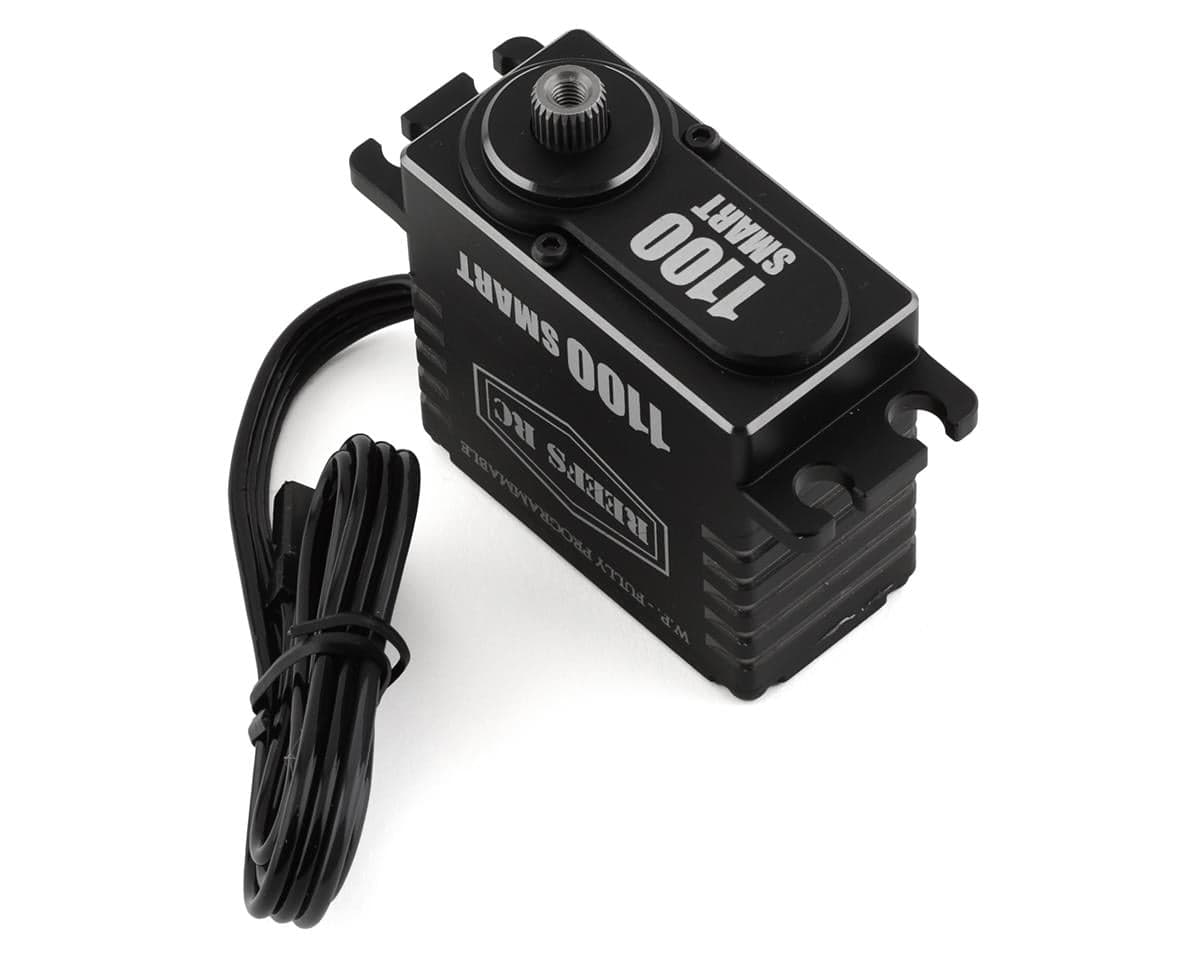

Reefs 1100 Smart Servo & Winch.
Features:
- High Torque High Speed Brushless SERVO or WINCH
- Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK and Software.
- BUILT IN PREPROGRAMMED WINCH CONTROLLER
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- 4 Pole Brushless Motor
- REEFS LINK required for Programming
- BEC Not Req. Recommended for max performance
SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
Voltage: 4.8V - 8.4V
Internal: Steel Gears / All CNC Aluminum Casing
Bearing Type: 4 Ball Bearings / Weight: 2.99oz
Dimension: 1.57 x .79 x 1.5 (LWH)
Torque: 760oz @ 6v/ 930oz @7.4v/ 1100oz @8.4v
Speed: .16sec @6v/.13sec @7.4v/.12sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V
Reviews4.3 · 6 reviews
This Servo is a B E A S T. even on 7.4v its bot hella torque and is more than fast enough.
As I've ordered many times in the past from Amazon and I've never been charged Duty delivery extra taxes and service charges on top of the total price I was not told that there would be an additional charge there was no notification whatsoever it was at the post office and I had a choice of either picking it up and paying the $63 or losing the money and sending it back when I called to complain I was told they always do business that way and I'm no different than anyone else and I told them that I bought from them in the past and they've been you know substantial purchases and didn't seem to matter a damn bit. That was customer service.
Great product. It gives just that little more than the Reefs 900, when you need it. Pricey but worth it.
Awesome servo put it on a scx10 iii cot a tough truck challenge and it is doing great to get prepared
Smooth, silent and ridiculously strong for its size and reciever input. No direct battery leads to worry about, yet still that incredible battery direct-like performance. Currently using in Xmaxx: the response is incredible and it just keeps taking the punishment. Those big wheels steer like a buggy now! Ease of use is huge. Ability to program as winch is epic. Hard to imagine a better 1/10th servo on the market right now.
Reviewers broadly praise the Reefs RC 1100 Smart Servo & Winch for strong torque, fast response and precise modulation, including on 7.4V in crawlers and an Xmaxx. Several describe it as worth its higher price compared with the Reefs 900. One verified owner gave a 1/5 rating over an unexpected duty and tax charge on delivery and a poor response from the seller; this complaint concerns the retailer rather than the servo itself. Reviews are few, and the sample is small.
- + Strong torque for its size
- + Fast, precise response
- + Works well on 7.4V
- + Smooth and quiet operation
- − Pricey
- − Unexpected delivery duty and tax charges (seller issue)
