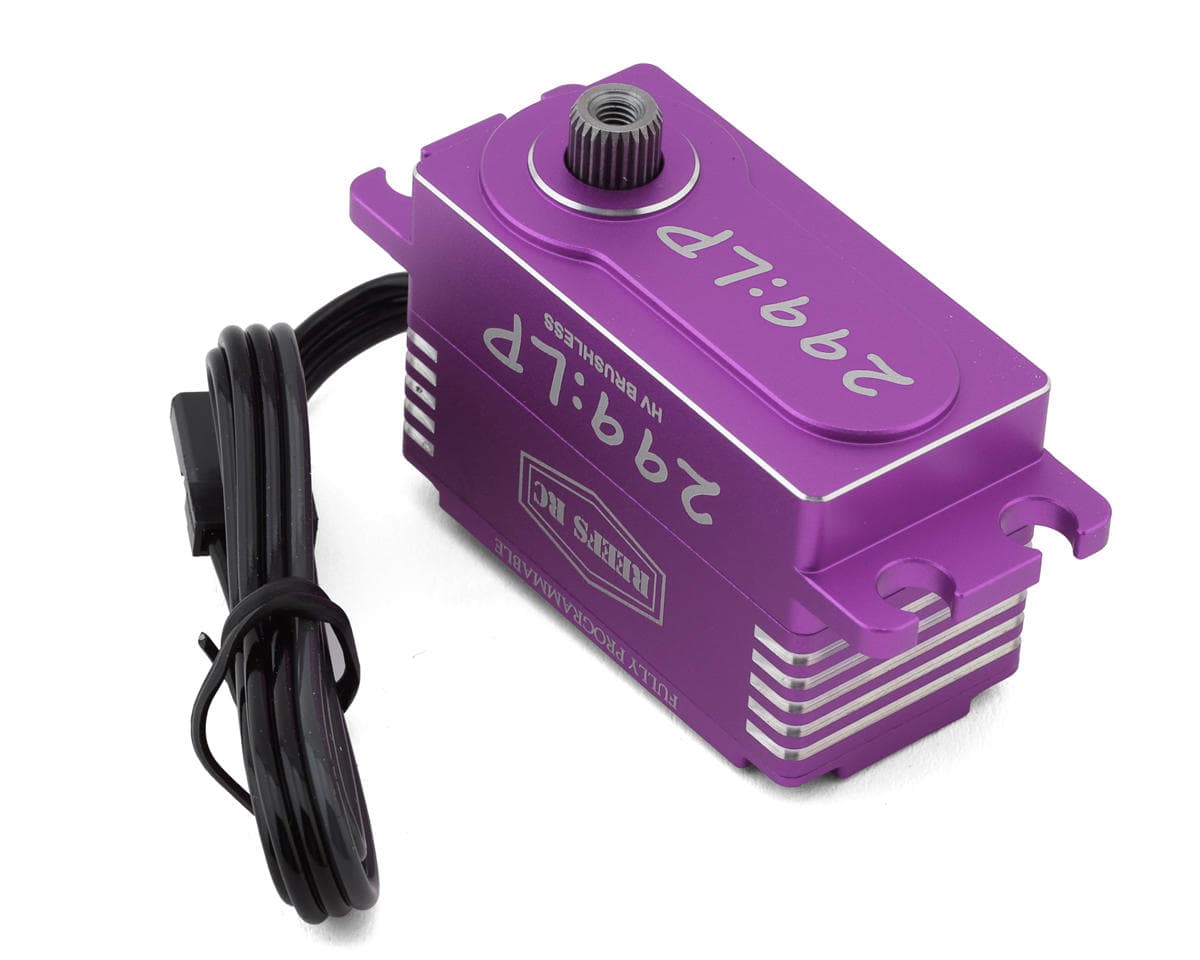

Parts/Radio & control/Servos/Reefs RC 299LP High Torque/Speed Brushless Low Profile Servo (High Voltage) (Purple)
About this part
Servo Overview:
Reefs 299LP High Torque/Speed Brushless Low Profile High Voltage Servo. Available in multiple anodized colors with a beautiful aluminum case, this powerful racing servo features a water-resistant low-profile design with a magnetic angle sensor and is capable of putting out 313oz-in (22.5kg-cm) of torque and 0.05sec/60° of speed at (8.4V)! Providing racers and drifters the speed and power needed in a low-profile, lightweight sleek design!
Features:
- Hi voltage capable
- High torque high speed brushless motor
- Water resistant low profile design
- Magnetic angle sensor
- Fully programmable with REEFS software (Reefs LINK required for programming)
- All aluminum case with side fins to maximize heat dissipation
- Anodized in multiple colors
Specifications:
- Speed:
- @6.0V: 0.07sec/60°
- @7.4V: 0.06sec/60°
- @8.4V: 0.05sec/60°
- Torque:
- @6.0V: 278oz-in (20kg-cm)
- @7.4V: 299oz-in (21.5kg-cm)
- @8.4V: 313oz-in (22.5kg-cm)
- Motor: Brushless
- Operating Voltage: 4.8V-8.4V
- Dimensions(LxWxH): 1.6"x0.79"x1.0" (40.8x20.2x26.5mm)
- Weight: 2.0oz (57.2g)
- Operating Spline: 25T (ProTek/Futaba)
Includes:
- (1) 299LP Low-Profile Racing Servo

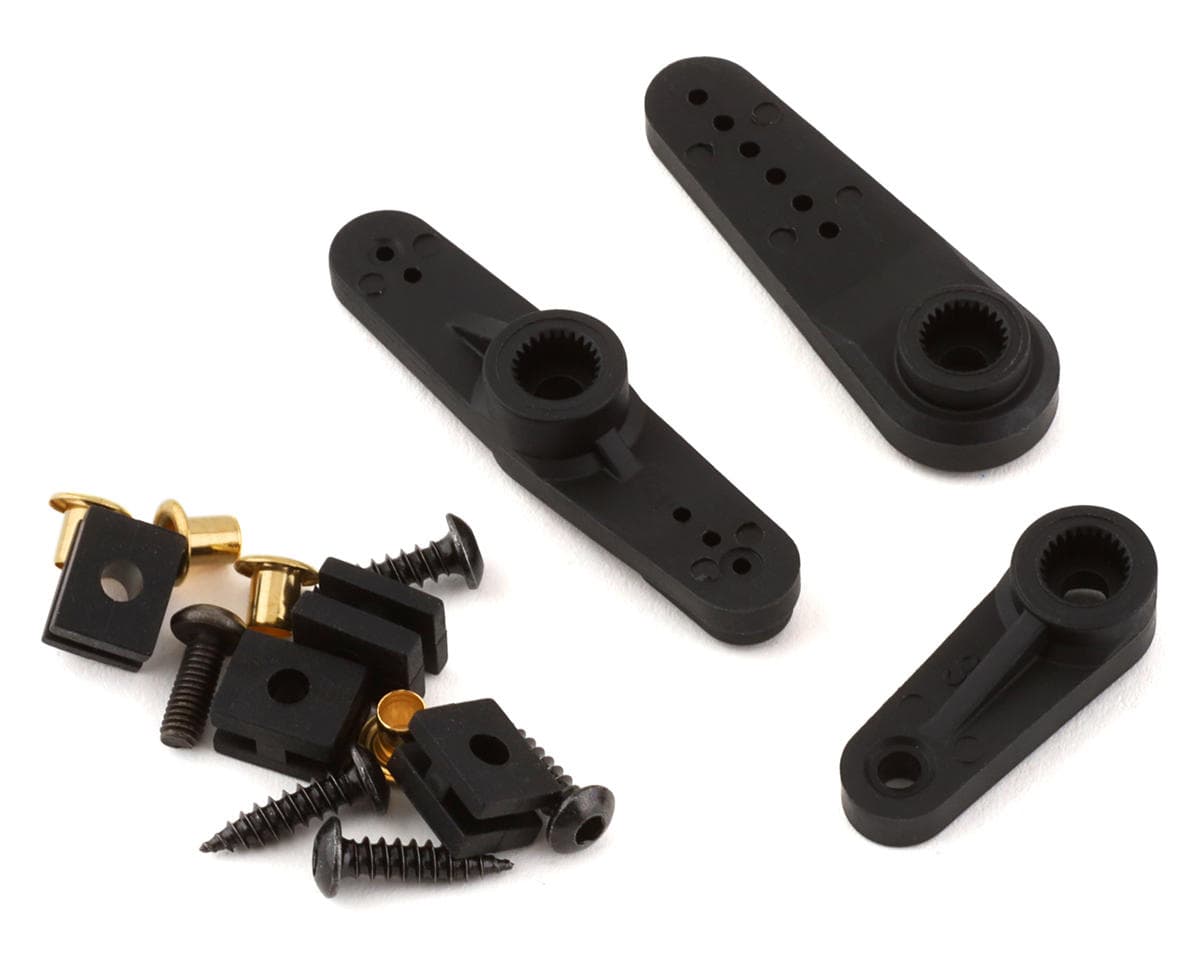

- Servo Horns and Mounting Hardware
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 1 review
TamiyaManVerified owneron Reefs RC 299LP High Torque/Speed Brushless Low Profile Servo (High Voltage)
Purchased for an upcoming Tamiya BBX build. Pricey, but needed low profile and think the purple will look cool.
Builds using this part
No builds use this part yet — add it to yours from the build editor.
