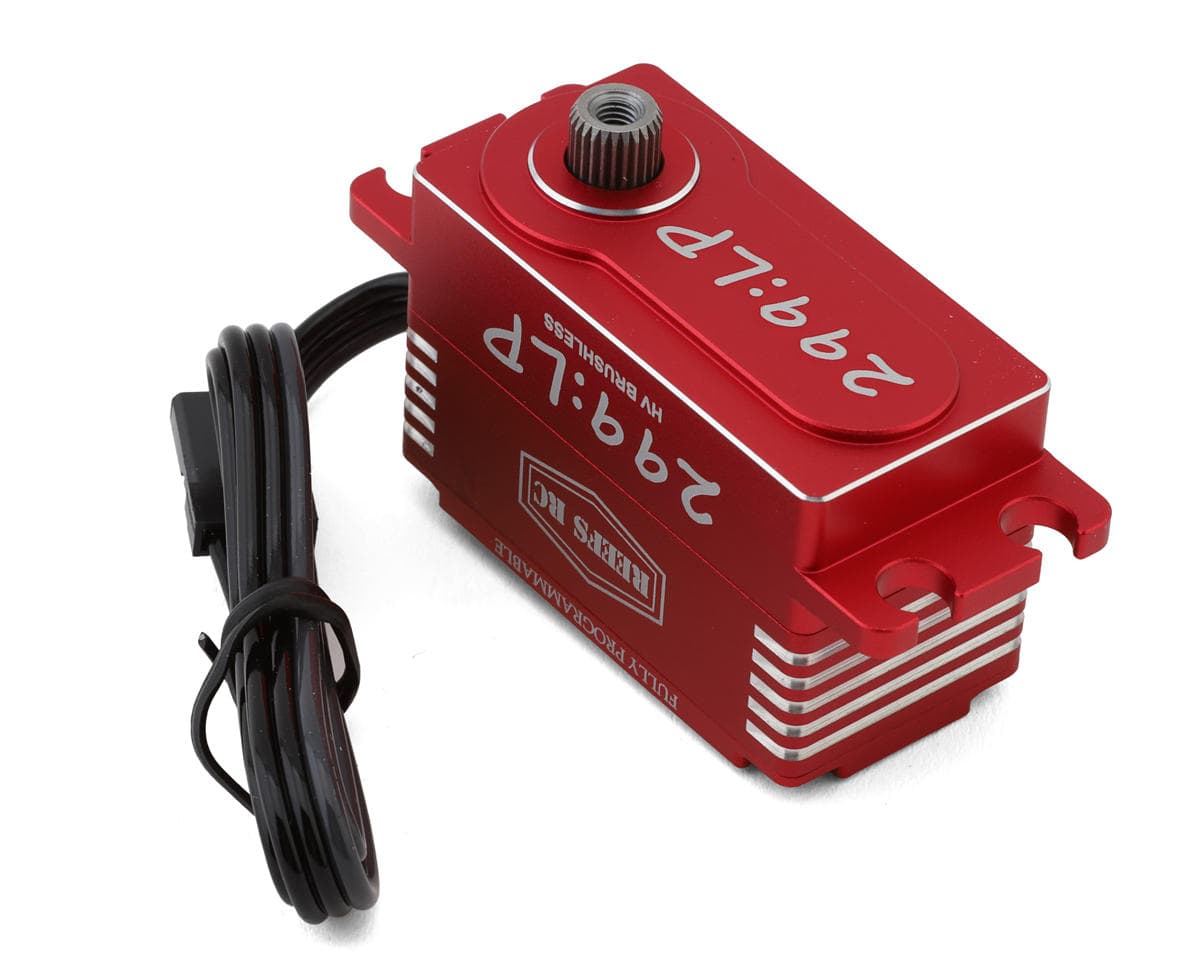

Reefs RC 299LP High Torque/Speed Brushless Low Profile Servo (High Voltage) (Red)
About this part
Servo Overview:
Reefs 299LP High Torque/Speed Brushless Low Profile High Voltage Servo. Available in multiple anodized colors with a beautiful aluminum case, this powerful racing servo features a water-resistant low-profile design with a magnetic angle sensor and is capable of putting out 313oz-in (22.5kg-cm) of torque and 0.05sec/60° of speed at (8.4V)! Providing racers and drifters the speed and power needed in a low-profile, lightweight sleek design!
Features:
- Hi voltage capable
- High torque high speed brushless motor
- Water resistant low profile design
- Magnetic angle sensor
- Fully programmable with REEFS software (Reefs LINK required for programming)
- All aluminum case with side fins to maximize heat dissipation
- Anodized in multiple colors
Specifications:
- Speed:
- @6.0V: 0.07sec/60°
- @7.4V: 0.06sec/60°
- @8.4V: 0.05sec/60°
- Torque:
- @6.0V: 278oz-in (20kg-cm)
- @7.4V: 299oz-in (21.5kg-cm)
- @8.4V: 313oz-in (22.5kg-cm)
- Motor: Brushless
- Operating Voltage: 4.8V-8.4V
- Dimensions(LxWxH): 1.6"x0.79"x1.0" (40.8x20.2x26.5mm)
- Weight: 2.0oz (57.2g)
- Operating Spline: 25T (ProTek/Futaba)
Includes:

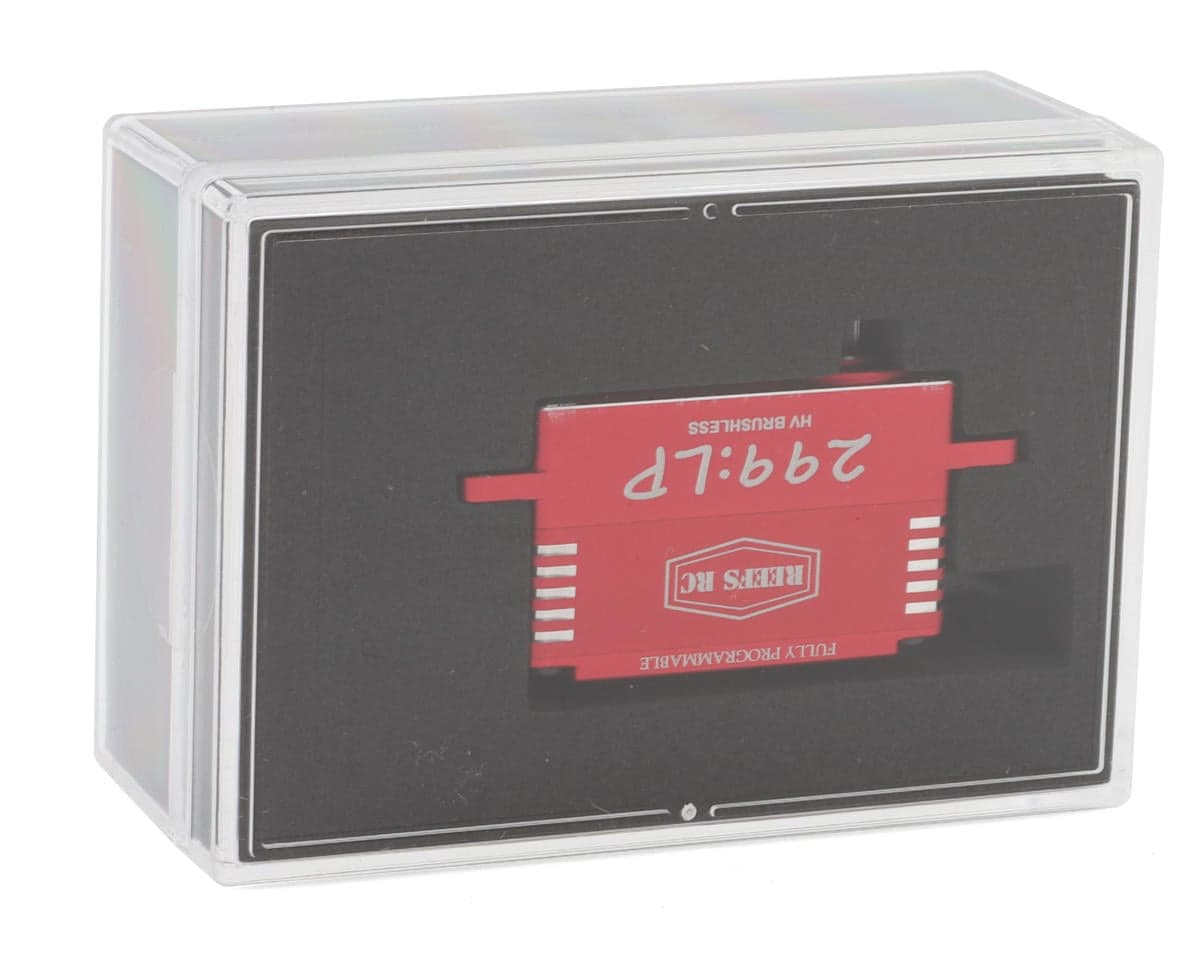

- (1) 299LP Low-Profile Racing Servo

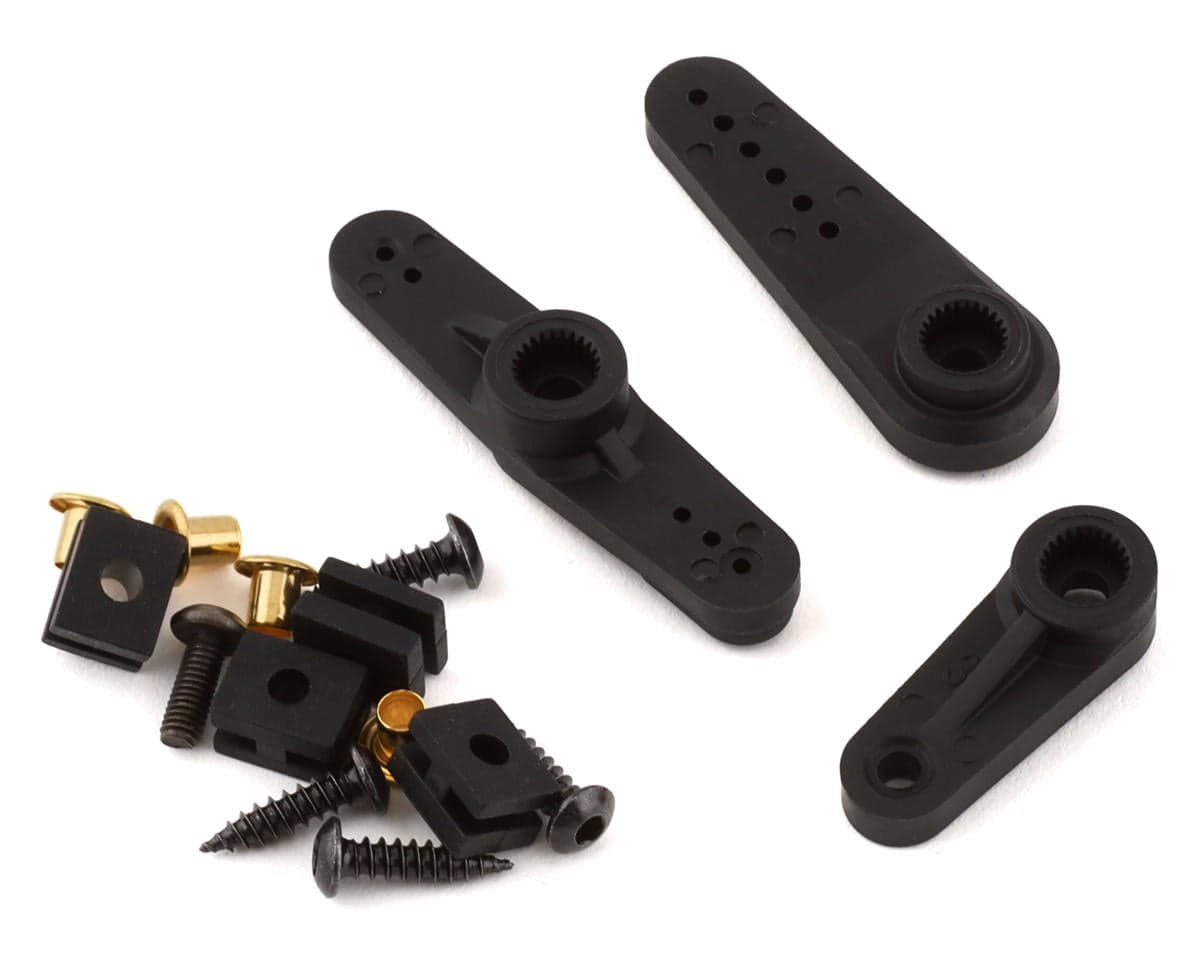

- Servo Horns and Mounting Hardware
Reviews4.0 · 2 reviews
I’m running 7.4 volts bec to it so should be about 300 zips of torque as per specs.Shes a beast for 1/10 on road.Works great in my hoonigan truck.
I gave this 3 stars for the support. I installed this on a 5# rig and tried 2 different esc’s and got the same results. It would brown out and restart again randomly. If it hit a bump or stick it would brown out a 3-5 amp bec. I changed the servo out with another and it was fine. I’m not sure what this servo was designed for or maybe I got a bad one. Amain was very supportive and made it up for me. Thanks Jared
