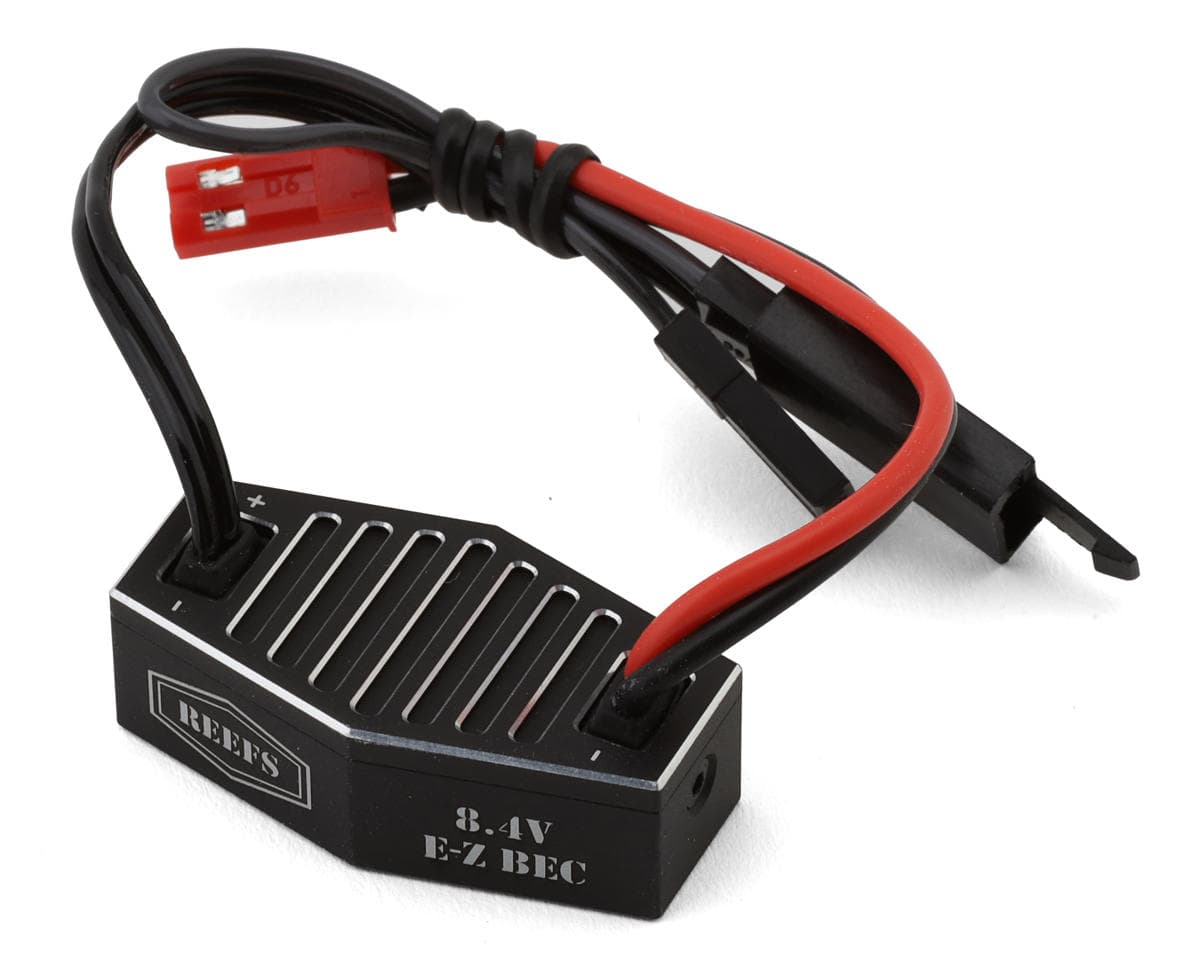

Reefs RC 8.4V EZ Plug-N-Play BEC
About this part
BEC Overview:
The Reefs RC 8.4V EZ Plug-N-Play BEC simplifies the process of adding a Battery Eliminator Circuit (BEC) to an RC setup by providing an easy plug-and-play installation. Designed to work with a 3S LiPo battery, it delivers a consistent 8.4-volt output to the servo and connects directly through the included BEC harness using XT60 or XT90 dual JST adapters.
About the EZ Plug-N-Play BEC
Simple Power Delivery
The EZ-BEC is designed to remove many of the extra steps associated with traditional BEC installation, eliminating the need to unpin wires, add plugs, or troubleshoot complex connections. Its consistent 8.4-volt output provides the specified power for high-performance RC servo applications, while the water-resistant CNC-machined aluminum case is built for long-lasting reliability. By combining a straightforward connection process with a durable housing, the EZ-BEC offers a clean solution for enthusiasts who want an uncomplicated way to power their servo.
Features:
- Delivers consistent 8.4-volt servo power
- Plugs directly into receiver channel one
- Eliminates traditional BEC installation complexity
- Removes extra wiring and connector steps
- Uses a water-resistant aluminum case
- Provides long-lasting reliability and performance
Includes:

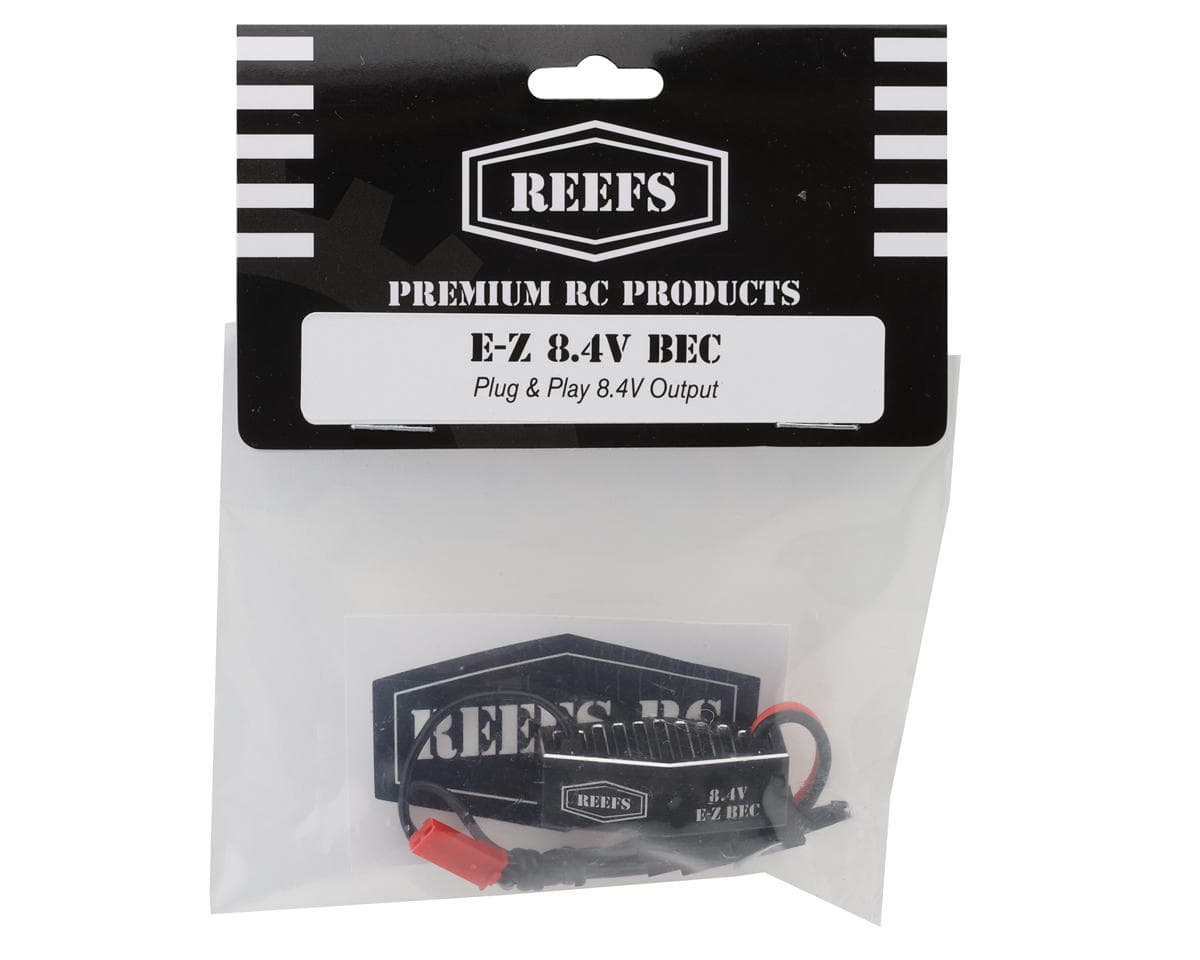

- (1) Reefs RC 8.4V EZ Plug-N-Play BEC
Specifications:
| Input | 2-6S LiPo (7.4-22.2V) |
|---|---|
| Output | 8.4V |
| Output Current | 12A (Maximum - 15A) |
| Dimensions (LxWxH) | 1.38x0.74x0.44in (35x18.7x11.2mm) |
*Tech Note: Input voltage must be more than 10V to provide the 8.4 output voltage. If you are using a 2S LiPo, the output voltage will be 7V.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 3 reviews
I installed remote switched LEDs on my VRD and then a Holmes Hobbies Revolver V3 540 Snubnose Brushless Outrunner & Crawl Master Mini V3 Rock Crawler ESC. The remote switch wasn't getting enough power so the lights would reset and turn on/off when i didn't want them to. This BEC was the perfect fix. It doesn't I use much space and looks clean.
It’s small, fits perfectly in the mullet. Cured my brown out issues with the reefs LP800.
The best and most simple BEC out there. runs with no issues and small and simple to tuck in to the chassis.
Three verified owners rate this 8.4V plug-and-play BEC 5/5. Reviewers report it fixed power problems: one resolved remote-switched LED lights resetting or switching unexpectedly on a crawler, another resolved brown-out issues with a Reefs LP800 setup. Reviewers describe it as small and easy to fit inside a chassis, with one calling it simple and trouble-free. No disagreements or recurring problems appear in these reviews. The sample is small, so the evidence is limited.
- + Fixes brown-out and power reset issues
- + Small size that fits tight chassis spaces
- + Simple plug-and-play installation
- + Runs without reported issues
