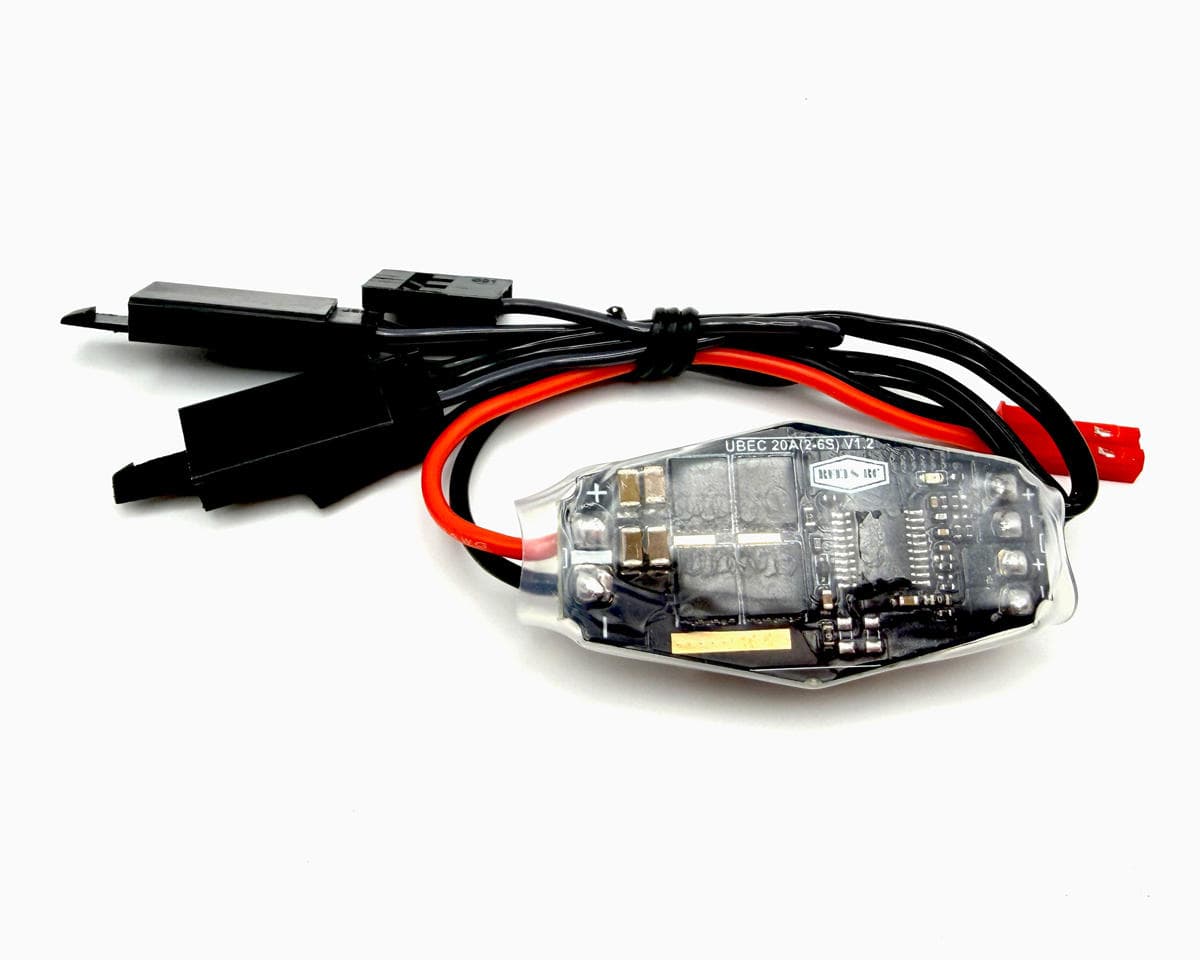

Reefs RC 8.4V Slim EZ Plug-N-Play Dual Servo BEC
About this part
BEC Overview:
The Reefs RC 8.4V Slim EZ Plug-N-Play Dual Servo BEC provides a simple solution for powering two high-performance RC servos from a single BEC (Battery Eliminator Circuit). Designed for use with 2-6S LiPo batteries, this plug-and-play unit delivers a regulated 8.4V output to both servos while eliminating the complexity of traditional BEC installation.
About the Slim EZ Plug-N-Play BEC
Simple Plug-and-Play Installation
Designed for convenience and reliable performance, the Slim EZ Plug-N-Play Dual Servo BEC allows two servos to connect directly to the BEC harness using compatible Reefs RC XT60 and XT90 Dual JST adapters (SEHREEFS121 and SEHREEFS122 - sold separately). Simply plug the unit into your preferred receiver channels to supply stable 8.4V power without modifying wiring or adding connectors. With a slightly larger footprint to accommodate dual-servo operation, this BEC offers a clean, efficient solution for high-performance RC applications that require dependable power delivery.
Features:
- Delivers a regulated 8.4V output
- Compatible with 2-6S LiPo batteries
- Provides plug-and-play installation
- Eliminates complex wiring modifications
- Supplies consistent power to high-voltage servos
- Features a compact dual-servo design
Includes:
- (1) Reefs RC 8.4V Slim EZ Plug-N-Play Dual Servo BEC
Specifications:
| Input | 2-6S LiPo (7.4-22.2V) |
|---|---|
| Output | 8.4V |
| Output Current | 10A (Maximum - 15A) |
| Dimensions (LxWxH) | 1.38x0.71x0.44in (35x18x11.2mm) |
*Tech Note: Input voltage must be more than 10V to provide the 8.4V output voltage. If you are using a 2S LiPo, the output voltage will be 7V.
*Tech Note: This version is not waterproof. For a water-resistant version, check out the Reefs RC Standard 8.4V EZ Plug-N-Play Dual Servo BEC (SEHREEFS262).
