Parts/Scale & lighting/Winches & recovery/Reefs RC 800:IS Internal Spool LowPro Brushless Servo Winch
Reefs RC 800:IS Internal Spool LowPro Brushless Servo Winch
Reefs RC

Reefs RC 800:IS Internal Spool LowPro Brushless Servo Winch

Part # SEHREEFS905.0(9)
Where to buy
$149.99
AMain Hobbies
Seen Oct 12, 2026
$149.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

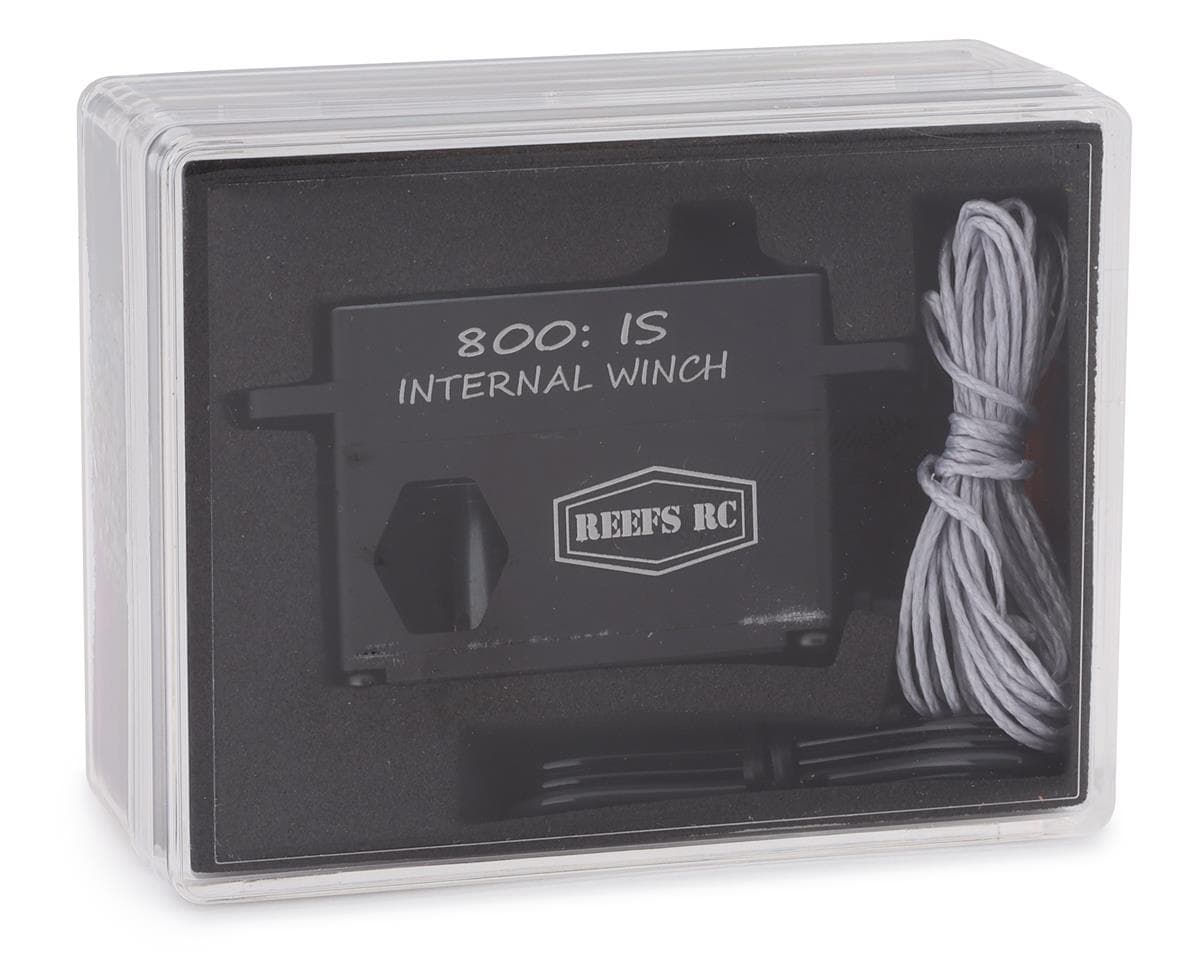

Reefs 800:IS Internal Spool LowPro Brushless Servo Winch.

Features:

  • High Torque High Speed
  • Brushless Servo Winch
  • Internal Machined Spool w/Coated Finish
  • SUBMARINE WATERPROOF - 6 Point Seals

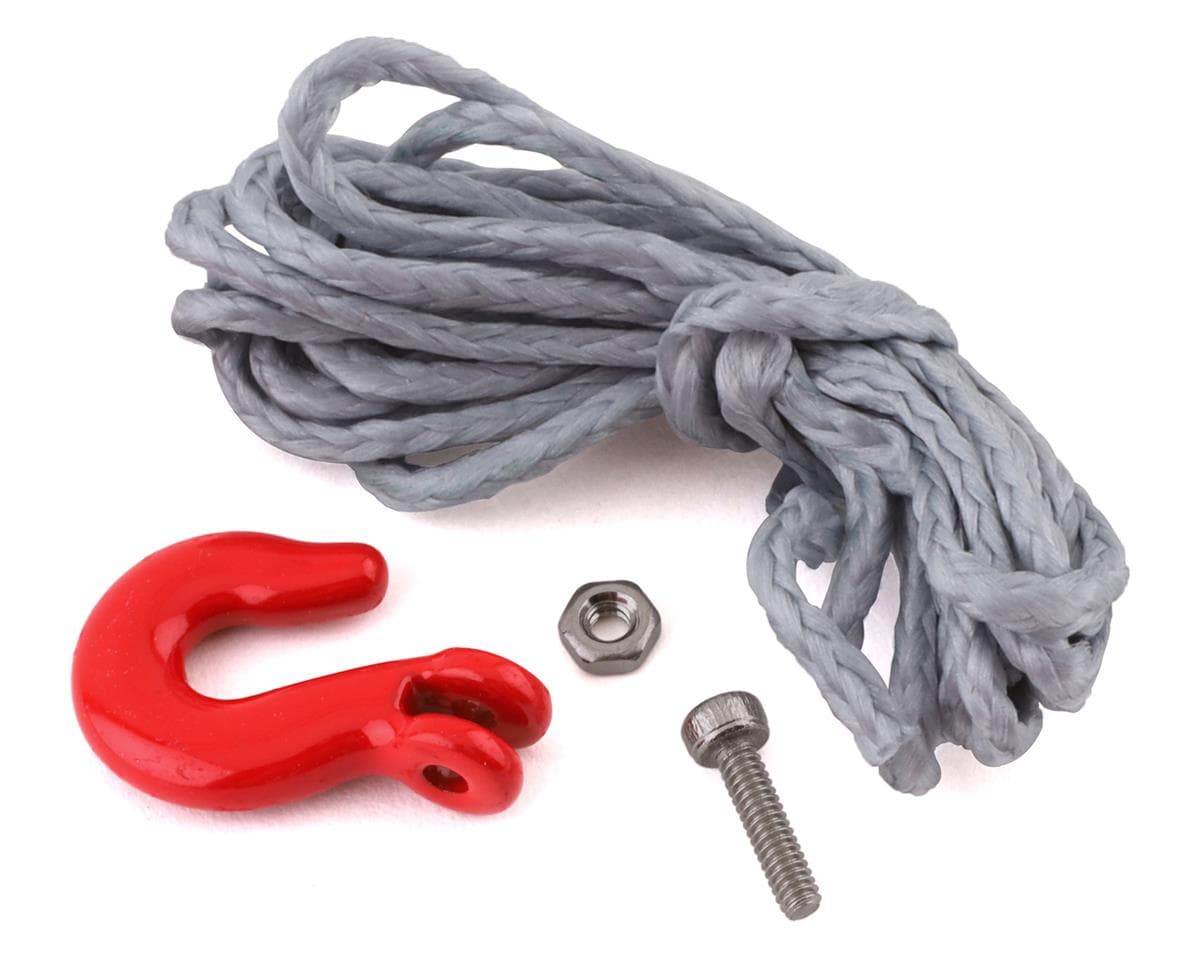

  • Includes Approximately 6ft .8mm Synthetic Line w/ Scale Recovery Hook

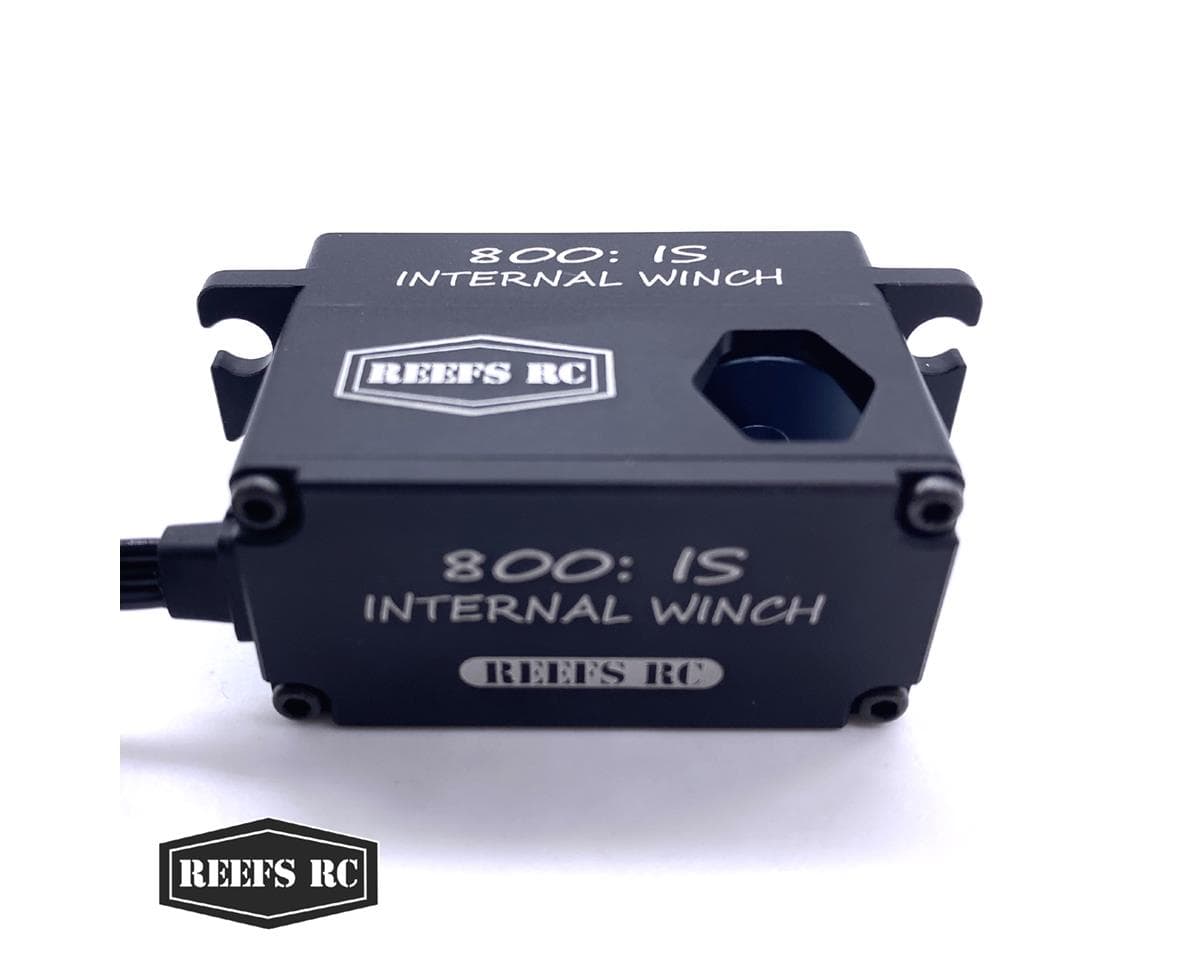

  • CNC Aluminum Casing
  • BEC Not Required
Specifications:
Voltage: 4.8V - 8.4V
Gears: Steel
Bearing Type: 3 Ball Bearings / Weight: 2.3oz

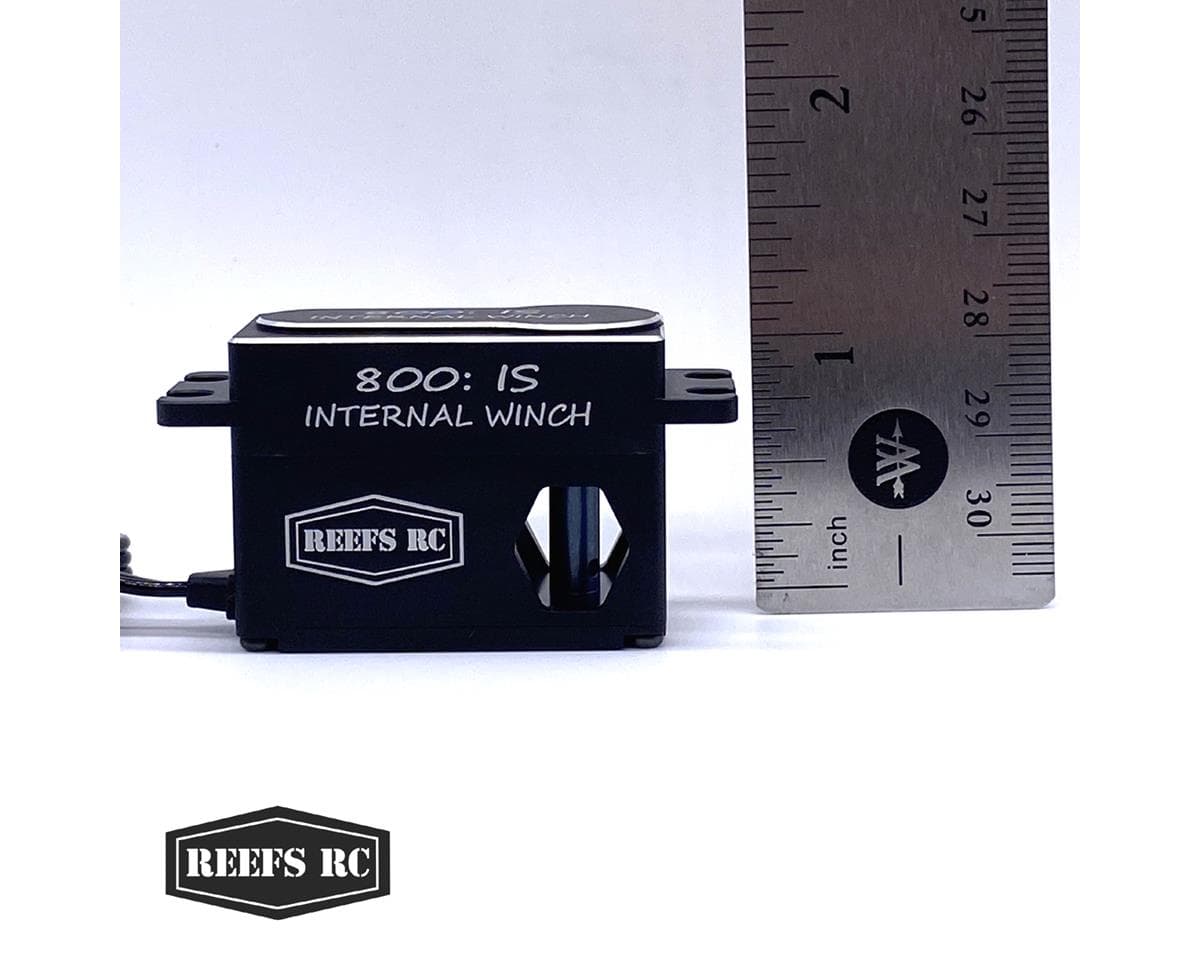

Dimension: 1.6 x .79 x 1.16 (LWH)
Torque: 800oz @ 6v/ 848oz @7.4v/ 960oz @8.4v
Speed: .08sec @6v/.07sec @7.4v/.06sec @8.4v
Dead Band Width: 2¦Ìs

Reviews5.0 · 9 reviews

Branon JohnsonVerified owneron Reefs RC 800:IS Internal Spool LowPro Brushless Servo Winch

Beautifull wench. Plug in and go. Put it on my 10ii. Great power

3 found this helpful
Tim LockeVerified owneron Reefs RC 800:IS Internal Spool LowPro Brushless Servo Winch

Lot's of torque and good speed. Not as fast as the 300:IS, but still a hella servo winch.

2 found this helpful
Anthony WoodruffVerified owneron Reefs RC 800:IS Internal Spool LowPro Brushless Servo Winch

Strong winch, the line is a little tricky to install but that is the nature of an internal winch. Once it was in this little winch will pull anything R/C. Saving my trailmates from rollovers is now my specialty.

2 found this helpful
Mike DanielsVerified owneron Reefs RC 800:IS Internal Spool LowPro Brushless Servo Winch

The servo winch is amazing. I have it in my 18lb trx6 and hooked the winch line to a computer chair with my dad sitting in it and winched him to the truck. He weighs 190lbs. So if you’re questioning the strength, computer chairs don’t roll too well with someone sitting in them and this did it. Bought a second one for my vanquish Phoenix build and would highly recommend buying one for your rig

1 found this helpful
Roy TownsendVerified owneron Reefs RC 800:IS Internal Spool LowPro Brushless Servo Winch

I installed this on my vanquish phoenix, it's way over kill but works amazing. I have the rc4wd 8274 winch and it's a beast but this is by far the better of the two. I use a radiolink rg6v2 which has two 3 channel switches. One of them controls this winch and its awesome

1 found this helpful
What reviewers say

All nine reviews are five-star ratings from verified owners of the Reefs RC 800:IS internal spool LowPro brushless servo winch. Reviewers consistently praise its strength and torque, with one noting it pulled a seated adult and another that a 7 lb cat climbed a vertical test, though it bogged down slightly. Reviewers describe it as easy to set up and fit to several platforms, including a TRX-6, Vanquish Phoenix, VS410 Origin and SCX10 Pro. One reviewer found it slower than the IS300 model. The line installation was described as somewhat tricky, a point that is attributed to the internal spool design. Several reviews are brief and do not mention specific drawbacks.

  • + Strong torque and pulling power
  • + Plug-and-play installation
  • + Fits multiple platforms
  • + Good speed for its class
  • − Line installation is somewhat tricky
  • − Slower than the IS300 model
  • − Bogs down under heavy load
Summary generated from the reviews above.
