Reefs RC 99micro High Torque Metal Gear Digital Micro Servo (HV) (Brass Edition) (36g)
About this part
Servo Overview:

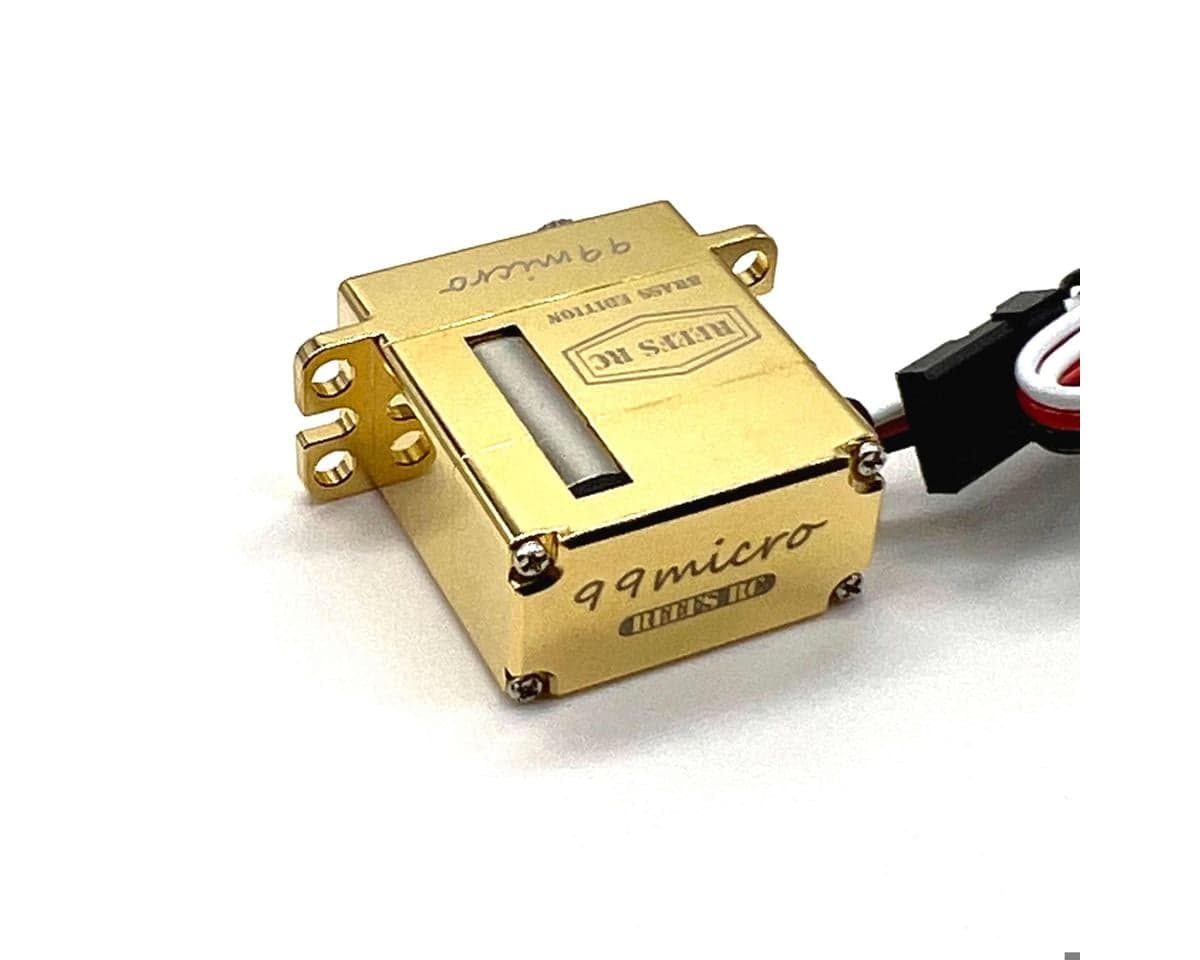

This is the Reefs RC Brass 99micro High Torque Digital Micro High Voltage Servo. Built on the beloved 99micro with an all CNC-machined water-resistant brass casing. Features a CNC-machined heavy brass case that provides excellent heat dissipation and adds 36g of total unsprung weight for axle mounted servo applications, a high-efficiency digital coreless motor with all metal gears that ensure supreme durability against the harshest conditions! Designed and specified to suit and feed the demand for water-resistant, high-torque, brass cased micro servos in the micro crawling scene! Get the 99micro Brass edition to elevate your micro crawler performance and experience the mighty power of this micro servo!
Features
- The ultimate upgrade for micro 1/24 and 1/18 rock crawlers
- Rubber sealed water-resistant design!
- Built on the beloved 99micro with an all CNC-machined brass casing
- Capable of putting out 115oz of torque @ 8.4V
- Capable of High Voltage (HV) operation
- Adds 36g of total unsprung weight for axle-mounted servo applications
- All metal gears
Specifications:
- Speed:
- @6.0V: 0.11sec/60°
- @7.4V: 0.09sec/60°
- @8.4V: 0.08sec/60°
- Torque:
- @6.0V: 89oz-in (6.40kg-cm)
- @7.4V: 99oz-in (7.13kg-cm)
- @8.4V: 115oz-in (8.28kg-cm)
- Motor: Digital Coreless
- Operating Voltage: 6.0V-8.4V

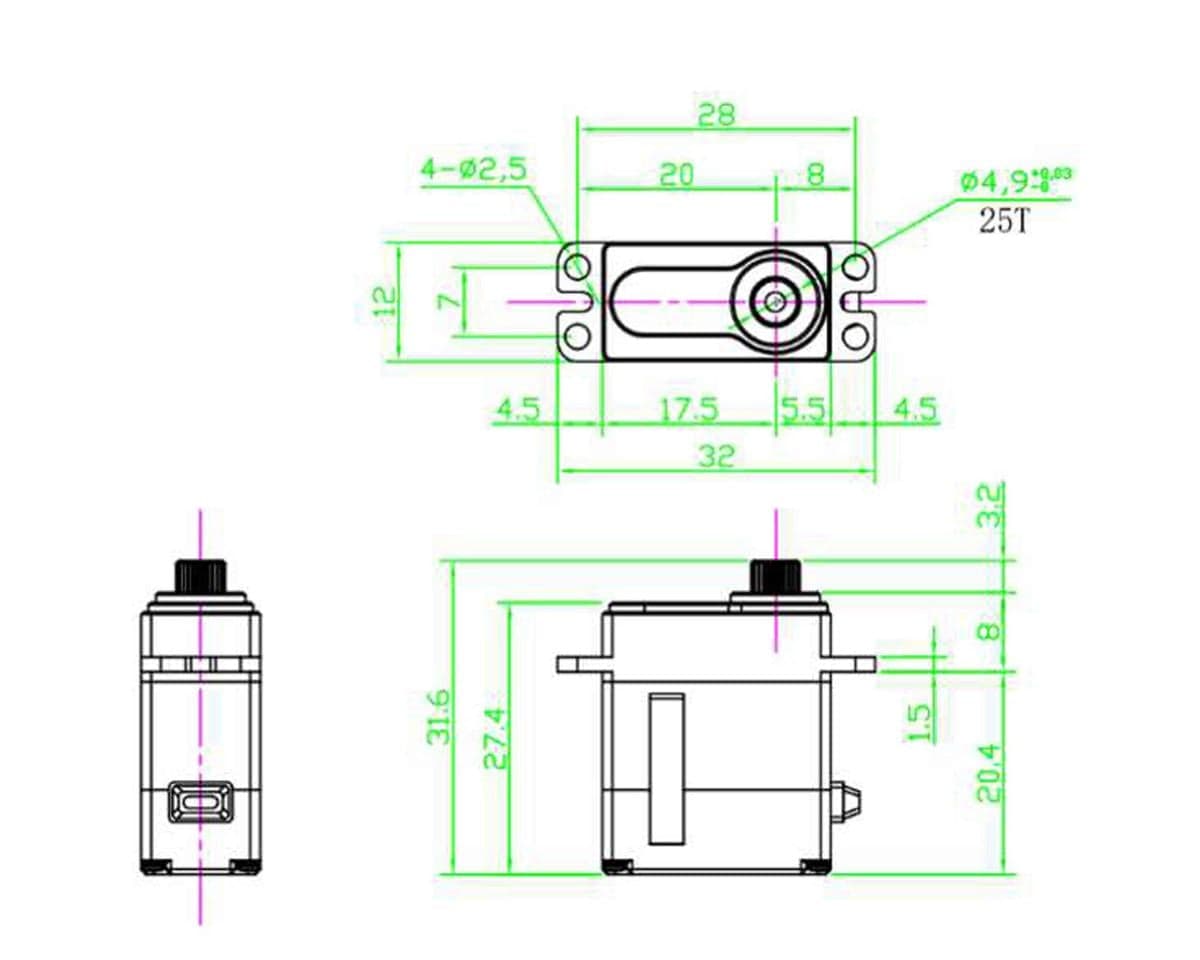

- Dimensions(LxWxH): 0.90"x.47"x1.08" (27.4x22.8x11.9mm)
- Weight: 1.27oz (36g)
- Operating Spline: 25T
Includes:

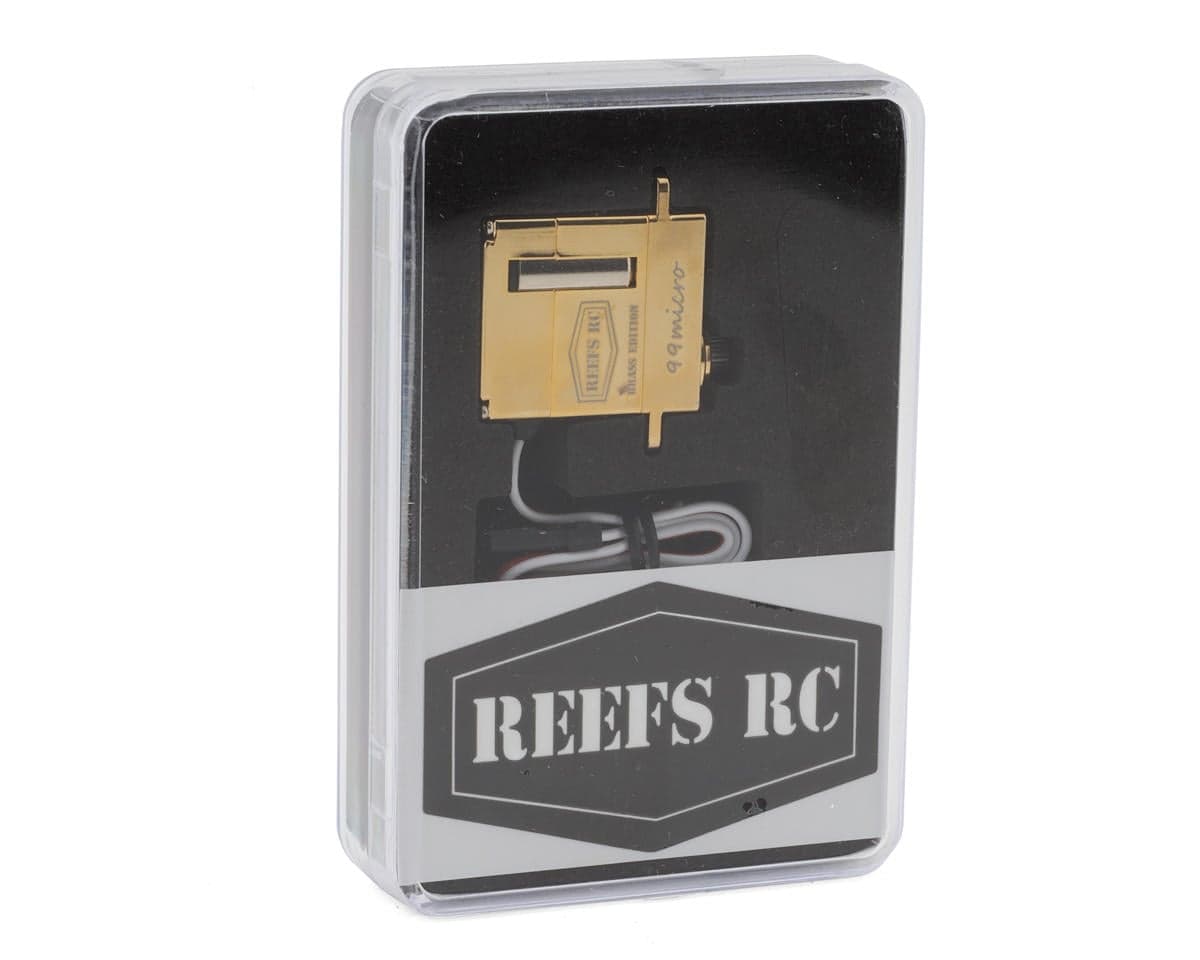

- (1) Brass 99micro High Torque Metal Gear Digital Micro Servo

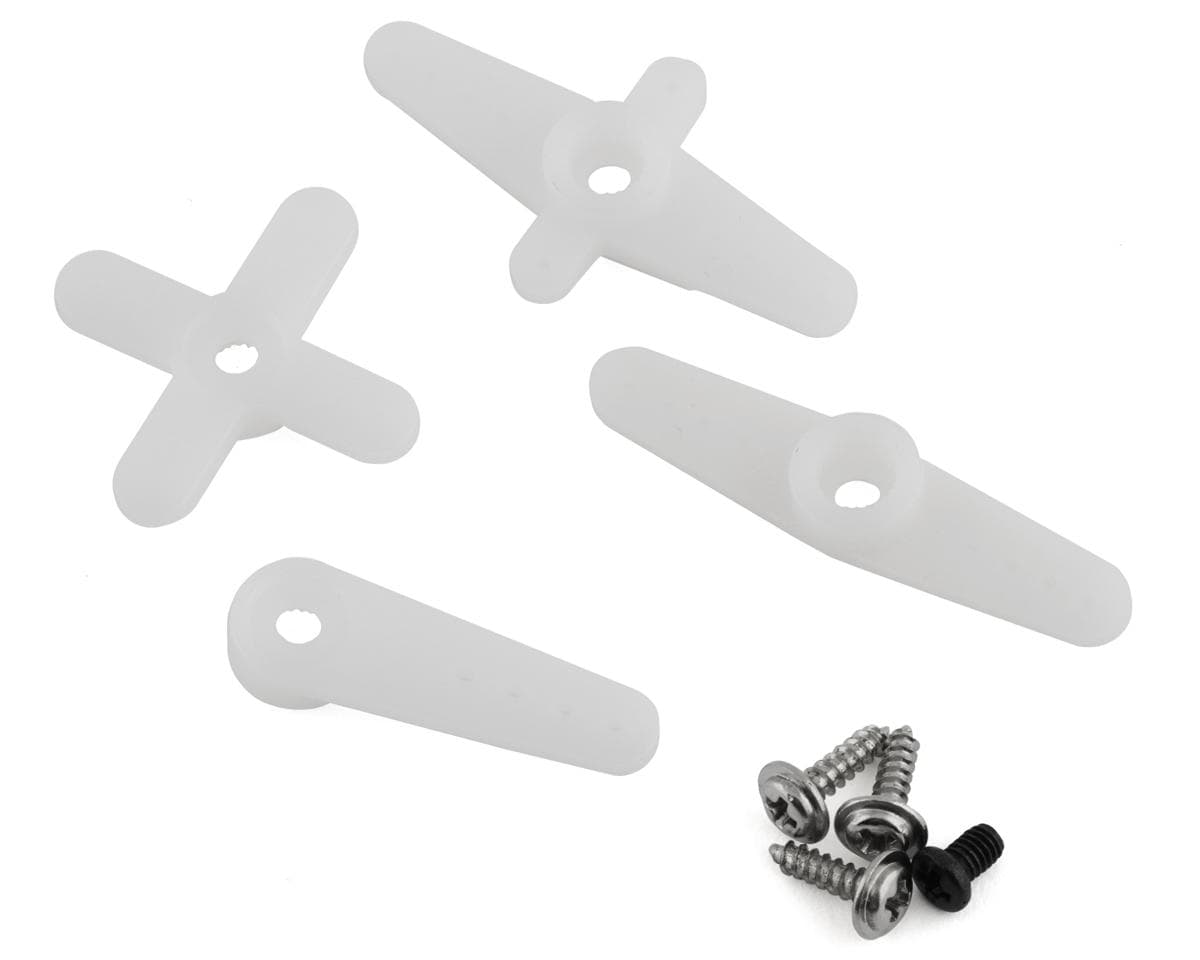

- Servo Horns and Mounting Hardware
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.0 · 2 reviews
Great servo lots of power to move the heavy micro wheels I have.
When you spend over $100 with taxes and shipping for a servo for a mini crawler the product had better come with a matching servo horn. WTF Reefs? Going back to NSDRC servos!!!!!
