Name: Reefs RC Beast 1000 1/5 Servo Winch w/Winch Spool Kit
Brand: Reefs RC
SKU: SEHREEFS116
Price: 299.99 USD

Reefs RC Beast 1000 1/5 Servo Winch w/Winch Spool Kit

AMain Hobbies

<div><span style="font-size: 12px;">Reefs Beast 1000 1/5 Servo Winch.&nbsp;&nbsp;</span>
</div>
<div><span style="font-size: 12px;">
  <br></span>
</div>
<div><span style="font-size: 12px;"><strong>Features:</strong></span>
</div>
<div>
  <ul>
    <li><span style="font-size: 12px;">High Torque High Speed Brushless Servo Winch</span></li>
    <li><span style="font-size: 12px;">Magnetic Angle Sensor</span></li>
    <li><span style="font-size: 12px;">Pulse Width Modulation Control</span></li>
    <li><span style="font-size: 12px;">BEC Not Req. Recommended for max performance</span></li>

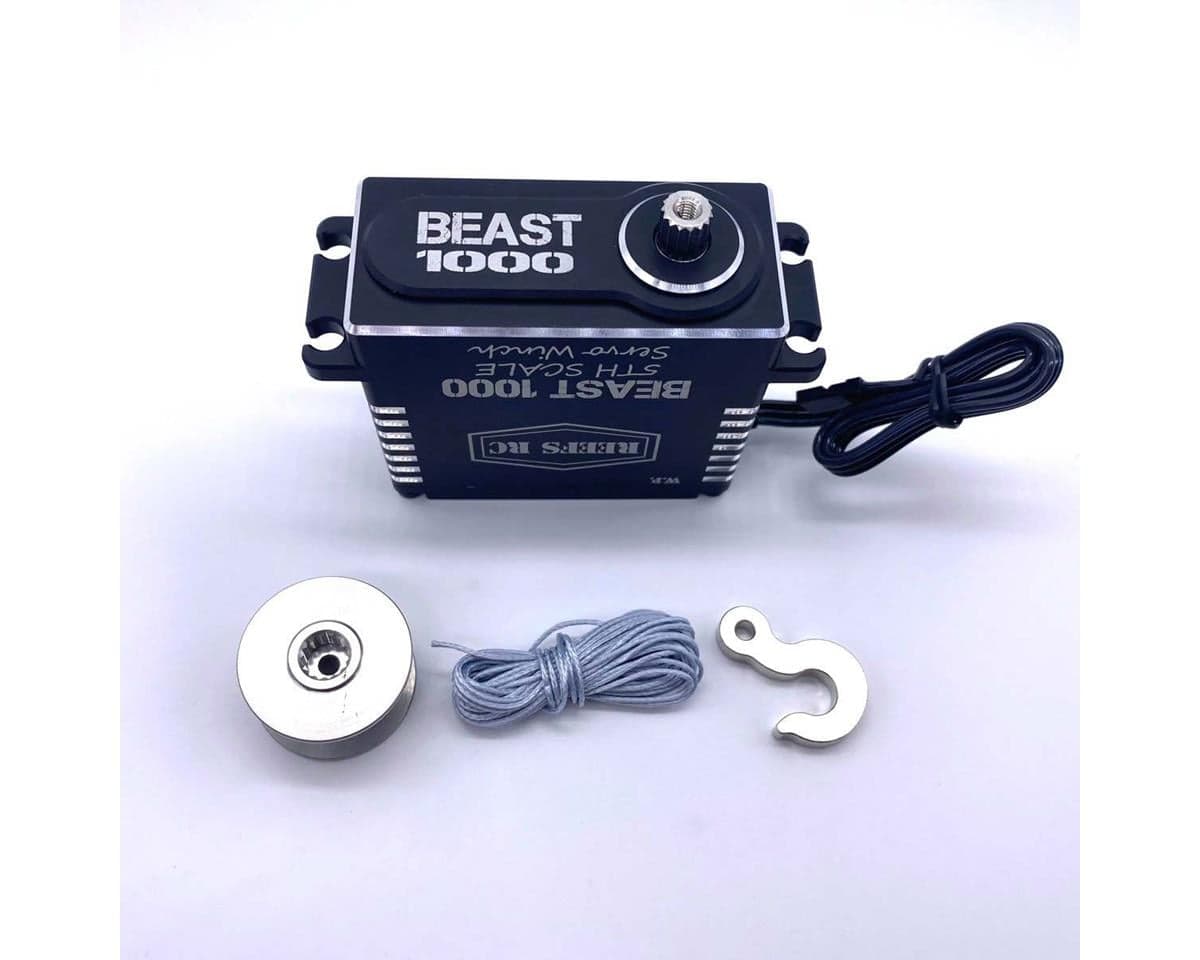

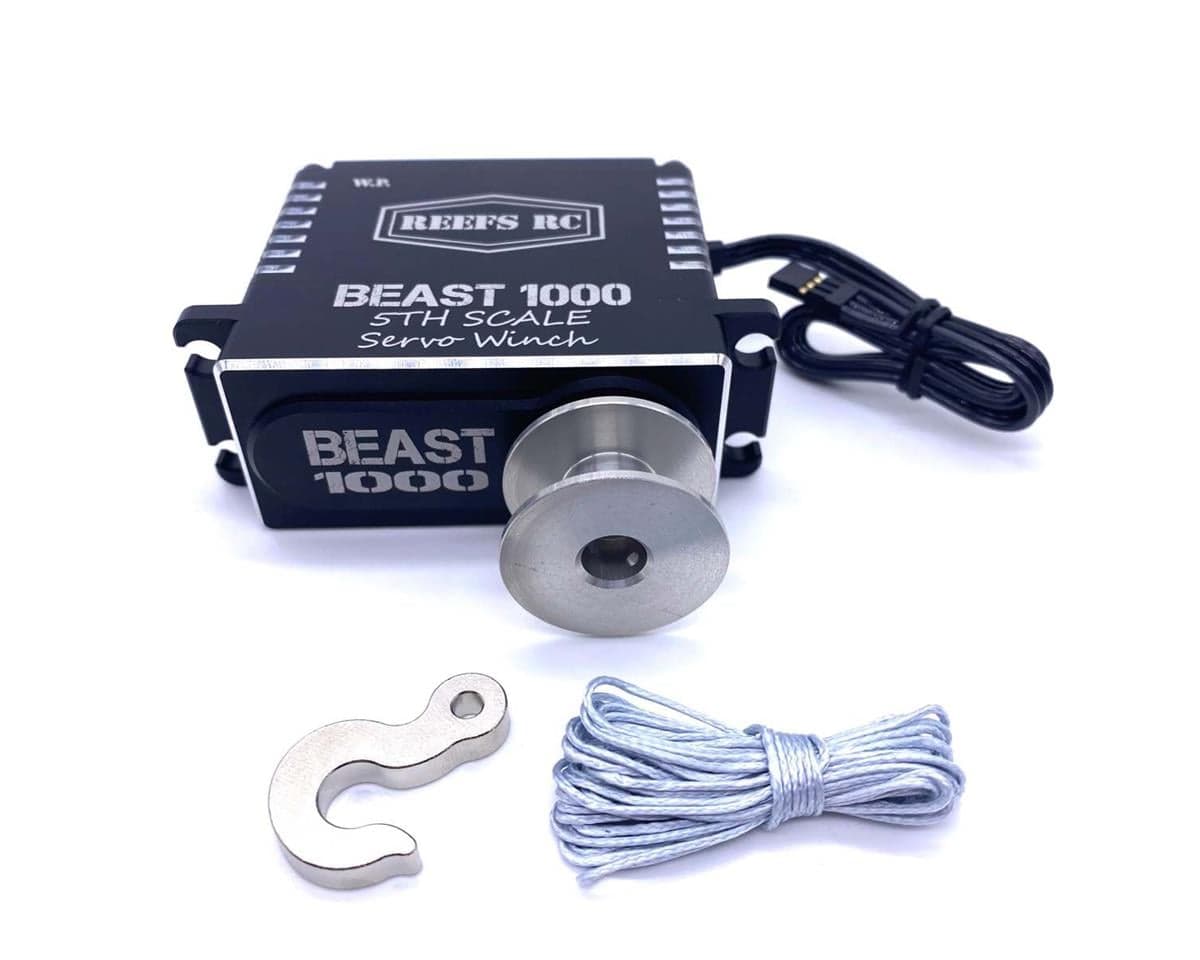

    <li><span style="font-size: 12px;">Includes spool, synthetic winch line and 1/5 scale hook</span></li>
  </ul>
</div>
<div><span style="font-size: 12px;"><strong>Specifications:</strong></span>
</div>
<div><span style="font-size: 12px;"><strong>SUBMARINE WATERPROOF: </strong>7 Point Seals&nbsp;</span>
</div>
<div><span style="font-size: 12px;"><strong>Voltage: </strong><span>4.8V </span>- 8.4V</span>
</div>
<div><span style="font-size: 12px;"><strong>Mechanical Angle: </strong>No Limit</span>
</div>
<div><span style="font-size: 12px;"><strong>Internal: </strong>Steel Gears / All CNC Aluminum Casing</span>
</div>
<div><span style="font-size: 12px;"><strong>Bearing Type: </strong>5 Ball Bearings /&nbsp;</span>
</div>
<div><span style="font-size: 12px;"><strong>Wires: </strong>22AWG</span>
</div>
<div><span style="font-size: 12px;"><strong>Weight: </strong>10oz / 285g</span>
</div>
<div><span style="font-size: 12px;"><strong>Dimension: </strong>2.59 x 1.18 x 2.32 (LWH)</span>
</div>
<div><span style="font-size: 12px;"><strong>Torque: </strong>800oz @ 6v/ 900oz @7.4v/ 1080oz @8.4v</span>
</div>
<div><span style="font-size: 12px;"><strong>Speed: </strong>.11sec @6v/.095sec @7.4v/.08sec @8.4v</span>
</div>
<div><span style="font-size: 12px;"><strong>Spline: </strong>15T
  <br><strong>Dead Band Width: </strong>2uSec</span>
</div>

Reefs Beast 1000 1/5 Servo Winch.&nbsp;&nbsp; Features: High Torque High Speed Brushless Servo Winch Magnetic Angle Sensor Pulse Width Modulation Control BEC Not Req. Recommended for max performance Includes spool, synthetic winch line and 1/5 scale hook Specifications: SUBMARINE WATERPROOF: 7 Point Seals&nbsp; Voltage: 4.8V - 8.4V Mechanical Angle: No Limit Internal: Steel Gears / All CNC Aluminum Casing Bearing Type: 5 Ball Bearings /&nbsp; Wires: 22AWG Weight: 10oz / 285g Dimension: 2.59 x 1.18 x 2.32 (LWH) Torque: 800oz @ 6v/ 900oz @7.4v/ 1080oz @8.4v Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v Spline: 15T Dead Band Width: 2uSec
