About this part

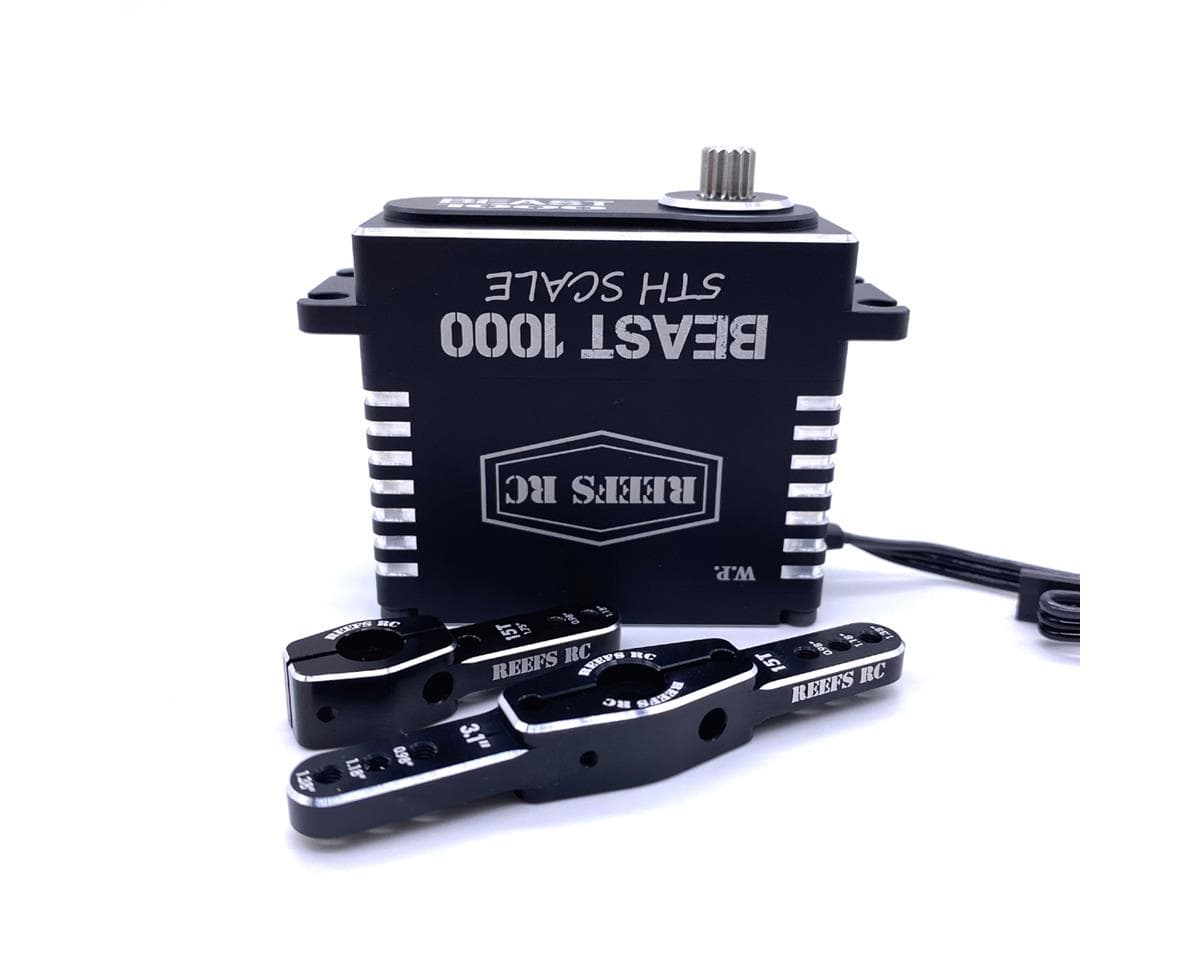

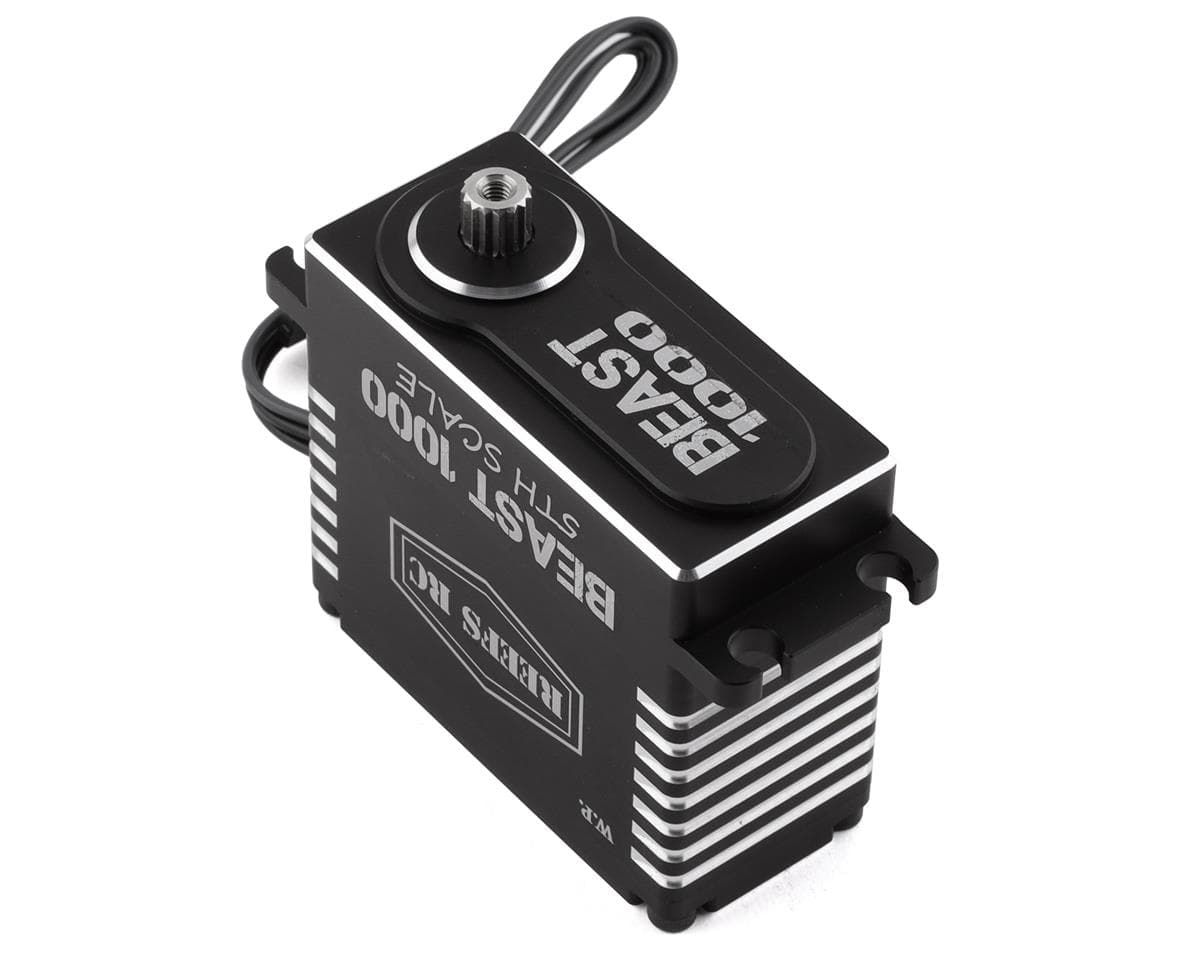

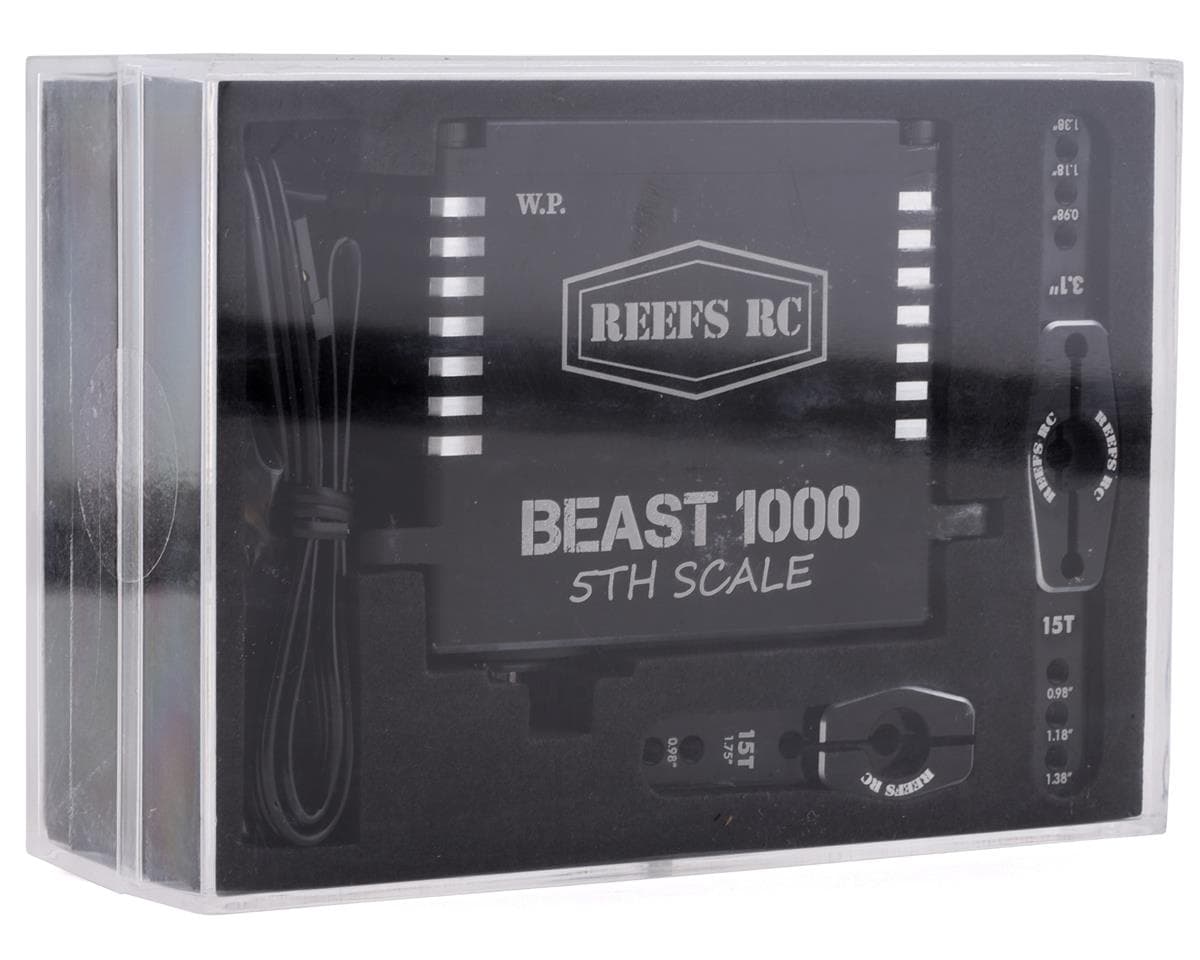

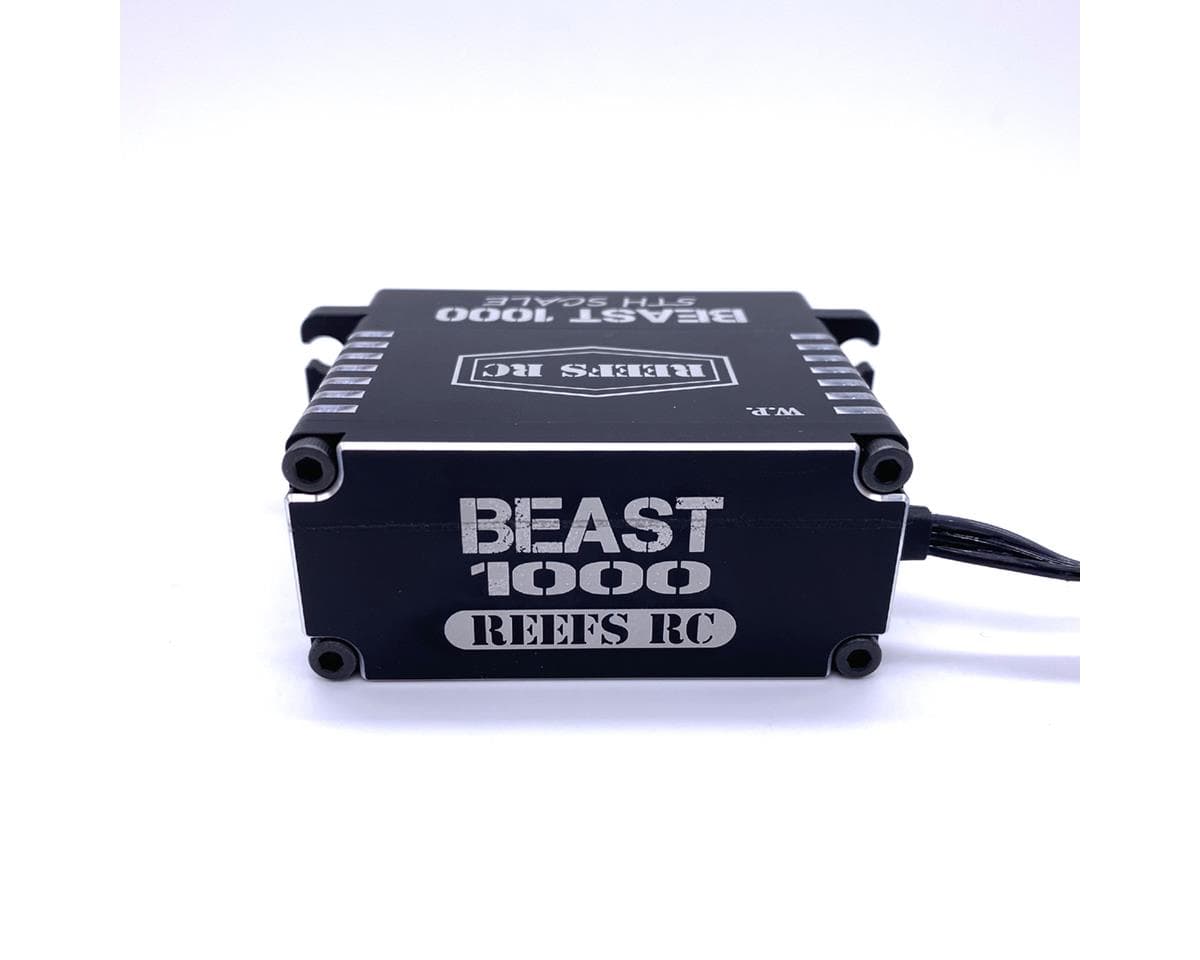

Reefs Beast 1000 Waterproof Digital 1/5 Scale Brushless Servo. This monster 1/5 scale servo is capable of up to 1080oz-in. at 8.4V and 0.08/60° sec. Package includes one servo, two servo horns and hardware.
NOTE: BEC is not required but recommended for maximum performance.
Features:
- High torque high speed brushless servo
- Magnetic angle sensor
- Waterproof
- Pulse width modulation control

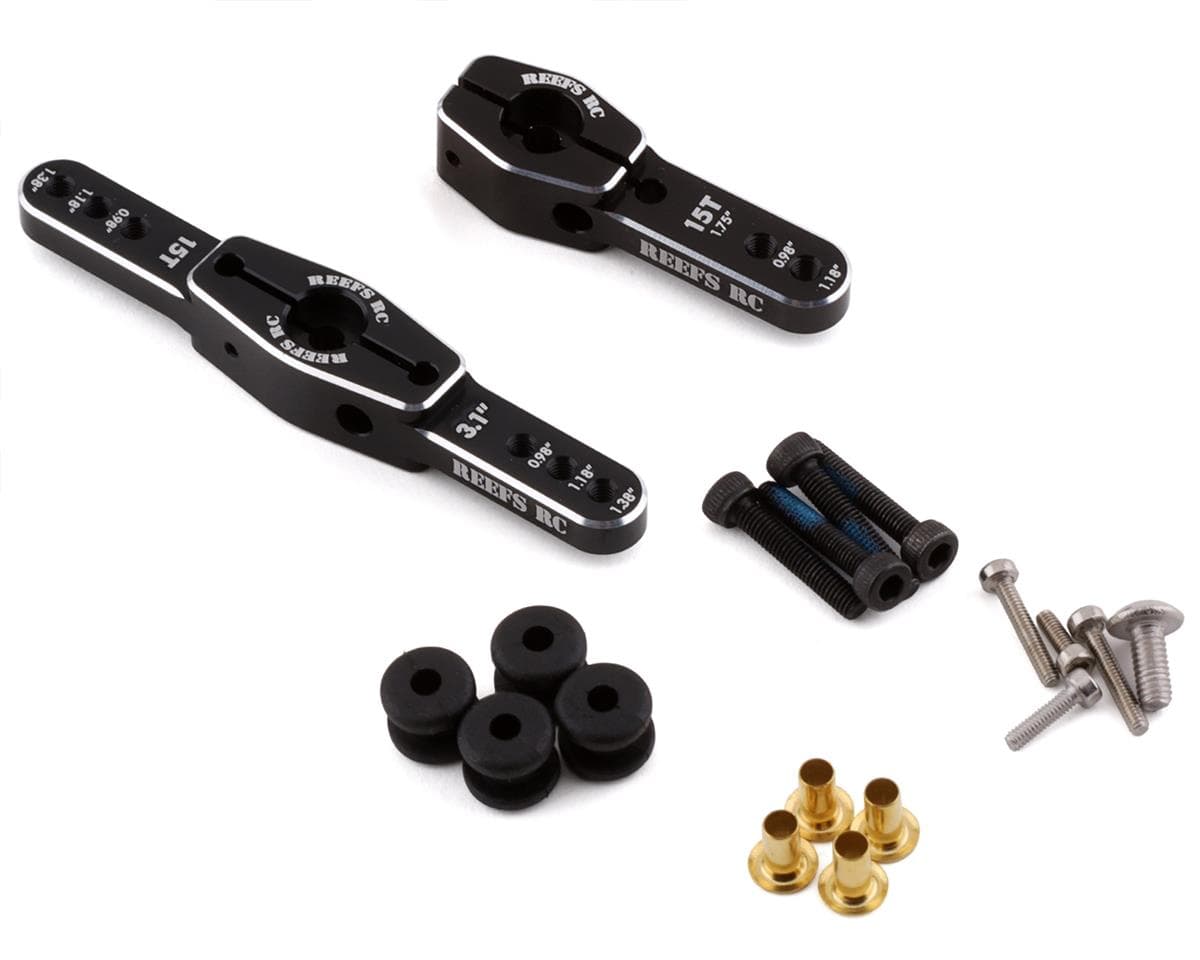

- Includes Reefs single and double servo horn
- Voltage: 4.8-8.4V
- Waterproofing: 7 Point Seal
- Mechanical Angle: No Limit
- Material: Steel Gears/CNC Aluminum Casing
- Bearing Type: 5 Ball Bearing
- Wires: 22AWG
- Weight: 10oz (285g)
- Dimension: 2.59x1.18x2.32in (LxWxH)
- Torque:
- 6V: 800oz-in
- 7.4V: 900oz-in
- 8.4V: 1080oz-in
- Speed:
- 6V: 0.11/60° sec
- 7.4V: 0.095/60° sec
- 8.4V: 0.08/60° sec
- Spline: 15T
- Dead Band Width: 2uSec
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.7 · 3 reviews
Great servo, perfect for the SCX6 steering. Easy to install and plenty of torque.
Great servo that’s just like (same specs as) ones that look similar and are $100+ cheaper. So, I’m thinking one place just white labels these for everyone. That said, this servo is a powerhouse and works really well so far. I’ve just installed it and it’s truly the beast it’s branded as.
I purchased for my Scx6 Honcho. I also purchased a Castle BEC to go with it so I can use 8v to power it. Its got lots of power and torque. THere is just no comparison between this servo and the stock SCX6 servo. I got the 1000 over the 2000 because IMHO I thought the 2000 was just overkill for the SCX6. Plus it is cheaper than the 2000. I have lots of runs on it now, (too many to count) and the 1000 is still as strong as the day I bought it.
Three verified owners rate the Reefs RC Beast 1000 High Voltage servo 4 to 5 out of 5. Reviewers report strong torque and power, easy installation, and good durability over many runs, with one describing it as suitable for an SCX6 steering setup. One owner pairs it with a BEC to run at 8V and says it is still as strong after extensive use. One reviewer suggests the design resembles lower-priced servos with identical specifications, though this is an opinion rather than a verified claim. No recurring problems are reported. The reviews are few in number and mostly short.
- + Strong torque and power
- + Easy to install
- + Durable after many runs
- + Suitable for SCX6 steering
- − Resembles cheaper servos with same specs (one reviewer's opinion)
