About this part

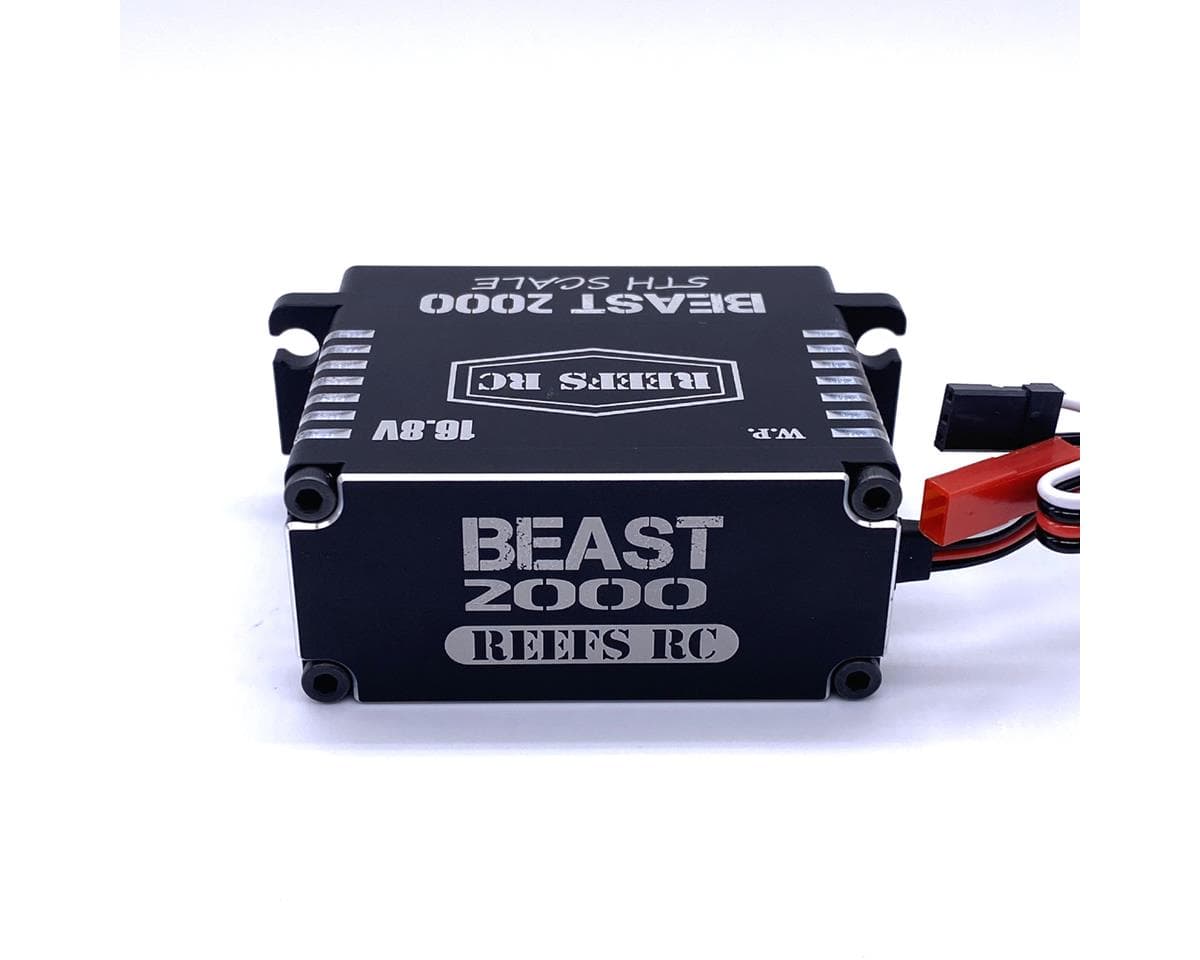

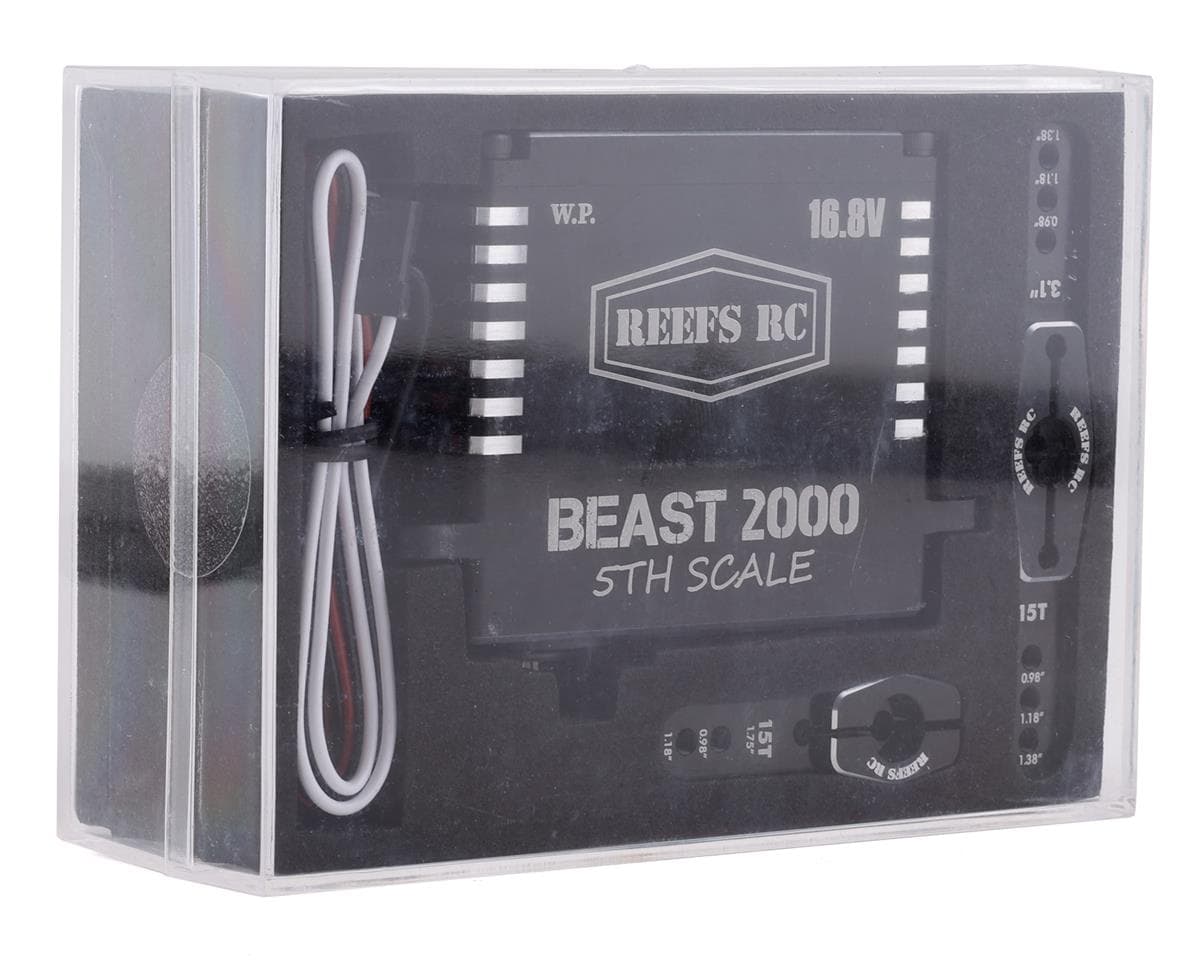

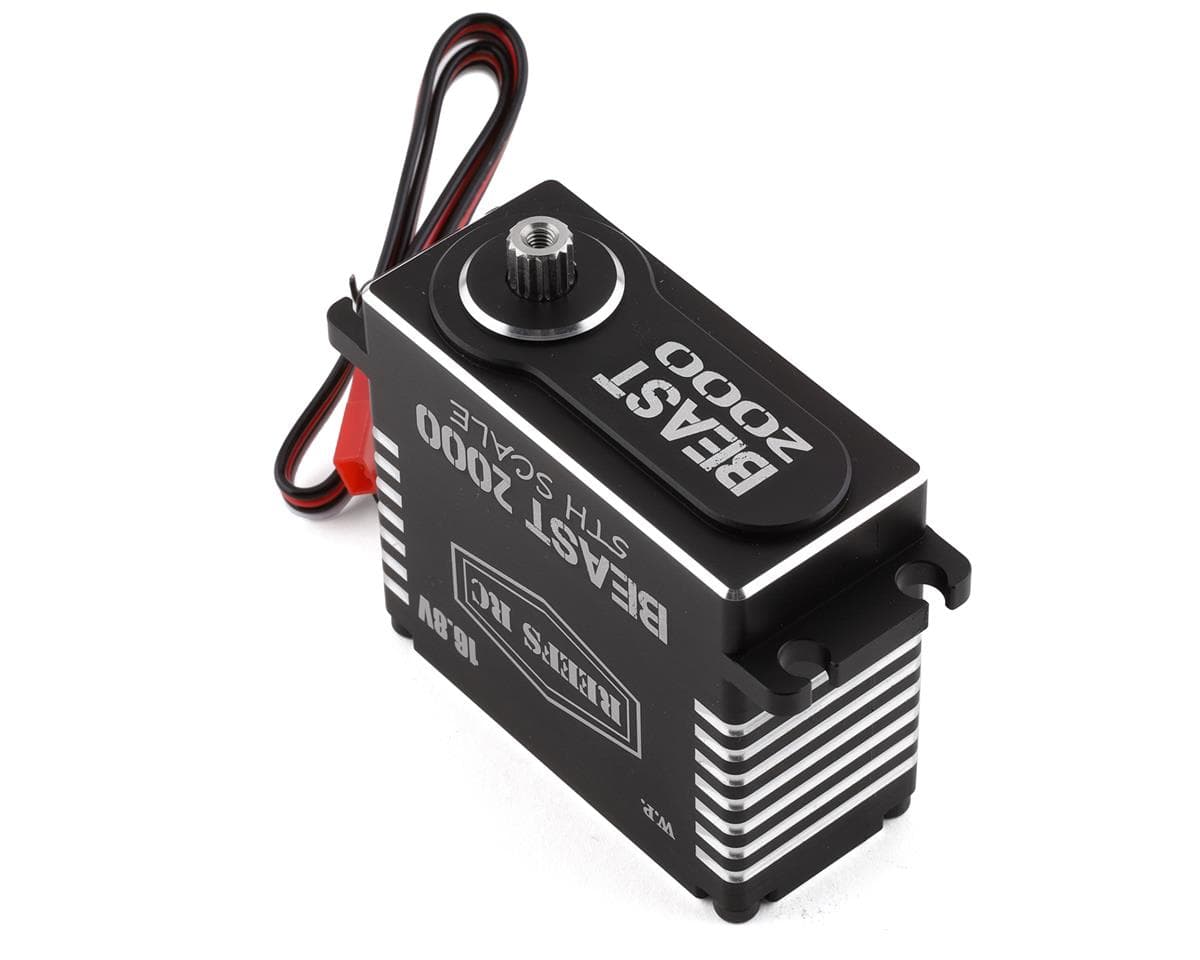

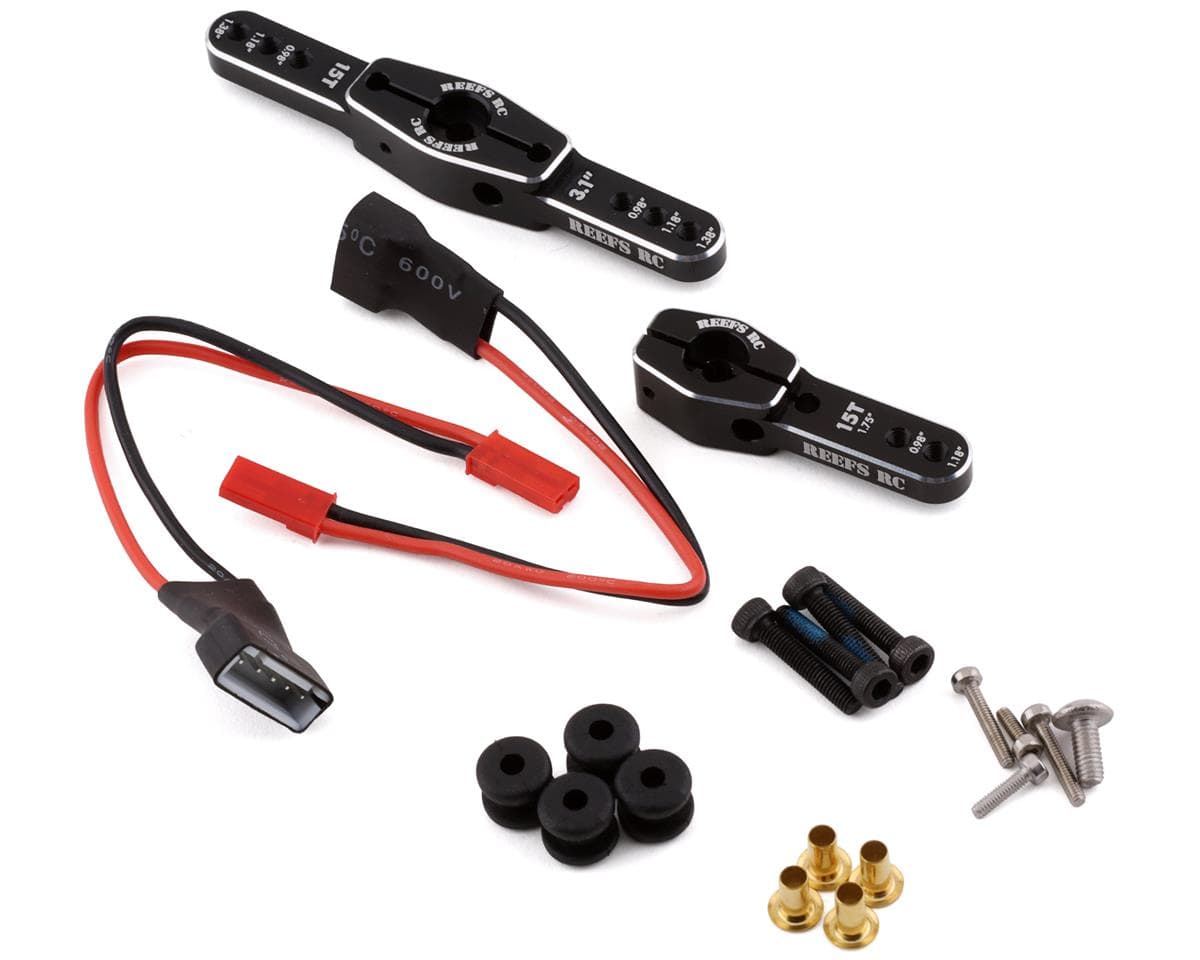

Reefs RC Beast 2000 Waterproof Digital 1/5 Scale Brushless Servo. This monster 1/5 scale servo is capable of up to 2000oz-in. at 16.8V and 0.09/60° sec! To connect this servo there is a standard servo connector with a ground and signal wire and a JST connector for main power and ground. Two power adapters are included to connect the JST connector to the balance lead of either a 3S or 4S battery. Package includes one servo, two power adapters, two servo horns and hardware.
Features:
- High torque and high speed brushless servo
- Magnetic angle sensor
- Waterproof
- 16.8V capable
- Pulse width modulation control
- Includes Reefs single and double servo horn
- Voltage: 7.4-16.8V
- Waterproofing: 7 Point Seal
- Mechanical Angle: No Limit
- Material: Steel Gears/CNC Aluminum Casing
- Bearing Type: 5 Ball Bearing
- Wires: 22AWG
- Weight: 10oz (285g)
- Dimension: 2.59x1.18x2.32in (LxWxH)
- Torque:
- 10V: 1000oz-in
- 11.1V: 1250oz-in
- 12V: 1450oz-in
- 16.8V: 2000oz-in
- Speed:
- 10V: 0.10/60° sec
- 11.1V: 0.11/60° sec
- 12V: 0.10/60° sec
- 14.4V: 0.09/60° sec
- 16V: 0.08/60° sec
- Spline: 15T
- Dead Band Width: 2uSec
Reviews4.0 · 4 reviews
Fantastic Torque, amazing speed. Running in very heavy SCX6 off a 4s drone battery and it makes those wheels move like a fast 10th scale rig. just crazy. Using heavily for about a year and zero issues, well besides having to grab some vitavon links since anything with plastic ends just get ovaled and loose after a bit hah! Great investment in a 5th scale!
I honestly haven't used them enough yet ,but they are an expensive investment so far the servo works great and if it holds up the price is worth it.
Absolutely Worthless... This is the third servo Ive tried for my Kraton 8S ..All failed. I bought this thinking maybe this will be it.. Sadly NO. Dont waste money on this Glorified Peice of Crap. Savox at 120$ is better , as both will not work while the car is stationary only when it is in motion. So no point in spending 440$
I had a fire at my house and lost a Scx6 with the beast 2000 and I got a vertex six now with beast 2000 in it makes it the best truck out there
Four verified owner reviews of the Reefs RC Beast 2000 Waterproof Digital 1/5 Scale Brushless Servo (High Voltage). Reviewers praise its torque and speed, with one owner reporting about a year of heavy use in an SCX6 on a 4S battery without issues. One reviewer noted that plastic-ended linkages wore out and had to be replaced. Another, who has used the servo only briefly, said it works well so far but has not yet been tested long-term. A single one-star review reports failure in a Kraton 8S, stating the servo did not work while the vehicle was stationary, and recommends a different brand. A fourth reviewer reports using it in a Vertex Six. The sample is small and the reviews conflict, so long-term reliability remains unclear.
- + Strong torque
- + High speed
- + Reported long-term reliability in one heavy-use case
- − Plastic linkage ends wear out
- − Reported failure in a Kraton 8S
- − Servo reportedly not working when stationary
