Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage) (Black Edition)
About this part
Servo Overview:
This is the Reefs RC RAW500 High Torque and Speed Digital Brushless Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its high torque output of 565oz-in (40.7kg-cm) at 8.4 Volts, lightning speed operation of 0.08sec/60° at 8.4 Volts, fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats!
Features:
- Powerful 4-Pole brushless motor
- "Submarine Waterproof" with 7-point seals
- High voltage capable
- Magnetic angle sensor
- Internal steel gears
- CNC Aluminum casing with "ULTRA" finish
- Fully Programmable with REEFS Software
Specifications:
- Speed:
- @6.0V: 0.11sec/60°
- @7.4V: 0.09sec/60°
- @8.4V: 0.08sec/60°
- Torque:
- @6.0V: 450oz-in (32.4kg-cm)
- @7.4V: 500oz-in (36kg-cm)
- @8.4V: 565oz-in (40.7kg-cm)
- Motor: Brushless
- Operating Voltage: 5.0V-8.4V
- Dimensions(LxWxH): 1.57x.79x1.5in (39.87x20.06x38.1mm)
- Weight: 2.75oz (77.96g)
- Operating Spline: 25T
Includes:

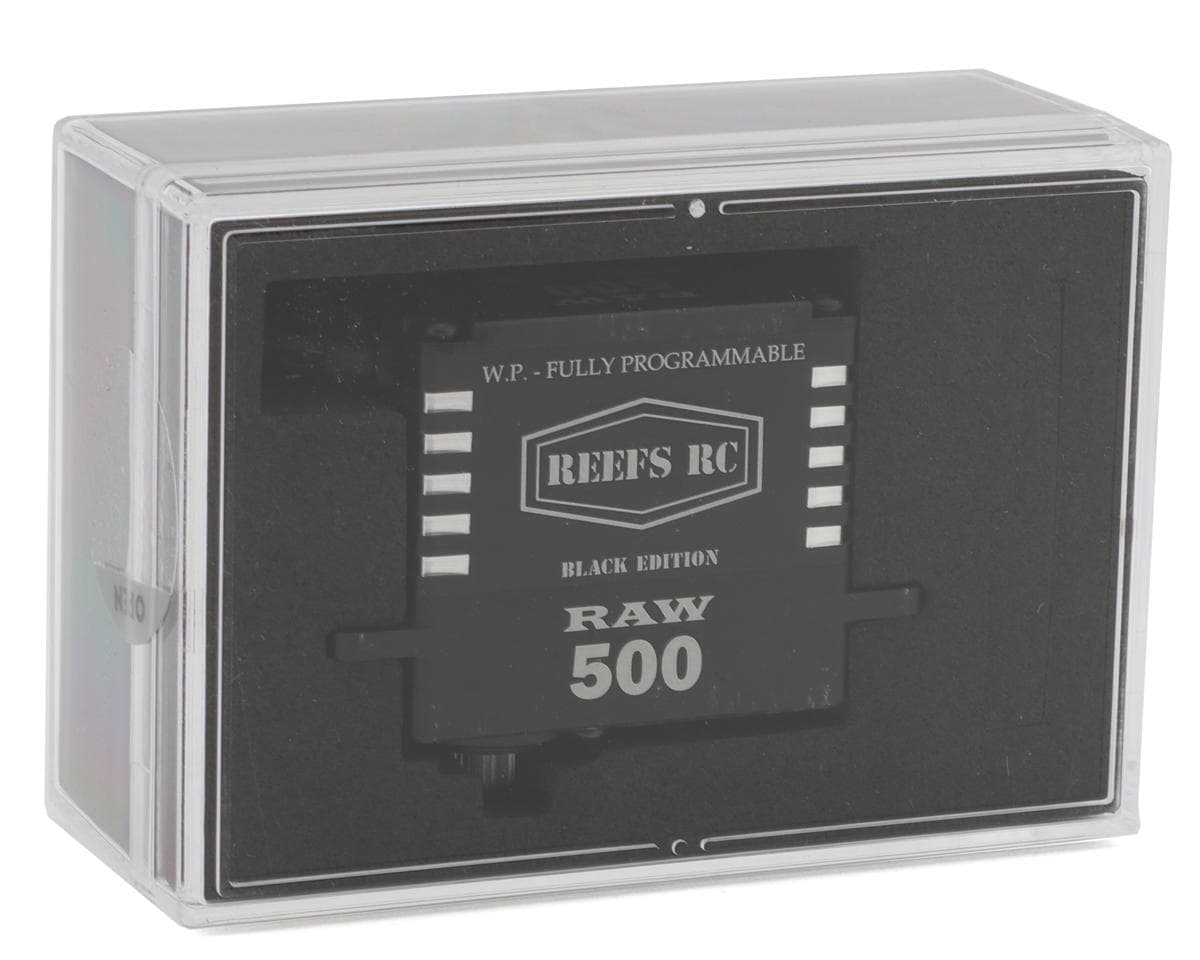

- (1) RAW500 Digital Waterproof Brushless Black Edition Servo

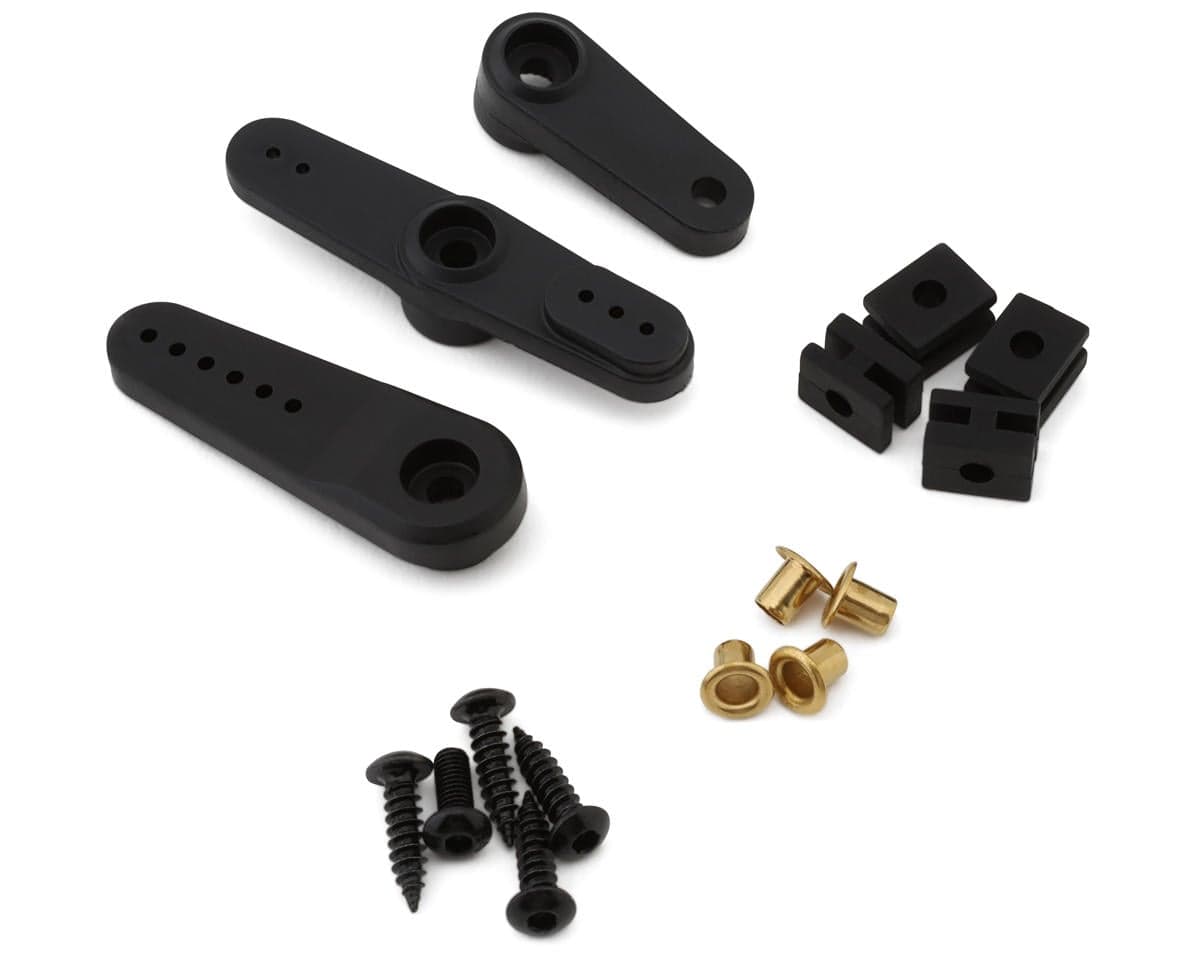

- Assorted Servo Horns and Mounting Hardware
Reviews5.0 · 13 reviews
What really is there to say, it's a Reefs and so it performs great and is well built. When used with their EZ BEC you can't ask for better easier plug n play servo upgrade.
It's awesome it's got good quick response and was easy to set up
I put this servo in my sledge and man o man am i extremely happy with it. This is def one of the best servos to use. Run it on 7.4V and it really wakes up. I went with the black one as i couldn’t justify paying more for the gold one but to each their own. This is a great option for any type of racing or bashing. Great Product!
Reefs has well-made servos with great performance. It should last a very long time. It will run at 8.4v, but I'm only running at 7.4. It just doesn't need a higher voltage than that really. It may help it last a little longer as well.
Great servo very strong and very quick! I have been switching to all my dirt oval cars!
All 13 reviews are five-star ratings from verified owners of the Black Edition of the Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage). Reviewers consistently describe it as fast, strong and well built, and report reliable use in crawlers, buggies, sledges, dirt oval cars and a Losi LMT. Several mention running it on 7.4V, with one noting it is rated for 8.4V but does not need it. One reviewer used it with heavy 2.2s where the stock servo failed, and another praised waterproofing and packaging. One reviewer suggested an aluminum horn as an optional extra. Reviews are uniformly positive, with no recurring problems reported, though most are short and the durability claims rest on limited run time.
- + Fast, quick steering response
- + Strong torque for heavy vehicles
- + Well built, high quality case
- + Reliable across multiple vehicle types
- − Suggested aluminum horn not included
- − Limited long-term durability data
