Parts/Radio & control/Servos/Reefs RC Raw 500HD High Torque/Speed Digital Servo (High Voltage)

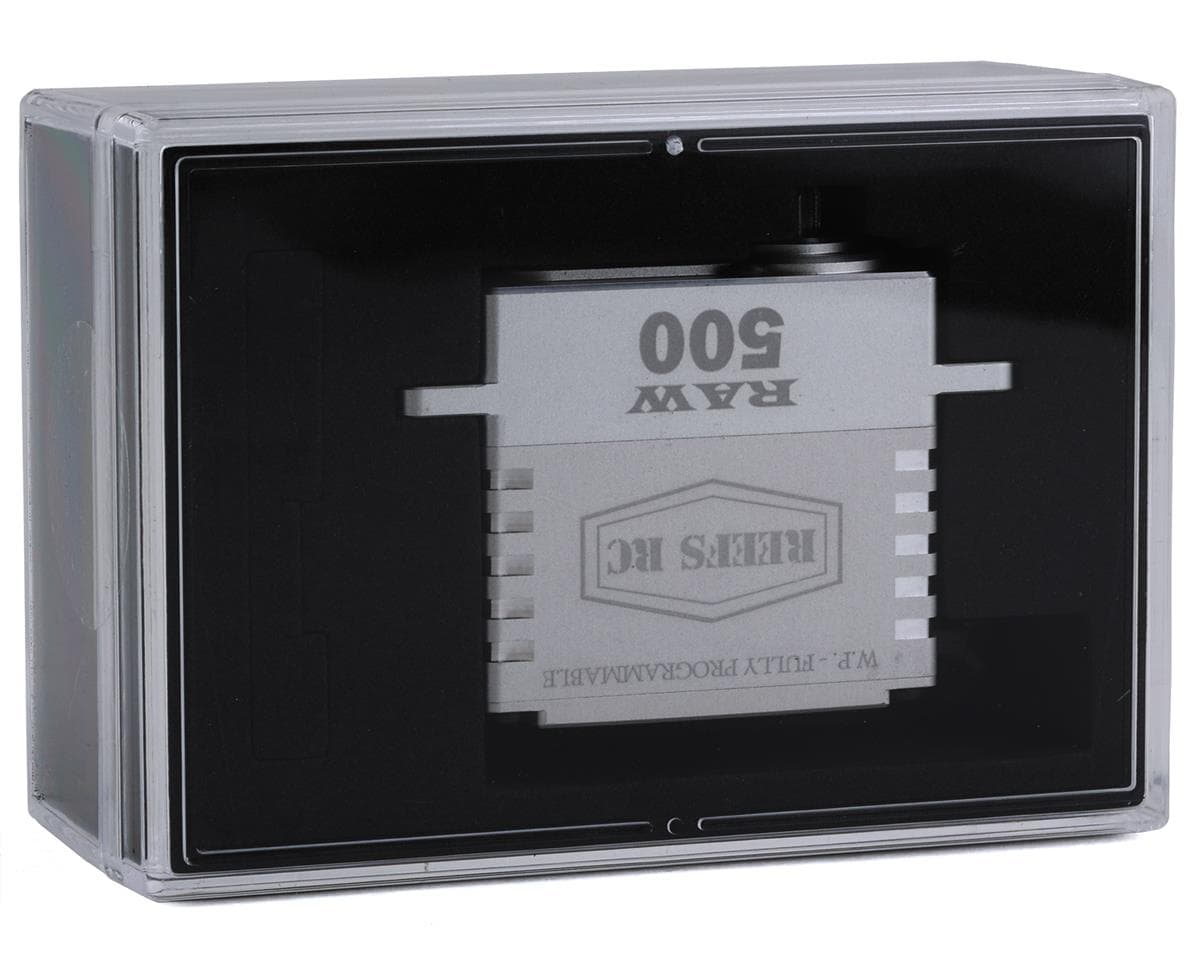

Reefs RC Raw 500HD High Torque/Speed Digital Servo (High Voltage)
Reefs RC

Reefs RC Raw 500HD High Torque/Speed Digital Servo (High Voltage)

Part # SEHREEFS544.8(40)
ServosAircraftLandcraftRotorcraftWatercraft
Fits
Axial SCX10
Where to buy
$139.99
AMain Hobbies
Seen Oct 12, 2026
$139.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

This is a Reefs RC Raw 500HD High Torque, Speed and Voltage Digital Servo, intended for use with applications requiring a waterproof servo. This servo features a seven point waterproof seal to ensure function no matter the conditions. The internals are steel gears, all inside a CNC raw aluminum casing with a clear oxidation.

Features:
  • Waterproof design
  • CNC Raw Aluminum
  • Programmable with the Reefs Link (SEHREEFS64 - Sold Separately)
  • Steel internal gears
  • BEC Not Required, Recommended
Specifications:
  • Internal: Steel Gears /CNC Aluminum Casing
  • Anodized Color: Raw
  • Bearing Type: 2BB
  • Weight: 2.75oz
  • Dimension: 1.57 x .79 x 1.5 (LWH)
  • Torque:
    • 6.0V: 450oz
    • 7.4V: 500oz
    • 8.4V: 565oz
  • Speed:
    • 6.0V: .11sec
    • 7.4V: .095sec
    • 8.4V: .08sec
  • Spline: 25T /Dead Band Width: 2¦Ìs
  • BEC: Not Required, Recommended

Reviews4.8 · 40 reviews

Thomas LVerified owneron Reefs RC Raw 500HD High Torque/Speed Digital Servo (High Voltage)

Got this for my TRX4. Great servo. Very fast and strong even at the stock 6.0v. Running it with stock receiver and hobbywing axe esc. So happy I can turn my wheels when I’m in a jam and get out of them now. The waterproof features sold me as I like to run mine in creeks often.

4 found this helpful
Jarred PellandVerified owneron Reefs RC Raw 500HD High Torque/Speed Digital Servo (High Voltage)

Excellent servo, running mine at 7.4v w/HW1080 no bec and it performs amazingly. Will buy another

4 found this helpful
Brian DollVerified owneron Reefs RC Raw 500HD High Torque/Speed Digital Servo (High Voltage)

Quiet , Beautiful, Strong & Fast. These are the reasons I keep going back to this Raw500 servo. Nothing else out there meets all those criteria. I have bought eight of them so far and will continue with them.

3 found this helpful
Kashi JonesVerified owneron Reefs RC Raw 500HD High Torque/Speed Digital Servo (High Voltage)

Really like this servo after trying a few brands. This one has mega power super solid, and responsive. Did i mention quiet.. not noisy at all and H2o proof. Getting 2 more no doubt.

2 found this helpful
El Patrón HernandezVerified owneron Reefs RC Raw 500HD High Torque/Speed Digital Servo (High Voltage)

Esta madre esta bien MERGAS! Jala con madres y rifa a lo pendejo. Súper GUAU! Chet men, Fadaworl! :)

2 found this helpful
What reviewers say

Reviewers broadly praise the Reefs RC Raw 500HD High Voltage servo for strong torque and fast response, with many running it at 6V to 8.4V across crawlers, buggies, short course trucks and other 1/10 platforms. Build quality, finish and quiet operation are frequently mentioned, and several reviewers describe buying multiple units. Reviewers also note the programmer and Reefs software as useful for adjusting centre point and power. The main disagreement concerns water resistance: one reviewer reports a unit failing after running through muddy puddles despite the submersible claim, and another reports failure after a few days of use, which the reseller stated would be covered under warranty. Some reviewers note the lead is short, and one notes the rotor rotates freely when powered off.

  • + Strong torque
  • + Fast response
  • + Quiet operation
  • + Build quality and finish
  • − Submersible claim disputed by a mud failure
  • − Short lead wire
  • − Early failure reported in one unit
Summary generated from the reviews above.
