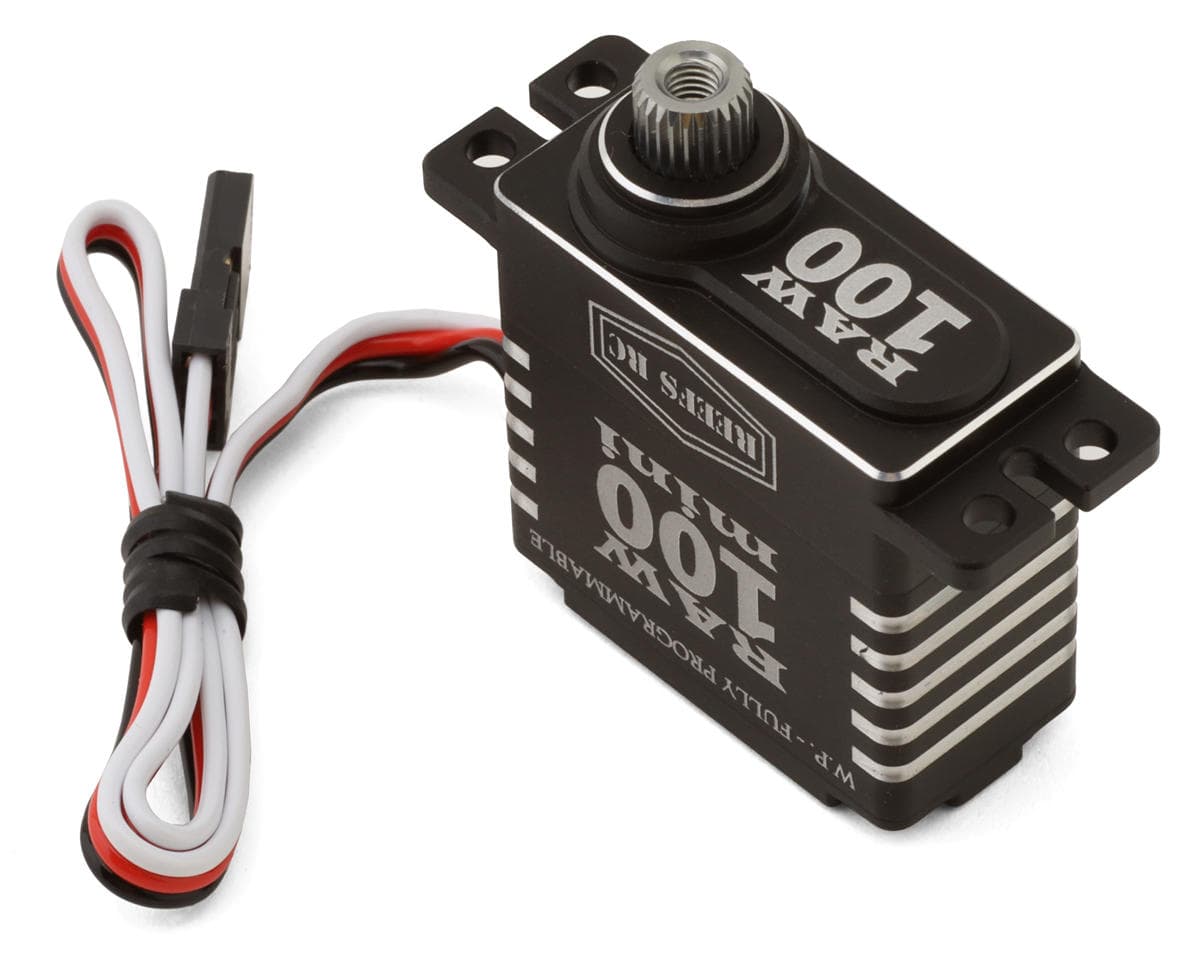

Reefs RC RAW100 Mini Digital Waterproof Servo (Black) (High Voltage)
About this part
The Reefs Servo Raw 100 Mini Digital Waterproof Servo is designed to deliver high torque in mini sizing. Using a coreless motor and programmable electronics this servo is able to produce up to 103oz-in at 8.4v! The full metal gear drive train and case allow for smooth operation.
Features:
- High Torque High Speed
- Mini Coreless Servo
- Waterproof Design
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Optional Reefs Link required for Programming
Specifications:
- Voltage: 6v-8.4v
- Dimension (LxWxH): 1.16x0.55x1.14" (29.5x14x29mm)
- Torque:
- 6.0V: 85oz
- 7.4V: 95oz
- 8.4V: 103oz
- Speed:
- 6.0V: .11sec
- 7.4V: .10sec
- 8.4V: .08sec
- Weight: 1.05oz (30g)
Reviews5.0 · 1 review
Great, fast servo, more speed and torque than I need. Programmability is awesome and is crazy durable. Be aware that this is a “medium size” servo and will not fit most standard applications. I bought this for my losi mini-b, and it is too large. It is too small for 1/10 rigs, too big for most 1/18 or 1/24 sized rigs. I’ve got 40-some RCs and it only fit in my traxxas 1/16 erevo vxl like a charm but none of my mini crawlers (trx4m/scx24) or mini-b, mini lmt, Grom etc. If you’re looking at this for any 1/10 or larger size RC, you will need the reefs adapter plate. That said, it has enough power, speed and torque to handle larger rigs despite its small size
