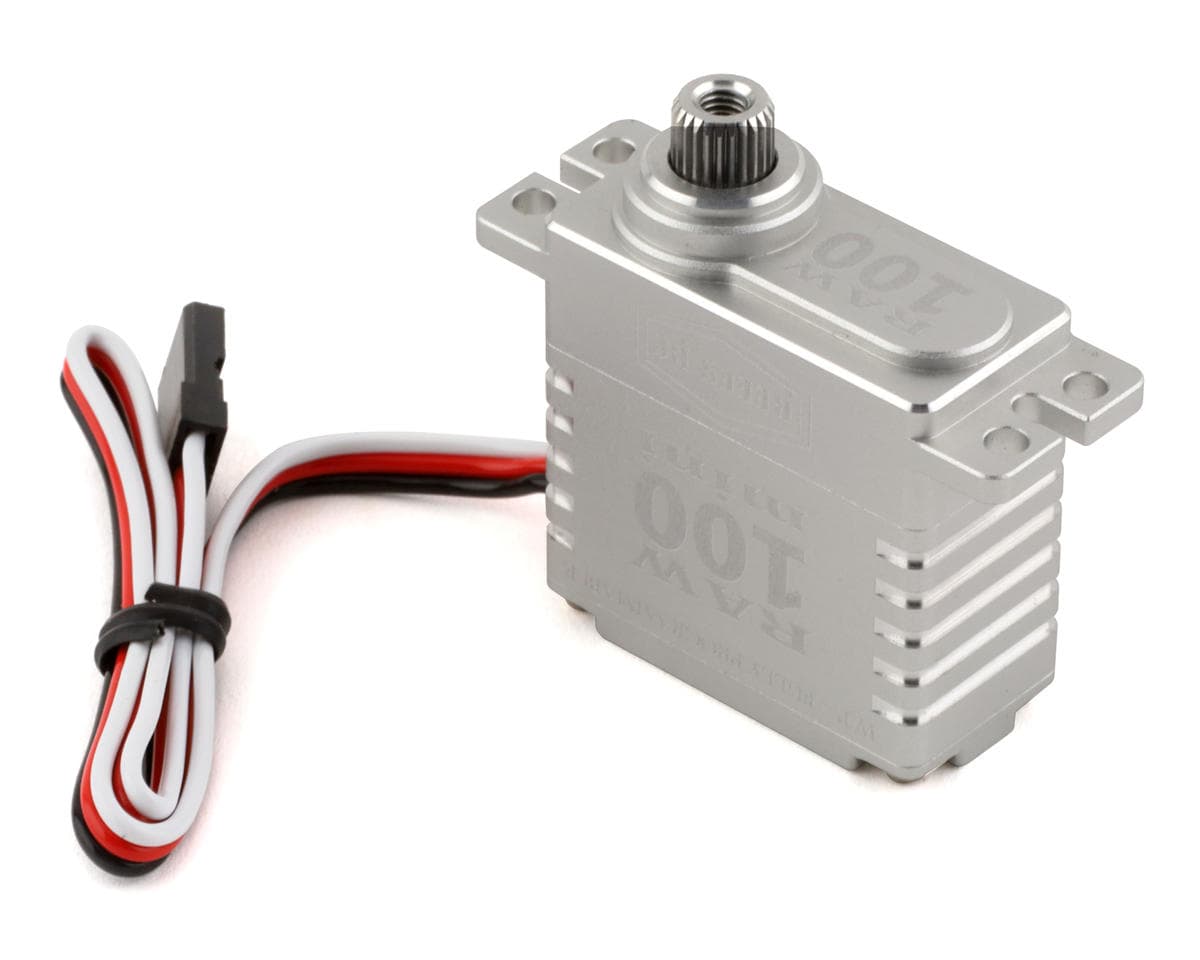

Name: Reefs RC RAW100 Mini Digital Waterproof Servo (Silver) (High Voltage)
Brand: Reefs RC
SKU: SEHREEFS134
Price: 84.99 USD

Reefs RC RAW100 Mini Digital Waterproof Servo (Silver) (High Voltage)

AMain Hobbies

The Reefs Servo Raw 100 Mini Digital Waterproof Servo is designed to deliver high torque in mini sizing. Using a coreless motor and programmable electronics this servo is able to produce up to 103oz-in at 8.4v! The full metal gear drive train and case allow for smooth operation.


<h3>Features:
</h3>
<ul>
 <li>High Torque High Speed</li>
 <li>Mini Coreless Servo</li>
 <li>Waterproof Design</li>
 <li>Magnetic Angle Sensor</li>
 <li>Pulse Width Modulation Control</li>
 <li>Optional Reefs Link required for Programming</li>
</ul>
<h3>Specifications:
</h3>
<ul style="list-style-type:none">
 <li style="margin-left:0">Voltage: 6v-8.4v</li>
 <li style="margin-left:0">Dimension (LxWxH): 1.16x0.55x1.14" (29.5x14x29mm)</li>
 <li style="margin-left:0">Torque:</li>
 <ul>
 <li>6.0V: 85oz</li>
 <li>7.4V: 95oz</li>
 <li>8.4V: 103oz</li>
 </ul>
 <li style="margin-left:0">Speed:</li>
 <ul>
 <li>6.0V: .11sec</li>
 <li>7.4V: .10sec</li>
 <li>8.4V: .08sec</li>
 </ul>
 <li style="margin-left:0">Weight: 1.05oz (30g)</li>
</ul>

The Reefs Servo Raw 100 Mini Digital Waterproof Servo is designed to deliver high torque in mini sizing. Using a coreless motor and programmable electronics this servo is able to produce up to 103oz-in at 8.4v! The full metal gear drive train and case allow for smooth operation. Features: High Torque High Speed Mini Coreless Servo Waterproof Design Magnetic Angle Sensor Pulse Width Modulation Control Optional Reefs Link required for Programming Specifications: Voltage: 6v-8.4v Dimension (LxWxH): 1.16x0.55x1.14" (29.5x14x29mm) Torque: 6.0V: 85oz 7.4V: 95oz 8.4V: 103oz Speed: 6.0V: .11sec 7.4V: .10sec 8.4V: .08sec Weight: 1.05oz (30g)

Reefs RC RAW100 Mini Digital Waterproof Servo (Silver) (High Voltage)

About this part

Features:

Specifications:
