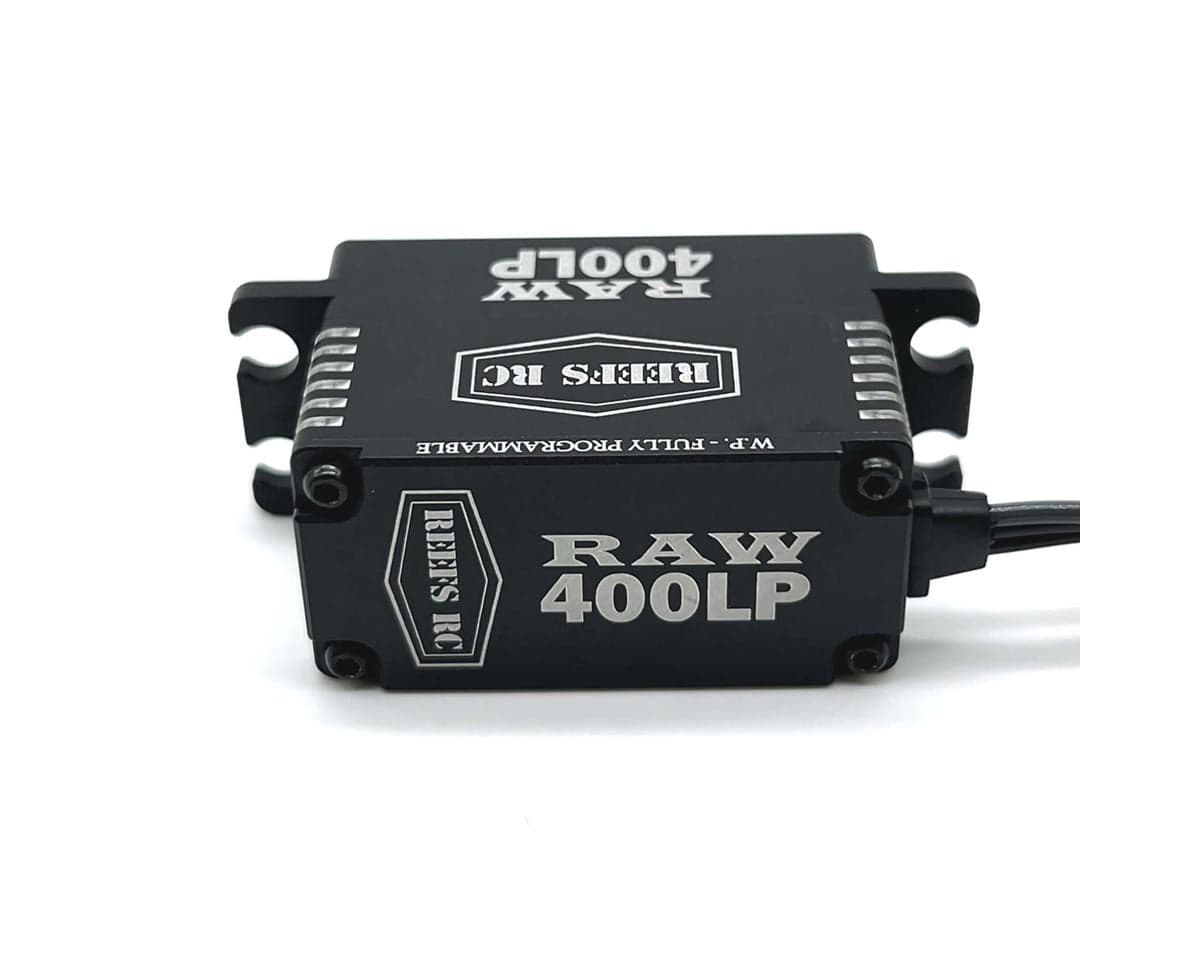

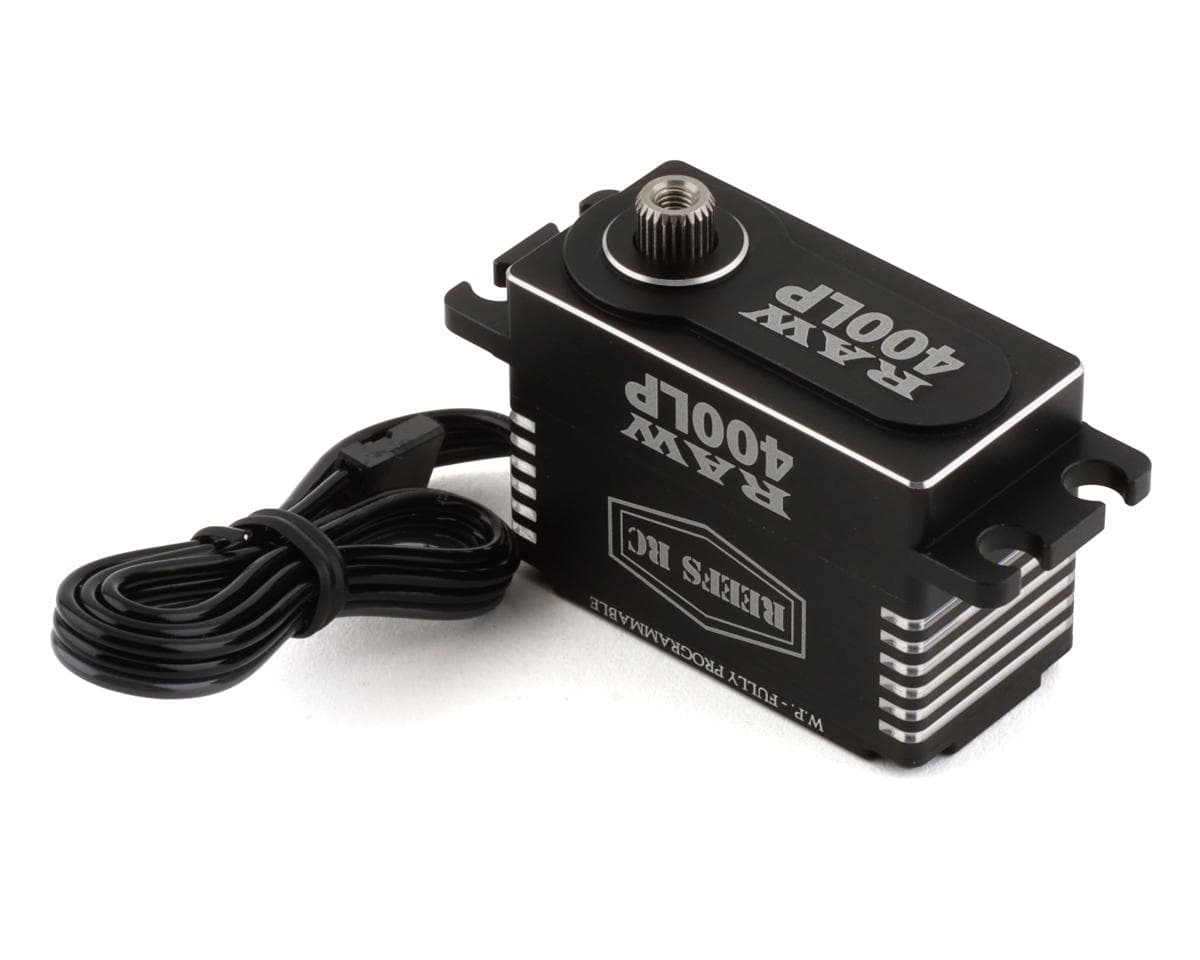

Reefs RC RAW400LP High Torque Waterproof Digital Servo (High Voltage) (Black)
About this part
This is the Reefs RC Raw 400LP High Torque Waterproof Digital Servo. Intended for high torque applications where a reliable waterproof servo is needed the Raw 400LP excels. Using a 7-point seal system gives this servo exceptional waterproofing, while a magnetic angle sensor provides precise servo movements you can count on after countless cycles. The gearset consists of strong steel gears captured with an all aluminum servo casing providing excellent heat dissipation and improving consistency. Overall the Raw 400LP delivers where other servos cannot and is an excellent option for most high torque builds.
Features
- Waterproof Design (7 Point Seals)
- Magnetic Angle Sensor
- CNC Aluminum Case
- Programmable with the Reefs Link (SEHREEFS64 - Sold Separately)
- Steel internal gears
- Internal: Steel Gears /CNC Aluminum Casing
- Bearing Type: 2BB
- Weight: 2.30oz
- Dimension: 1.6 x .79 x 1.16 (LWH)
- Torque:
- 6.0V: 350oz
- 7.4V: 420oz
- 8.4V: 460oz
- Speed:
- 6.0V: .09sec
- 7.4V: .08sec
- 8.4V: .065sec
- Spline: 25T
- Dead Band Width: 2¦Ìs
- BEC: Not Required, Recommended
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
I'm running a couple of these in a couple of my lighter-weight 1/10 trail trucks. Plenty of speed and power. I bought this one for my 1/12 Element Sendero. (Spare-Time Hobbies makes an adaptor plate that allows the use of a full size servo to replace the weak, off-sized, short-lived stock servo in the 1/12 Element Enduro Series.) The RAW 400 is perfect for the 1/12 Element Enduro trucks.
