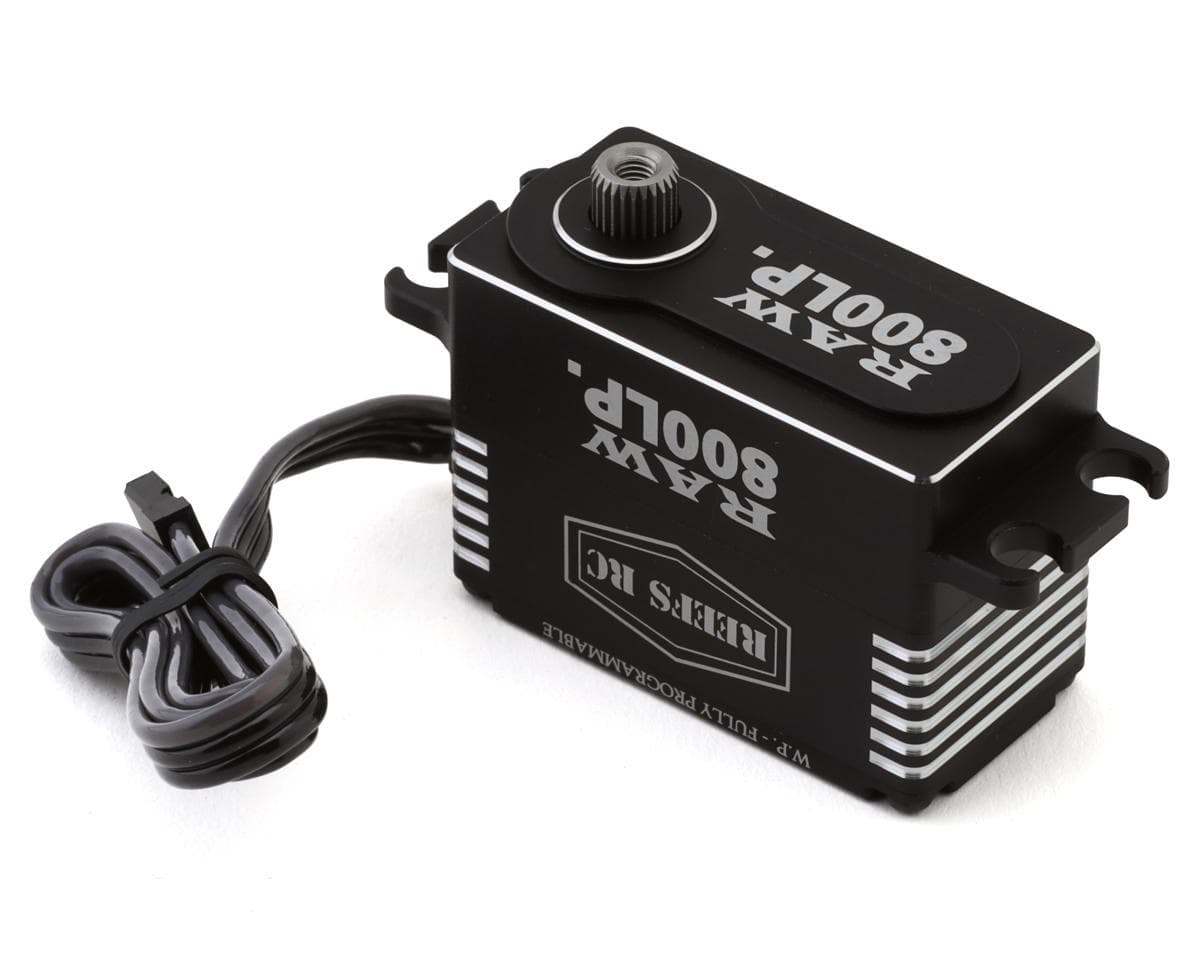

Reefs RC "RAW800LP." Digital Waterproof Brushless Servo (Black) (High Voltage)
About this part
This is the Reefs RC Raw "800LP." High Torque Waterproof Digital Servo. Intended for high torque applications where a reliable waterproof servo is needed the Raw "800LP." excels. Using a 7-point seal system gives this servo exceptional waterproofing, while a magnetic angle sensor provides precise servo movements you can count on after countless cycles. The gearset consists of strong steel gears captured with an all aluminum servo casing providing excellent heat dissipation and improving consistency. Overall the servo delivers where other servos cannot and is an excellent option for most high torque builds.
Features
- Waterproof Design (7 Point Seals)
- Magnetic Angle Sensor
- CNC Aluminum Case
- Programmable with the Reefs Link (SEHREEFS64 - Sold Separately)
- Steel internal gears
- Internal: Steel Gears /CNC Aluminum Casing
- Bearing Type: 2BB
- Weight: 2.30oz
- Dimension: 1.6 x .79 x 1.16 (40.8x20.2x29.5mm) (LWH)
- Torque:
- 6.0V: 635oz
- 7.4V: 715oz
- 8.4V: 800oz
- Speed:
- 6.0V: .12sec
- 7.4V: .10sec
- 8.4V: .09sec
- Spline: 25T
- Dead Band Width: 2¦Ìs
- BEC: Not Required, Recommended
Reviews5.0 · 12 reviews
This servo is an absolute beast. It’s probably the quietest servo I own. Raw power and no noise. What could be better?
Servo is very quick and quiet. Haven’t messed with the computer settings yet but out of the box very impressive. Mounted this on a SCX10 PRO build with the servo on axle plate and tucks up behind the axle tube nicely.
Very strong servo. So strong it striped the metal servo horn I had on it. Looks great installed on my 1/10 Capra.
Huge fan of Reefs servos! I'm running the RAW 500 in many of my 1/10 crawlers, and a couple RAW 400's. I bought the RAW 800 to use on a TRX4 when I installed a set of tracks for playing in the snow. The tracks kit suggested a stronger servo than the stock servo. Haven't got to play in the snow yet. But the RAW 800 steers the front tracks on carpet with ease, even while sitting still. Ran most of a battery pack on the carpet yesterday evening with not one hiccup from the RAW 800. The servo was warm, the motor was hot. Tracks on carpet is tough. The RAW 800 handled the challenge with ease.
Absoulute beast of a servo. Bought this along with a Reefs B.E.C. Great combo. Fits my h10 optic perfect.
All 12 reviews are five-star ratings, and most are from verified owners. Reviewers consistently describe the servo as powerful, fast, quiet and accurate, with several noting strong torque for crawlers and trucks such as the SCX10 PRO, Capra, TRX4, H10 Optic and Vanquish Mullet. Multiple reviewers recommend pairing it with a Reefs BEC, which they say improves performance. One reviewer reports that the servo's strength stripped a metal servo horn. Reviewers also praise the low profile and fit in tight installations. Several comments are brand-loyalty remarks about Reefs servos generally rather than this model. No reviewer reports a failure, though one notes the servo runs warm under heavy use. Reviews offer no disagreement or long-term durability data.
- + Strong torque and power
- + Fast and accurate response
- + Quiet operation
- + Low profile fits tight installs
- − Can strip metal servo horns
- − Runs warm under heavy use
