Reefs RC "RAW800LP." Digital Waterproof Brushless Servo (Silver) (High Voltage)
About this part

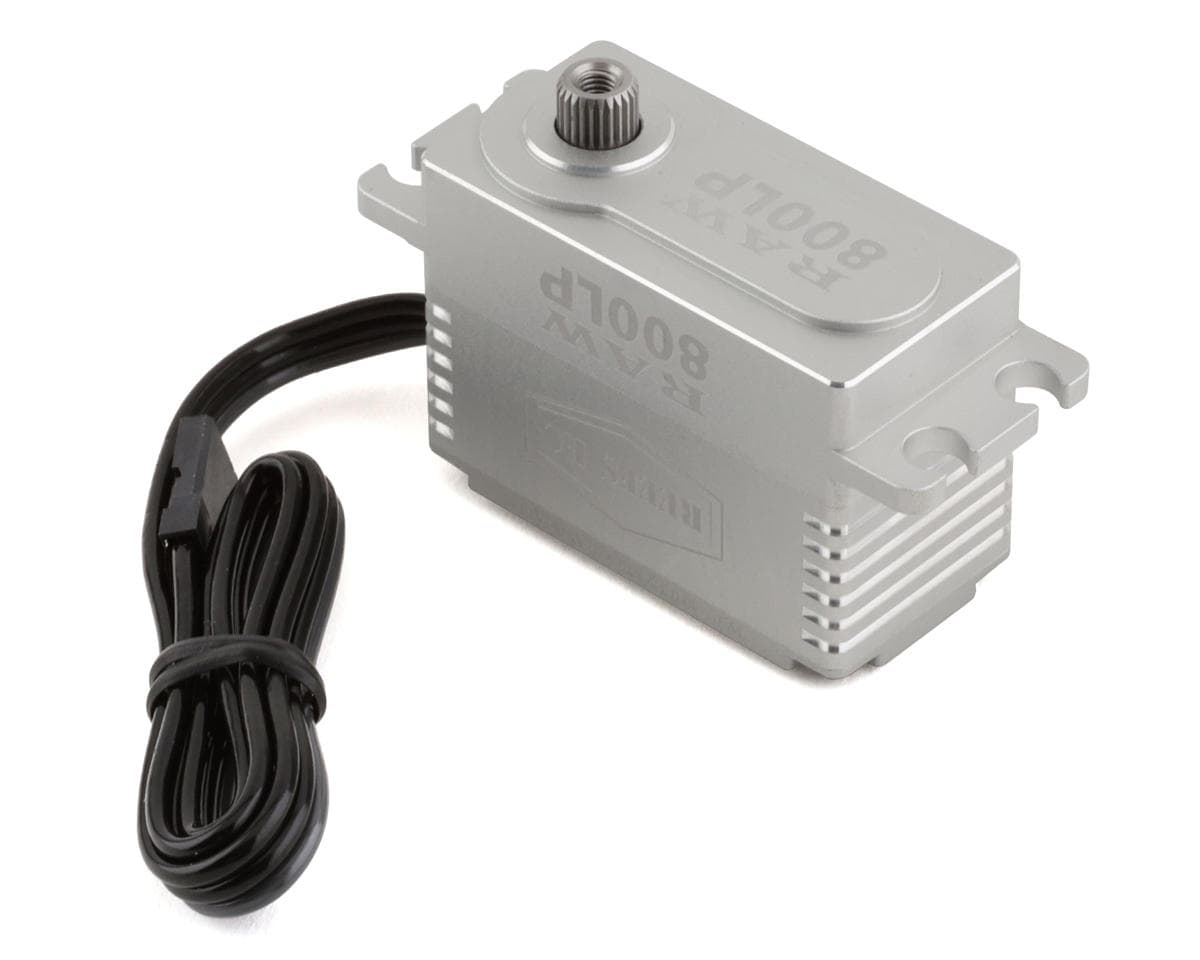

This is the Reefs RC Raw "800LP." High Torque Waterproof Digital Servo. Intended for high torque applications where a reliable waterproof servo is needed the Raw "800LP." excels. Using a 7-point seal system gives this servo exceptional waterproofing, while a magnetic angle sensor provides precise servo movements you can count on after countless cycles. The gearset consists of strong steel gears captured with an all aluminum servo casing providing excellent heat dissipation and improving consistency. Overall the servo delivers where other servos cannot and is an excellent option for most high torque builds.
Features
- Waterproof Design (7 Point Seals)
- Magnetic Angle Sensor
- CNC Aluminum Case
- Programmable with the Reefs Link (SEHREEFS64 - Sold Separately)
- Steel internal gears
- Internal: Steel Gears /CNC Aluminum Casing
- Bearing Type: 2BB
- Weight: 2.30oz

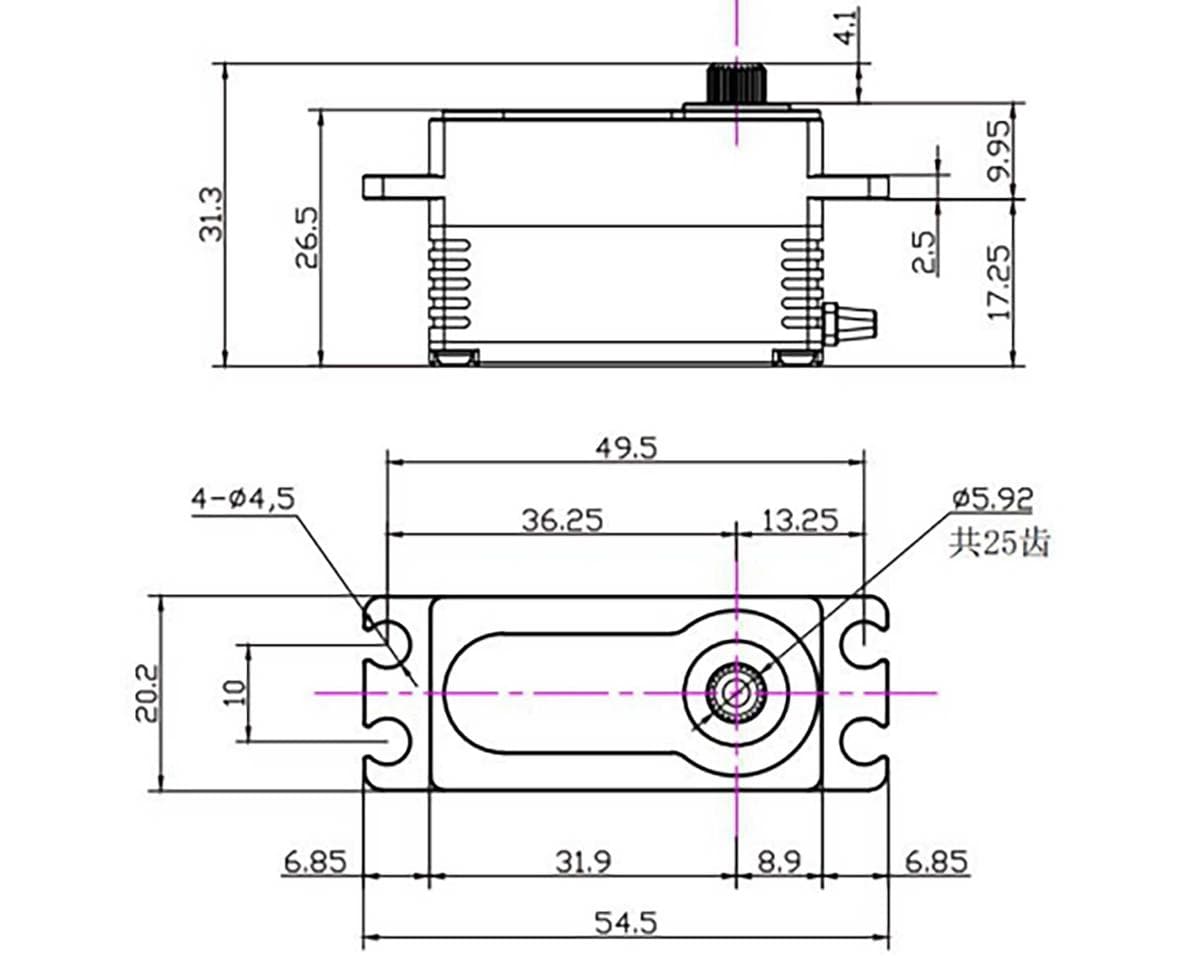

- Dimension: 1.6 x .79 x 1.16 (40.8x20.2x29.5mm) (LWH)
- Torque:
- 6.0V: 635oz
- 7.4V: 715oz
- 8.4V: 800oz
- Speed:
- 6.0V: .12sec
- 7.4V: .10sec
- 8.4V: .09sec
- Spline: 25T
- Dead Band Width: 2¦Ìs
- BEC: Not Required, Recommended
Reviews5.0 · 2 reviews
This servo absolutely did not disappoint. I know a lot of people complain about the extra price but the quality and detail is unparalleled. I’m running this in a UDR and it completely changed the entire vehicles handling for the better! Thank you reefs and thank you Amain for the incredibly fast shipping!
This is my second one . I run these on a hobbywing axe esc and a castle mamba 8s . Both supply the servo with the voltage and amps sufficient to get the speed and power out of the servo I needed why delivering it smooth and quiet in a low profile package . Its my go to servo
