Parts/Radio & control/Servos/Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo (High Voltage)

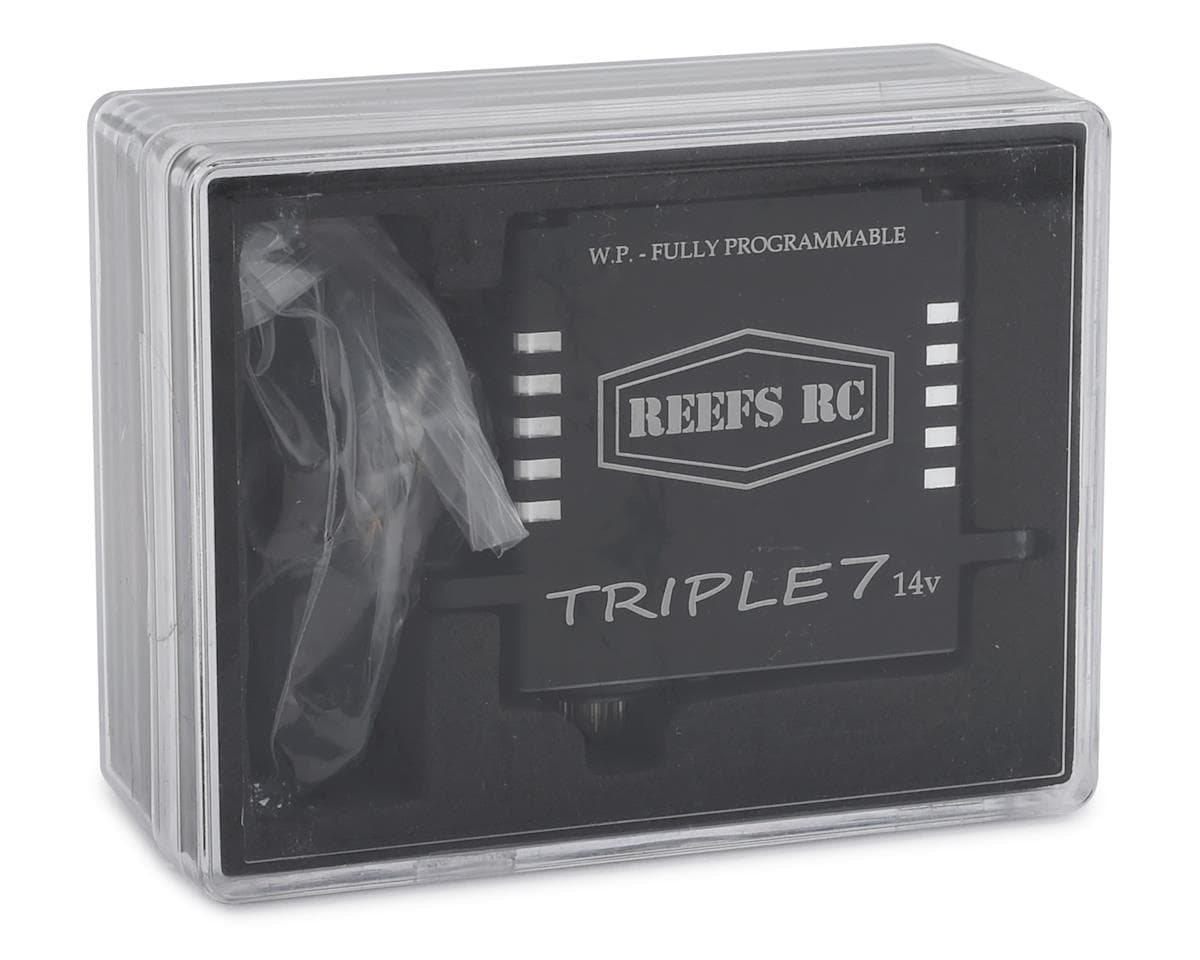

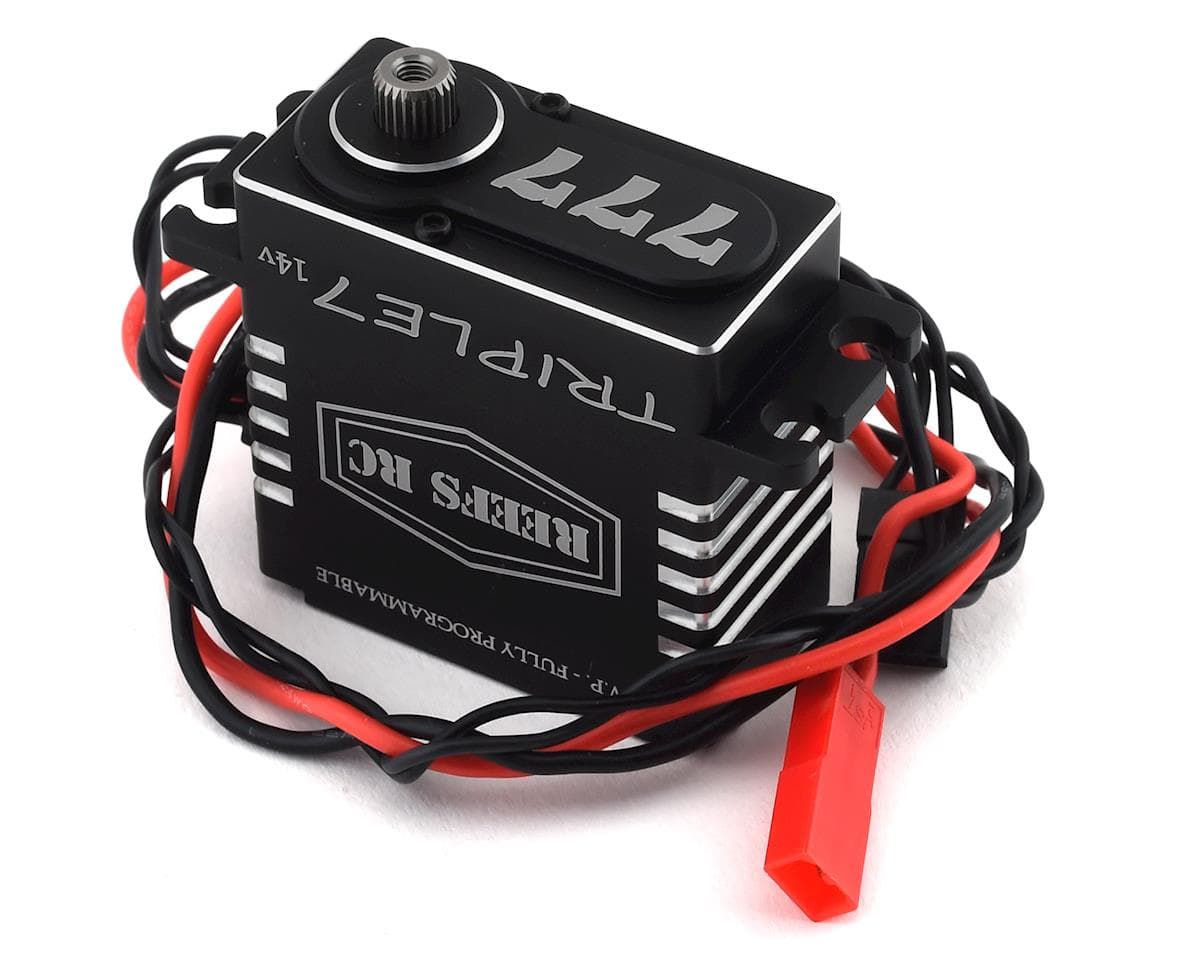

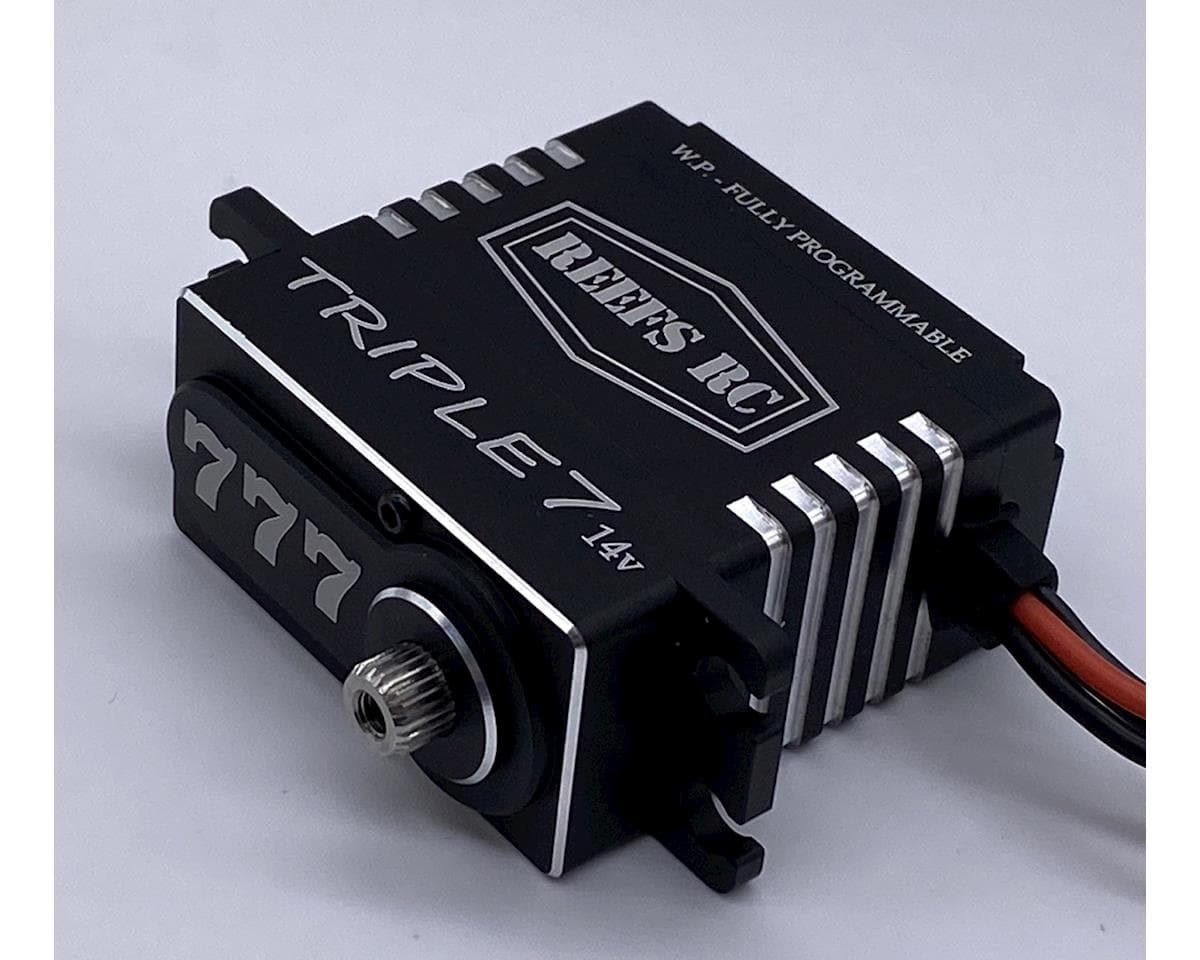

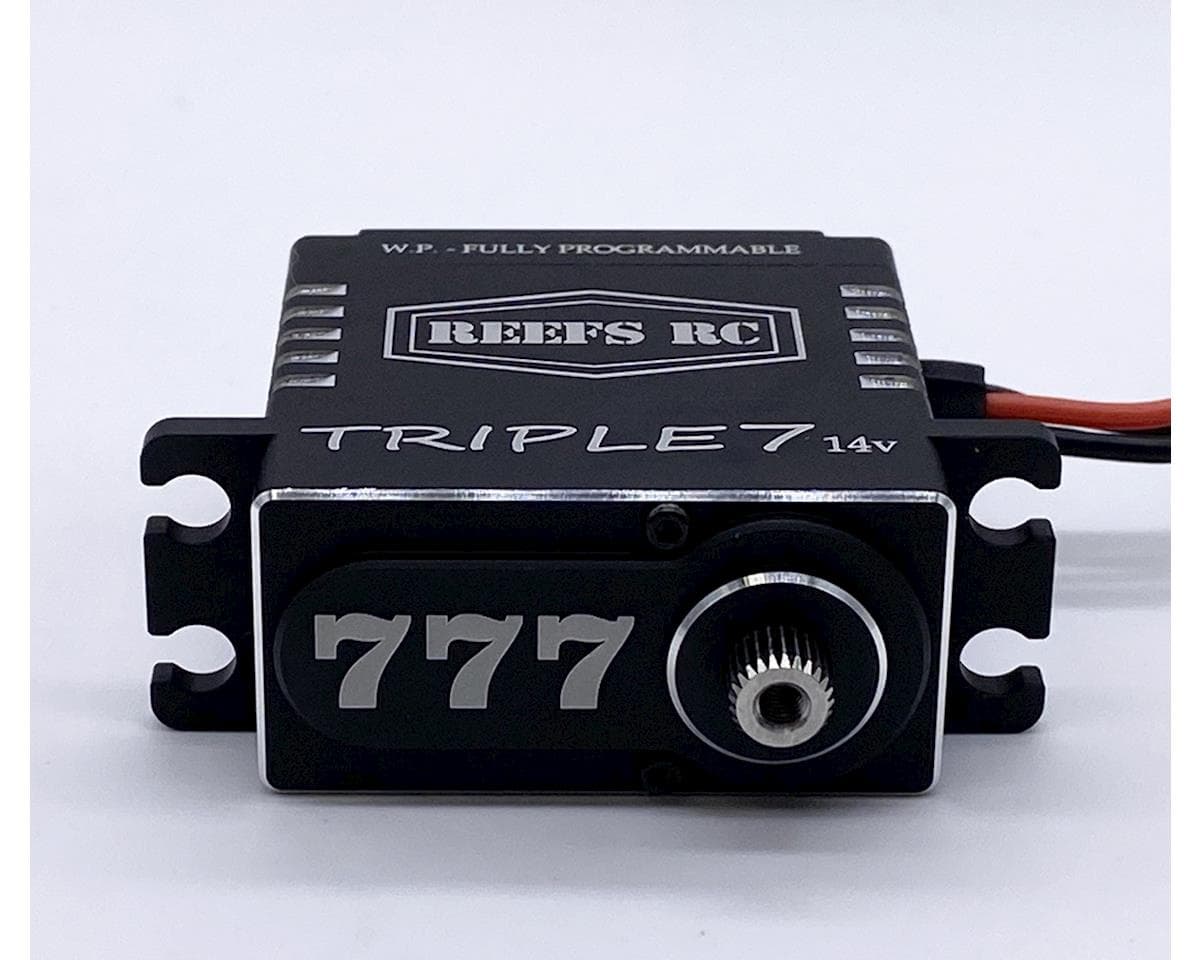

Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo (High Voltage)
Reefs RC

Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo (High Voltage)

Part # SEHREEFS7774.6(11)
ServosLandcraft
Where to buy
$157.99
AMain Hobbies
Seen Oct 12, 2026
$157.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

The Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo is built from the ground up using a Patented CNC Case and features full programmability utilizing the Reefs USB link (SEHREEFS64 - not included) and REEFS Software. This will allow users the ability to increase output power, adjust the servo angle, sensitivity, inversion and so much more with the click of a button. Plus a variety of available LiPo connectors (SEHREEFS61/SEHREEFS62/SEHREEFS63 - not included), give you the ability to run your battery of choice, without relying on your ESC for power.

WARNING:

  • DO NOT USE OVER 14v. YOU WILL VOID YOUR WARRANTY.

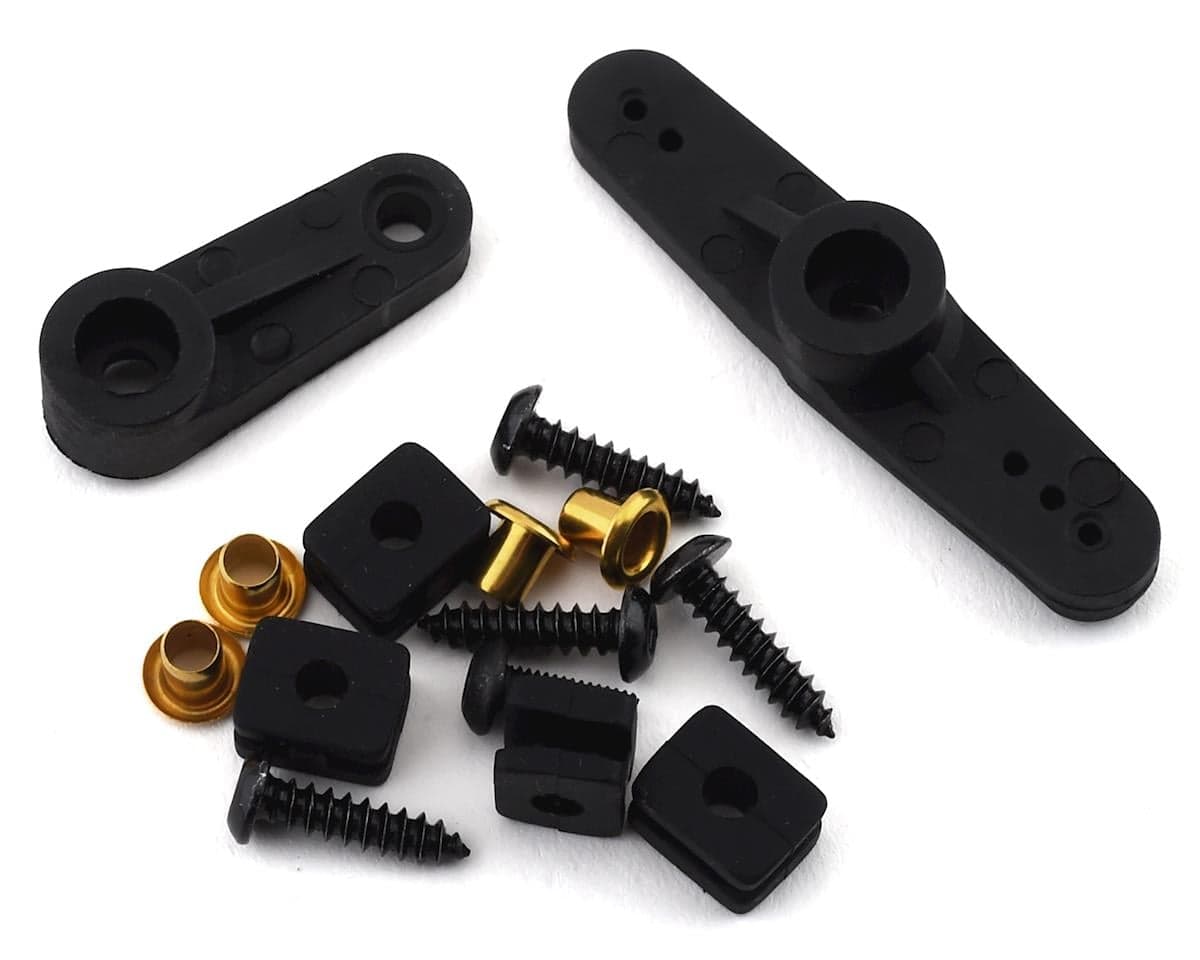

  • 8mm screw required for horn.
  •  Do not leave servo plugged into battery when not operating RC. Always turn the RC car off first, then remote.

Features:
  • REEFS LINK Required for programming
  • Lipo-Servo Connector required
  • High Torque High Speed Brushless Servo
  • SUBMARINE WATERPROOF - 7 Point Seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Fully Programmable with REEFS Software (available at Reefs website)
Specifications:
Input Voltage: 10V - 14V
Internal: Steel Gears / All CNC Aluminum Casing
Bearing Type: 3 Ball Bearings
Weight: 3.12oz
Dimension: 1.57 x .78 x 1.63 (LWH)
Torque: 666oz @11.1v/ 700oz @12.0v/ 777oz @14v
Speed: .10sec @11.1v/.09sec @12.0v/.08sec @14v
Spline: 25T
Dead Band Width: 2¦Ìs

Reviews4.6 · 11 reviews

Michelle Gilchriston Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo

Brand new triple 777 was garbage out of the package! Customer service is non existent. First and last reefs product I will purchase! Junk!

3 found this helpful
Anthony WoodruffVerified owneron Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo

Fast, quiet and strong! This servo is hands down the best I have owned. Its also amazing that is does not need a BEC.

Kenny GVerified owneron Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo

Love this servo! Lots of power and very responsive. If I ever decide to add rear steer, it will be another 777 from Amain. Great service!!

Scott BowersVerified owneron Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo

Works great. I picked up the programmer and played with it a bit. The settings are straightforward and it's plug and play pretty much. Very quick and powerful.

Joseph HutchinsVerified owneron Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo

Love it thick you first upgraded to my gspeed v3 build

What reviewers say

Reviewers largely praise this 14V programmable high-torque steel gear digital servo, describing it as powerful, fast, quiet and responsive, with several owners running it on heavy rigs such as an X-Maxx, TRX-4 and TRX-6 and reporting it works without a separate BEC on a 3S LiPo. Setup with the optional programmer is described as straightforward. Most reviews are five-star and from verified owners. One reviewer reported the unit was defective out of the package and was dissatisfied with customer service, and that is the only negative account. Some reviewers note the price is high, but consider it justified for heavy vehicles. Reviews of the 14V variant specifically are the majority of the set.

  • + Strong torque and power
  • + Fast and responsive
  • + Quiet operation
  • + Works without a separate BEC on 3S
  • − Reported defect out of the box
  • − Poor customer service experience
  • − Expensive
Summary generated from the reviews above.
