Parts/Radio & control/Servos/Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo (High Voltage)(Brass Edition)

Reefs RC

Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo (High Voltage)(Brass Edition)

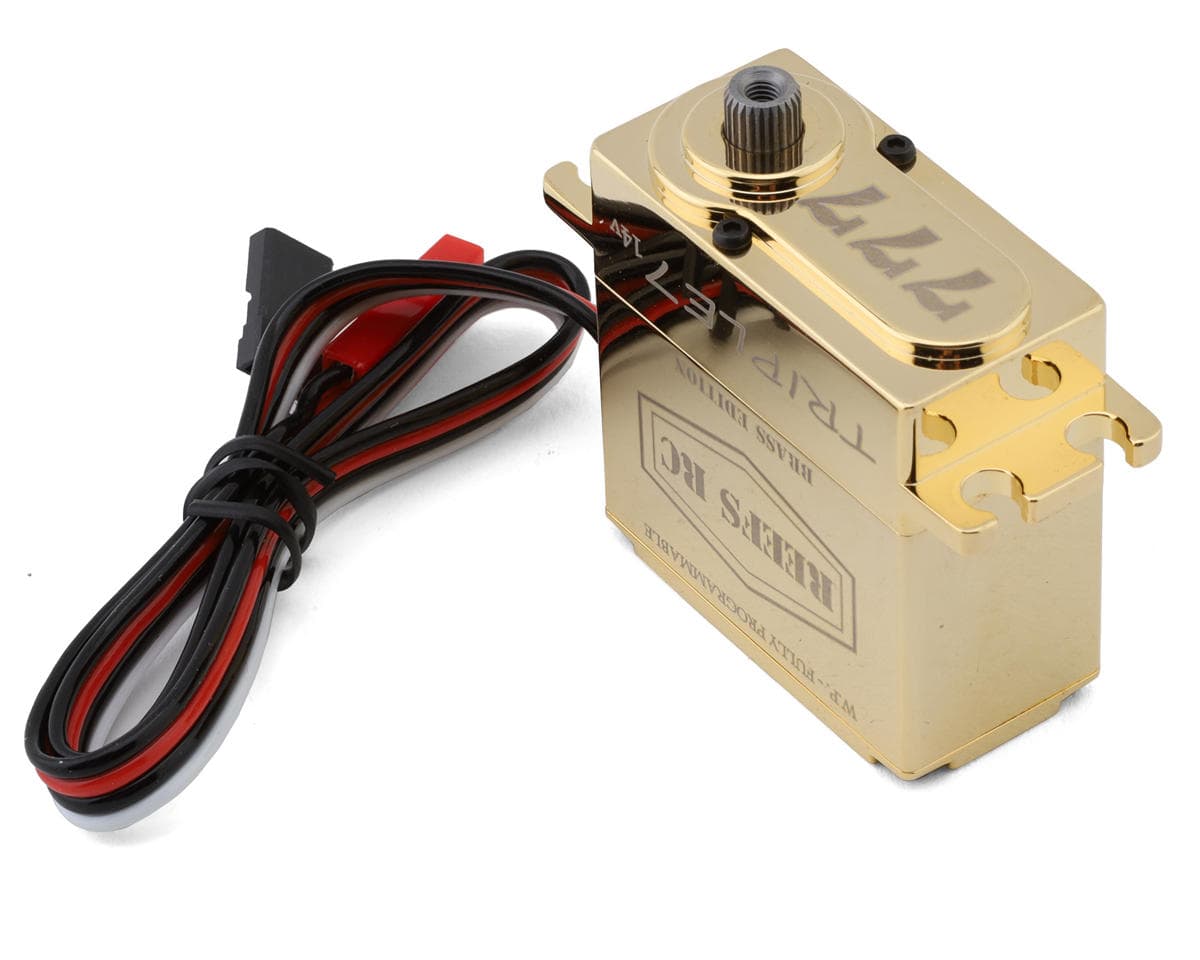

Name: Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo (High Voltage)(Brass Edition)
Brand: Reefs RC
SKU: SEHREEFS169
Price: 199.99 USD
Rating: 5 (1 reviews)

Part # SEHREEFS1695.0(1)

Servos Landcraft

Where to buy

$199.99

AMain Hobbies

Seen Oct 12, 2026

$199.99Buy

Prices are as last seen at the store; stock is not tracked.

About this part

Servo Overview:

This is the Triple7 14V Programable High Torque Steel Gear Digital Servo from Reefs RC, now available in the Brass Edition for added weight and style. With its impressive high torque and speed, this servo delivers outstanding performance for RC enthusiasts. Featuring a fully submersible IP67 waterproof rating, equipped with steel gears and a magnetic angle sensor, the Triple7 ensures smooth, precise, and robust operation. The addition of the Brass "ULTRA Finish" edition not only adds bling to your build but also provides significant weight where needed.

Features:

Powerful brushless motor
"Submarine Waterproof" with 7 point seals
Magnetic angle sensor
Pulse Width Modulation control
CNC Brass Casing with "ULTRA" finish
Fully Programmable with REEFS Software (REEFS LINK required)

Specifications:

Speed:

@11.1V: 0.10sec/60°
@12.0V: 0.09sec/60°
@14.0V: 0.08sec/60°

Torque:

@11.1V: 666oz-in (47.96kg-cm)
@12.0V: 700.0oz-in (50.41kg-cm)
@14.0V: 777.0oz-in (55.95kg-cm)

Dimensions: 1.57x0.78x1.63in (40.8x20.2x29.5mm)
Weight: 5.65oz (160g)
Operating Voltage: 10-14V
Spline: 25T
Waterproof: Yes

Includes:

(1) Triple7 14V Programable High Torque Steel Gear Digital Servo (High Voltage)(Brass Edition)

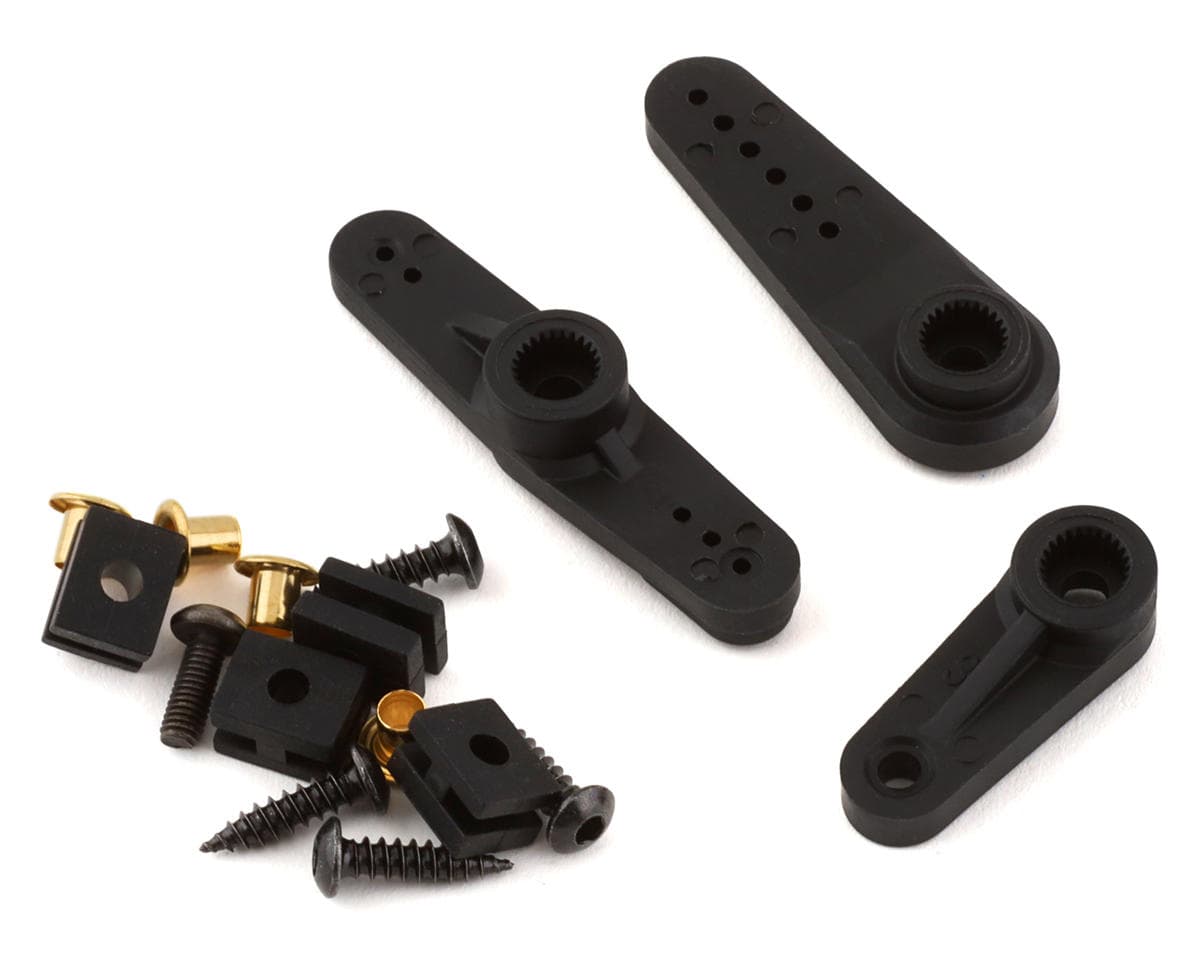

Assorted Servo Horns and Mounting Hardware

CA Residents Prop 65 Warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...

Reviews5.0 · 1 review

Jeffrey RudinskyVerified ownerMay 22, 2025on Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo

Great service with fast shipping !I ha e bought a lot of products from here and I am never disappointed !
