Ruddog 4S Charge Lead w/XT60 Connector & 4-5mm Stepped Bullets (40cm) (7 Pin-XH)
Ruddog

Ruddog 4S Charge Lead w/XT60 Connector & 4-5mm Stepped Bullets (40cm) (7 Pin-XH)

Part # RDGRP-0224
Where to buy
$15.07
AMain Hobbies
Seen Oct 12, 2026
$15.07Buy
Prices are as last seen at the store; stock is not tracked.

About this part

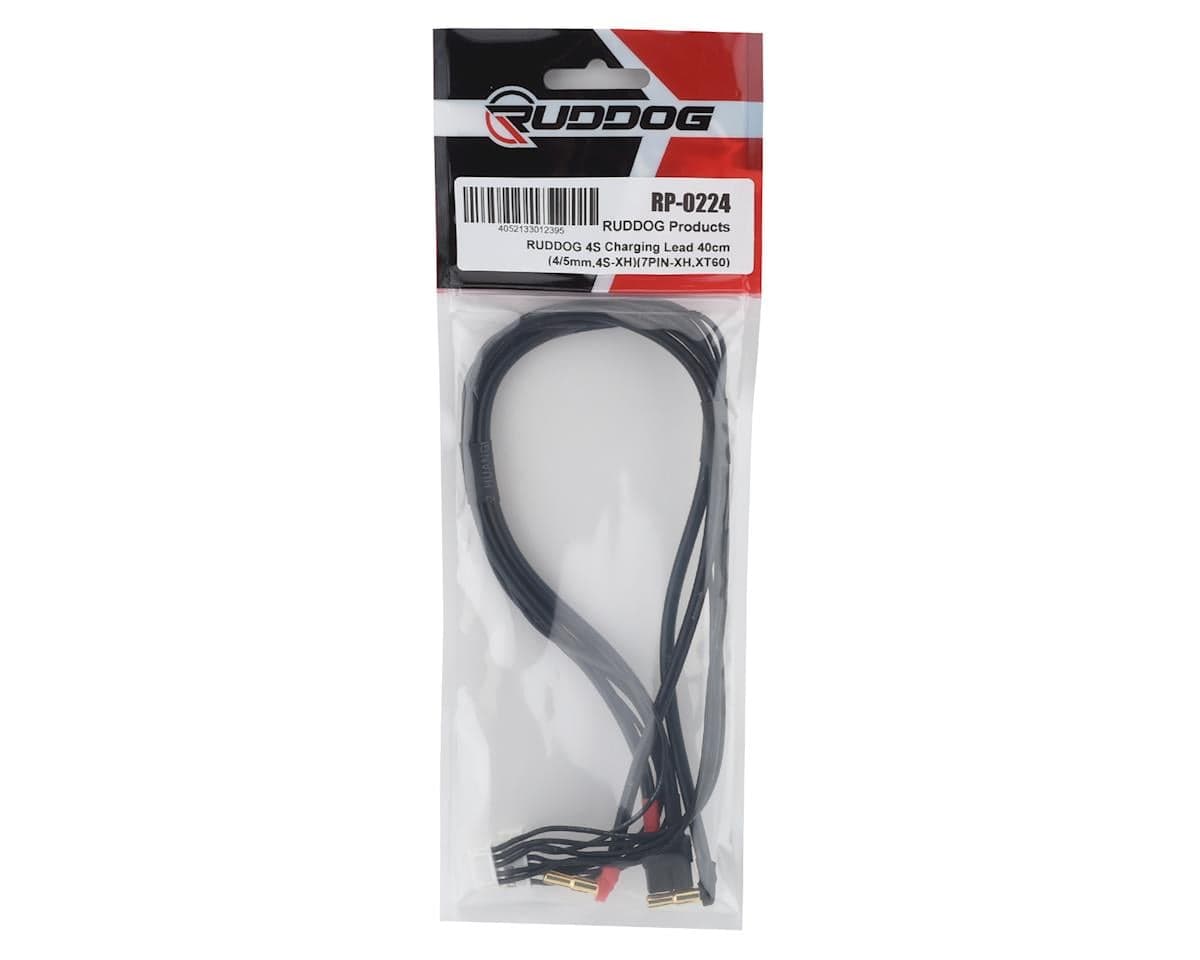

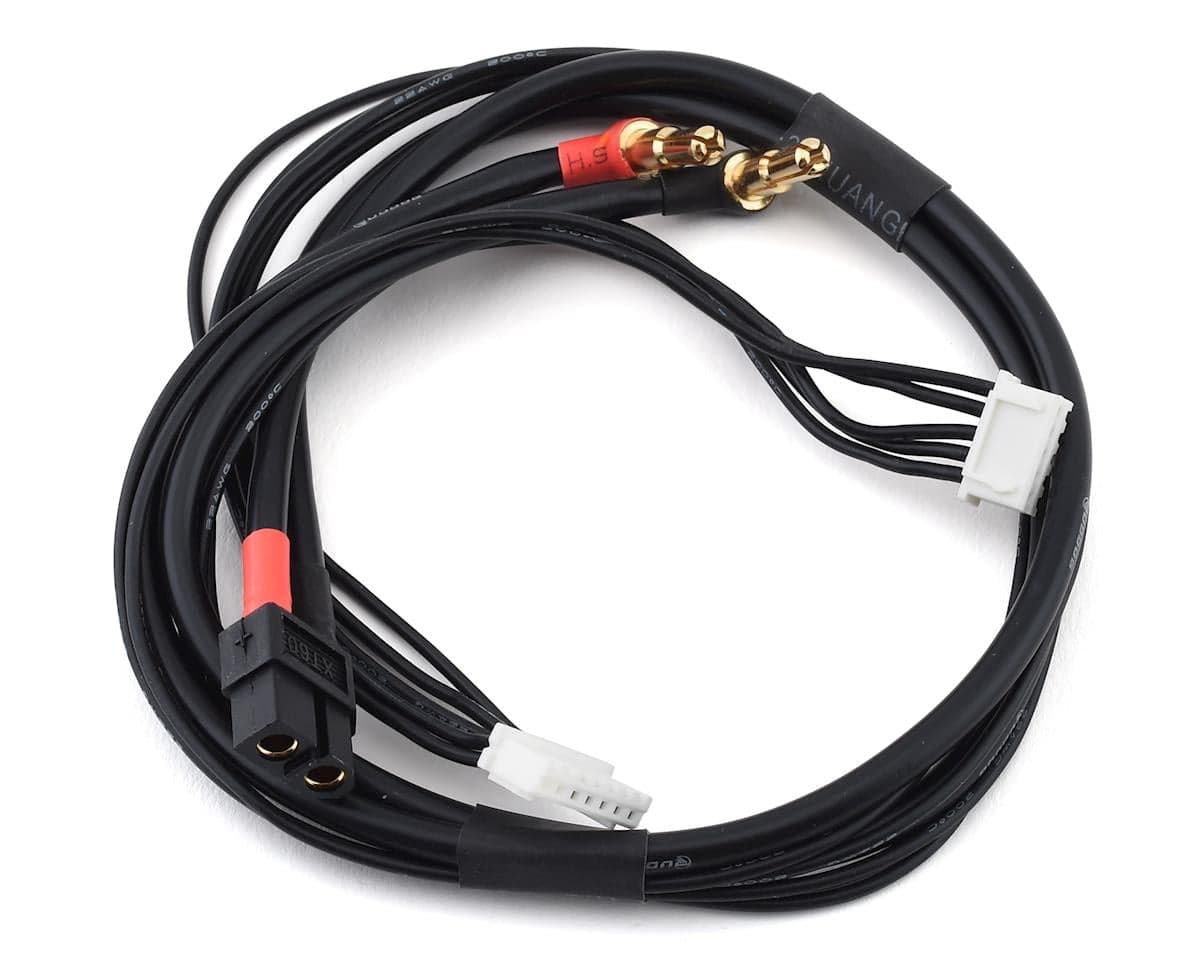

This Ruddog 4S Charge Lead with 4-5mm Stepped Bullets and XT60 Connector was developed for use with chargers that have an XT60 tap for the charge lead connection, and 4mm or 5mm bullet tubes with a built in balance port. This charger cable is 40cm in length and features 12 awg wire. This charge lead features 4mm/5mm step down bullet connectors, to fit batteries that feature 4mm and 5mm bullet holes, with 4mm bullets on the charger inputs and a 7-pin XH type balance connector that will plug directly into the balance port in the battery, and board port in the charger.

Specifications:
Length: 40cm
Connectors: 4mm/5mm step down bullet connectors
Compatible Chargers: Models w/XT60 charging inputs
Cables: 12AWG
Balance Connector: 7-pin XH
Compatible batteries: 4S Li-Po packs
