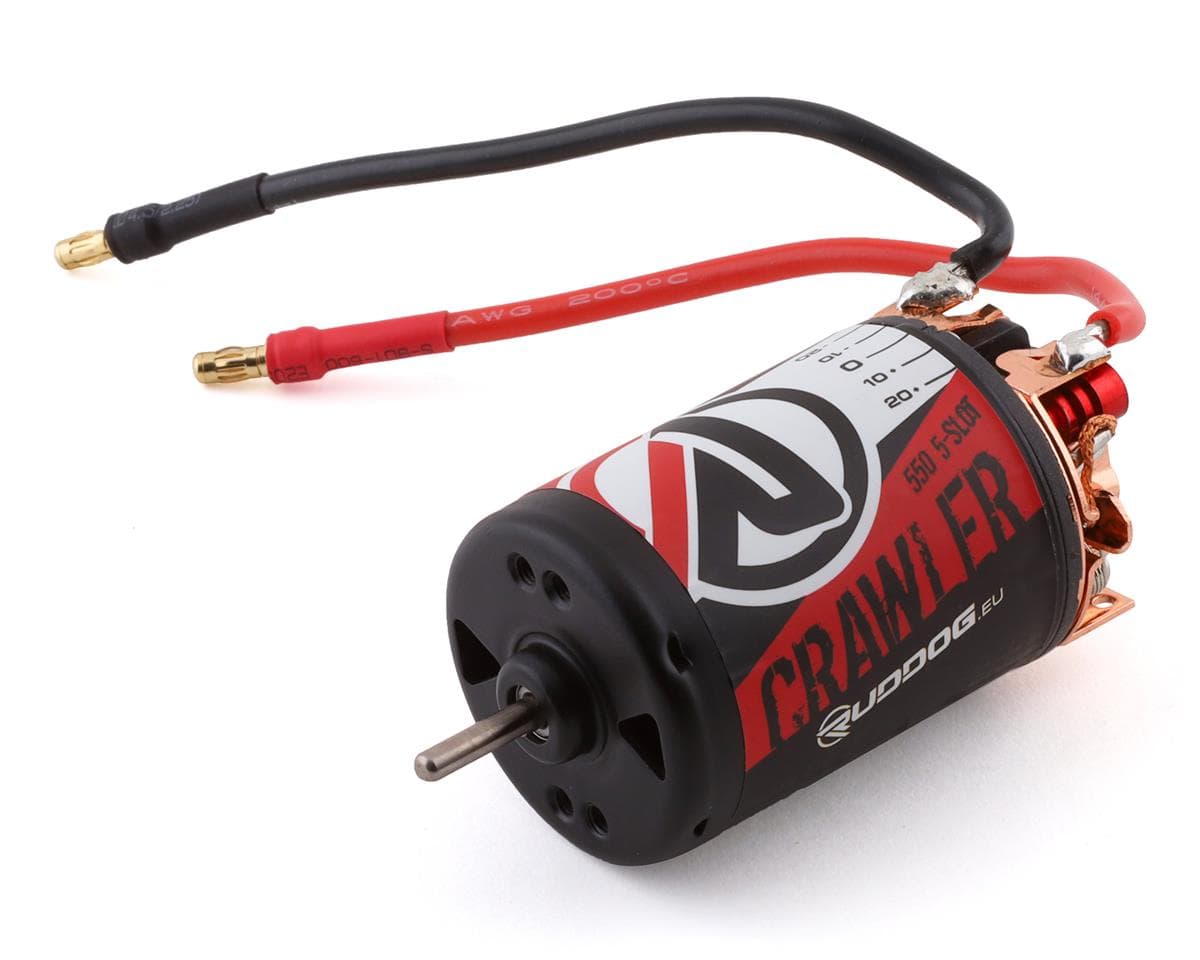

Name: Ruddog Crawler 550 5-Slot Brushed Motor (20T)
Brand: Ruddog
SKU: RDGRP-0469
Price: 34.79 USD

Ruddog Crawler 550 5-Slot Brushed Motor (20T)

AMain Hobbies

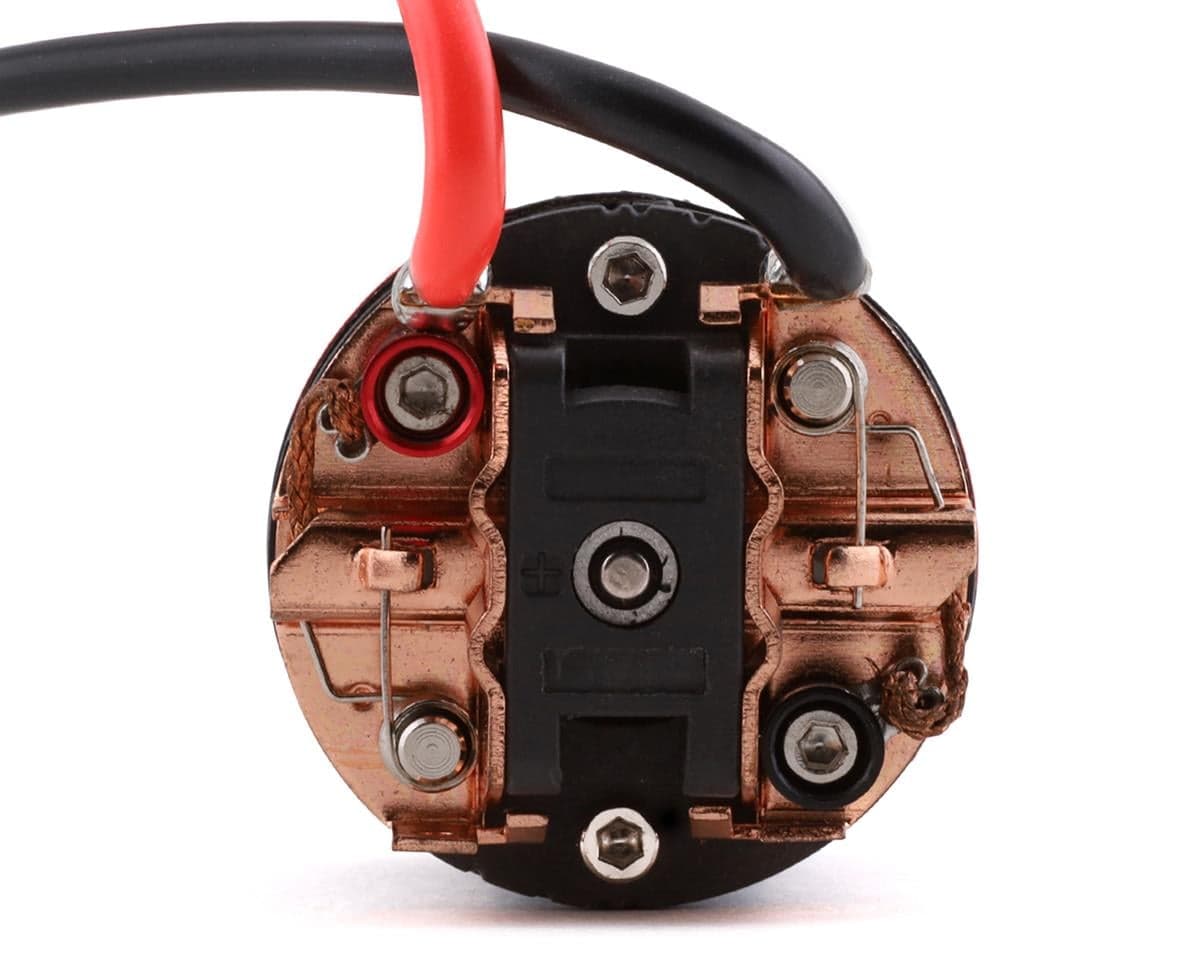

<div>Ruddog Crawler 550 5-Slot Brushed Motors are available in five different winding variants. The dual ball-raced motors feature adjustable timing, plated end bells, replaceable motor brushes and springs, brush heatsink towers and they are fully rebuildable if needed. The adjustable timing allows to adapt and optimise the motors for drivetrains that require reverse motor rotation operation.
</div>
<div>
  <br>
</div>
<div><strong>Specifications:</strong>
</div>
<div><strong>Size:&nbsp;</strong>550
</div>
<div><strong>Windings:&nbsp;</strong>20T
</div>
<div><strong>Stator:&nbsp;</strong>5-Slot
</div>
<div><strong>Voltage:&nbsp;</strong>2-3S LiPo / 6-9 Cell NiMH
</div>
<div><strong>Dimensions:&nbsp;</strong>35.75x62.5mm (+4mm length at the front ball bearing)
</div>
<div><strong>RPM:&nbsp;</strong>11.500rpm (@7.4V)
</div>
<div><strong>Weight:&nbsp;</strong>215g
</div>

Ruddog Crawler 550 5-Slot Brushed Motors are available in five different winding variants. The dual ball-raced motors feature adjustable timing, plated end bells, replaceable motor brushes and springs, brush heatsink towers and they are fully rebuildable if needed. The adjustable timing allows to adapt and optimise the motors for drivetrains that require reverse motor rotation operation. Specifications: Size:&nbsp;550 Windings:&nbsp;20T Stator:&nbsp;5-Slot Voltage:&nbsp;2-3S LiPo / 6-9 Cell NiMH Dimensions:&nbsp;35.75x62.5mm (+4mm length at the front ball bearing) RPM:&nbsp;11.500rpm (@7.4V) Weight:&nbsp;215g
