Servo Overview:

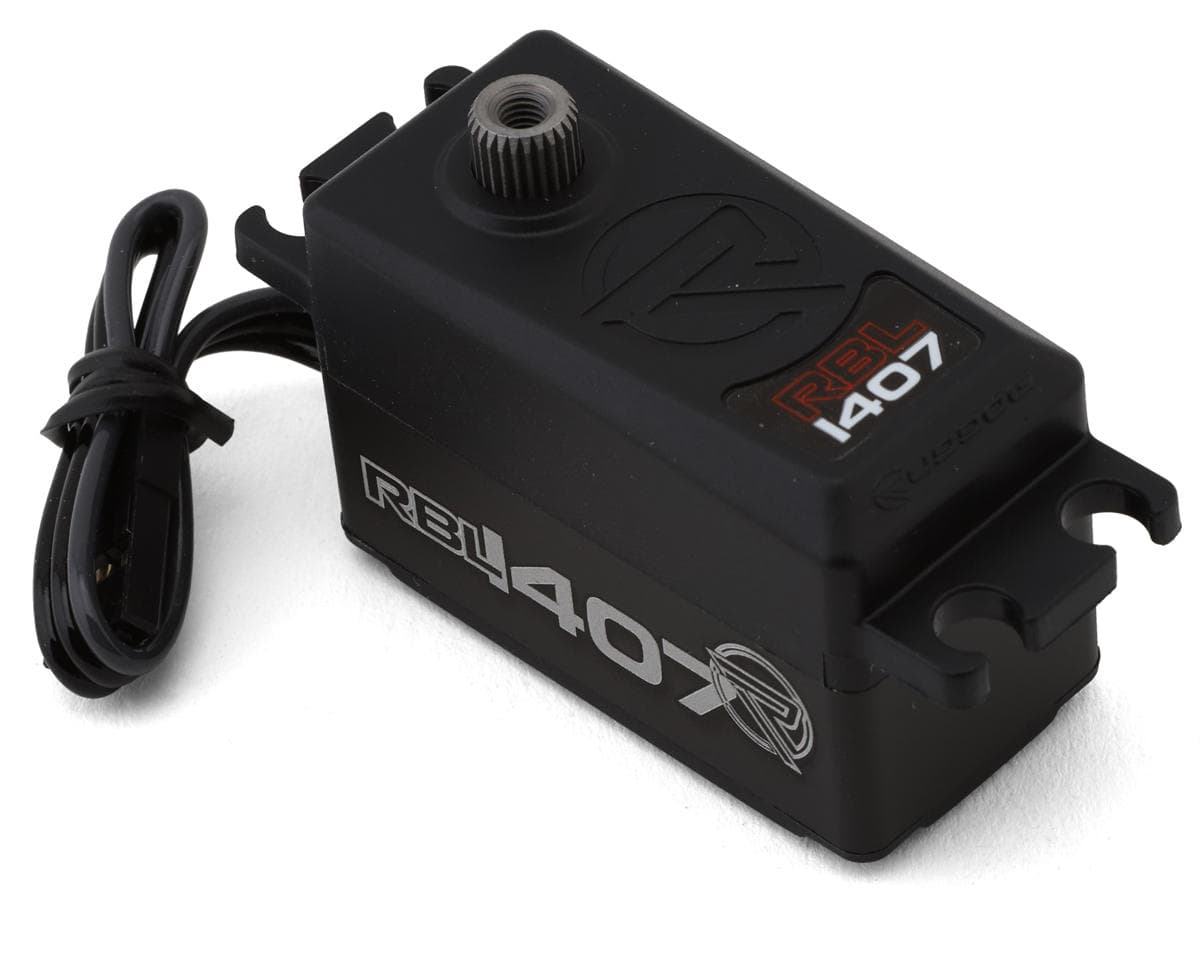

Enhance the performance of your RC touring car with the Ruddog RBL1407 HV Low-Profile Brushless Servo. Crafted specifically for the 1/10 touring car class, this servo, designed by Ruddog, blends power with reduced weight through its lightweight plastic housing and an aluminum center section for enhanced cooling. The servo is marked by a distinctive Ruddog laser engraving, delivering precise and robust performance essential for competitive racing.
Features:
- Hybrid Housing Design: Lightweight plastic with a sturdy aluminum central section
- Low Profile: Compact design fits more applications
- Metal Gears: Excellent durability even in harsh conditions
Specifications:
- Operating Voltage: 4.8-8.4V
- Speed:
- @6.0V: 0.080sec/60°
- @7.4V: 0.072sec/60°
- @8.4V: 0.066sec/60°
- Torque:
- @6.0V: 12.8kg-cm (153.6oz-in)
- @7.4V: 14.0kg-cm (194.3oz-in)
- @8.4V: 14.8kg-cm (205.4oz-in)
- Weight: 48.2.0g (1.70oz)
- Dimensions: 40.8x20.3x26.9mm (1.60x0.80x1.06in)
- Spline: 25T
- Motor Type: Brushless
- Gear Type: Metal
Includes:
- (1) RBL1407 Brushless Low Profile Servo (High Voltage)

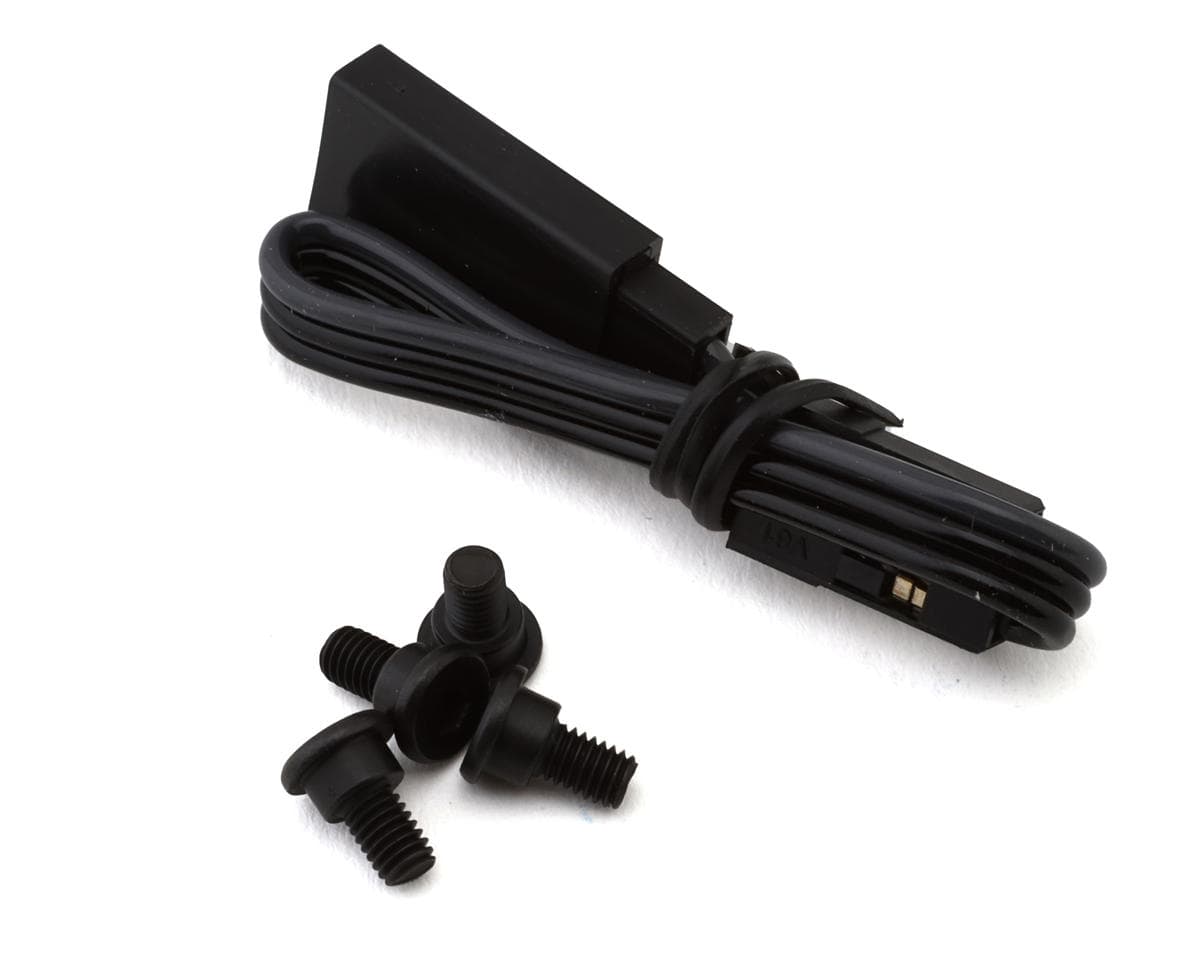

- (4) Mounting Screws
- (1) 100mm Cable Extension
