Parts/Batteries & charging/Chargers/Ruddog RC215AC Dual Channel LiPo Battery AC/DC Charger (6S/15A/200W)
Ruddog

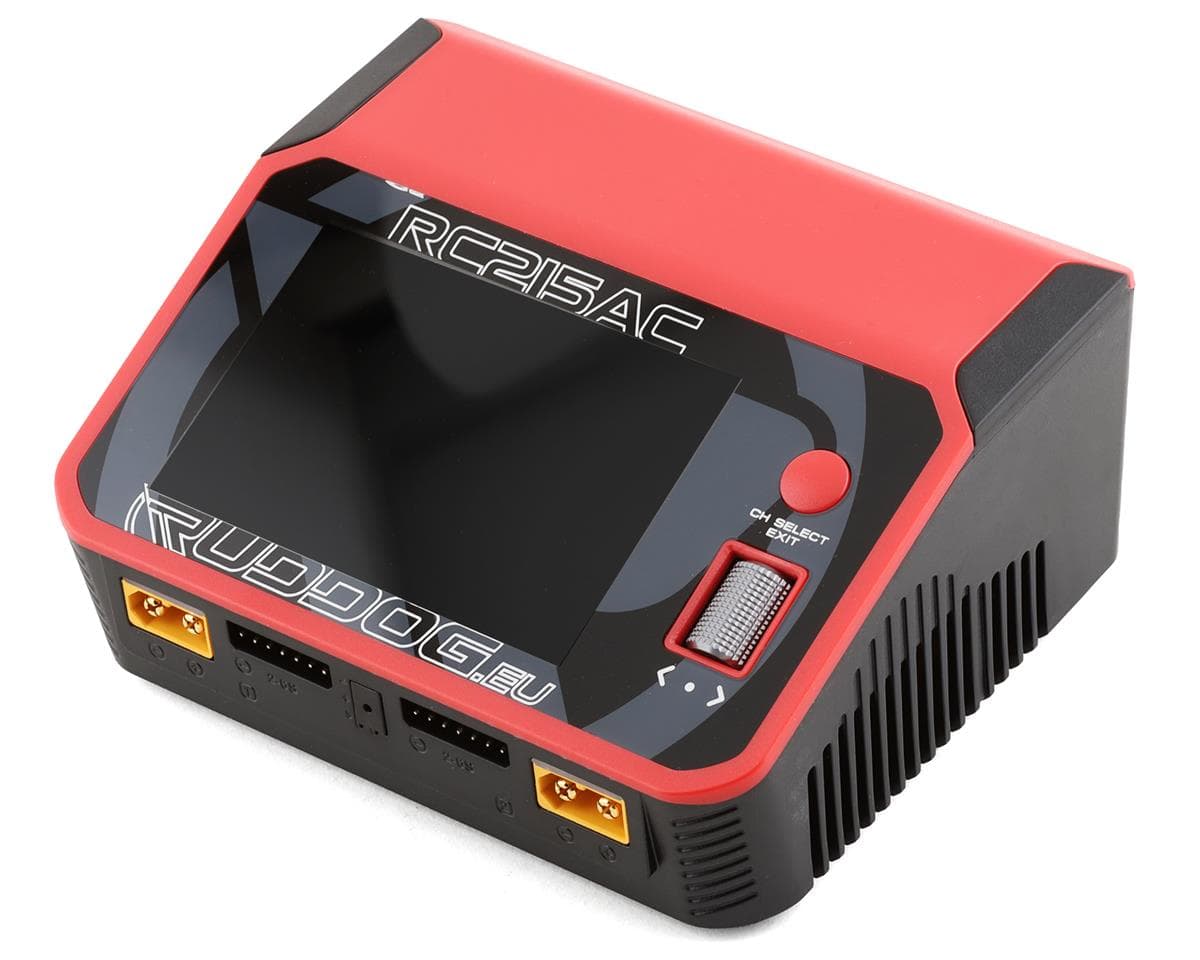

Ruddog RC215AC Dual Channel LiPo Battery AC/DC Charger (6S/15A/200W)
Part # RDGRP-0417
Where to buy
$185.59
Prices are as last seen at the store; stock is not tracked.
About this part

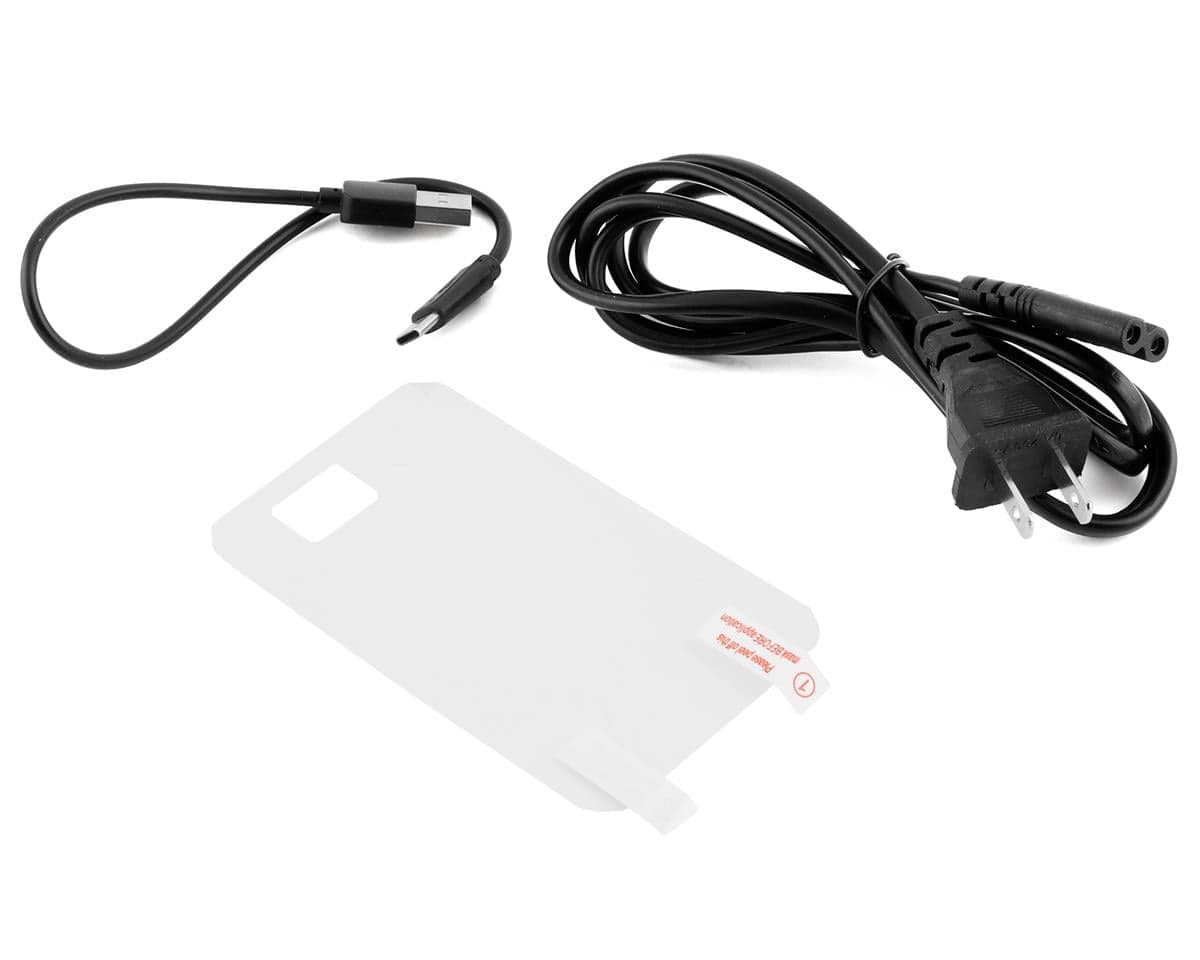

Ruddog RC215AC Dual Channel LiPo Battery AC/DC Charger. This charger is a great option for track and field use. Featuring a clear 3.5" display, this charger has an easy to use menu and allows you to monitor the battery during the charge/discharge cycle. The channels output plug uses an XT60 connector for consistent and safe connections. Package includes one charger, one power chord, one screen protector and one USB cable.
Features:
- Perfect for charging 1-6S LiPo batteries
- Crystal clear 3.5" LC display
- XT60 Output connector
- Includes screen protector
- Wheel select button
- Integrated 200W power supply
Input voltage: 100-240V AC; 7-28VDC, max. 30A
Battery type: LiHV/LiPo/LiIon 1-6S, NiMH 1-16S, Pb 1-10S
Charge power: 0.1-15A (max. 250W per channel in SYNC mode), 0.2-25A (max. 500W both channels combined in ASYNC mode)
Discharge power: 0.1-3A (max. 12W per channel), 0.1-15A (max. 250W per channel in Recycle mode)
Balance current: 1.000mA @2-6S
USB-C: 65W, 3.25A @ 20V
Dimensions: 127x106x57mm
Weight: 510g
LC display: IPS 3.5 inch 480x320 pixel
