About this part
Servo Overview:

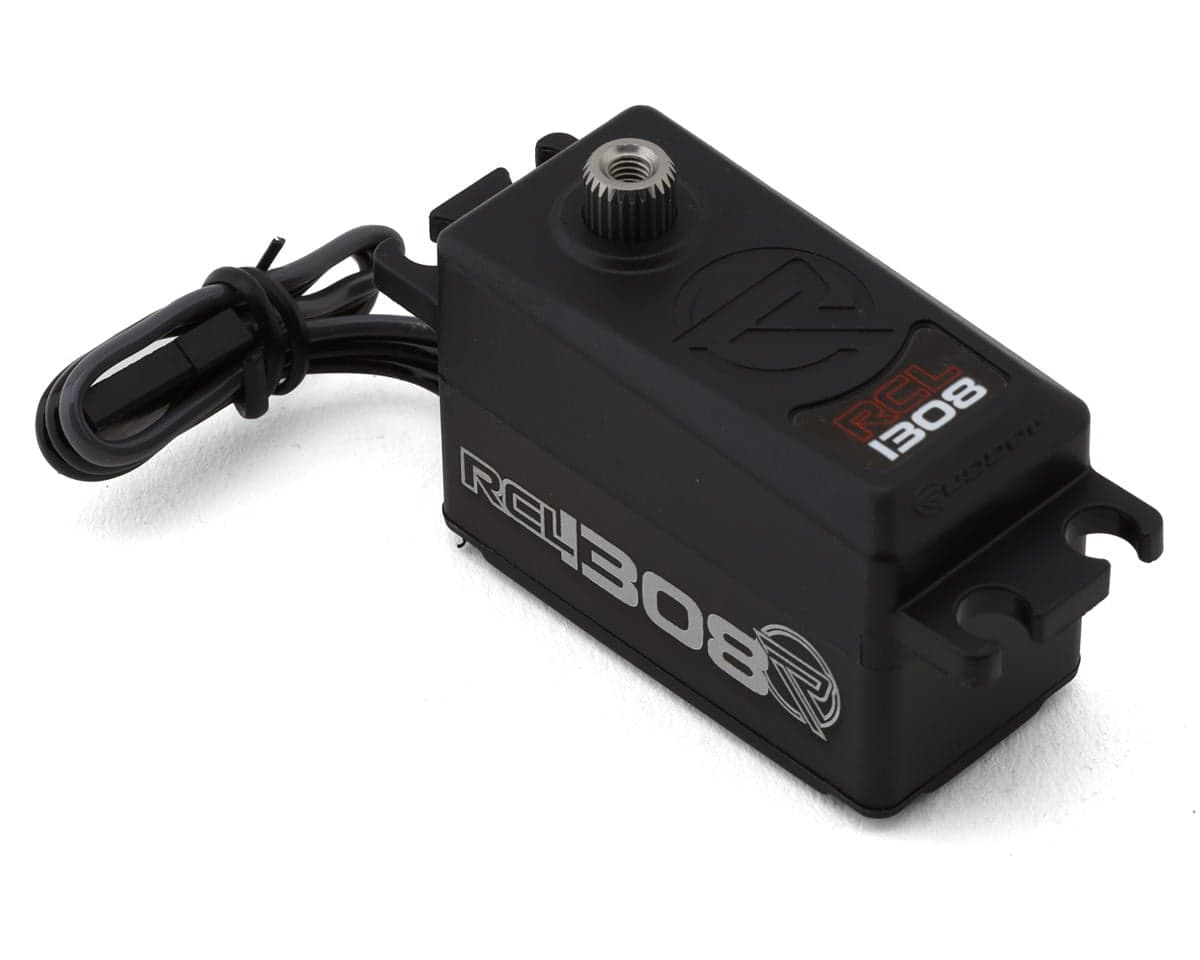

Experience precision and performance with the Ruddog RCL1308 HV Low-Profile Coreless Servo. This servo, engineered by Ruddog, combines a lightweight plastic housing with a robust aluminum center section, featuring a coreless motor for rapid response times and exceptional efficiency. Its superior actuation and potent forces ensure consistent and reliable control, even in intense racing conditions.
Features:
- Hybrid Housing Design: Lightweight plastic with a sturdy aluminum central section
- Low Profile: Compact design fits more applications
- Metal Gears: Excellent durability even in harsh conditions
Specifications:
- Operating Voltage: 4.8-8.4V
- Speed:
- @6.0V: 0.101sec/60°
- @7.4V: 0.088sec/60°
- @8.4V: 0.081sec/60°
- Torque:
- @6.0V: 11.7kg-cm (162.40oz-in)
- @7.4V: 13.2kg-cm (183.20oz-in)
- @8.4V: 14.1kg-cm (195.7oz-in)
- Dimensions: 40.8x20.3x26.9mm (1.60x0.80x1.06in)
- Weight: 43.0g (1.52oz)
- Spline: 25T
- Motor Type: Coreless
- Gear Type: Metal
Includes:
- (1) Ruddog RCL1308 HV Low-Profile Coreless Servo

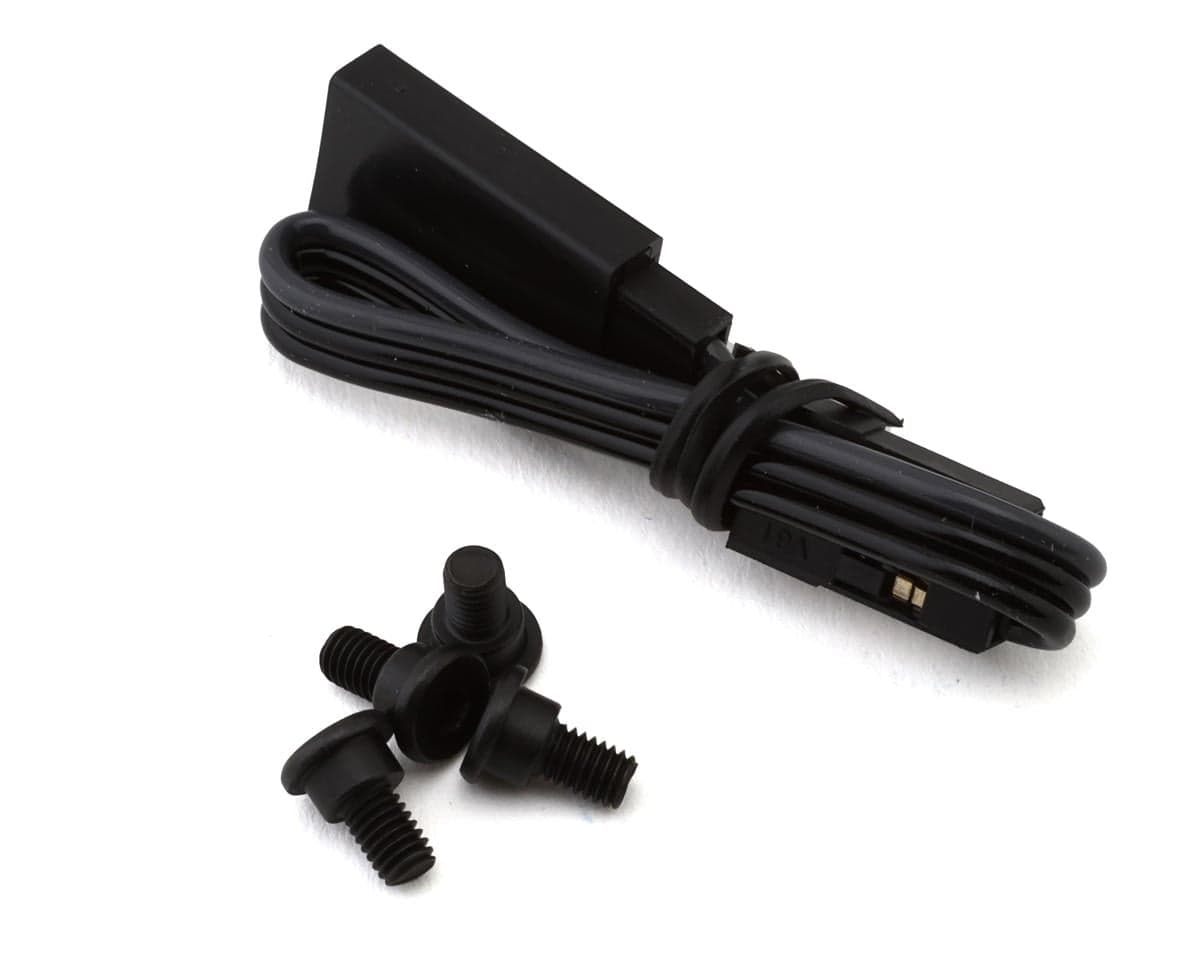

- (4) Mounting Screws
- (1) 100mm Cable Extension
Reviews3.0 · 2 reviews
Searched extensively for a lightweight servo for my stock 13.5 4wd buggy. This is the lightest model I could find that met a reasonable torque, speed, and voltage range with metal gears. 15 minutes of track time and several crashes in with no problems yet.... If you want durability buy a nitro pro, if you are a skilled driver and want lightweight parts this is a great option.
I was shocked at how weak this servo is cought the inside of a pipe 1 time and knocked 1 tooth off one fo the gears definitely will not be buying again.
