About this part
Servo Overview:
Experience the ultimate speed, power, and precision with the Ruddog RCL1807 HV Performance Servo!

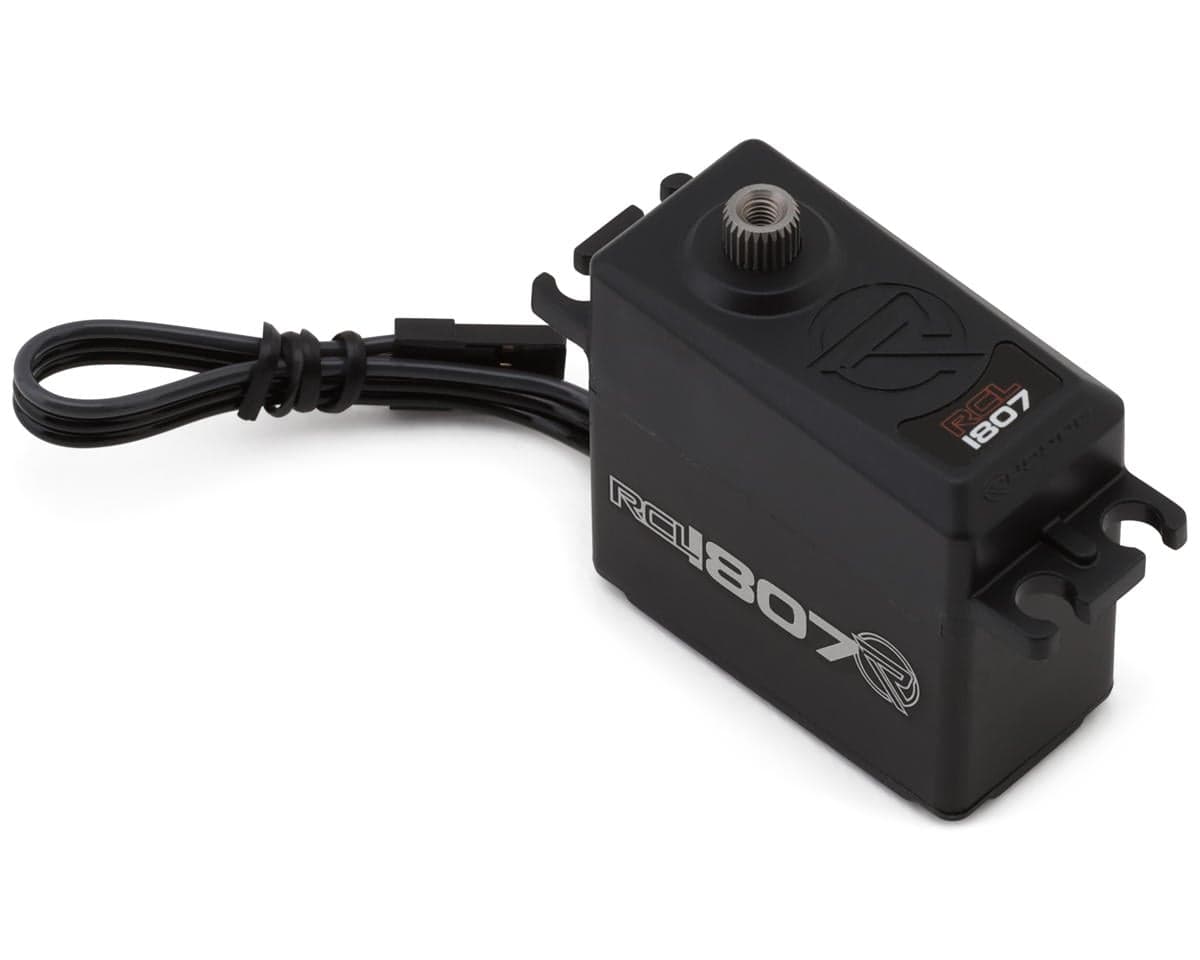

About the RCL1807 HV Coreless High Speed Servo
Fast, Durable & Reliable
The Ruddog RCL1807 HV Coreless High-Speed Servo combines performance and durability in a lightweight design. Its coreless motor ensures blazing-fast response with a 0.065 sec/60° transit speed at 8.4V, while the metal gears and reliable steel gear train provide smooth, long-lasting operation. Featuring a plastic housing with a central aluminum part for cooling, this budget-friendly servo is perfect for both RTR upgrades and competition use. Dual ball bearings and responsive digital circuitry enhance precision, making it a standout choice for speed and efficiency.
Features:
- Blazing fast 0.065 sec/60° transit speed at 8.4V
- Powerful 277.74 oz-in torque for extreme performance
- Strong CNC aluminum case for heat dissipation and durability
- Reliable steel gear train for smooth operation
- Efficient coreless motor for precision and longevity
- Responsive digital circuitry for ultra-fast signal processing
- Dual ball bearings for smooth and stable movement
- Water-resistant for supreme protection
Includes:
- (1) RCL1807 HV Coreless High Speed Servo (HV)
Specifications:
| Application | 1/12 to 1/8 On-road & Off-Road |
|---|---|
| Input Voltage | 5-8.4V |
| Operating Speed @ 6.0V | 0.082 sec/60° |
| Operating Speed @ 7.4V | 0.074 sec/60° |
| Operating Speed @ 8.4V | 0.065 sec/60° |
| Dynamic Torque @ 6.0V | 208.31 oz-in (15 Kg-cm) |
| Dynamic Torque @ 7.4V | 256.91 oz-in (18.5 Kg-cm) |
| Dynamic Torque @ 8.4V | 277.74 oz-in (20 Kg-cm) |
| Water-Resistant Rating | IP66 |
| Gear Material | Steel |
| Motor Type | Coreless |
| Output Shaft Spline | 25T |
| Dimensions | 1.57x0.78x1.48in (40x20x37.8mm) |
| Weight | 2.29oz (65.1g) |
