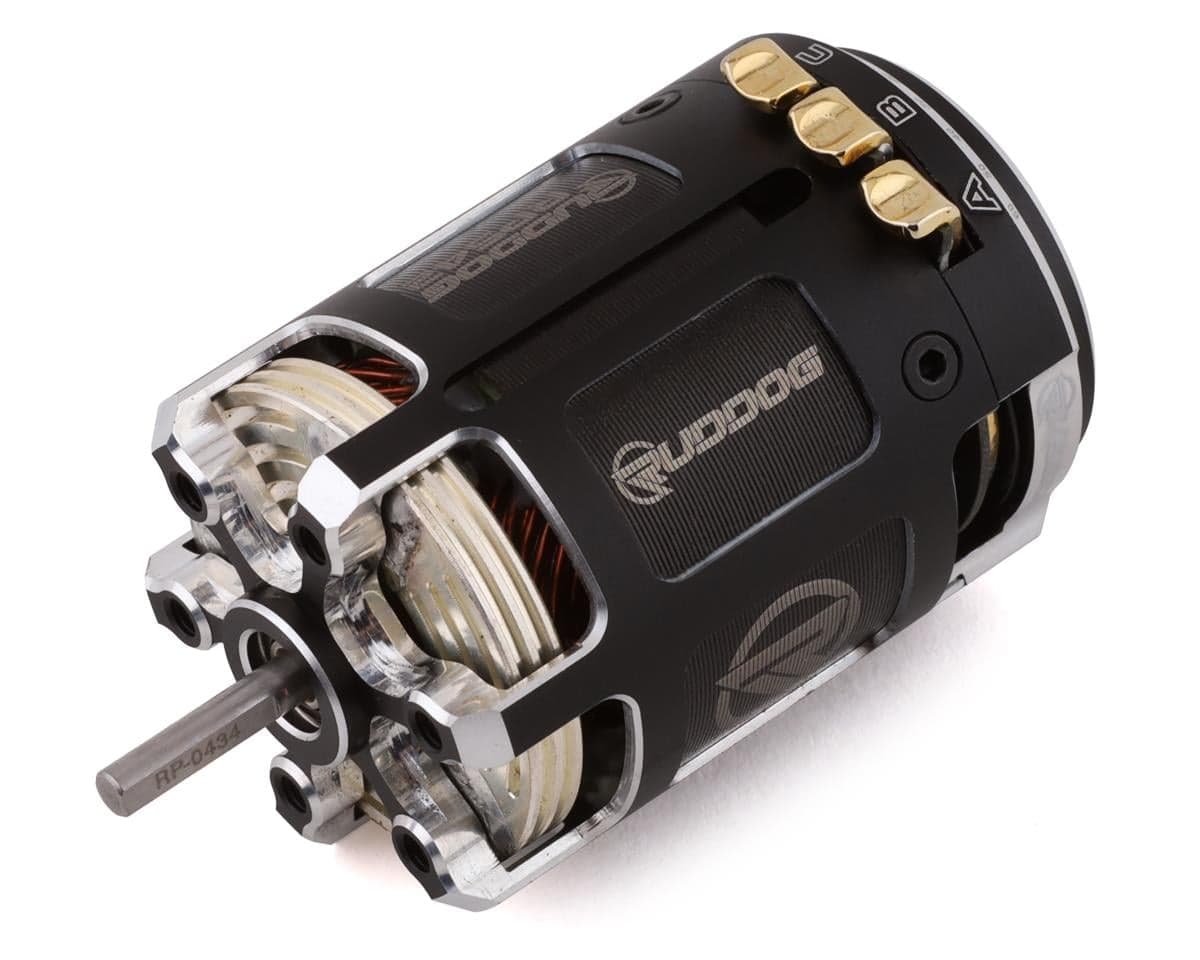

Ruddog RP542 Modified 540 Sensored Brushless Motor (8.5T)
Part # RDGRP-0444
Where to buy
$107.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Ruddog RP542 Modified 540 Sensored Brushless Motor features a revised stack design to improve driveability, and a high-precision sensor to increase performance and efficiency. The Ruddog design team has gone to great lengths to reduce operating temperatures, adding large openings in the housing to lower the weight and ensure optimum air flow, while a ribbed stator collector ring is used to improve heat dissipation. Optimized rotors have been selected specific to the application, with modified motors using a 12.1x5x24.5mm rotor.
Features:
- RUDDOG Racing competition motors
- Redesigned stack for improved driveability
- High-precision sensor unit
- Light-weight motor housing with large openings for increased air flow
- Ribbed stator collector ring for better heat dissipation
- Specific rotors for modified racing
- Clearly visible motor winding number
Specifications:
Turn Rating: 8.5 Turns
Dimensions: 35.9x51.6mm
Weight: 165g (approx)
Ball Bearing Type: High Quality Steel Bearings
Spare Part Ball Bearings: RDGRP-0148 RP540 Ball Bearing Set
Rotor: RUDDOG Racing RP542 12.1x5x24.5mm Modified Rotor
