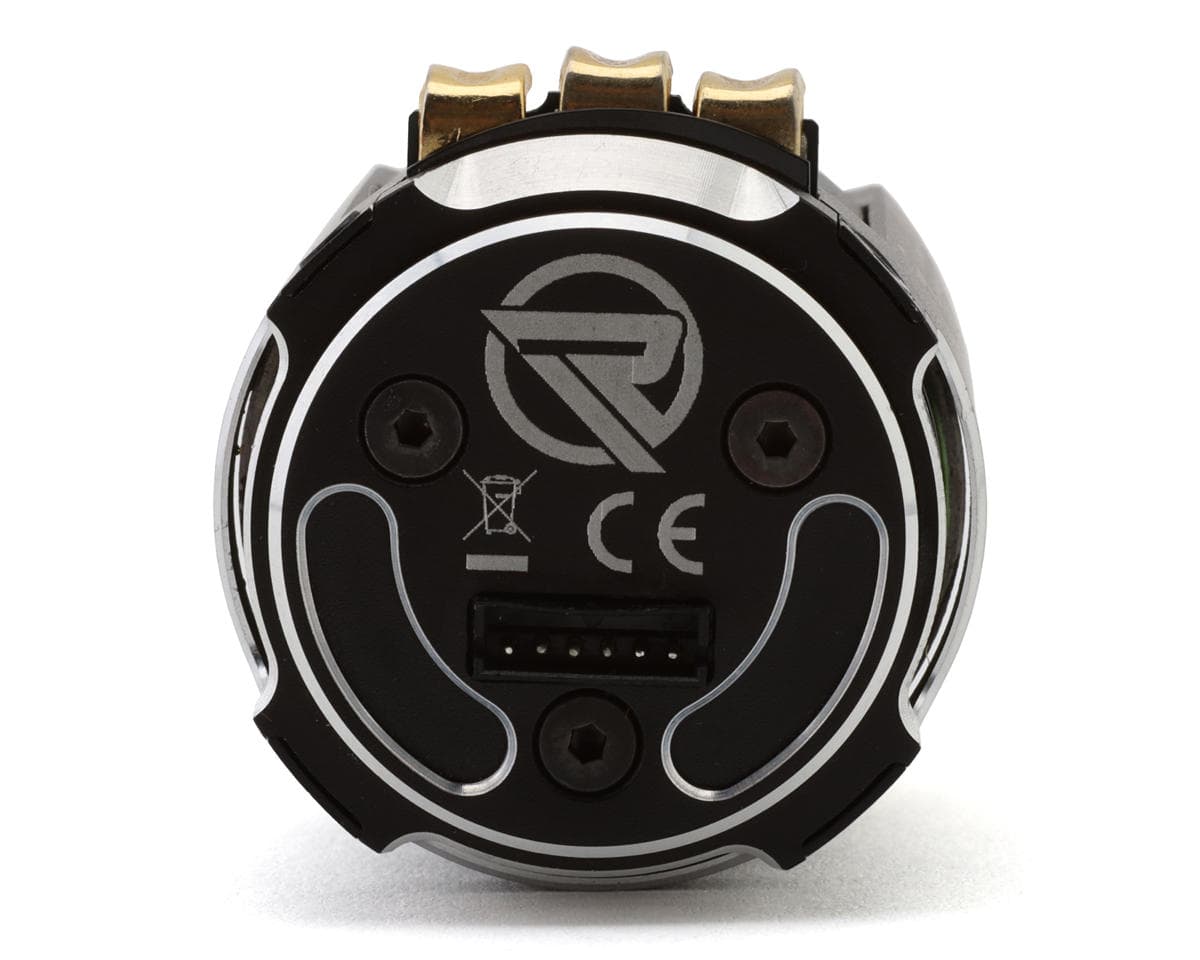

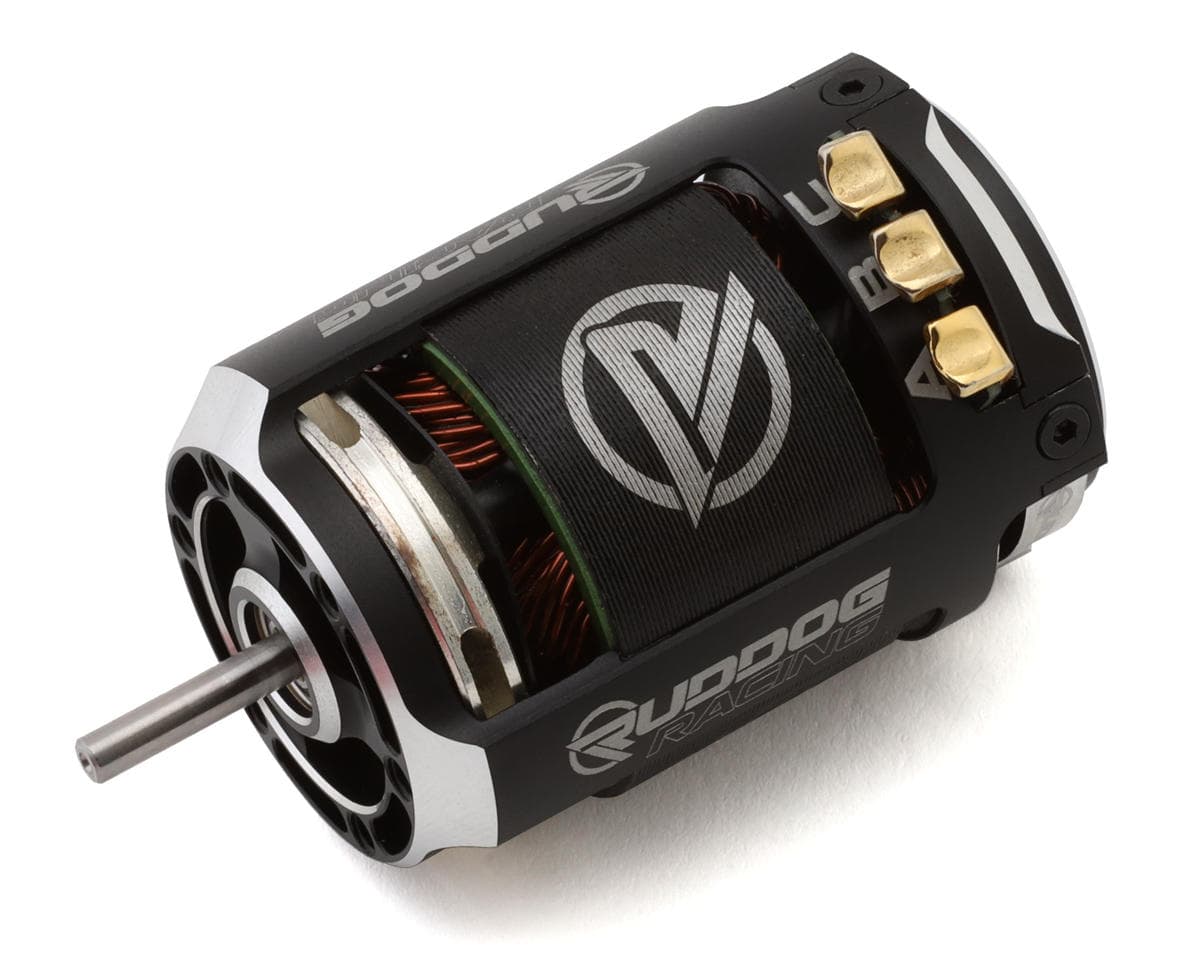

Ruddog RP543 540 Racing Sensored Brushless Motor (5.5T)
About this part
Motor Overview:
Unleash race-winning power with the Ruddog RP543 540 Sensored Brushless Motor — engineered for precision, efficiency, and control that push your performance to the absolute limit.
About the RP543 540 Sensored Brushless Motor
Engineered for Peak Performance
The Ruddog RP543 540 Racing Sensored Brushless Motor takes competition-level precision and power to the next level. Featuring a updated stator for improved response and efficiency, this motor delivers ultra-smooth throttle control through its high-precision sensor system. Its lightweight aluminum housing, enhanced with large cooling openings and a finned collector ring, ensures optimal heat dissipation for consistent performance. With application-specific rotors tailored for different windings, the RP543 offers unmatched control, power delivery, and reliability on the track.
Features:
- High-performance competition-grade brushless motor
- Updated stator for improved power delivery
- High-precision sensor unit ensures smooth throttle control
- Lightweight aluminum housing reduces overall weight
- Large cooling openings enhance airflow and efficiency
- Collector ring with extra cooling fins improves heat dissipation
- Optimized rotors tailored for specific winding ranges
- Built for maximum performance, control, and reliability on the track
Includes:
- (1) RP543 540 Racing Sensored Brushless Motor

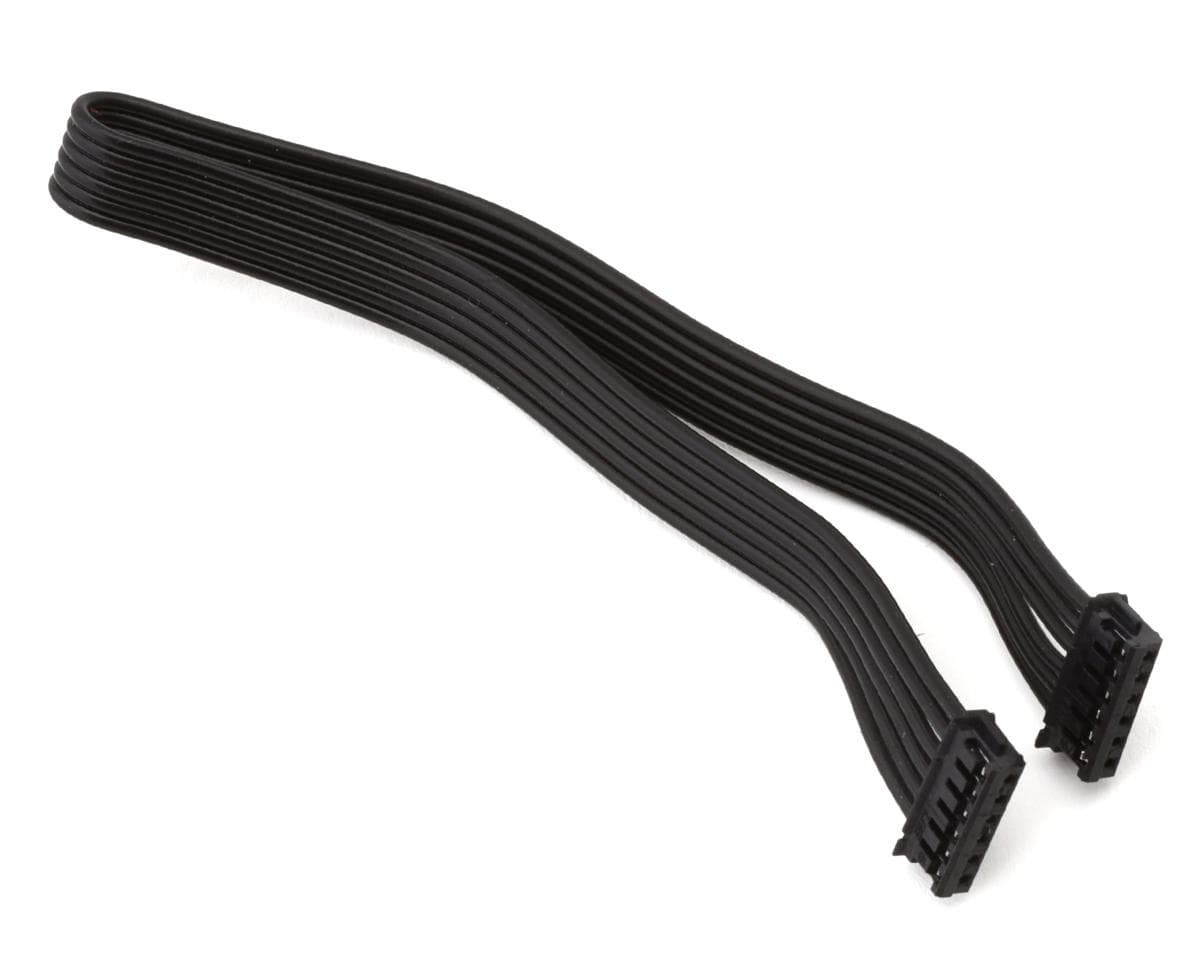

- (1) Sensor Cable
- (1) Manual
Specifications:
| Suggested Application | 1/10 |
|---|---|
| Size | 5.5T |
| Type | Brushless - Sensored |
| Voltage | 2S LiPo (7.4V) |
| Adjustable Timing | No |
| Poles | - |
| Connector | Solder Tab |
| Dimensions | 2.03x1.41in (51.6x35.9mm) |
| Shaft Diameter | 1/8in (3.175mm) |
| Weight | 5.5oz (156g) |
