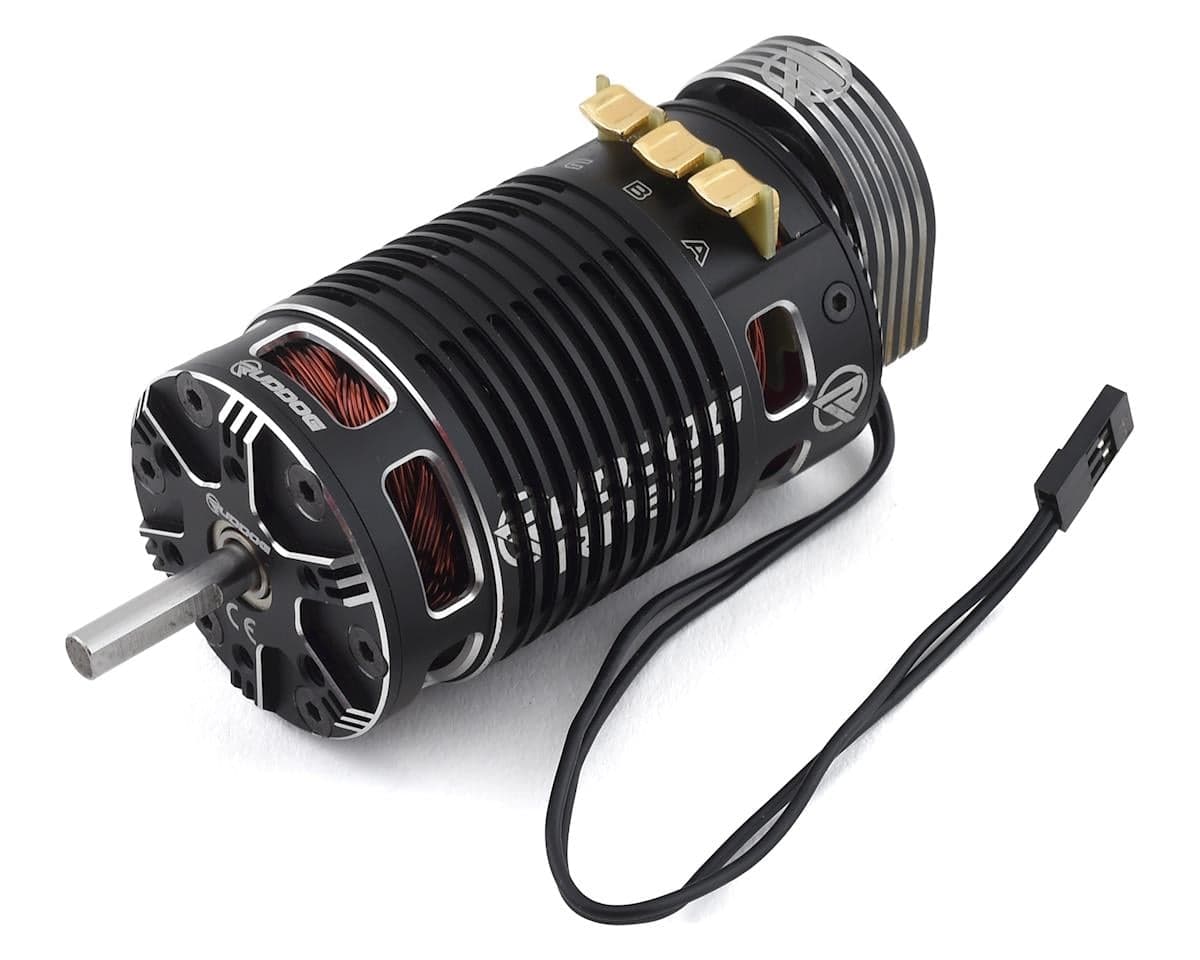

Ruddog RP691 1/8 Sensored Competition Brushless Motor (1800Kv)

The RUDDOG RP691 1/8 Sensored Competition Brushless Motor is the latest development in 1/8 brushless motor technology. Developed and designed in Germany, it features a unique cooling system, which not only includes optimised cooling vents, but also a direct mount high-speed aluminium fan. The motor features a light weight design of just 307g and is available in KV ratings of 1800 to 2400KV.

Features:

• Engineered and designed in Germany
• Latest state of the art technology

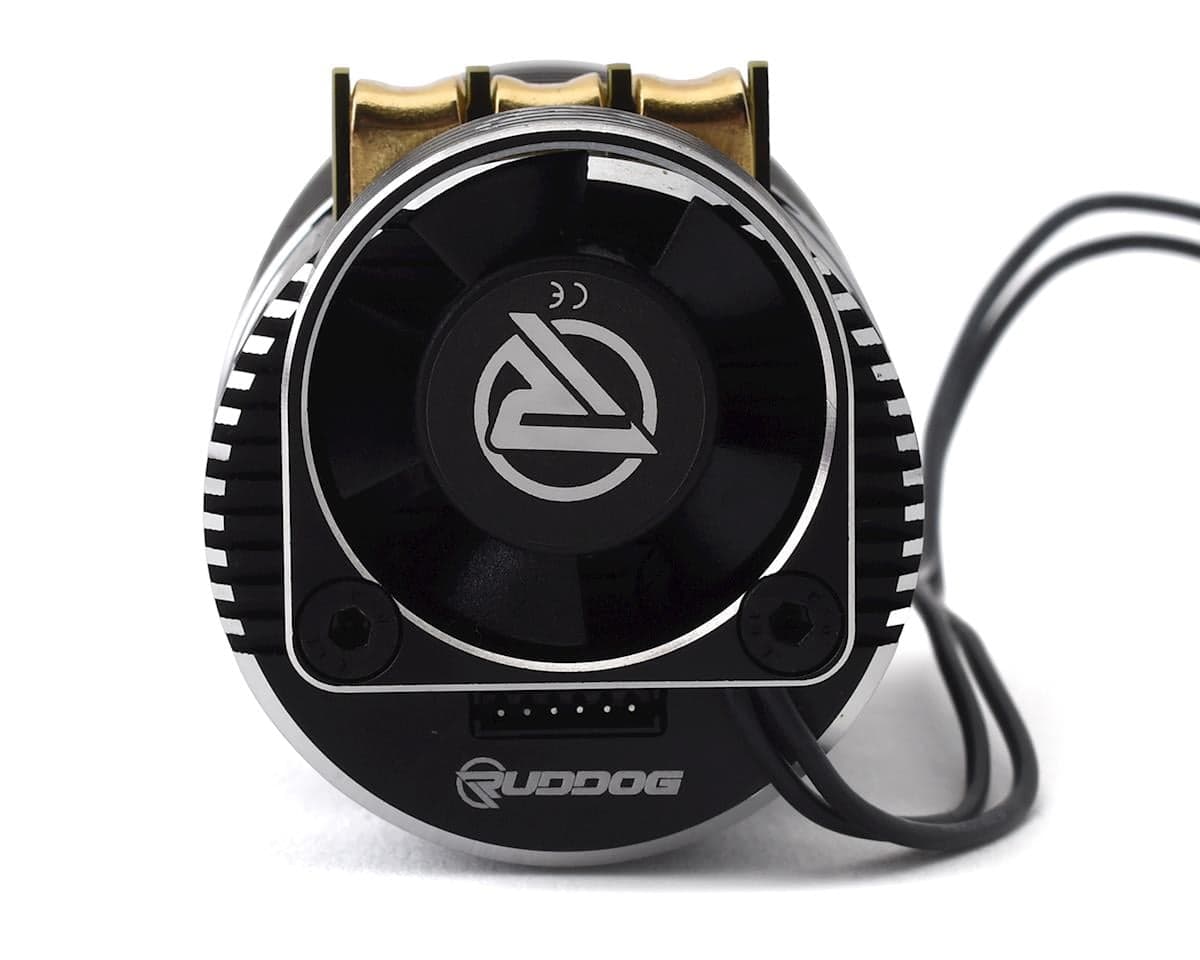

• Direct fan mount
• Aluminium Fan included
• Optimised cooling vents
• Lightweight design (just 307g without fan)
• M3 and M4 mounting holes
• Available in 1800KV, 2000KV, 2200KV and 2400KV

Technical Specifications:
Weight with fan: 321g
Weight without fan: 307g
Shaft: 5x19mm
Motor Diameter: 40mm
Motor Diameter with fins: 42mm
Motor Length: 69mm
Motor Length with fan: 80mm
Input Voltage: 2-6S LiPo/LiHV
Sensored: yes
Application: 1/8 Buggy and Truck
