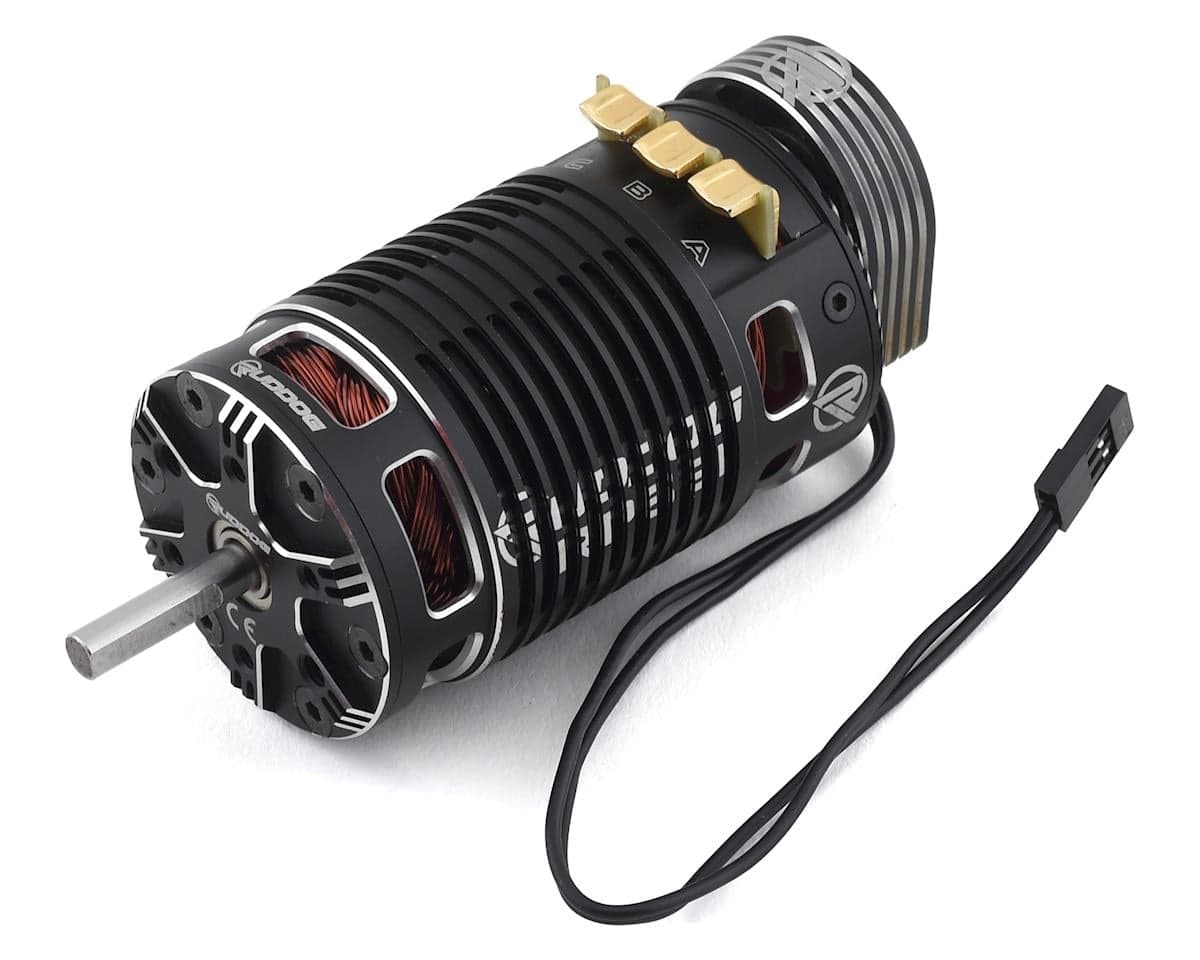

Ruddog RP691 1/8 Sensored Competition Brushless Motor (2200Kv)
About this part
The RUDDOG RP691 1/8 Sensored Competition Brushless Motor is the latest development in 1/8 brushless motor technology. Developed and designed in Germany, it features a unique cooling system, which not only includes optimised cooling vents, but also a direct mount high-speed aluminium fan. The motor features a light weight design of just 307g and is available in KV ratings of 1800 to 2400KV.
Features:
- Engineered and designed in Germany
- Latest state of the art technology

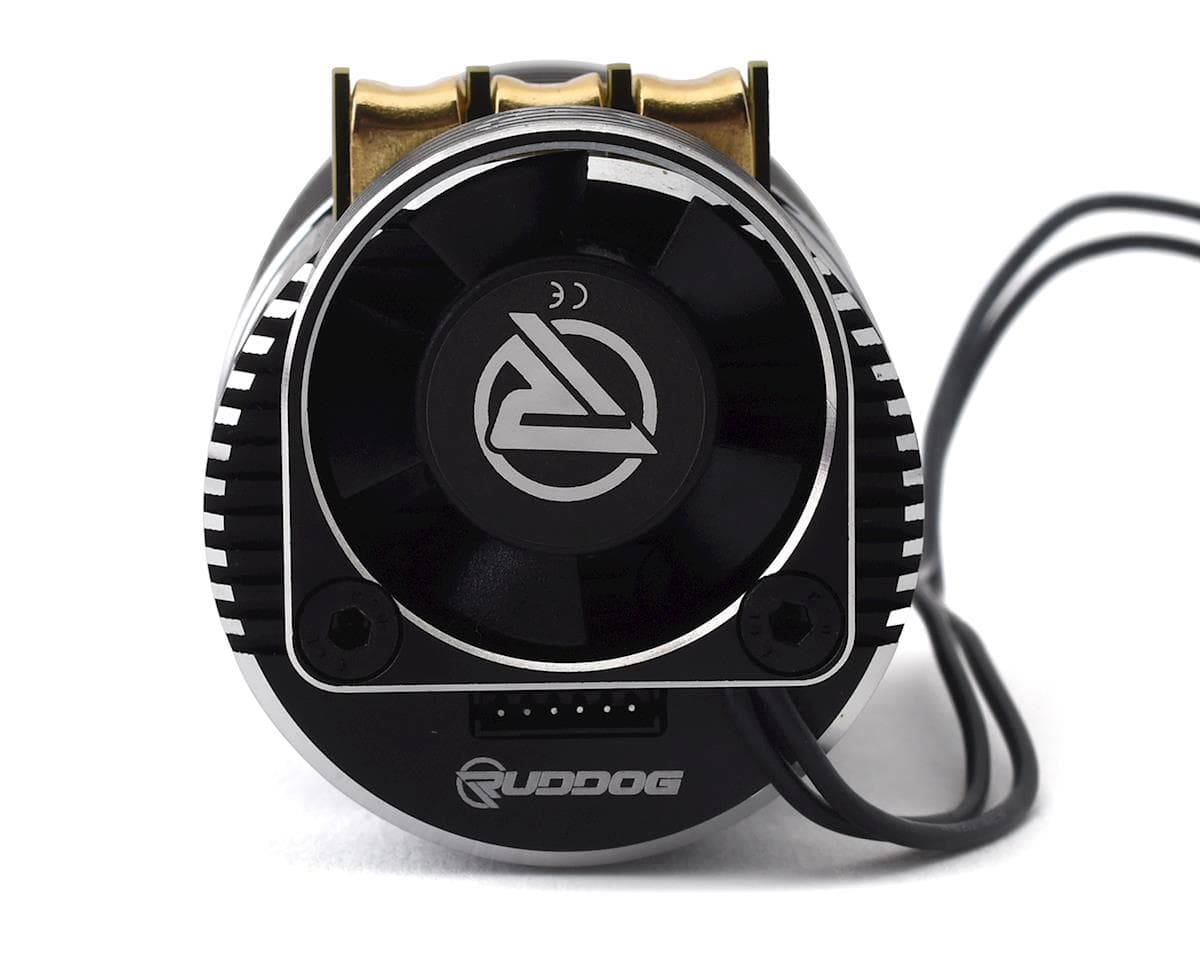

- Direct fan mount
- Aluminium Fan included
- Optimised cooling vents
- Lightweight design (just 307g without fan)
- M3 and M4 mounting holes
- Available in 1800KV, 2000KV, 2200KV and 2400KV
Technical Specifications:
Weight with fan: 321g
Weight without fan: 307g
Shaft: 5x19mm
Motor Diameter: 40mm
Motor Diameter with fins: 42mm
Motor Length: 69mm
Motor Length with fan: 80mm
Input Voltage: 2-6S LiPo/LiHV
Sensored: yes
Application: 1/8 Buggy and Truck
Reviews4.5 · 2 reviews
I got this motor last week and was able to get it out on the track. All in all, I am pleased with it! I am upgrading from a 1900kv to this 2200kv. On my 1900kv I was running an 18T pinion without issue and on this motor, I went down to a 16T. The fan does a great job of keeping the motor cooler. On average it kept it between 20-30 degrees cooler in the 85-degree weather in which I was testing the motor. My only issue is at some point while running this motor, one of the two leads that go from the receiver to the fan just split. The wire for the fan is SO thin, and the sheathing for that wiring is so delicate, that I can I could strip it with my fingernails. Took the fan off the motor, soldered it, taped it up (because I didn't have any shrink wrap), and got back out on the track and things were fine. Without the fan after ~10 hot laps, ~171 degrees F With the fan after ~10 hot laps, ~150 degrees F My 1900kv w/no fan and larger pinion ~150 degrees F after ~10 hot laps
So far so good. I ran this motor really hard for 4 races in U4RC the other day. It fits my truck with the fan and really moves a ton of air. In comparison to my other motor in the same conditions, the temp does stay cooler. Plenty of smooth power too. It's running off a Tekin RX8.
