About this part
Servo Overview:

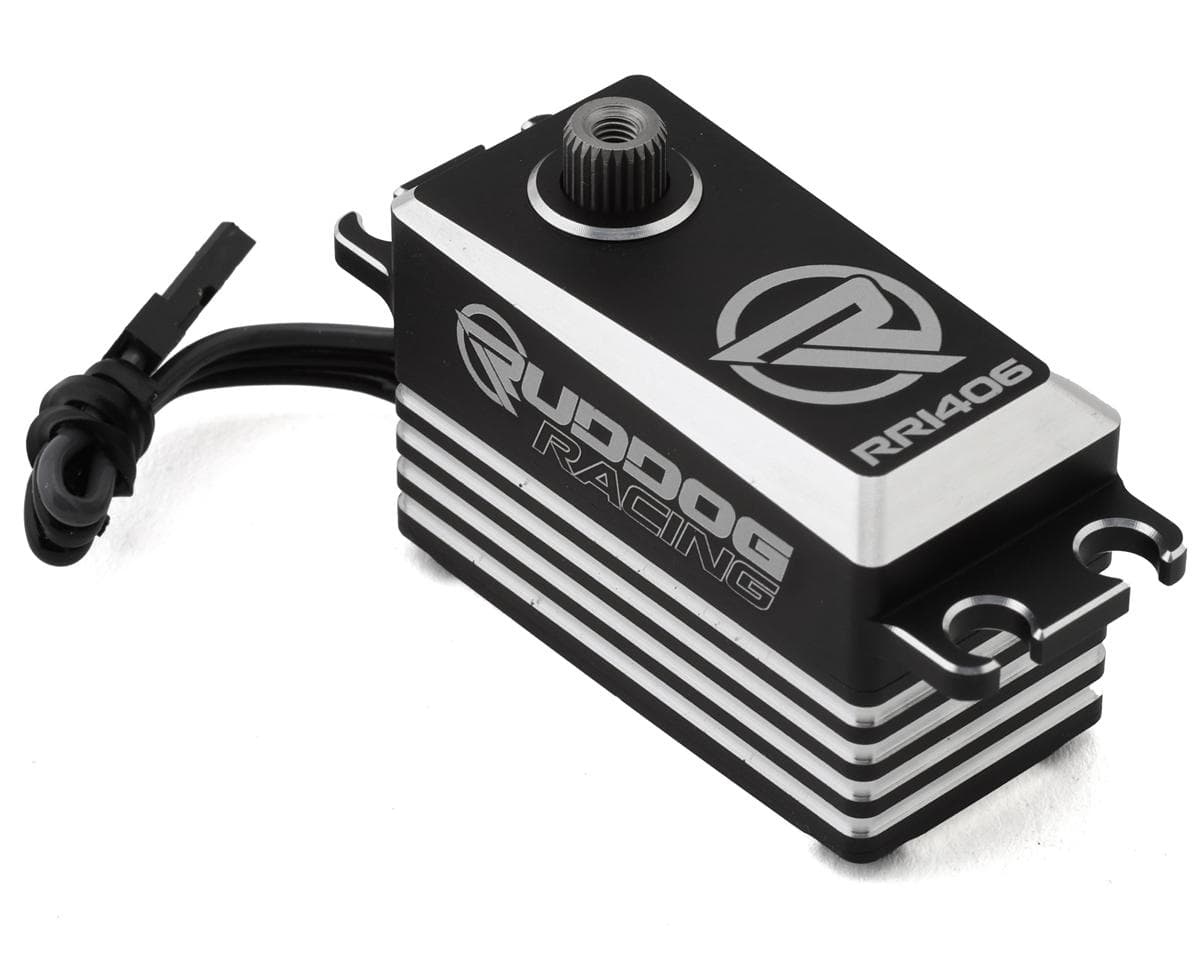

Enhance the precision and power of your RC touring car with the Ruddog Racing RR1406 HV Low Profile Brushless Servo. Crafted meticulously for the exacting demands of 1/10 touring car racing, this servo boasts exceptional power and speed. Its CNC-machined aluminum body, adorned with a sleek black anodized finish and highlighted by silver chamfers, fuses style with functionality. The distinct Ruddog Racing logo, laser-engraved on the housing, exudes premium craftsmanship.
Features:
- Hybrid Housing Design: Lightweight plastic with a sturdy aluminum central section
- Low Profile: Compact design fits more applications
- Metal Gears: Excellent durability even in harsh conditions
Specifications:
- Operating Voltage: 4.8-8.4V
- Speed:
- @6.0V: 0.070sec/60°
- @7.4V: 0.064sec/60°
- @8.4V: 0.061sec/60°
- Torque:
- @6.0V: 13.1kg-cm (181.8oz-in)
- @7.4V: 14.2kg-cm (197.1oz-in)
- @8.4V: 14.9kg-cm (206.8oz-in)
- Dimensions: 40.8x20.1x26.6mm (1.60x0.80x1.05in)
- Weight: 54.4g (1.92oz)
- Spline: 25T
- Motor Type: Brushless
- Gear Type: Metal
Includes:
- (1) RR1406 Brushless Low Profile Servo (High Voltage)

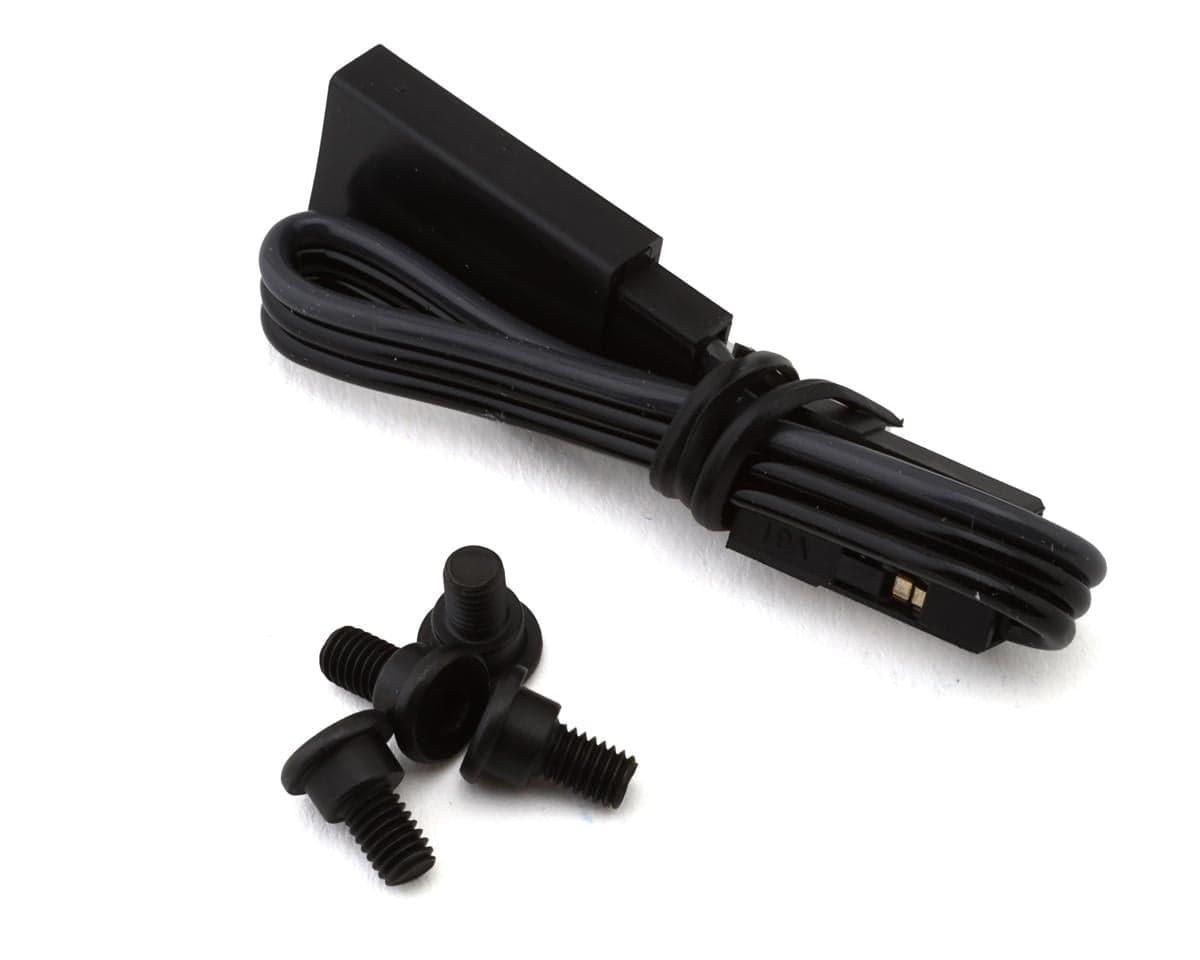

- (4) Mounting Screws
- (1) 100mm Cable Extension
