About this part

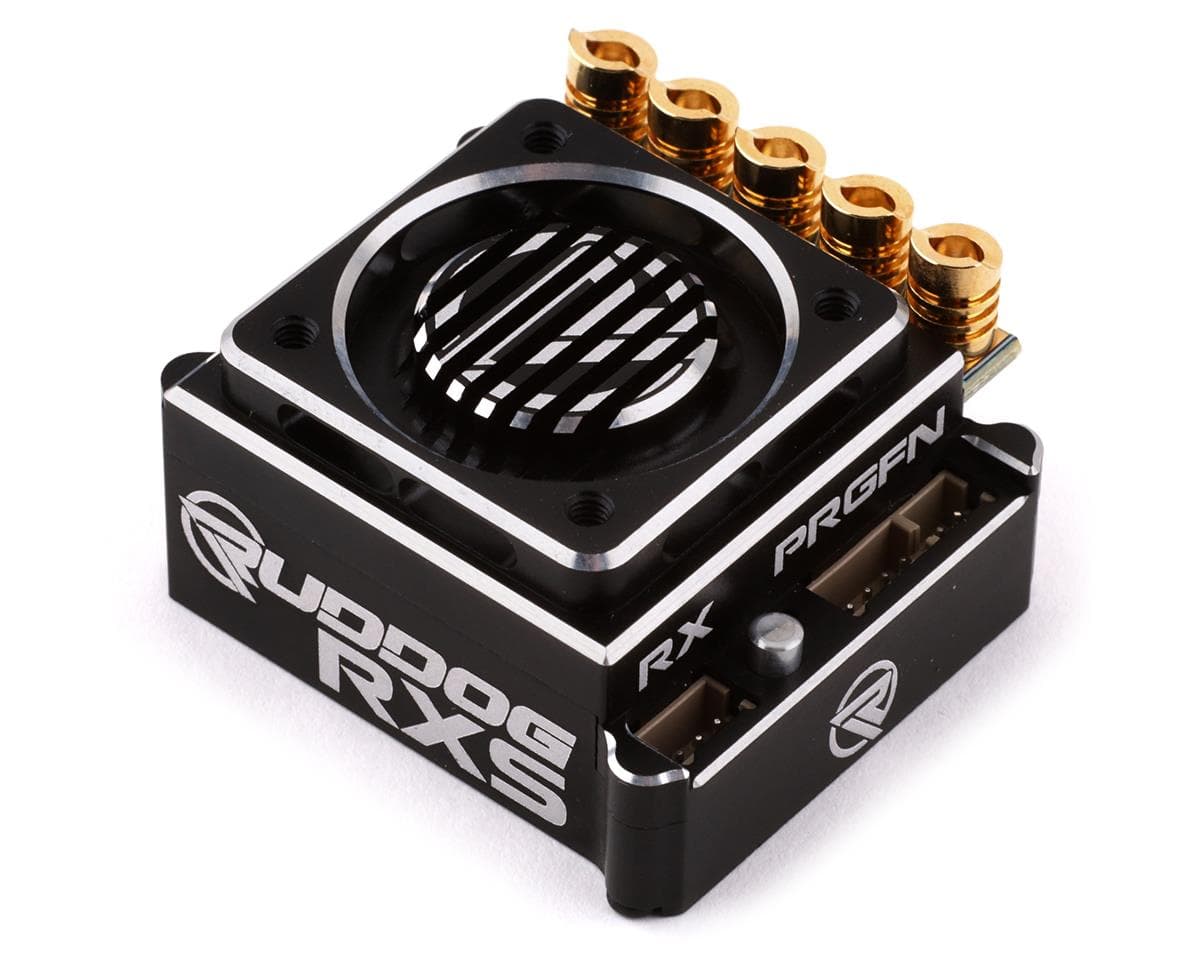

The Ruddog RXS 1/10 Brushless Electronic Speed Control is the culmination of more than two years of meticulous development and testing. The RXS features an elegant aluminum housing, a 32-bit processor and the latest FET technology. This is an ideal basis for optimal performance and a strong, controllable, braking function. When combined with the optional program card, you can fine tune the ESC to suite your needs. With the features and functions of the RXS, it is sure to be a dominating force for 1/10 racing applications.
Features:
Features:
- 32-bit processor
- Interchangeable receiver cables
- latest FET technology
- Integrated on / off switch
- Developed for modified and stock applications
- Strong, easy-to-dose brake
- Cooling solder base
Specifications:
Voltage: 2S LiPo | 6.0V - 8.7V
Continuous Current: 160 A.
Burst Current: 760 A.
Motor limit: Over 4.5 T (for 540 size)
BEC: 6.0-7.4V (Adjustable)
Weight: 38g (without cable and fan)
Size: 37.8x33.8x19.7mm

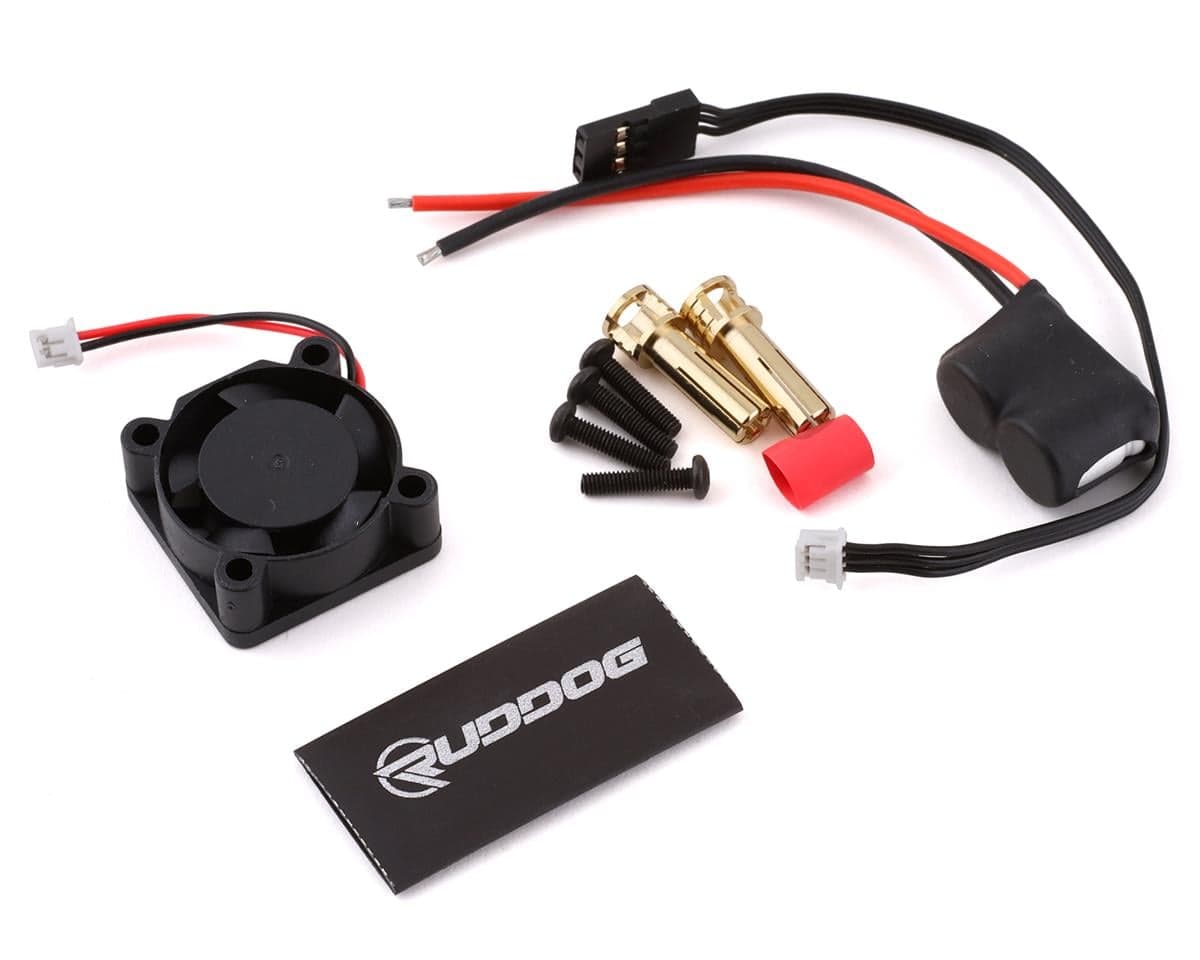

Includes:
Includes:
- (1) Ruddog RXS Speed Controller
- (1) 25mm Fan with Hardware
- (1) Receiver Cable - 120mm
- (2) 5mm Bullets
- (1) Capacitor Bank
- (1) Length of Heat Shrink
Reviews3.0 · 2 reviews
Karl HernandezVerified owneron Ruddog RXS 1/10 Brushless Electronic Speed Control
Junk! Do not buy, doesn’t work properly. Save up your money and buy Hobby wing or other brands but not this!
Dave FMay 5, 2024on Ruddog RXS 1/10 Brushless Electronic Speed Control
Fantastic esc! Using it in a SC6.2 for outdoor, works just as well as my Hobbywings for a few dollars less. No complaints.
1 found this helpful
