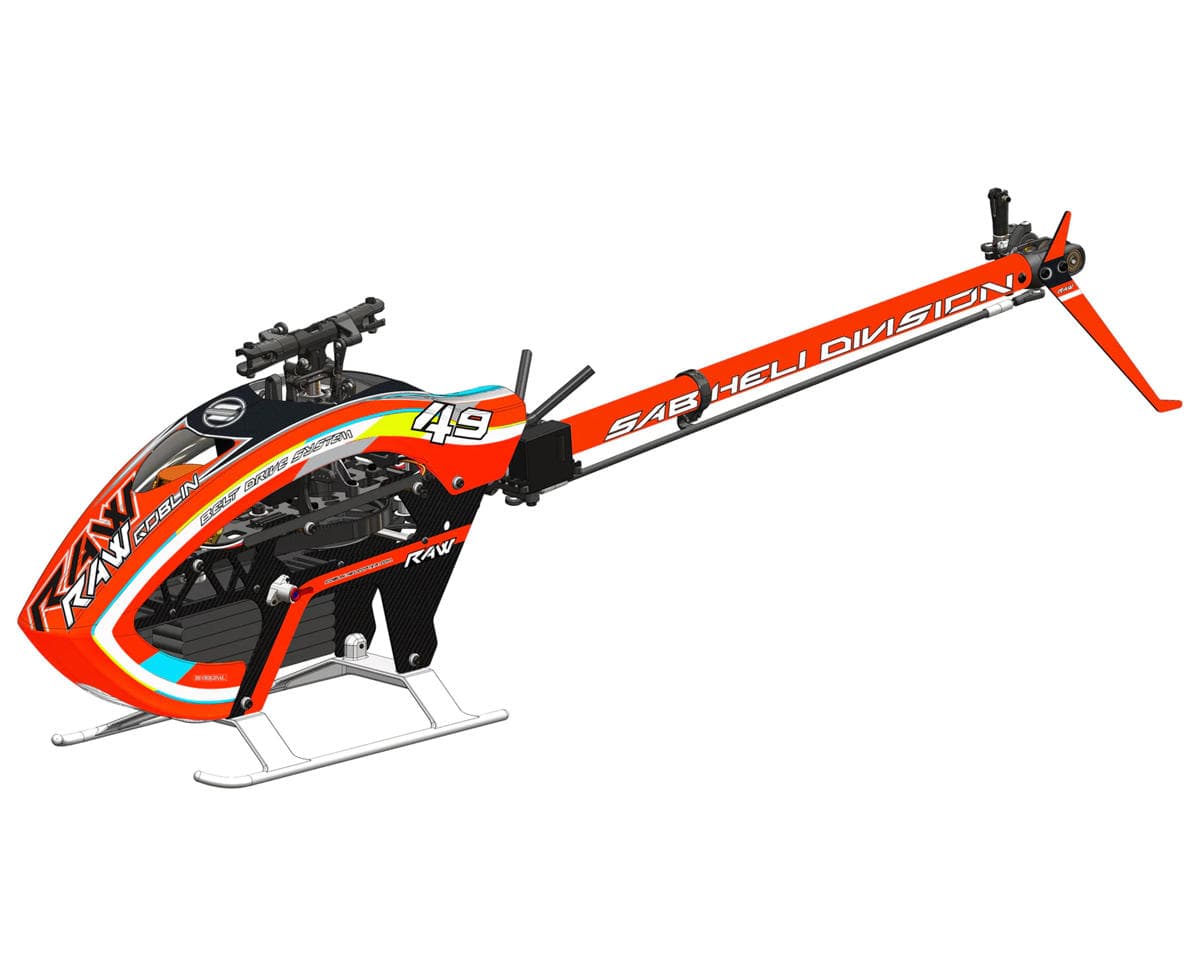

SAB Goblin Raw 420 Competition Electric Helicopter Kit (Orange) w/Blades

High Flying Performance 420 Size Helicopter

The SAB Goblin Raw 420 Competition represents the next generation of 420 size models from SAB, featuring a single-stage gearing system rather than direct drive. This innovation allows for customizable power, efficiency, and flight time optimization by enabling users to select their preferred motor size and KV rating, ranging from 2820 to 3220 and 800 to 1000 respectively. With a range of motor pulleys available, pilots can fine-tune their head speed according to their motor choice. Despite its enhanced capabilities, this model is lighter than its direct drive predecessor and boasts a sleek canopy design reminiscent of the popular Raw 500.

Built with ease of assembly in mind, the Raw 420 Competition offers a streamlined build process with a low parts count and several user-friendly features. These include an improved tail push rod design for easy assembly, an integrated flybarless system antenna mount, and more. Designed to operate on a 6s pack ranging from 2200 to 2700mAh.

Features:

• Extremely capable air frame
• Single stage gear system
• Zytel HTN resin blade grip arms
• High quality carbon fiber and aluminum construction
• Light weight and innovative design
• Quick release battery tray with built-in connectors

Specifications:

• Frame Weight: 35.2oz (1000g)
• Main Rotor Diameter: 16.5in (420mm)
• Battery Compartment Size: 5.3x1.5x2.1in (135x40x54mm)
• Main Rotor Ratio: 1:6,3 to 1:5
• Main Rotor Ratio: 4:1
• Power Type: Electric
• Level of Completion: Kit

Includes:

• (1) SAB Goblin Raw 420 Competition Electric Helicopter Kit
• (2) S Line blades 420mm main blades
• (2) S Line blades 70mm tail blades
• (1) Manual

Needed to Complete:

• (3) Micro Cyclic Servos
• (1) Mini Tail Servo
• (1) 3020, 3215 or 3220 (900-1000kV) Brushless Electric Motor
• (1) 60-80A Electronic Speed Control
• (1) Flybarless Gyro System
• (1) 6+ 2.4GHz Transmitter System
• (1) 6+ 2.4GHz Matching Receiver System
• (1+) 6s 22.2V LiPo Battery 2200-2700mAh
• Misc. Building Tools
