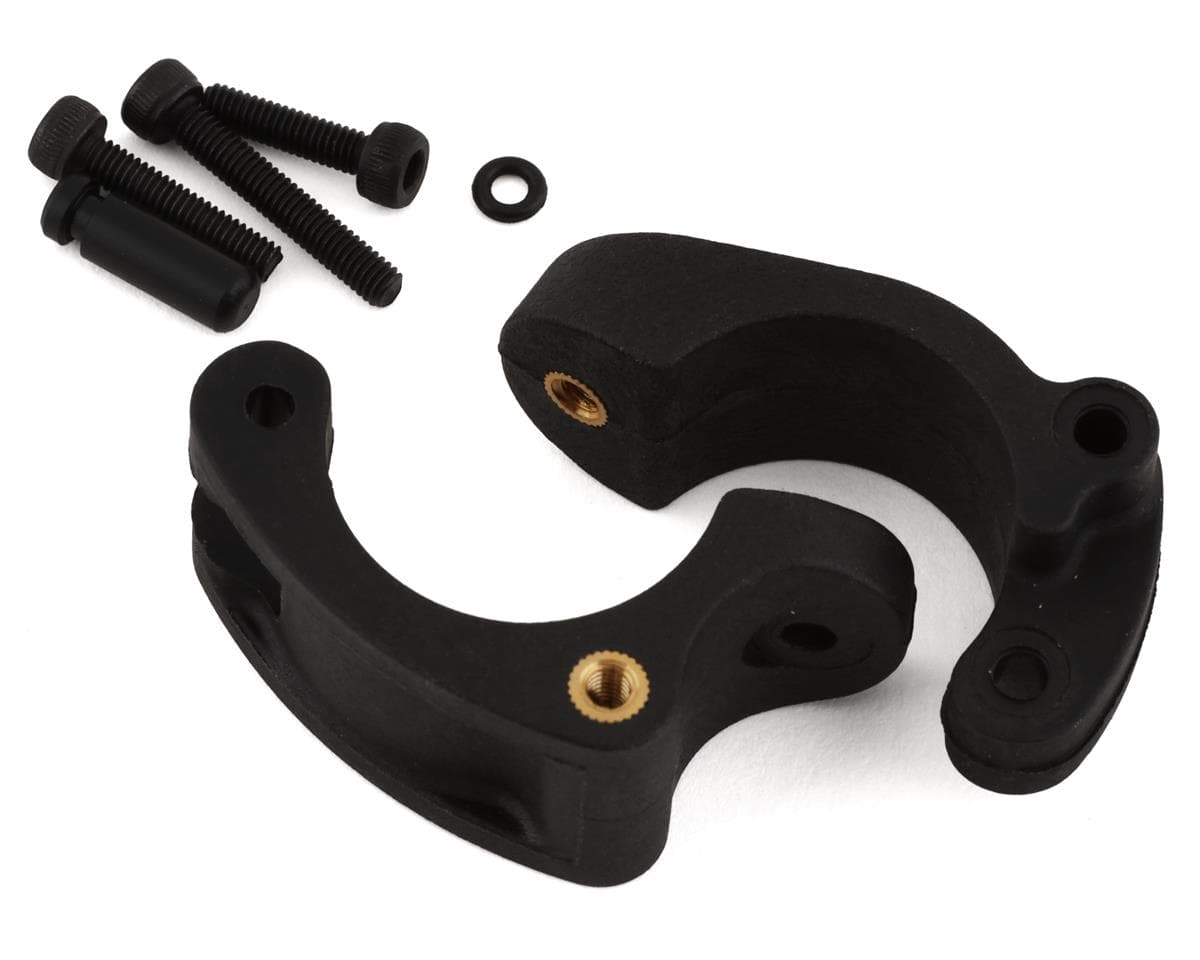

Name: SAB Goblin Tail Boom Tension Tool (Raw 420)
Brand: SAB Goblin
SKU: SABH1703-S
Price: 15.4 USD

SAB Goblin Tail Boom Tension Tool (Raw 420)

AMain Hobbies

Goblin 420

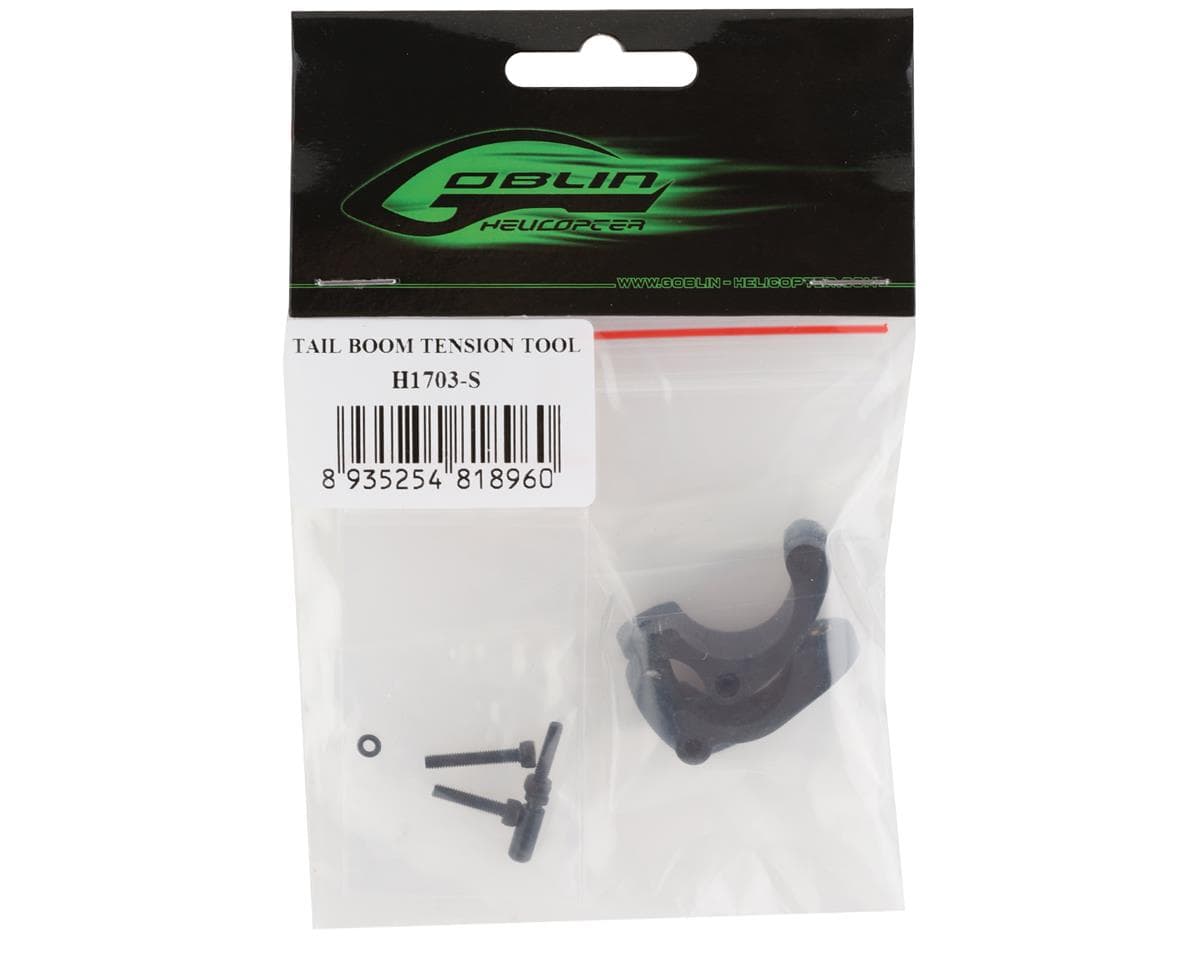

SAB&nbsp;Tail Boom Tension Tool. This replacement tension tool is intended for the SAB Goblin Raw 420. Package includes one tension tool.
<br>
<br><strong>How to use the Tail Belt Tension Tool:</strong>
<br>
<div>
  <ul>
    <li>1. Push the plastic pad into its seat by unscrewing the 2.5x12mm screw.</li>
    <li>2. Install the tool on the boom, it needs to touch the H1454 clamp.</li>
    <li>3. Tighten the 2.5x10mm screw to lock the tool onto the boom.</li>
    <li>4. Turn the 2.5x12mm screw to tension the tail belt.</li>
    <li>This will push the boom back, thus tightening the tail belt.</li>
    <li>5. Once the correct tension is achieved, tighten the two boom clamps with the two 2.5mm screws.</li>
    <li>6. Remove the tool before flight</li>
  </ul>
</div>

SAB&nbsp;Tail Boom Tension Tool. This replacement tension tool is intended for the SAB Goblin Raw 420. Package includes one tension tool. How to use the Tail Belt Tension Tool: 1. Push the plastic pad into its seat by unscrewing the 2.5x12mm screw. 2. Install the tool on the boom, it needs to touch the H1454 clamp. 3. Tighten the 2.5x10mm screw to lock the tool onto the boom. 4. Turn the 2.5x12mm screw to tension the tail belt. This will push the boom back, thus tightening the tail belt. 5. Once the correct tension is achieved, tighten the two boom clamps with the two 2.5mm screws. 6. Remove the tool before flight
