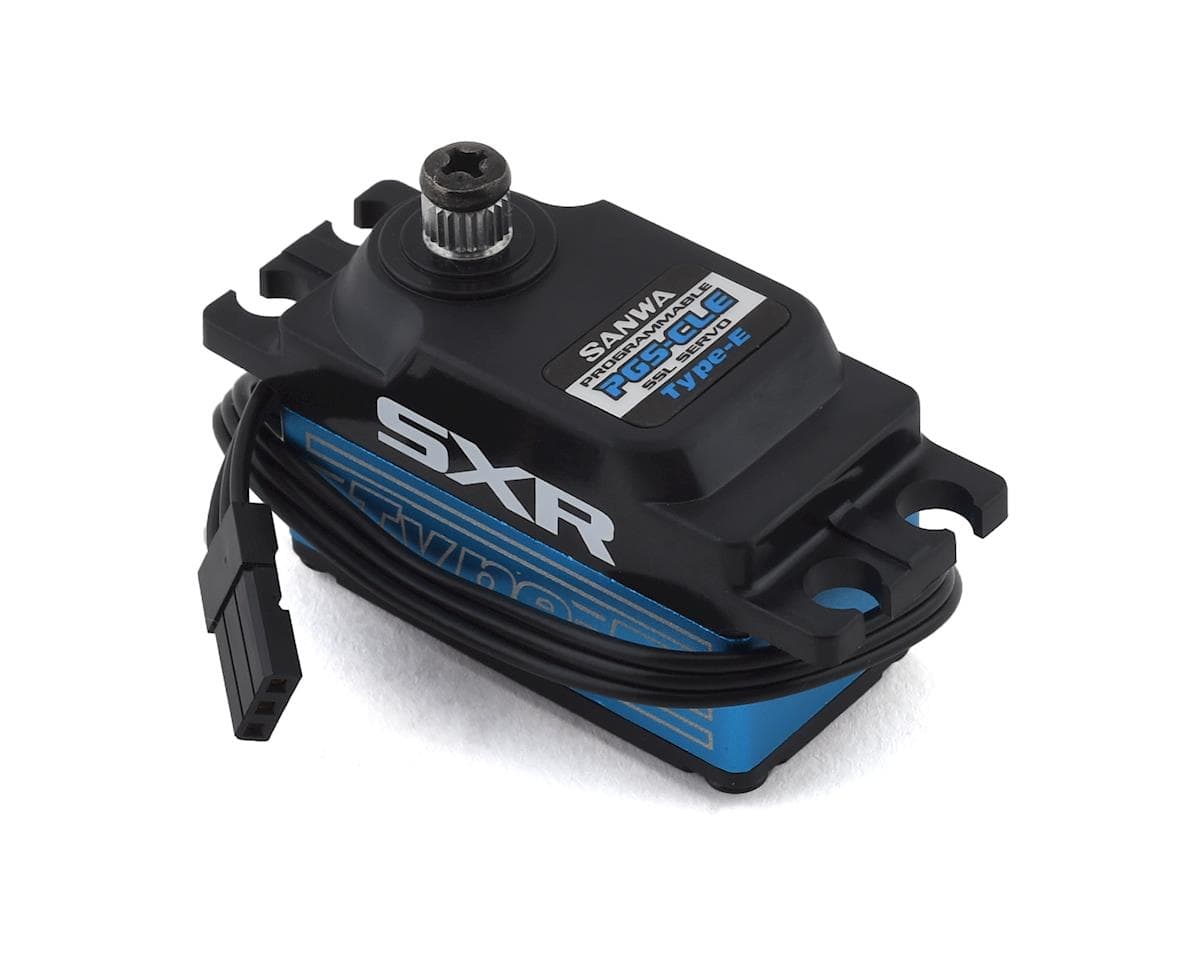

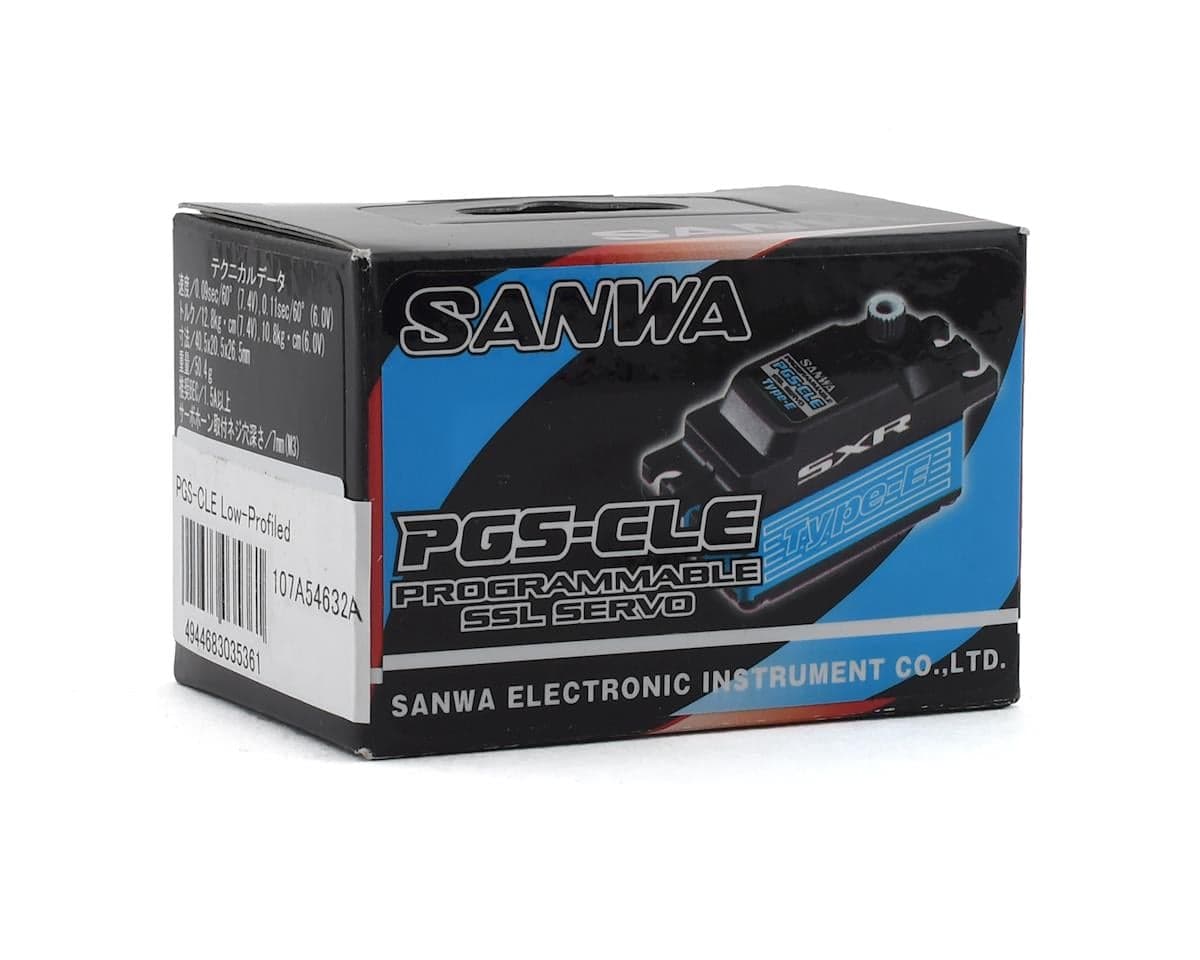

Sanwa/Airtronics PGS-CLE Hi-Speed Programmable Low Profile Brushless Servo (High Voltage)
Sanwa/Airtronics

Sanwa/Airtronics PGS-CLE Hi-Speed Programmable Low Profile Brushless Servo (High Voltage)

Part # SNW107A54632A1.0(1)
Where to buy
$126.41
AMain Hobbies
Seen Oct 12, 2026
$126.41Buy
Prices are as last seen at the store; stock is not tracked.

About this part

Sanwa PGS-CLE Hi-Speed Programmable Low Profile Brushless Servo.

Features:

  • FH5U: SXR (SANWA XTREME RESPONSE) Mode Compatible
  • SSL-Compatible Programmable Servo
  • # Compatible with CODE 10 Transmitters (M17, M12S (RS), EXZES ZZ, MT-44)
  • Not Compatible with CODE 5 Transmitters (M12, EXZES Z, MT-4S, MT-4, MT-S)
  • PGS Setting Gear Compatible
  • SUPER RESPONSE (SSR) Mode Compatible
  • HIGH RESPONSE (SHR) Mode Compatible
  • LiPo 2 Cell Compatible
  • High Speed Type
  • Brushless Motor
  • Metal Gears
  • Aluminum Heat Sink
  • Black Harness
  • Waterproof (Same as IPX4)
  • 3 Different Preset (Base, Quick, Drift)

Specifications:

  • Speed:
    • @7.4V: 0.09 sec/60°
    • @6.0V: 0.11 sec/60°
  • Torque:
    • @7.4V: 177.75 oz-in (12.8 kg-cm)
    • @6.0V: 149.98 oz-in (10.8 kg-cm)
  • Dimensions: 40.5x20.5x26.5mm
  • Weight: 50.4 g

Reviews1.0 · 1 review

Will NotbuyagainVerified owneron Sanwa/Airtronics PGS-CLE Hi-Speed Programmable Low Profile Brushless Servo

Listed as "full metal gear", It is not. One gear is plastic.
