About this part
Budget-Friendly Analog Servo with Powerful Performance

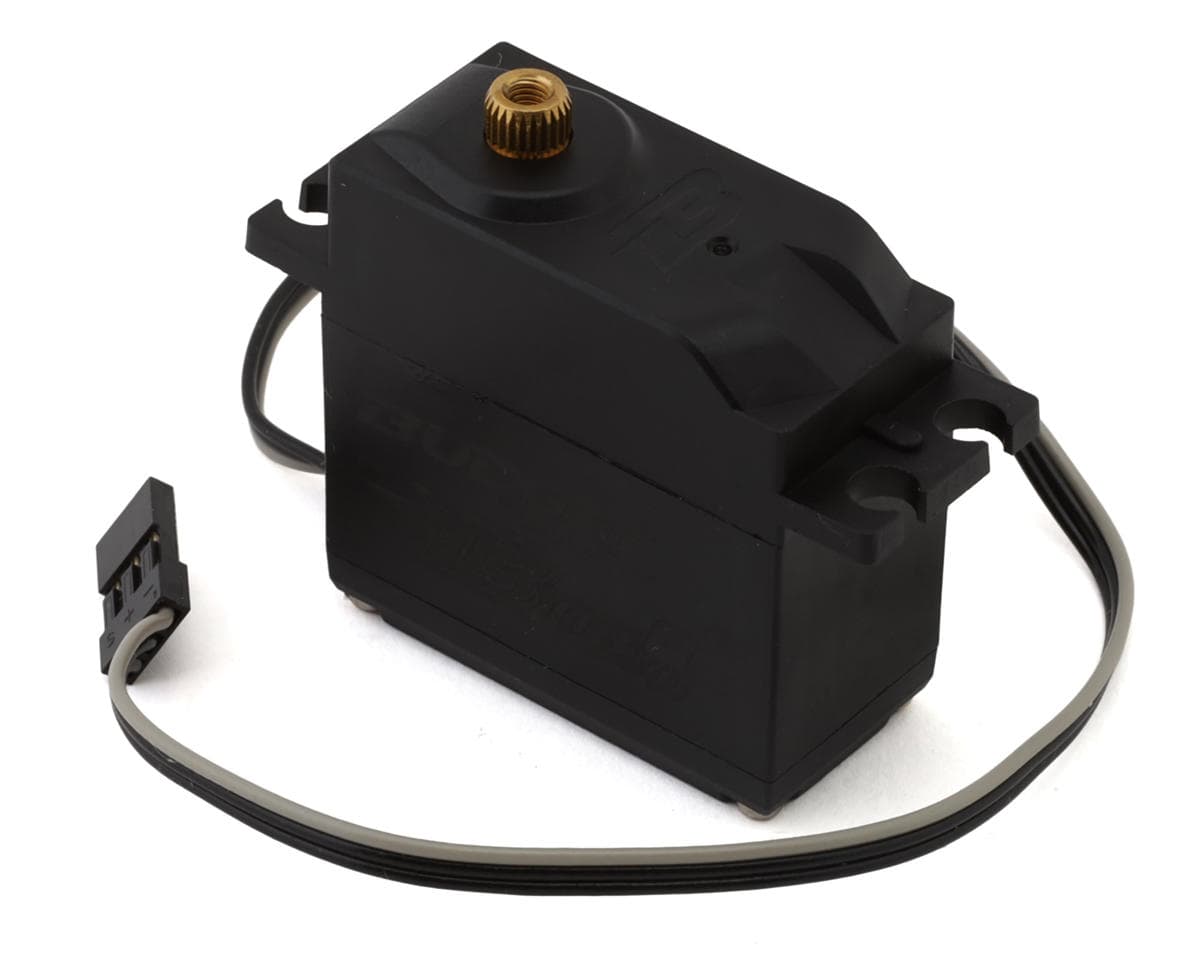

The Savox B-08KG Budget Standard Analog Metal Gear Servo offers a cost-effective option for those who want dependable performance without the higher price of digital servos. As part of the "Budget by Savox" series, it maintains the same quality standards found in Savox's digital lineup while delivering a more affordable analog alternative. Its metal gear construction and standard sizing make it a practical choice for a wide range of applications.
About the B-08KG Servo
Budget-Friendly with Savox Quality
The B-08KG is designed to give a lower-cost option without compromising the core reliability Savox is known for. Its analog control system keeps the servo simple and efficient while still offering dependable performance. This makes it a strong fit for users upgrading from basic RTR servos or builders on a budget. The servo's overall design focuses on value while maintaining trustworthy operation.
Metal Gear Durability
A full metal gear train provides the durability needed for repeated use and long-term reliability. The twenty-five-tooth output gear spline ensures compatibility with standard servo horns and linkages, making installation straightforward across a variety platforms. This combination of metal gears and standard sizing helps the servo maintain consistent movement over time.
Versatile Performance
With 111.1oz-in of torque at 6V, the B-08KG offers output suitable for multiple standard servo roles. Its construction and layout make it a practical option for those who want reliable performance at a lower cost. The servo's balance of durability, compatibility, and affordability makes it a flexible choice for a wide range of builds.
Features:
- Budget-friendly analog design from the "Budget by Savox" series
- Metal gear train built for durability and long service life
- Twenty-five-tooth output gear spline for standard compatibility
- Designed for a variety of standard servo applications
- 111.1oz-in torque rating at 6V
- Affordable option with Savox-level quality
- Consistent movement supported by durable internal components
- Suitable for those seeking performance at a lower cost
- Standard size for easy installation
- Reliable construction for dependable use
Includes:
- (1) B-08KG Budget Standard Analog Metal Gear Servo

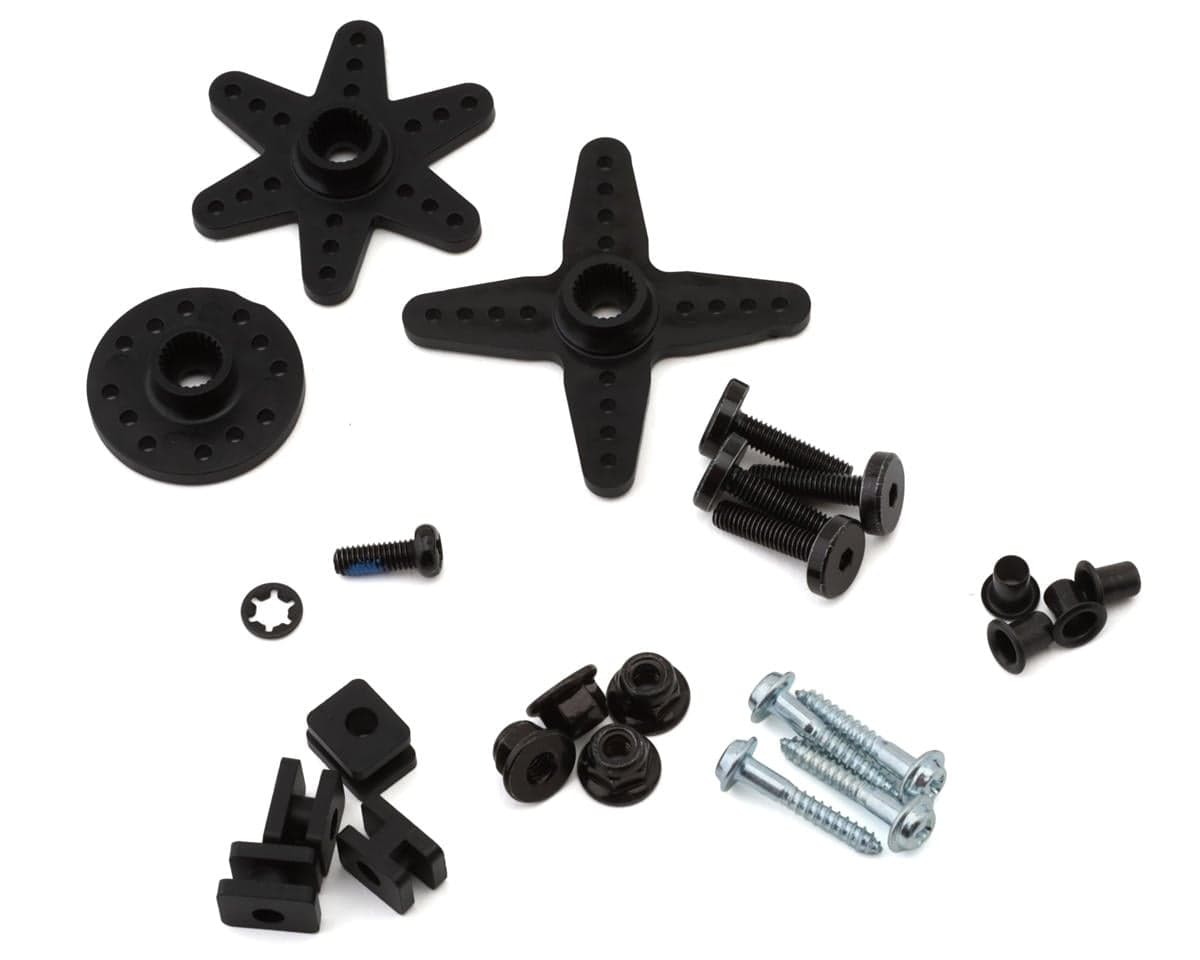

- Servo Horns & Accessories
Specifications:
| Application | 1/10 |
|---|---|
| Input Voltage | 4.8-6.0V |
| Operating Speed @ 4.8V | 0.19 sec/60° |
| Operating Speed @ 6.0V | 0.15 sec/60° |
| Dynamic Torque @ 4.8V | 83.3oz-in (6kg-cm) |
| Dynamic Torque @ 6.0V | 111.1oz-in (8kg-cm) |
| Gear Material | Metal |
| Motor Type | Brushed |
| Output Shaft | 25T |
| Dimensions | 1.6x0.79x1.78in (40.7x20x45.2mm) |
| Weight | 1.83oz (52g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 1 review
This servo works OK for me. However, I want to offer a warning regarding the wire colors. I assumed the white wire was the signal wire, which would by typical. However, one of the black wires is the signal wire and the white wire is the negative. I originally inserted the plug backwards in my Radiomaster receiver and it didn't work. Once I realized what was wrong, and reversed the connector, it worked fine.
