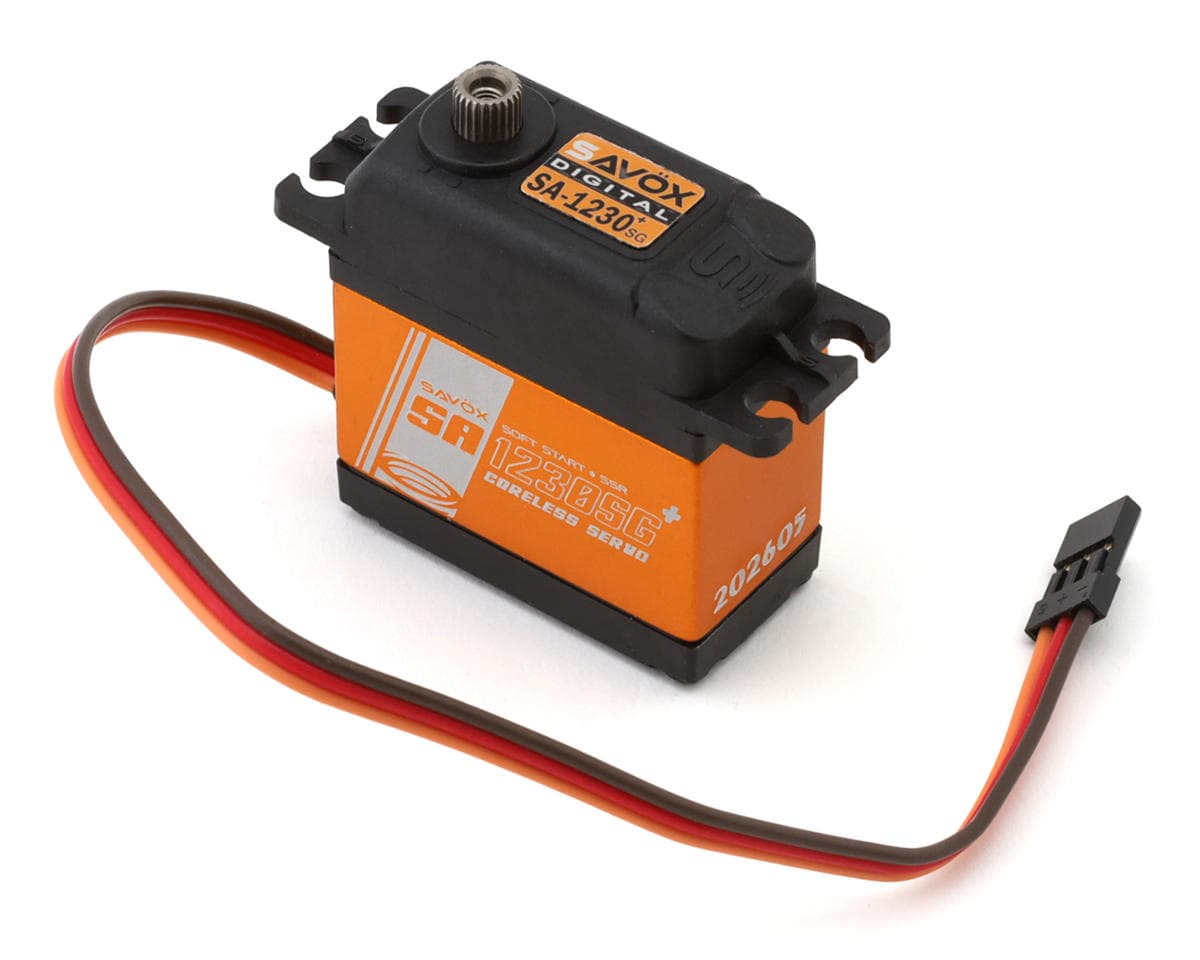

Savox SA-1230SGP Hybrid Tall "Monster Torque" Steel Gear Digital Servo w/Soft Start
About this part
Servo Overview:
Need massive steering power without upgrading to a high-voltage system? The Savox SA-1230SGP delivers an incredible 499.9 oz-in of torque, rugged steel gear durability, and smooth digital control, making it an outstanding choice for crawlers, monster trucks, and large-scale aircraft.
About the SA-1230SGP Servo
Massive Torque Output
The Savox SA-1230SGP is built for applications that demand serious steering power without requiring a high-voltage setup. Delivering up to 499.9 oz-in of torque at 6.0V, it provides the strength needed for rock crawlers, monster trucks, and large-scale aircraft.
Heavy Duty Durability
Equipped with ultra-strong steel gears, this servo is designed to withstand heavy loads and harsh operating conditions. The rugged gear train ensures long-lasting reliability and dependable performance during demanding use.
Smooth Reliable Control
As a Plus Series servo, the SA-1230SGP features Soft Start technology for smoother movement and Sanwa SSR compatibility for enhanced responsiveness. Its slightly taller case design accommodates the powerful internals while maintaining precise digital control.
Features:
- Delivers up to 499.9 oz-in of torque at 6.0V
- Designed for powerful steering without a high-voltage system
- Ultra-durable steel gears provide long-lasting reliability
- Soft Start technology ensures smooth servo movement
- Sanwa SSR compatibility improves response and precision
- Slightly taller case design accommodates high-torque performance
- Ideal for rock crawlers, monster trucks, and large-scale aircraft
- Reliable digital control for demanding RC applications
Includes:
- (1) SA-1230SGP Hybrid Tall "Monster Torque" Steel Gear Digital Servo

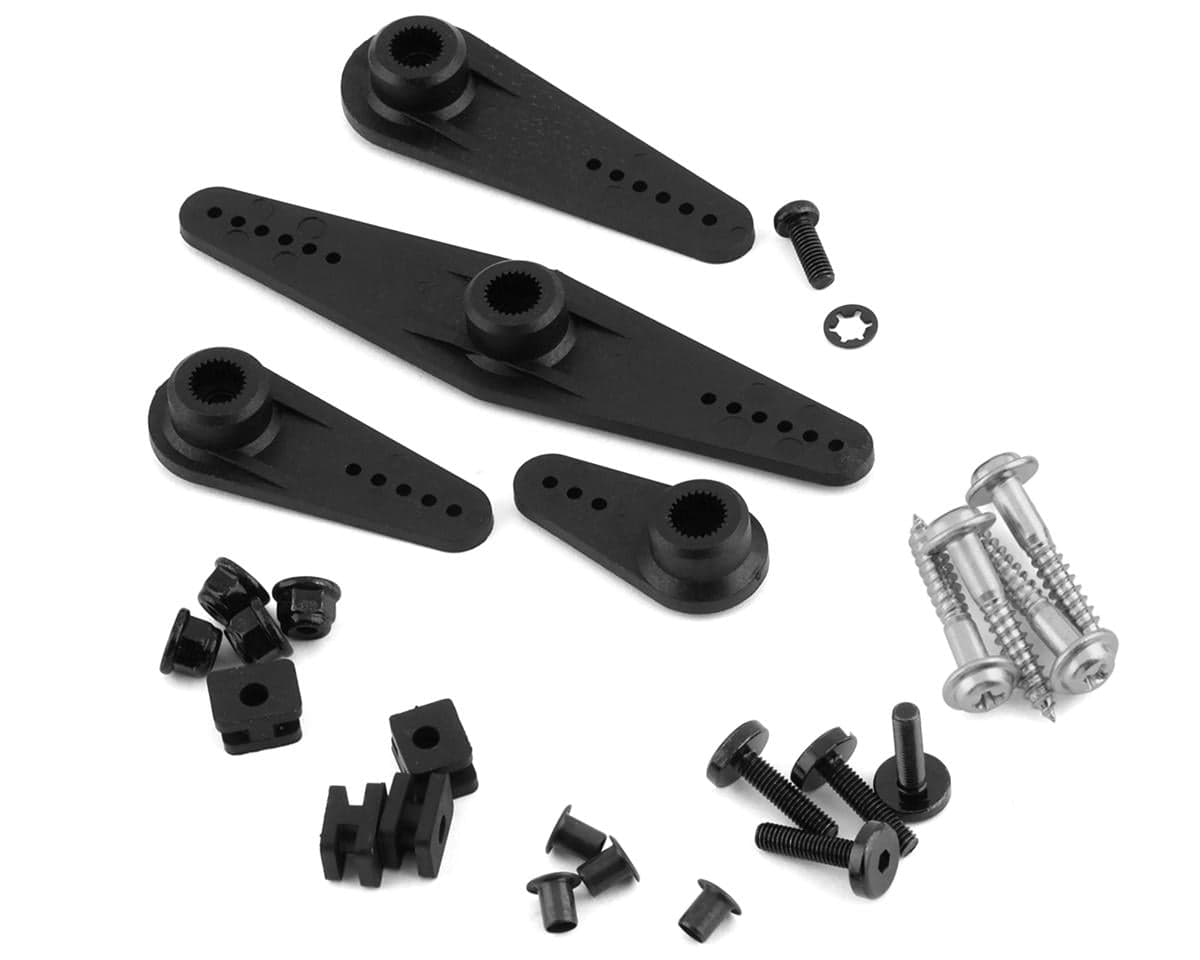

- Composite Servo Horns & Accessories
Specifications:
| Application | 1/10 to 1/8 Bashers or Crawlers & Large Aircraft |
|---|---|
| Input Voltage | 4.8-6V |
| Operating Speed @ 4.8V | 0.20 sec/60° |
| Operating Speed @ 6.0V | 0.16 sec/60° |
| Operating Speed @ 7.4V | sec/60° |
| Dynamic Torque @ 4.8V | 416.6oz-in (30kg-cm) |
| Dynamic Torque @ 6.0V | 499.9oz-in (36kg-cm) |
| Dynamic Torque @ 7.4V | oz-in (25kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushed |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.8x1.76in (40.3x20.2x44.9mm) |
| Weight | 2.78oz (79g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 1 review
If you have ever doubted the strength of these servos, I’ve managed to strip an aluminum servo horn with this while the spline on the servo was perfectly fine. That being said, one impact too hard and my servo completely failed and started spinning freely, so I had to rma it, hence the 4 starts instead of 5.
