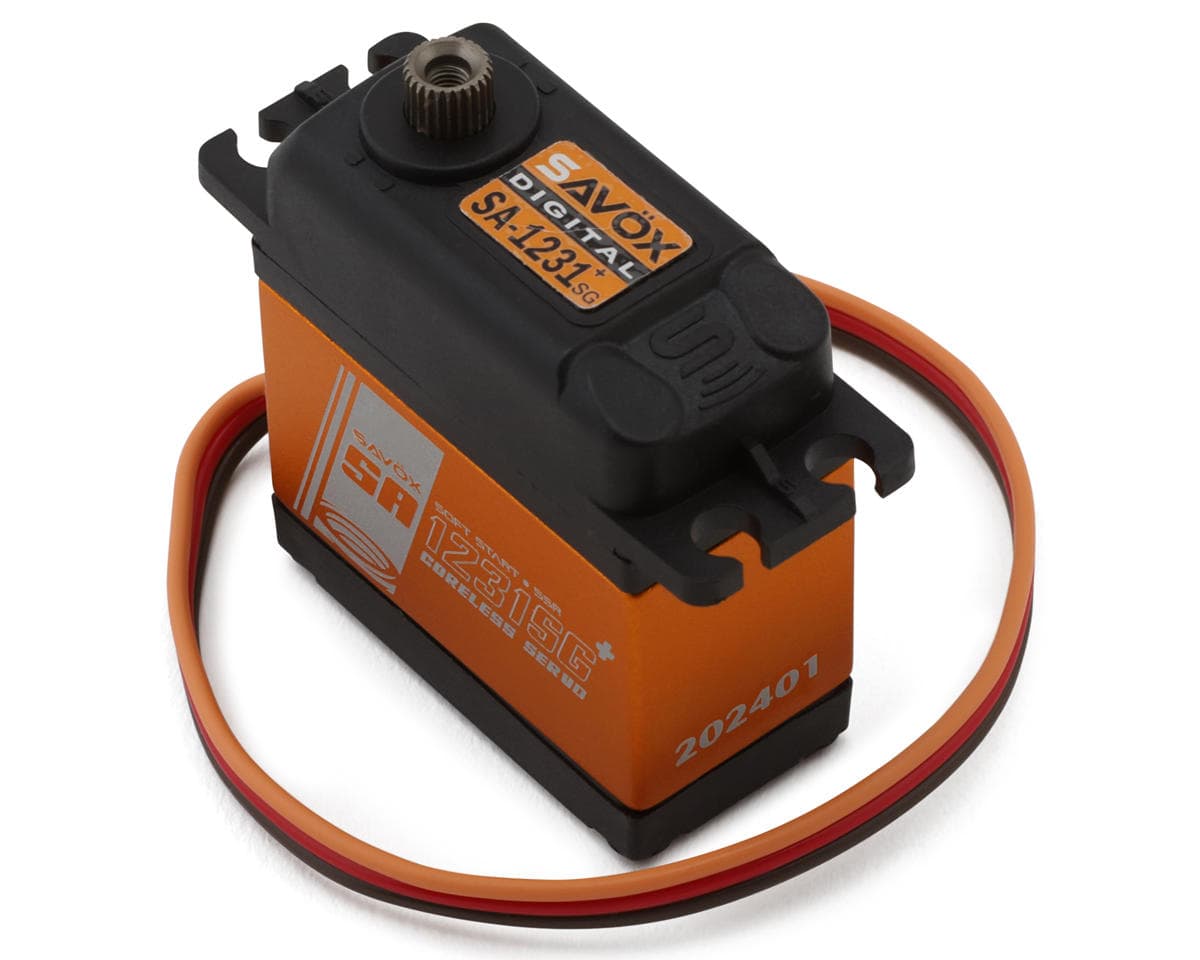

Savox SA-1231SGP Tall "High Torque" Steel Gear Digital Servo
About this part
High Torque Steel Gear Servo Overview:
The Savox SA-1231SGP is a tall-case, high-torque digital servo engineered for applications that demand exceptional strength, durability, and precision. Featuring a coreless motor, heavy-duty steel gears, and an aluminum center case, this servo delivers reliable performance for monster trucks, crawlers, large-scale vehicles, and aircraft without requiring a high-voltage power system.
About the SA-1231SGP
High-Torque Output
With up to 444.4 oz-in of torque at 6.0V, the SA-1231SGP is built to handle demanding steering and control duties with ease. Its powerful output makes it an excellent choice for applications that place heavy loads on the servo, including oversized tires and high-grip terrain.
Durable Steel Geartrain
The unique steel gear set is designed to provide outstanding durability while minimizing backlash for more consistent control. Combined with the taller case design, the reinforced geartrain helps ensure long service life in demanding environments.
Coreless Precision Technology
A high-performance coreless motor delivers smooth operation, quick response, and efficient power delivery. Plus-series features such as Soft Start and Sanwa SSR compatibility further enhance servo performance and control precision for compatible systems.
Features:
- Tall-case high-torque digital servo design
- Coreless motor for smooth, responsive performance
- Heavy-duty steel geartrain
- Up to 444.4 oz-in torque at 6.0V
- Fast 0.14 sec/60° transit speed at 6.0V
- Aluminum center case for improved heat dissipation
- Soft Start technology
- Sanwa SSR compatible
Includes:

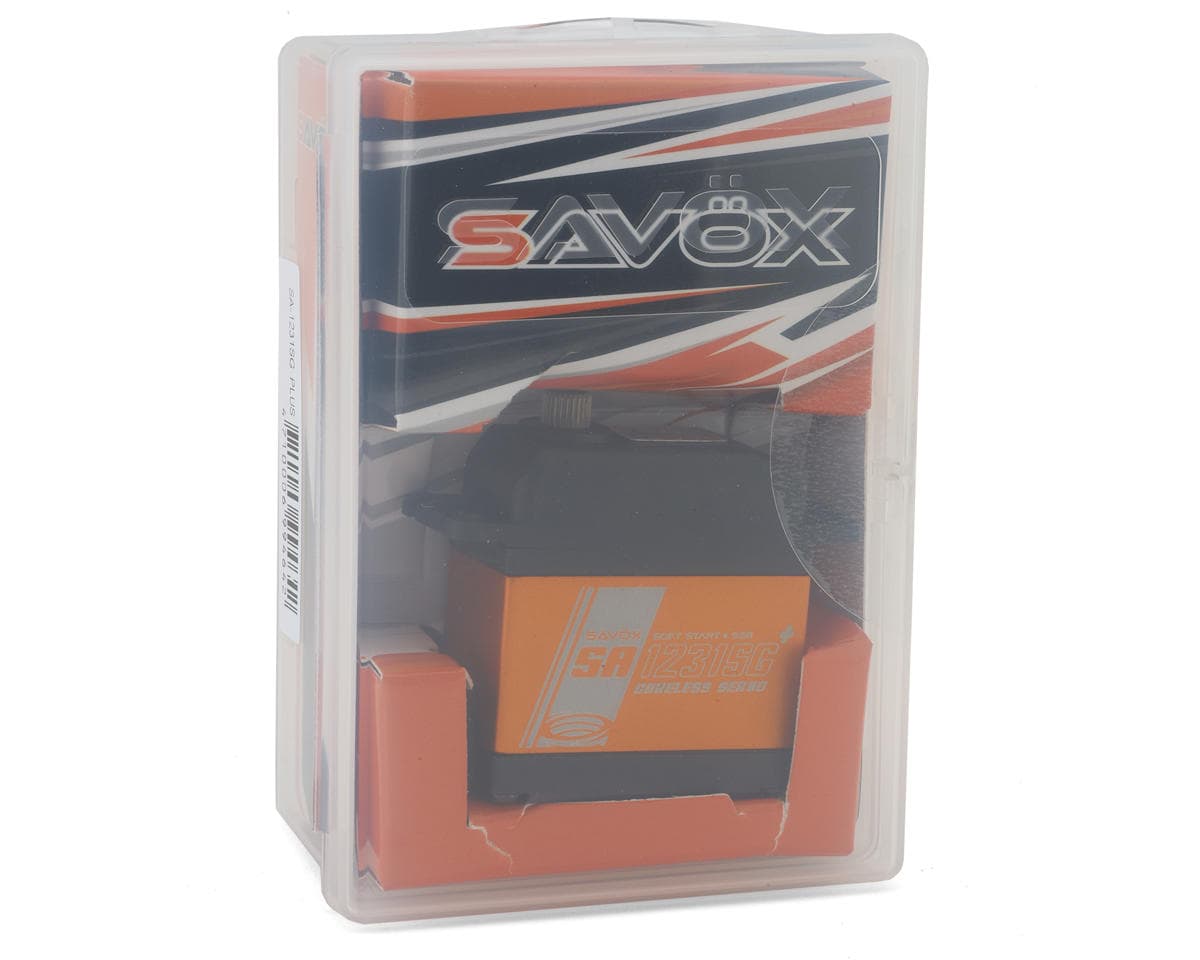

- (1) SA-1231SGP Tall "High Torque" Steel Gear Digital Servo
Specifications:
| Application | 1:10 |
|---|---|
| Operating Voltage | 4.8-6.0V |
| Operating Temperature | - |
| Operating Speed @ 4.8V | 0.18sec/60° sec |
| Operating Speed @ 6.0V | 0.14sec/60° sec |
| Dynamic Torque @ 4.8V | 388.8oz-in (28.0 kg-cm) |
| Dynamic Torque @ 6.0V | 444.4oz-in (32.0 kg-cm) |
| Motor Type | - |
| Output Shaft | 25T |
| Gears | Steel |
| Weight | 2.7oz (79g) |
| Dimensions | 1.5x0.7x1.7in (40.3x20.2x44.9mm) |
