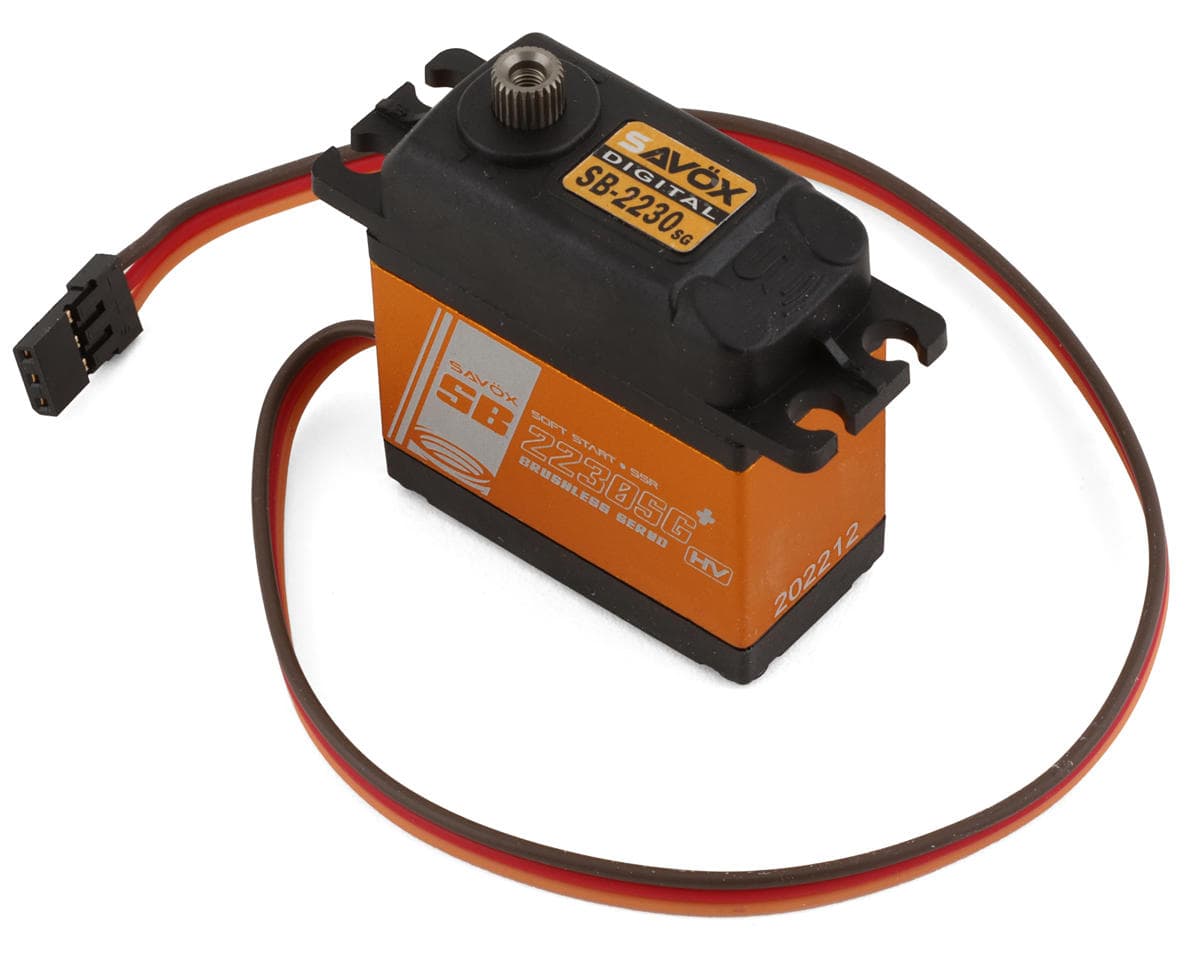

Savox SB-2230SGP Hybrid "Monster Torque" Brushless Digital Steel Gear Servo (High Voltage) (Tall)
About this part
Brushless Servo Built for Long-Term Reliability
The Savox SB-2230SGP Hybrid "Monster Torque" Brushless Digital Steel Gear Servo is built for large-scale vehicles that demand extreme torque, rugged durability, and smooth digital precision. Its slightly taller case design allows room for a powerful brushless motor and reinforced steel gear train, giving it the strength needed for oversized control surfaces and heavy steering loads. With high-voltage capability and Plus-series refinements, it delivers consistent authority across demanding off-road and aircraft applications.
About the SB-2230SGP Servo
Brushless Power
The SB-2230SGP uses a brushless motor that provides strong torque, fast response, and cooler operating temperatures during extended use. This motor design improves long-term reliability while maintaining smooth, consistent movement under heavy load. Its performance characteristics make it ideal for large-scale platforms that require both strength and efficiency.
Steel Gear Train
A unique steel gear train gives the servo the durability needed to handle extreme torque output. These gears maintain precise movement even in harsh conditions, supporting long-life performance across aggressive off-road driving or demanding aircraft control. This level of strength ensures the servo remains dependable in high-stress environments.
Hybrid Case Design
The hybrid case features an aluminum middle section that enhances heat dissipation and structural rigidity. This design helps stabilize internal components during long sessions, ensuring consistent performance across heavy-load operation. The combination of aluminum and composite materials provides a balanced blend of strength, cooling, and durability.
Features:
- Brushless motor provides strong efficient performance
- Steel gear train ensures extreme long-term durability
- Slightly taller case supports high torque output
- Hybrid case with aluminum center section
- Improved heat dissipation during extended operation
- High torque performance for large-scale vehicles
- Suitable for monster trucks and 1/8 off-road
- Ideal for large-scale aircraft applications
- Plus series includes Soft Start function
- Sanwa SSR compatibility for refined control
Includes:

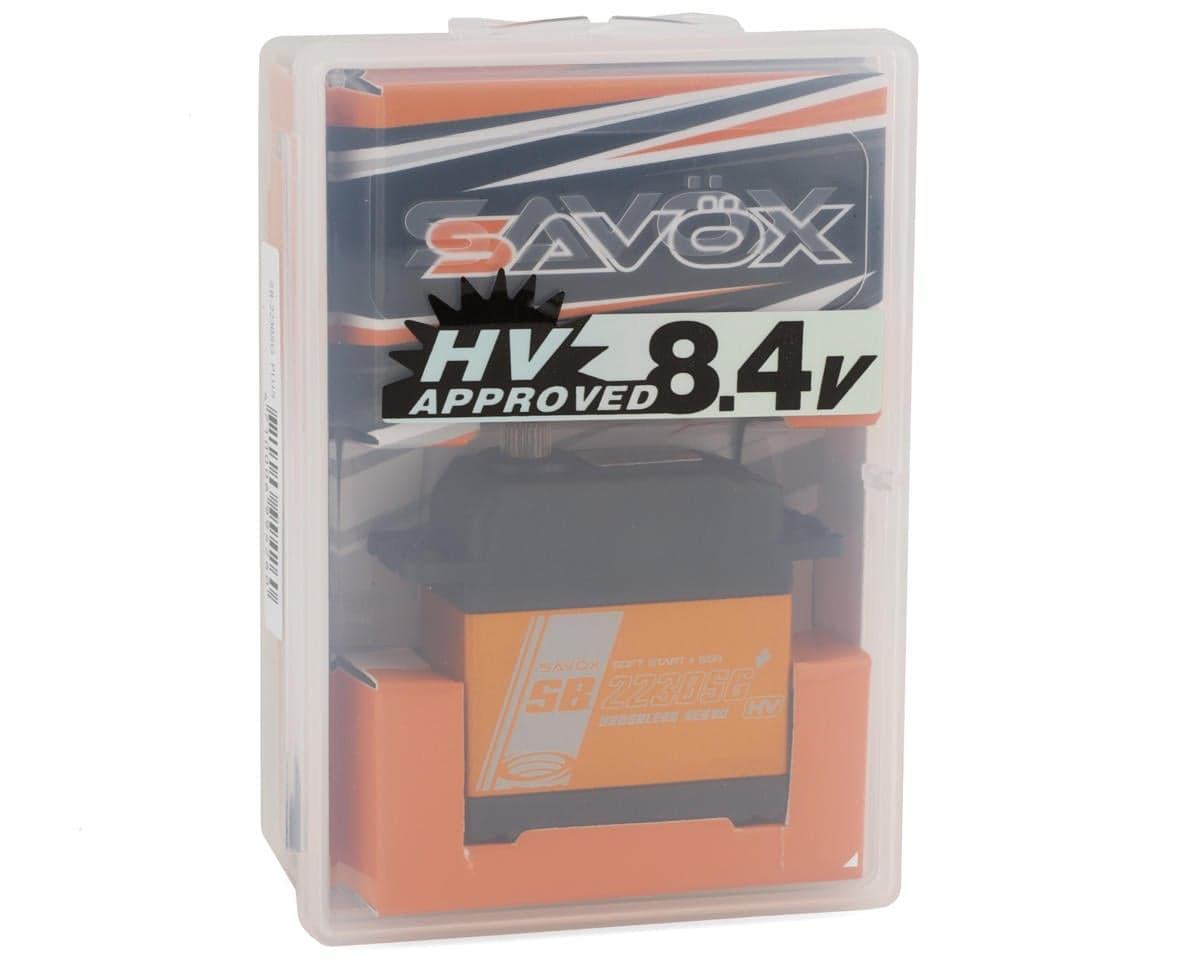

- (1) SB-2230SGP Hybrid "Monster Torque" Brushless Digital Steel Gear Servo

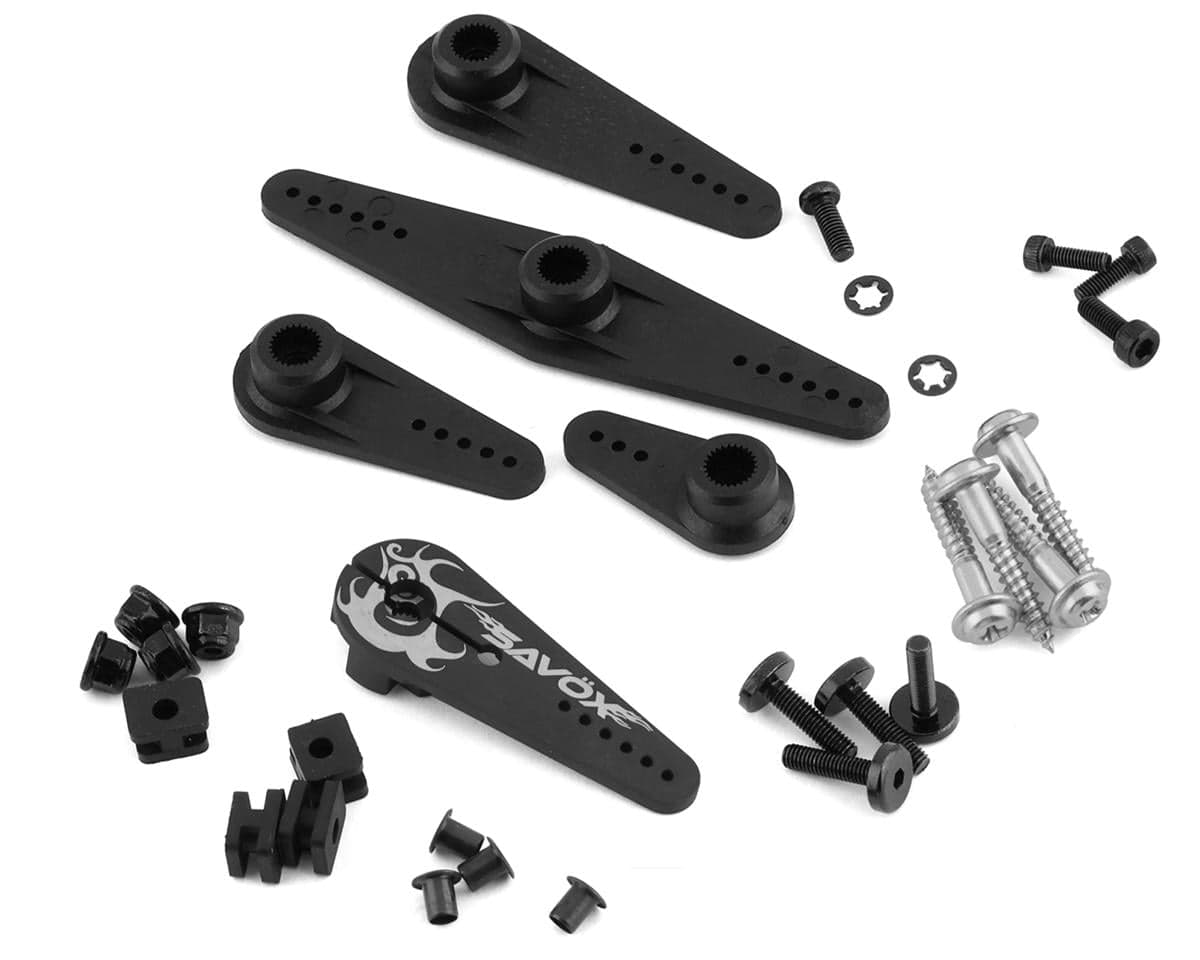

- Servo Horns & Accessories
Specifications:
| Application | 1/8 & Aircraft |
|---|---|
| Input Voltage | 6.0-8.4V |
| Operating Speed @ 6.0V | 0.16 sec/60° |
| Operating Speed @ 7.4V | 0.13 sec/60° |
| Operating Speed @ 8.4V | 0.11 sec/60° |
| Dynamic Torque @ 6.0V | 499.9oz-in (36kg-cm) |
| Dynamic Torque @ 7.4V | 583.3oz-in (42kg-cm) |
| Dynamic Torque @ 8.4V | 763.8oz-in (55kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushless |
| Output Shaft | 25T |
| Dimensions | 1.59x0.8x1.77in (40.3x20.2x44.9mm) |
| Weight | 2.96oz (84g) |
