Savox SB-2262SG Black Edition Aluminum "High Torque" Low Profile Steel Gear Brushless Servo (High Voltage)
About this part
Servo Overview:
If you're looking for lightning-fast response, massive torque, and race-proven durability, the Savox SB-2262SG delivers it all in a compact low-profile package. Featuring a powerful brushless motor, all-steel gears, and a full aluminum heat-sink case, this high-voltage servo is built to provide precise control and reliable performance in the most demanding on-road and off-road conditions.
About the SB-2262SG "High Torque" Low Profile Servo
Monster Power Output
The Savox SB-2262SG delivers serious steering authority with up to 444.4oz-in (32kg) of torque at 8.4V, making it an excellent choice for demanding 1/10 scale on-road and off-road racing applications. Its advanced brushless motor and high-performance controller technology provide up to 35% more power than previous-generation servos while maintaining exceptional efficiency and precision.
Fast Precise Response
Built for competitive performance, the SB-2262SG offers incredibly quick transit speeds of 0.08 sec/60° at 7.4V and an impressive 0.065 sec/60° at 8.4V. Combined with an advanced microprocessor and dual ball bearings, it delivers smooth, accurate steering input and responsive driver feedback for greater confidence on the track.
Durable Race Design
A full CNC-machined aluminum case with integrated cooling fins provides outstanding strength, rigidity, and heat dissipation for consistent fade-free performance. The all-steel gear train resists impact and wear under extreme loads, while high-voltage compatibility up to 8.4V and a versatile 25-tooth spline design make the SB-2262SG a durable, competition-ready servo built to last.
Features:
- Powerful brushless motor delivers high torque and efficiency
- Produces up to 444.4oz-in (32kg) of torque at 8.4V
- Ultra-fast 0.065 sec/60° speed at 8.4V
- Full steel gears provide excellent durability
- CNC-machined aluminum case increases strength and rigidity
- Cooling fins help dissipate heat during operation
- High-voltage compatible up to 8.4V
- Dual ball bearings ensure smooth and precise movement
- Low-profile design fits a wide range of RC vehicles
- Ideal for competitive 1/10 scale on-road and off-road racing
Includes:

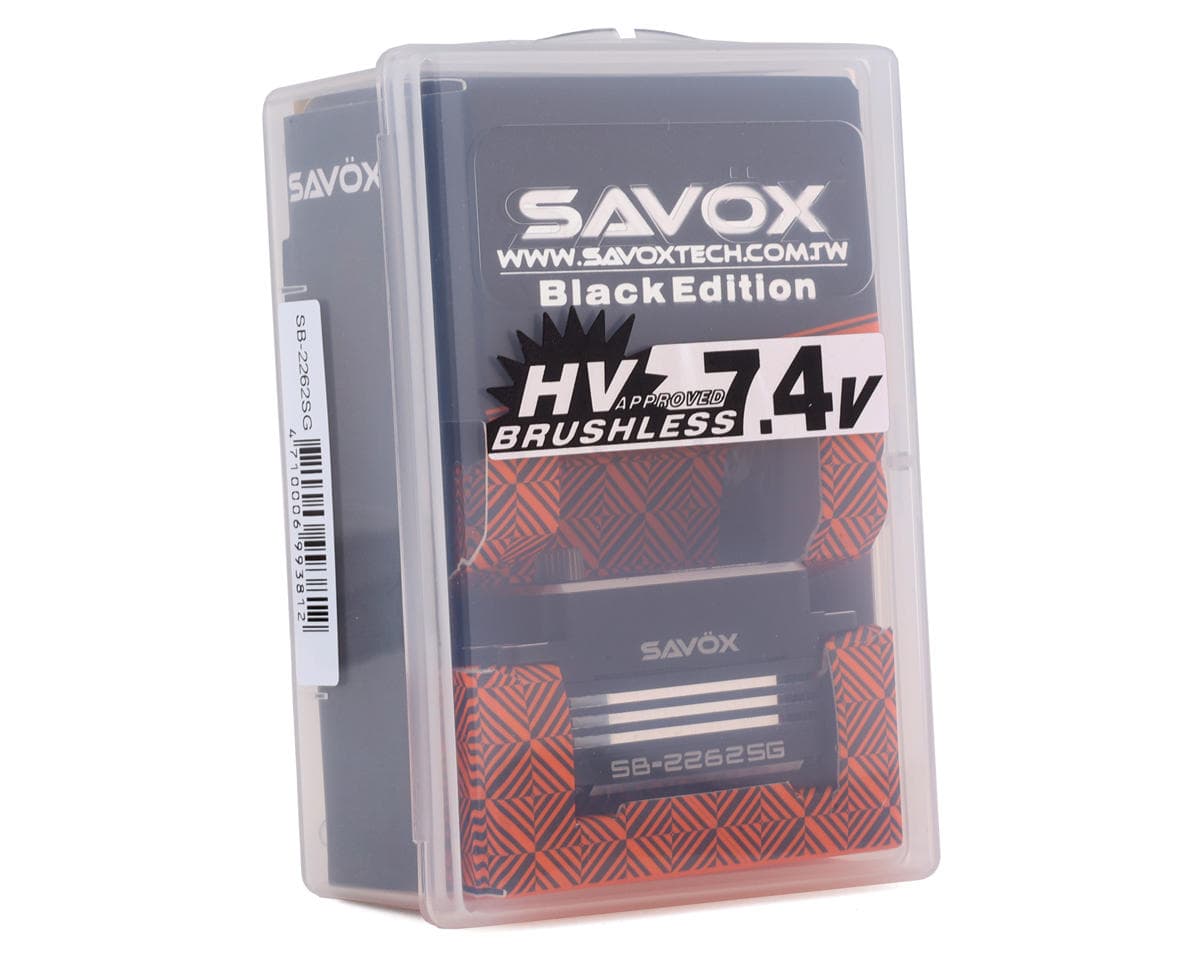

- (1) SB-2262SG "High Torque" Low Profile Brushless Steel Gear Digital Servo

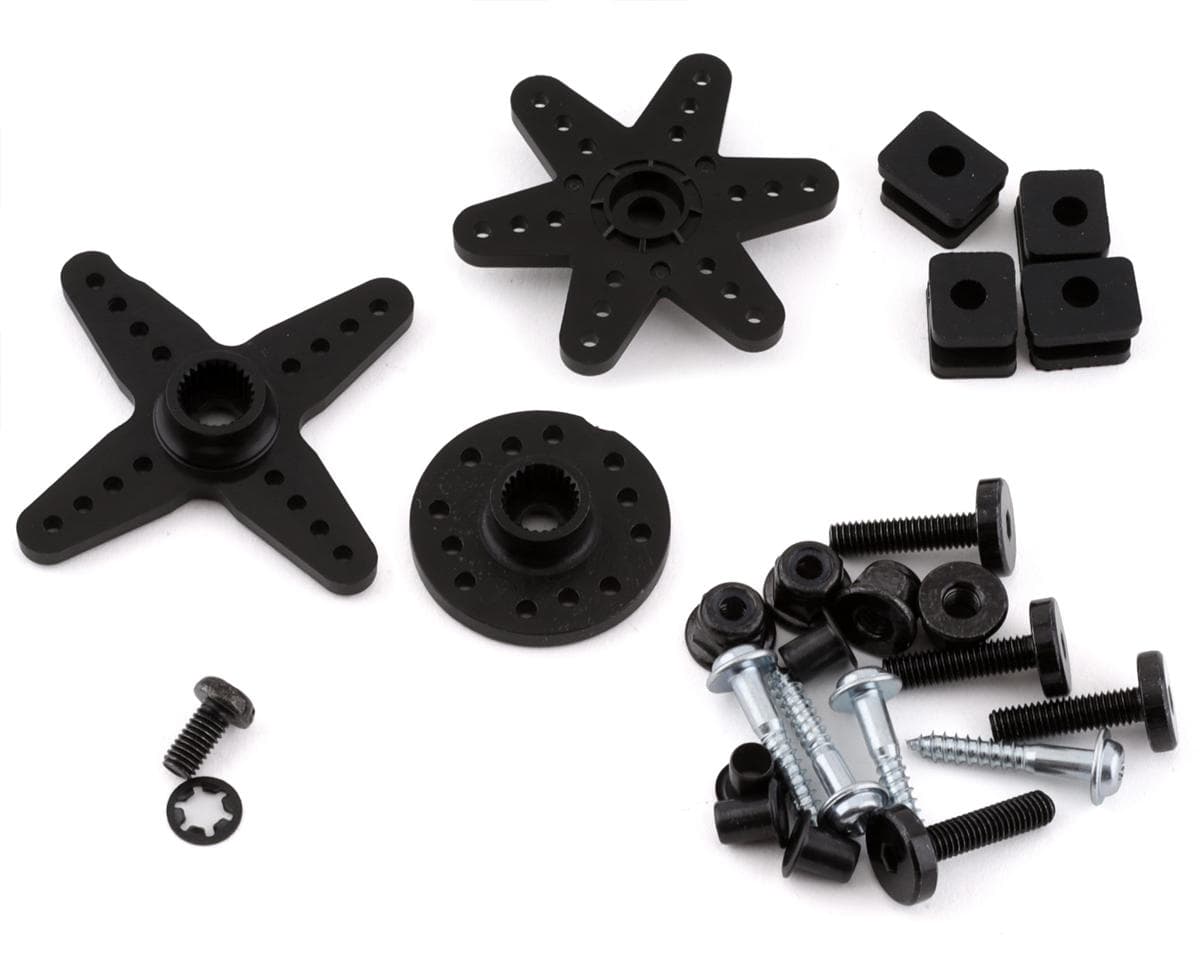

- Composite Servo Horns & Accessories
Specifications:
| Application | 1/10 Racing |
|---|---|
| Input Voltage | 6.0-8.4V |
| Operating Speed @ 7.4V | 0.08 sec/60° |
| Operating Speed @ 8.4V | 0.065 sec/60° |
| Dynamic Torque @ 7.4V | 347.2oz-in (25Kg-cm) |
| Dynamic Torque @ 8.4V | 444.4oz-in (32Kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.6x0.79x1.01in (40.8x20.2x25.75mm) |
| Weight | 2.18oz (62g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.9 · 10 reviews
Excellent servo. Strong and fast. Lighter than it’s full size counterpart. Smaller size is great for some 10th scale cars. This servo fit perfect in my Tenno SCT.
I run savox in all my stuff. Trx4 and losi lmt get the most use. This low profile unit went in a light weight trx4 build. Cut chassis, minimal brass up front, small 1300mah 3s pack and 4 link SOA. This servo get HOT at 8.4v and I think it cutout a few times. Maybe the esc isn't providing enough amps. I believe its 5amps. Could be it. Turned it down to 7.4, still gets warmer than I'm used to but not nearly as hot. This is my first low profile servo so maybe my expectations were high.
Awesome Servo! This thing fits my TLR 22X-4 perfectly
Bought it for my axial pro. It's working great so far. I'm running the 4 link option so I needed a low profile servo. Happy so far.
I have only ran it a few times and it seems like a solid servo BUT man is this thing noisy! You have to constantly give the steering wheel or the buggy wheels a little bump to shut it up when it on the bench. If it was quit it would have been 5 stars
Reviewers broadly rate this low-profile brushless steel-gear servo highly, citing strong torque, good speed and a compact size suited to 1/10 scale trucks, crawlers and touring cars, including builds using 4-link setups. Several note it fits tight low-profile chassis well. Recurring concerns include heat and possible power draw at higher voltage (one reviewer reported heat and cutouts at 8.4V, reduced to 7.4V), and the need for a good BEC or receiver capacitor. One reviewer found the servo noisy on the bench and one said it is marginally slower than some alternatives at 7.4V. One reviewer reported a steering lock that turned out to be a cracked servo horn; the manufacturer's warranty service replaced the unit, which reviewers praised. Reviews are mostly short and positive, with a few specific technical caveats.
- + Strong torque
- + Fits low-profile chassis
- + Good customer service and warranty support
- + Compact and light for 1/10 scale
- − Runs hot at higher voltage
- − Needs a good BEC or capacitor
- − Noisy on the bench
- − Marginally slower than some alternatives at 7.4V
