About this part
High Speed Low Profile Servo Overview:

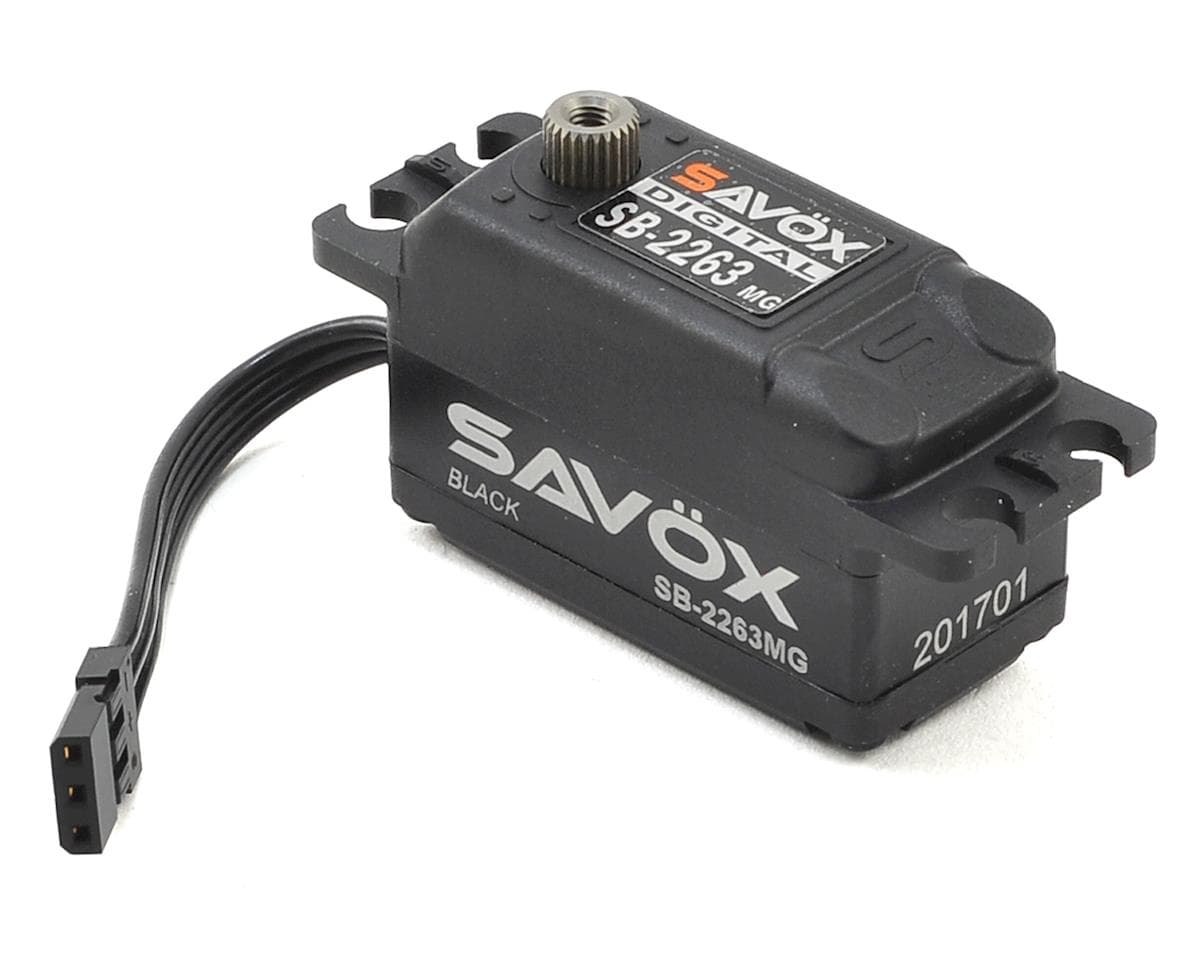

The Savox SB-2263MG Black Edition is a low-profile brushless digital servo engineered for racers who demand exceptional speed, precision, and reliability. Combining a brushless motor, durable metal gears, and an aluminum heatsink case, this servo delivers consistent performance for 1/10 scale touring car and off-road applications.
About the SB-2263MG
High-Speed Brushless Performance
Equipped with advanced brushless motor technology, the SB-2263MG provides rapid response and smooth operation with an impressive transit speed of 0.07 seconds per 60 degrees at 6.0V. The efficient brushless design helps improve performance while reducing wear compared to traditional brushed servos.
Durable Construction
A full metal geartrain provides the strength needed to withstand the demands of competitive RC racing. The aluminum center case acts as a heatsink to help manage operating temperatures, ensuring reliable performance during long race sessions.
Precision and Reliability
Featuring high-resolution 12-bit technology, the SB-2263MG delivers accurate and consistent steering inputs for improved vehicle control. Four internal silicone seals add water resistance, helping protect the servo from dirt, moisture, and harsh track conditions.
Features:
- Low-profile design ideal for 1/10 scale applications
- High-performance brushless motor system
- Fast 0.07 sec/60° transit speed at 6.0V
- Full metal geartrain for increased durability
- High-resolution 12-bit (4096) digital technology
- Aluminum heatsink center case
- Water-resistant design with four silicone seals
- Optimized for touring car and off-road racing applications
Includes:
- (1) SB-2263MG Black Edition High Speed Low Profile Brushless Metal Gear Servo

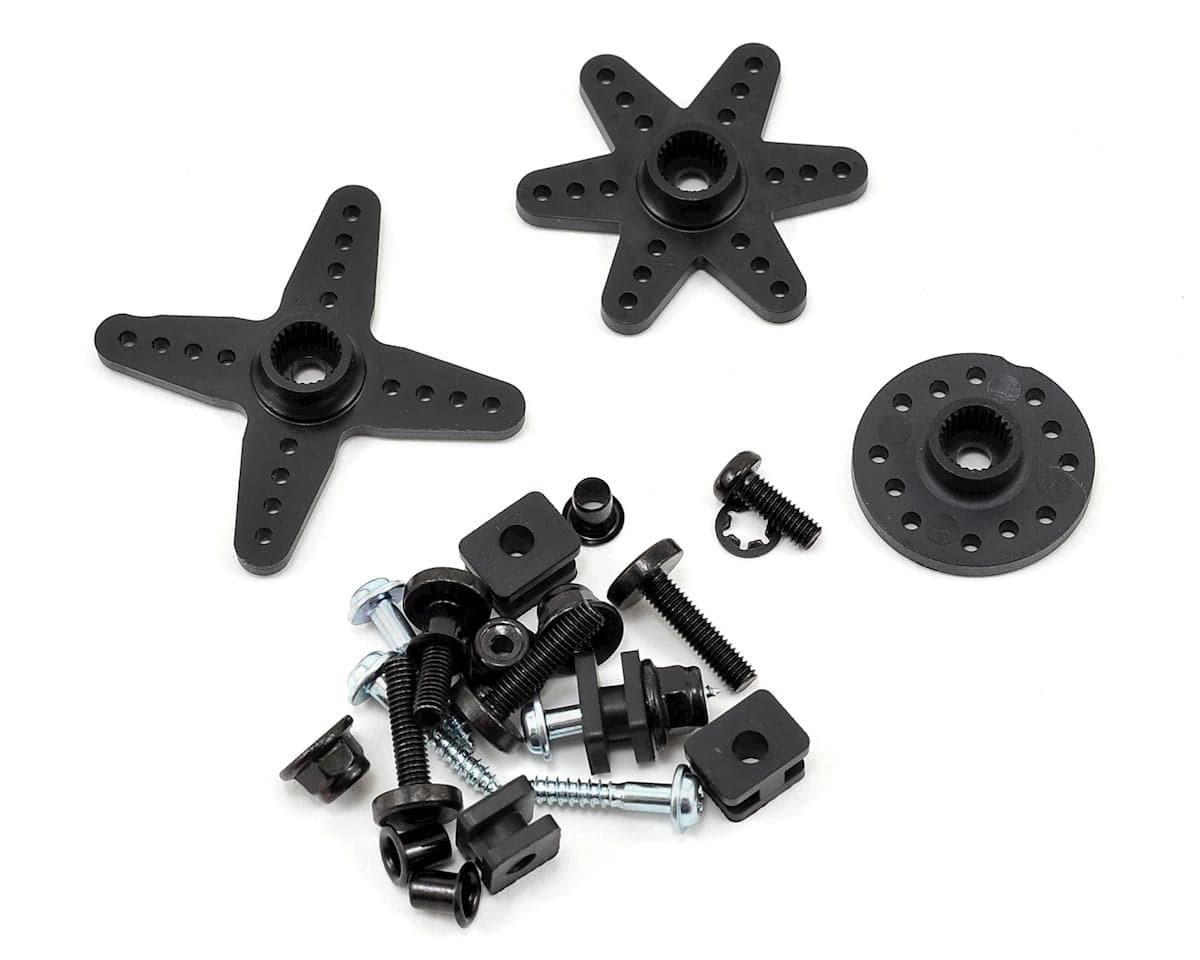

- Servo Horns & Accessories
Specifications:
| Application | 1/10 |
|---|---|
| Input Voltage | 4.8-6.0V |
| Operating Speed @ 4.8V | 0.10 sec/60° |
| Operating Speed @ 6.0V | 0.076 sec/60° |
| Dynamic Torque @ 4.8V | 111.1oz-in (8kg-cm) |
| Dynamic Torque @ 6.0V | 138.9oz-in (10kg-cm) |
| Gear Material | Metal |
| Motor Type | Brushless |
| Output Shaft | 25T |
| Dimensions | 1.61x0.8x1in (40.8x20.2x25.4mm) |
| Weight | 1.69oz (48g) |
