Parts/Radio & control/Servos/Savox SB-2264MG Low Profile Digital "High Speed" Brushless Metal Gear Servo (High Voltage)

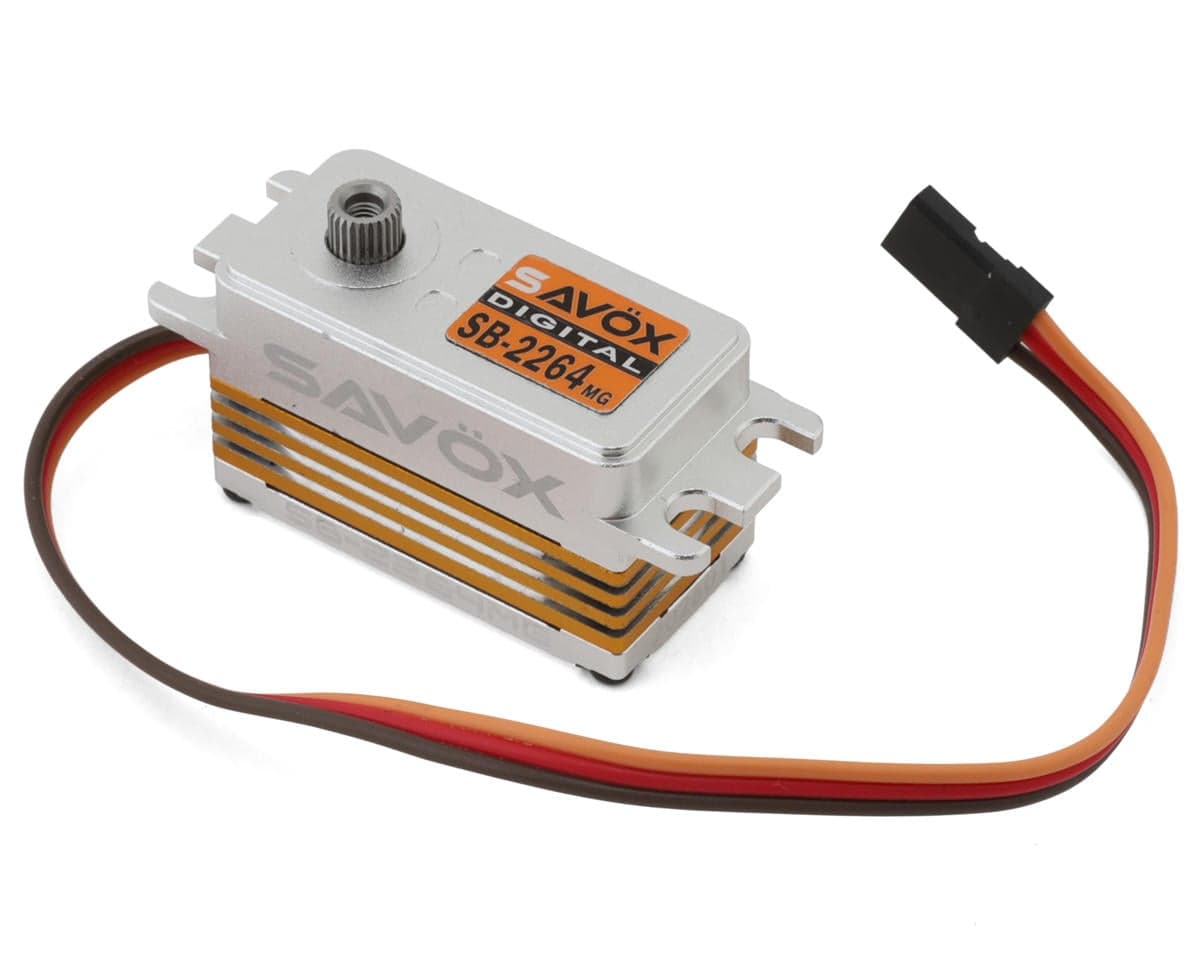

Savox SB-2264MG Low Profile Digital "High Speed" Brushless Metal Gear Servo (High Voltage)
Savox

Savox SB-2264MG Low Profile Digital "High Speed" Brushless Metal Gear Servo (High Voltage)

Part # SAV-SB-2264MG1.2(6)
Where to buy
$114.99
AMain Hobbies
Seen Oct 12, 2026
$114.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

Steel Gear Servo Overview:

The Savox SB-2264MG is a low-profile, high-speed digital servo built for racers who need quick response, reliable durability, and a compact footprint. Featuring a brushless motor, full aluminum case, and metal gears, this servo delivers precise control and dependable performance for 1/10 scale on-road, off-road, and helicopter applications.

About the SB-2264MG


Low Profile Racing Performance

Designed with a low-profile form factor, the SB-2264MG is ideal for vehicles where space is limited without sacrificing performance. Its fast transit speed and compact dimensions make it a great choice for competitive applications that demand responsive steering and precise handling.

Brushless Efficiency

The high-efficiency brushless motor provides smooth operation, increased reliability, and cooler running temperatures compared to traditional brushed servos. This design helps improve long-term performance while maintaining consistent speed and accuracy during extended use.

Durable Aluminum & Metal Construction

A full aluminum case improves strength and heat dissipation while the precision metal geartrain is engineered to withstand the demands of racing and high-performance driving. Together, these components provide a rigid, durable platform for consistent control under load.

Features:

  • High-efficiency brushless motor
  • Low-profile digital servo design
  • Combines leading edge technology with super high 12 bit (4096) resolution
  • BIdeal for 1/10 on road vehicles, 1/10 scale off road, and helis
  • Full Aluminum Case
  • Unique Steel Gears

Includes:

  • (1) SB-2264MG Low Profile Digital "High Speed" Brushless Metal Gear Servo

Specifications:

Application 1/10
Operating Voltage 6.0-7.4V
Operating Temperature -
Operating Speed @ 6.0V 0.011sec/60° sec
Operating Speed @ 7.4V 0.08sec/60° sec
Dynamic Torque @ 6.0V 166.8oz-in (12.0 kg-cm)
Dynamic Torque @ 7.4V 208.3oz-in (15.0 kg-cm)
Motor Type Brushless
Output Shaft 25T
Gears Steel
Weight 2.0oz (57g)
Dimensions 1.6x0.7x1.0in (40.8x20.2x25.4mm)

CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...

Reviews1.2 · 6 reviews

AnonymousVerified owneron Savox SB-2264MG Low Profile Digital "High Speed" Brushless Metal Gear Servo

I used this low profile servo in a Tekno EB410. I used it at one night of practice and it stripped itself out. The servo before destruction worked well, however I thought it would take more abuse. 2 stars for being a nice piece but minus 3 for not lasting very long for a METAL GEAR SERVO. UPDATE....I replaced this servo with a PROTEK PTK-160T. I highly recommend this servo over this particular SAVOX. The protek weighs ~6 grams less and comes with an aluminum servo horn. I had purchased it separately in the beginning and the price is basically the same in doing so. If you have a choice and what a better quality piece go with the protek.

6 found this helpful
cowpker4lifeon Savox SB-2264MG Low Profile Digital "High Speed" Brushless Metal Gear Servo

very cheap. bought this servo lasted a few batteries. when first installed to my eb48sl it seemed like a gear was stripped but problem went away when I put a metal servo horn on(would not return to center after turning and would not turn all the way back the other way). has a water proof seal on top and bottom so should be water proof. servo wire is to short so there is another $5 or void your warnty. the servo stop is just a plastic piece inside unlike other servos that have a plastic stop along with at the bottom of a gear there is a rod that will hit the end points. the plastic stopper is what broke in my servo it seems as there was nothing to keep the servo from turning further then it should(when i had problems with the servo it did not have strength to turn the wheels anymore). this servo can not be taken apart easily to get at the board and try and fix it. as far as i can see you can not take the board out without breaking it. all the gears are metal and it has rubber seals on both sides of the case but is not water proof. would not buy savox again with there crap support and a brand new servo dying after a few batteries. spend the extra $40 on a nice protek servo so you dont have to spend another $100-150 on a new servo in a week. also the plastic servo horn i had seemed to rub off some of the metal housing on top what seems like very cheap and weak metal.

3 found this helpful
Keith ThompsonVerified owneron Savox SB-2264MG Low Profile Digital "High Speed" Brushless Metal Gear Servo

Pure garbage! Do not buy. I wish I read the reviews before buying. This servo only lasted around 5 minutes or so under normal use. No crash or binding. End points were set properly and gears just let go. A-main will not warranty even though it's still in the time limit, so I'm out over 100 dollars for a useless hunk of aluminum.

2 found this helpful
Anonymouson Savox SB-2264MG Low Profile Digital "High Speed" Brushless Metal Gear Servo

MALO NO LO RECOMIENDO, SE GOLPEO ALGU SUAVE EL AUTO Y EL SERVO DEJO DE FUNCIONAR.

2 found this helpful
Sean Nunamakeron Savox SB-2264MG Low Profile Digital "High Speed" Brushless Metal Gear Servo

First of all, shame on me for not looking at the reviews prior to purchasing this servo. I have been running Savox mid to upper level servos exclusively for many years and have never had an issue. This servo however, and I bought 2 of them prior to the first install and failure, is not up their standard and I am guessing they know it. I installed the first one in my 22X4 and it made it for less than 2 practice packs on a glued clay track. No crashes and I assumed it was just a uniquely bad servo. I installed the second one at that point and made it through 2 more practice packs, one full heat, and half of the next before the same gear stripped. That was $220 absolutely wasted and I cannot say anything but shame on you Savox. With all of the good luck I have had previously, I am going to give them a chance to respond to my emails and make it right. So far however, no response either by phone or email. This servo does not even deserve one star!

What reviewers say

Reviewers almost uniformly rate this low-profile metal-gear servo 1 or 2 out of 5. The recurring complaint is premature failure, with several owners reporting stripped gears within minutes to a few practice sessions, including under light load and with end points set correctly. One reviewer reported a plastic internal end stop breaking, and another found the servo wire too short. A few owners say the warranty did not cover failures still inside the window. One reviewer praised the build and said the unit lasted only briefly before failing, and another recommended a competing servo instead. There is little disagreement; the reviews describe the same failure pattern across different vehicles, including a 1/10 4WD buggy, touring car, and 2WD models.

  • + Compact low-profile size
  • + Metal gear construction
  • − Gears strip after very short use
  • − Internal plastic end stop can break
  • − Servo wire is too short
  • − Warranty claims reportedly refused
Summary generated from the reviews above.
