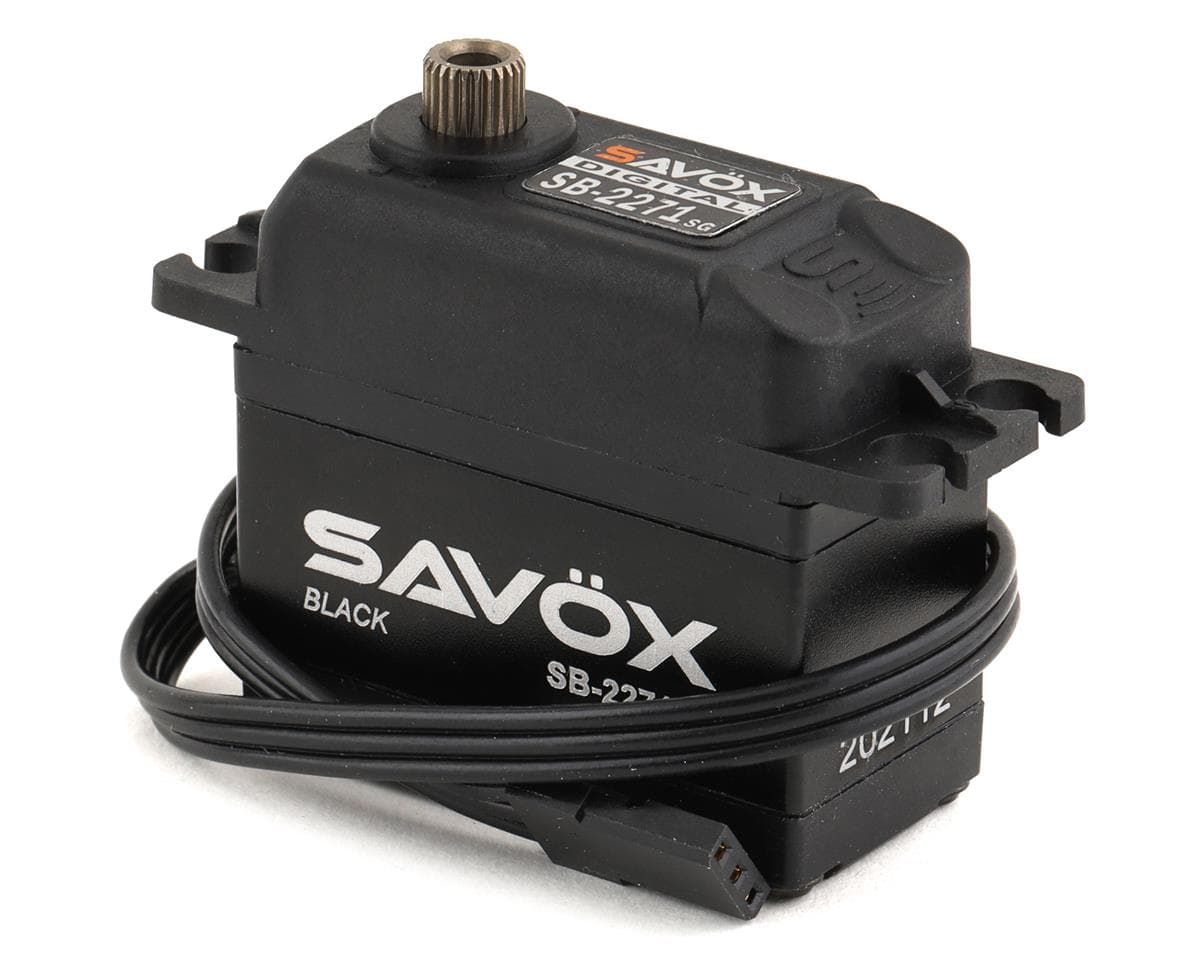

Savox SB-2271SG Black Edition "High Speed" Brushless Steel Gear Digital Servo (High Voltage)
About this part
Digital Steel Gear Servo Overview:
The Savox SB-2271SG Black Edition is a high-speed brushless digital servo designed for drivers and pilots who demand quick response and precise control. Combining high-voltage capability, a durable steel geartrain, and advanced brushless technology, this servo is an excellent choice for 1/10 scale off-road vehicles, trucks, and select helicopter applications.
About the SV-1271SGP
High-Speed Brushless Performance
Powered by a brushless motor, the SB-2271SG delivers exceptionally fast response times while maintaining smooth and efficient operation. With speeds as quick as 0.065 sec/60° at 7.4V, it provides the precision needed for competitive driving and demanding flight maneuvers.
Durable Steel Gear Construction
A precision-engineered steel geartrain provides the strength required for high-performance applications. Built to handle repeated impacts and heavy loads, the gears offer long-lasting durability while maintaining consistent control and accuracy.
Black Edition
The Black Edition design incorporates advanced electronics with ultra-high 12-bit (4096) resolution for precise servo movement and excellent centering performance. Combined with dual ball bearings and high-voltage compatibility, it delivers dependable operation across a wide range of RC applications.
Features:
- High-speed digital servo design
- Brushless motor for smooth, efficient operation
- High-voltage compatible up to 7.4V
- Precision steel geartrain
- Ideal for 1/8 scale and large-scale applications
- Ideal for 1/10 off-road vehicles and helicopter applications
Includes:
- (1) SB-2271SG Black Edition "High Speed" Brushless Steel Gear Digital Servo
Specifications:
| Application | 1/10 |
|---|---|
| Operating Voltage | 6.0-7.4V |
| Operating Temperature | - |
| Operating Speed @ 6.0V | 0.08sec/60° sec |
| Operating Speed @ 7.4V | 0.06sec/60° sec |
| Dynamic Torque @ 6.0V | 208.3oz-in (15.0 kg-cm) |
| Dynamic Torque @ 7.4V | 277.7oz-in (20.0 kg-cm) |
| Motor Type | Brushless |
| Output Shaft | 25T |
| Gears | Steel |
| Weight | 2.4oz (69g) |
| Dimensions | 1.5x0.7x1.5in (40.3x20.2x38.7mm) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 2 reviews
Absolutely awesome servo so good actually this is my second I have purchased
these are great up to 700 heli servos. not sure why description says 450. misprint. been using the 2271 on 700 helis for years.
