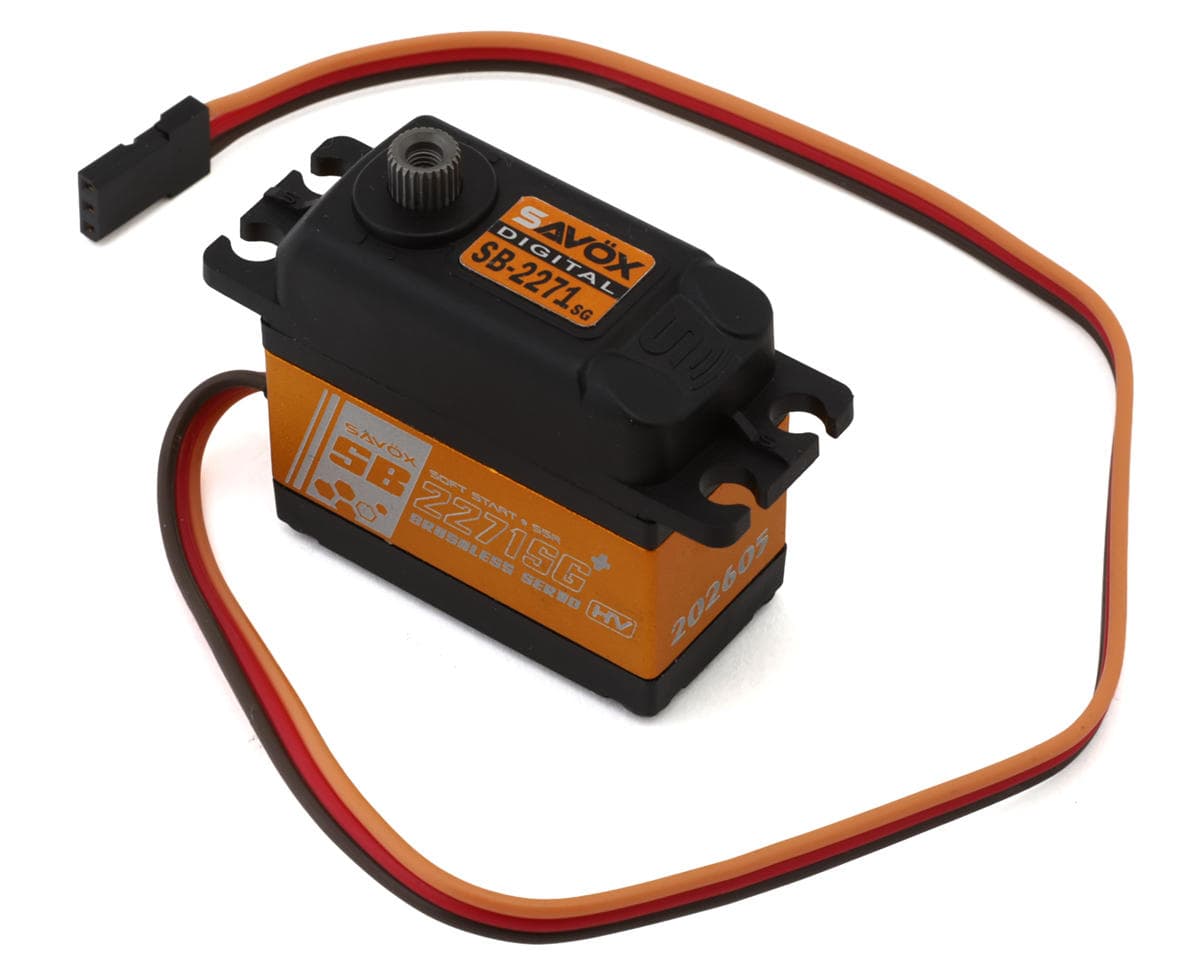

Savox SB-2271SGP Hybrid "High Speed" Brushless Steel Gear Digital Servo (High Voltage)
About this part
Steel Gear Servo Overview:
The Savox SB-2271SGP is a high-speed, high-voltage brushless digital servo engineered for racers and enthusiasts who demand precise control and reliable performance. Featuring a durable steel geartrain, advanced brushless motor technology, and Savox Plus Series enhancements, this servo is ideal for 1/10 scale vehicles, helicopters, and other performance-focused applications.
About the SB-2271SGP
High-Speed Brushless Performance
Built around a high-efficiency brushless motor, the SB-2271SGP delivers exceptionally quick response and smooth movement. With speeds reaching 0.065 sec/60° at 7.4V, it provides the rapid steering and control inputs needed for competitive driving and aggressive flying.
Durable Steel Geartrain
The precision steel gear set is designed to withstand the stresses of high-performance use while maintaining accurate control. Its robust construction helps reduce wear and ensures dependable operation through demanding conditions.
Technology
As part of the Savox Plus Series lineup, the SB-2271SGP includes Soft Start functionality and Sanwa SSR compatibility for enhanced responsiveness and smoother operation. Combined with ultra-high 12-bit (4096) resolution, it offers precise centering and exceptional control feel.
Features:
- High-voltage servo
- Brushless motor for smooth, efficient operation
- Up to 277.7 oz-in of torque at 7.4V
- Precision steel geartrain
- Soft Start technology
- Sanwa SSR compatible
Includes:
- (1) SB-2271SGP "High Speed" Brushless Steel Gear Digital Servo
Specifications:
| Application | 1/10 |
|---|---|
| Operating Voltage | 6.0-7.4V |
| Operating Temperature | - |
| Operating Speed @ 6.0V | 0.085sec/60° sec |
| Operating Speed @ 7.4V | 0.065sec/60° sec |
| Dynamic Torque @ 6.0V | 208.3oz-in (15.0 kg-cm) |
| Dynamic Torque @ 7.4V | 277.7oz-in (20.0 kg-cm) |
| Motor Type | Brushless |
| Output Shaft | 25T |
| Gears | Steel |
| Weight | 2.4oz (69g) |
| Dimensions | 1.5x0.7x1.5in (40.3x20.2x38.7mm) |
