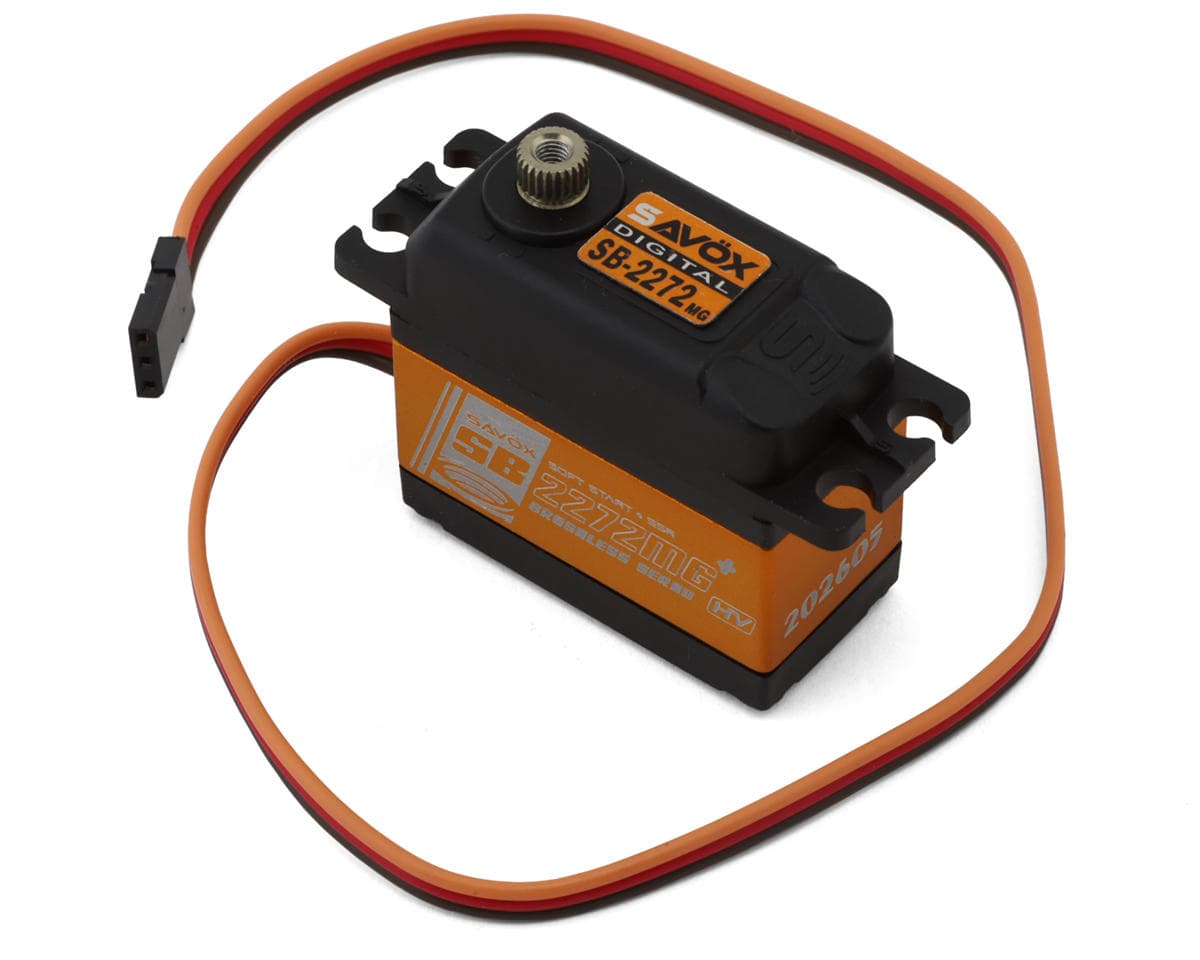

Savox SB-2272MGP Hybrid "Lightning Speed" Brushless Gyro Servo (HV) w/Soft Start
About this part
Servo Overview:
When split-second precision matters, the Savox SB-2272MGP delivers lightning-fast performance with an incredible 0.028 sec transit speed, powerful high-voltage brushless technology, and durable metal gears — making it the perfect choice for demanding gyro and helicopter applications.
About the SB-2272MGP Gyro Servo
Lightning Fast Response
The Savox SB-2272MGP delivers exceptional speed with an incredible 0.028 sec/60° transit time at 8.4V. Its ultra-fast response makes it an outstanding choice for gyro-equipped helicopters where precise and immediate control inputs are critical.
Brushless Power System
Featuring a high-voltage brushless motor, this servo provides smooth, efficient operation with impressive torque output up to 10.0kg (138.9 oz-in). The brushless design also reduces wear while improving reliability and long-term performance.
Durable Construction
A rugged metal gear train ensures strength and durability under demanding conditions, while Soft Start technology and Sanwa SSR compatibility enhance control and responsiveness. Built specifically for gyro applications, it offers the precision and dependability serious helicopter pilots demand.
Features:
- Ultra-fast 0.028 sec/60° speed at 8.4V for lightning-quick response
- High-voltage operation delivers increased power and performance
- Brushless motor provides smooth and efficient operation
- Produces up to 10.0kg (138.9 oz-in) of torque at 8.4V
- Metal gear train ensures long-lasting durability
- Soft Start technology enables smooth servo movement
- Sanwa SSR compatibility supports advanced response settings
- Ideal for gyro systems and high-performance helicopter applications
Includes:
- (1) SB-2272MGP Hybrid "Lightning Speed" Brushless Gyro Servo (HV)

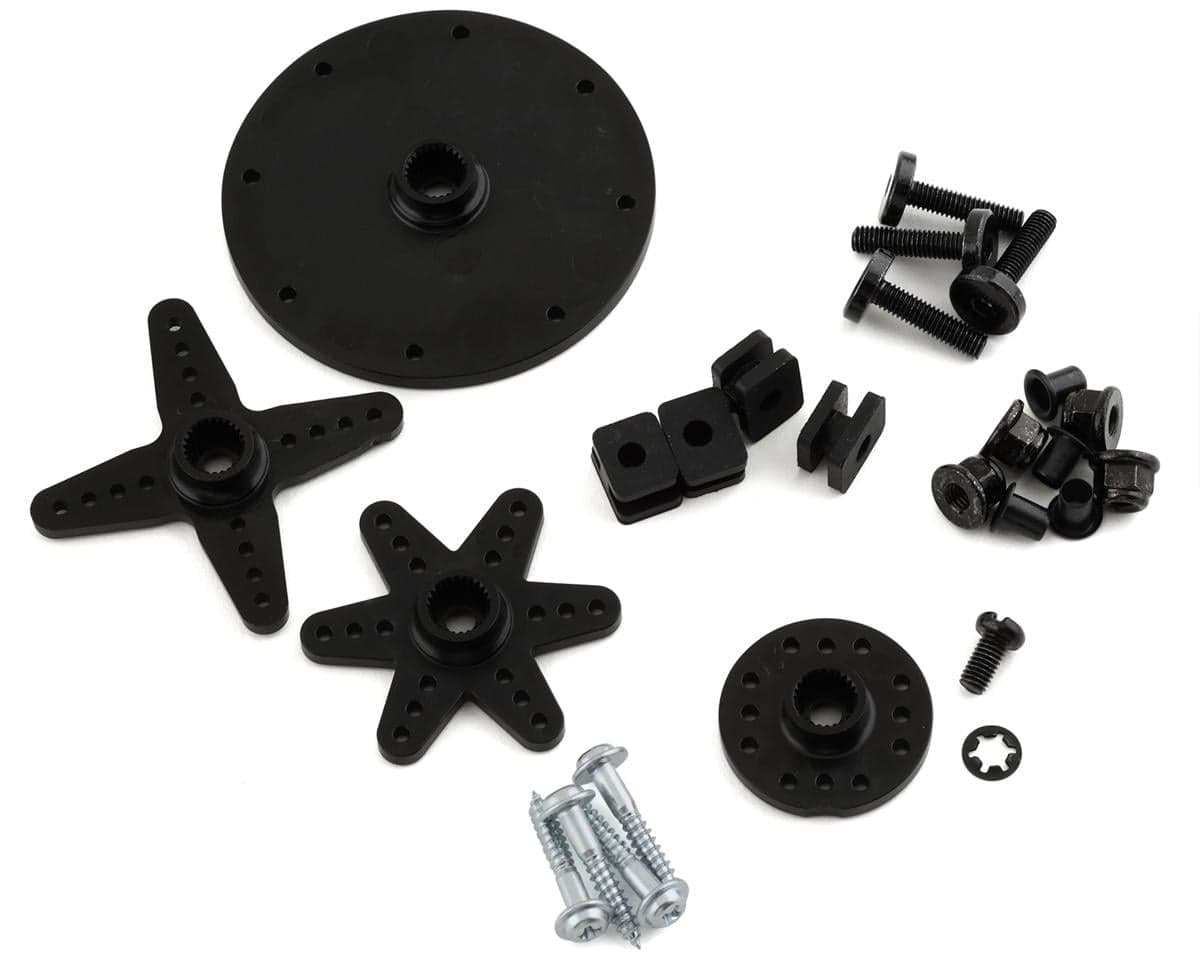

- Composite Servo Horns & Accessories
Specifications:
| Application | Helicopter |
|---|---|
| Input Voltage | 6-8.4V |
| Operating Speed @ 6.0V | 0.045 sec/60° |
| Operating Speed @ 7.4V | 0.032 sec/60° |
| Operating Speed @ 8.4V | 0.028 sec/60° |
| Dynamic Torque @ 6.0V | 69.4oz-in (5kg-cm) |
| Dynamic Torque @ 7.4V | 97.2oz-in (7kg-cm) |
| Dynamic Torque @ 8.4V | 138.9oz-in (10kg-cm) |
| Gear Material | Metal |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.8x1.52in (40.3x20.2x38.7mm) |
| Weight | 2.4oz (69g) |
