Metal Gear Digital Servo Overview:

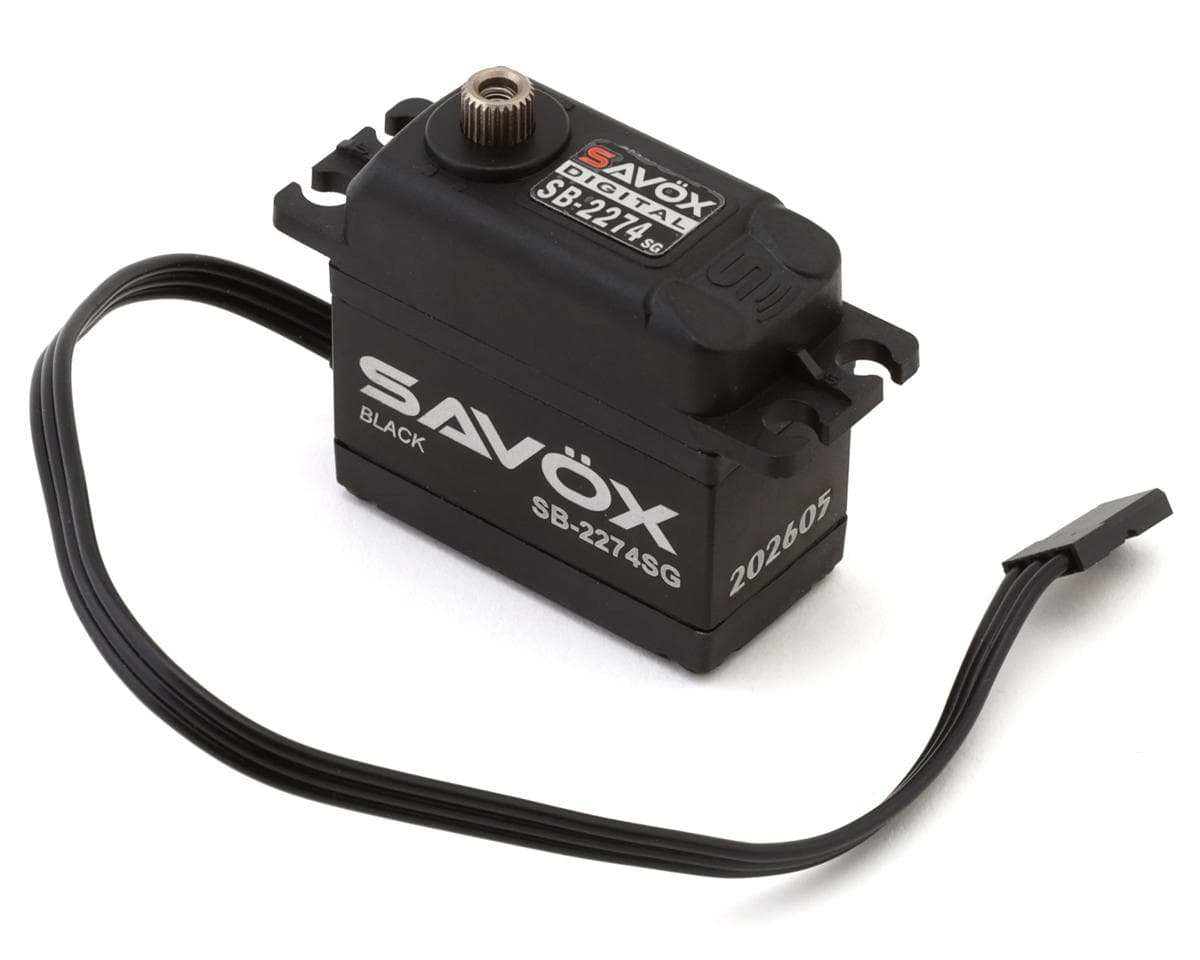

The Savox SB-2274SG Black Edition is a high-speed, high-voltage brushless digital servo engineered for demanding RC applications. Combining a durable steel geartrain, advanced brushless motor technology, and ultra-high 12-bit resolution, this servo delivers the precision, speed, and reliability needed for competitive racing and large-scale models alike.
About the SB-2274SG
High-Speed Brushless Performance
Equipped with a high-efficiency brushless motor, the SB-2274SG provides smooth operation, excellent responsiveness, and reduced operating temperatures. With speeds as fast as 0.08 sec/60° at 7.4V, it offers the quick reaction times needed for precise vehicle control.
Durable Steel Gear Construction
The servo features a precision steel geartrain designed to withstand heavy loads and demanding driving conditions. Combined with dual ball bearings, the gear system provides long-lasting durability while maintaining smooth and accurate operation.
Black Edition Precision
Savox Black Edition servos utilize advanced electronics with ultra-high 12-bit (4096) resolution for exceptional centering accuracy and control feel. High-voltage compatibility and strong torque output make this servo a versatile choice for a wide range of performance applications.
Features:
- Ultra-high 12-bit (4096) resolution
- Fast 0.08 sec/60° speed at 7.4V
- Up to 25kg-cm (347.2 oz-in) torque at 7.4V
- Dual ball bearing supported output shaft
- Ideal for 1/10, 1/8 buggies, and large scale aircraft
- Brushless motor for smooth operation and efficiency
- Capable of HV operation
- Unique steel gear train
Includes:

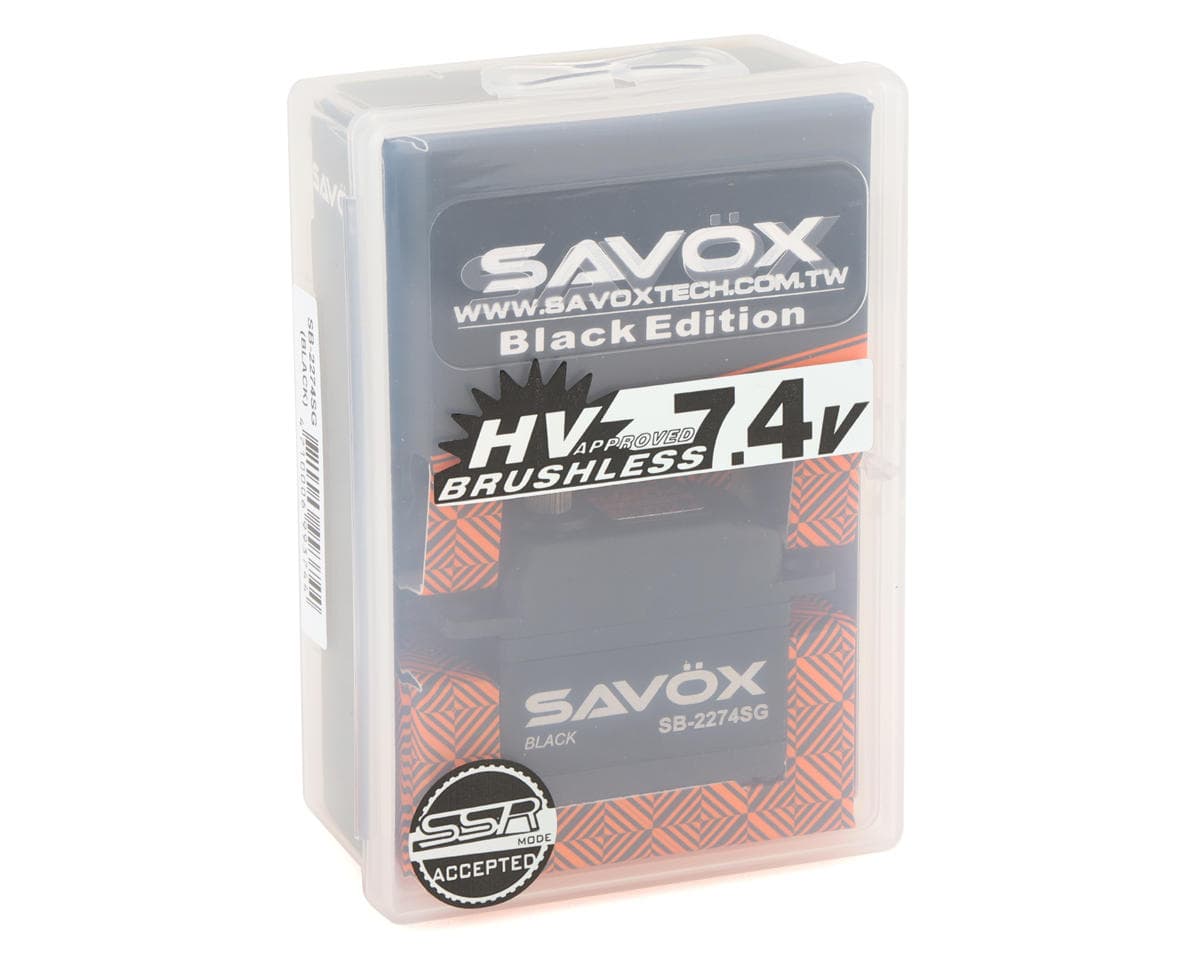

- (1) SB-2274SG Black Edition "High Speed" Brushless Steel Gear Digital Servo
Specifications:
| Application | 1/10 |
|---|---|
| Operating Voltage | 6.0-7.4V |
| Operating Temperature | - |
| Operating Speed @ 6.0V | 0.10sec/60° sec |
| Operating Speed @ 7.4V | 0.08sec/60° sec |
| Dynamic Torque @ 6.0V | 277.7oz-in (35 kg-cm) |
| Dynamic Torque @ 7.4V | 347.2oz-in (40 kg-cm) |
| Motor Type | - |
| Output Shaft | 25T |
| Gears | Metal |
| Weight | 1.4oz (41.0g) |
| Dimensions | 1.6x0.7x1.4in (40.7x20.0x37.0mm) |
