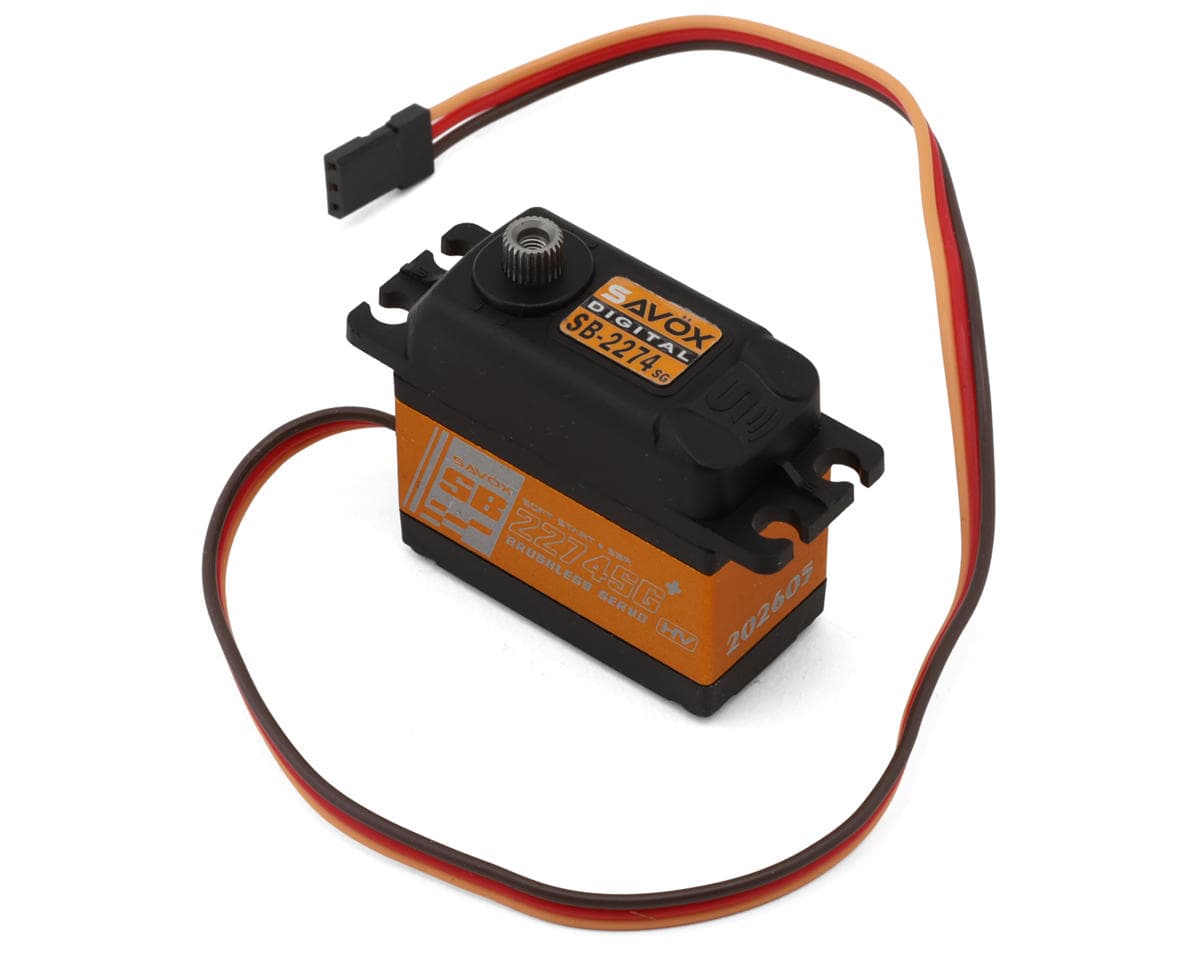

Savox SB-2274SGP Hybrid "High Speed" Brushless Steel Gear Servo (High Voltage)
About this part
Servo Overview:
The Savox SB-2274SGP High Speed Brushless Servo packs lightning-fast speed, massive high-voltage torque, and race-proven durability into one premium package. Featuring a brushless motor, hardened steel gears, and ultra-precise 12-bit resolution, it delivers the responsiveness and reliability serious racers and pilots demand when every millisecond counts.
About the SB-2274SGP Servo
High Voltage Performance
The Savox SB-2274SGP delivers incredible speed and power with high-voltage operation up to 8.4V, producing an impressive 416.6 oz-in of torque and lightning-fast 0.07 sec/60° transit speed. Its brushless motor maximizes efficiency while providing smooth, consistent performance for demanding racing and aviation applications.
Precise Response & Control
Equipped with advanced 12-bit 4096 resolution, the SB-2274SGP offers exceptionally precise steering and control response. The Soft Start function ensures smooth, controlled movement during startup, while Sanwa SSR compatibility allows racers to unlock advanced tuning capabilities for peak performance.
Durable Construction
Built with a rugged steel gear train and durable construction, this servo is designed to withstand the rigors of high-performance 1/10 and 1/8 scale buggies, as well as large-scale aircraft. Its combination of strength, speed, and reliability makes it an excellent choice for enthusiasts who demand race-ready performance and long-lasting durability.
Features:
- High-voltage operation supports 6.0V to 8.4V power systems
- Brushless motor delivers smooth and efficient performance
- Steel gear train provides exceptional strength and durability
- 12-bit (4096) resolution offers precise steering control
- High-speed response reaches 0.07 sec/60° at 8.4V
- Powerful torque produces up to 416.6 oz-in at 8.4V
- Soft Start technology ensures smooth and controlled movement
- Sanwa SSR compatibility allows advanced servo tuning
Includes:
- (1) SB-2274SGP "High Speed" Brushless Steel Gear Servo (High Voltage)

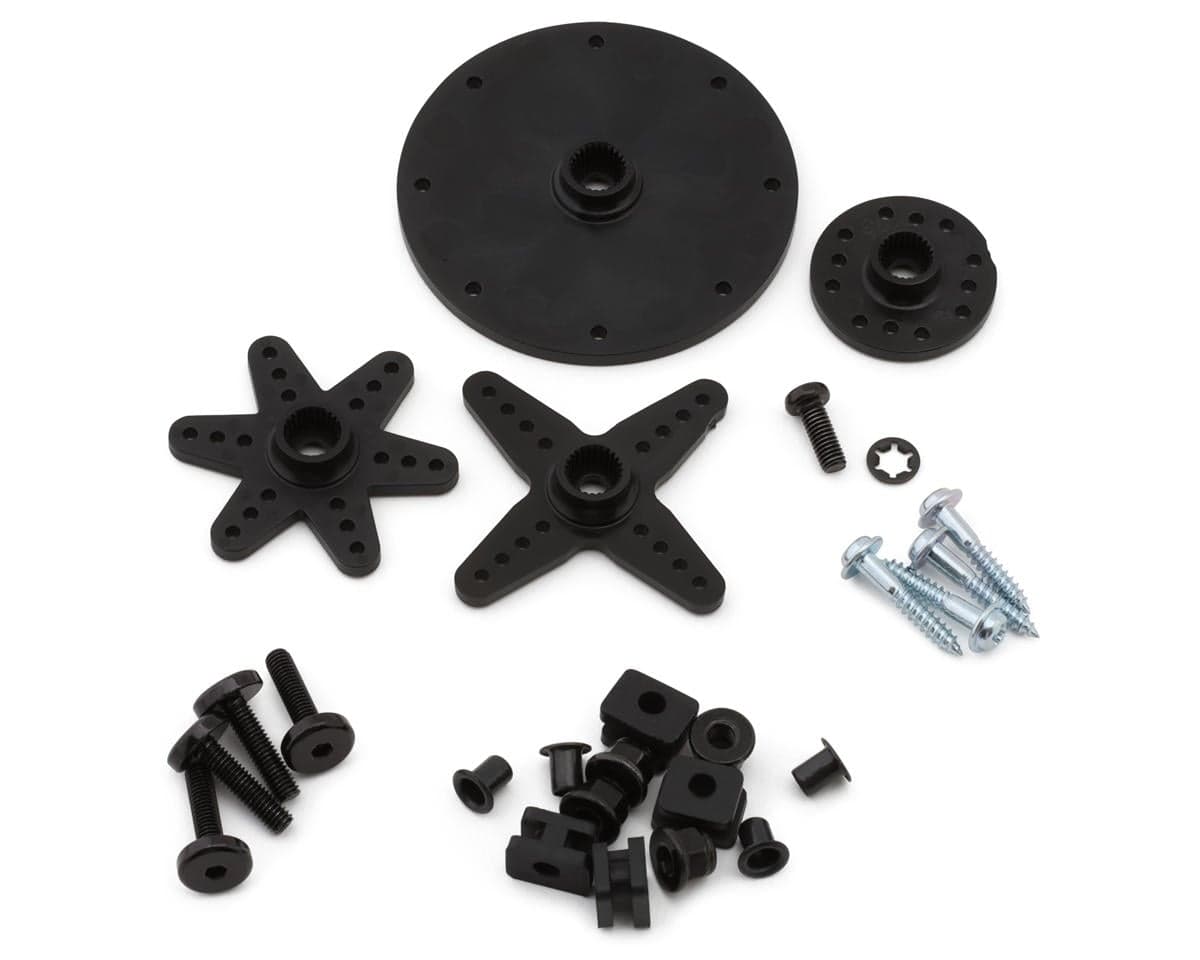

- Composite Servo Horns & Accessories
Specifications:
| Application | 1/10 & 1/8 Off-Road |
|---|---|
| Input Voltage | 6-8.4V |
| Operating Speed @ 6.0V | 0.105 sec/60° |
| Operating Speed @ 7.4V | 0.08 sec/60° |
| Operating Speed @ 8.4V | 0.07 sec/60° |
| Dynamic Torque @ 6.0V | 277.7oz-in (7kg-cm) |
| Dynamic Torque @ 7.4V | 347.2oz-in (9kg-cm) |
| Dynamic Torque @ 8.4V | 416.6oz-in (9kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.8x1.52in (40.3x20.2x38.7mm) |
| Weight | 2.43oz (69g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 2 reviews
Great servo! Excellent performance and quality. Great for high speed and higher torque requirements.
I run the slightly older versions of these servos, the regular SG before they were updated. They are very reliable, I have ran these for more than 10 years and they still work good. I think that speaks volumes for the longevity of the servo. At 90-100$ USD, I think this product is really competitive. Some years ago I did start using the KO Propo BSx4S servo and I like it a bit more. I think it has a better overall response and it feels smoother and faster. However, it does cost a little bit more. For the price this particular servo is really good.
