About this part

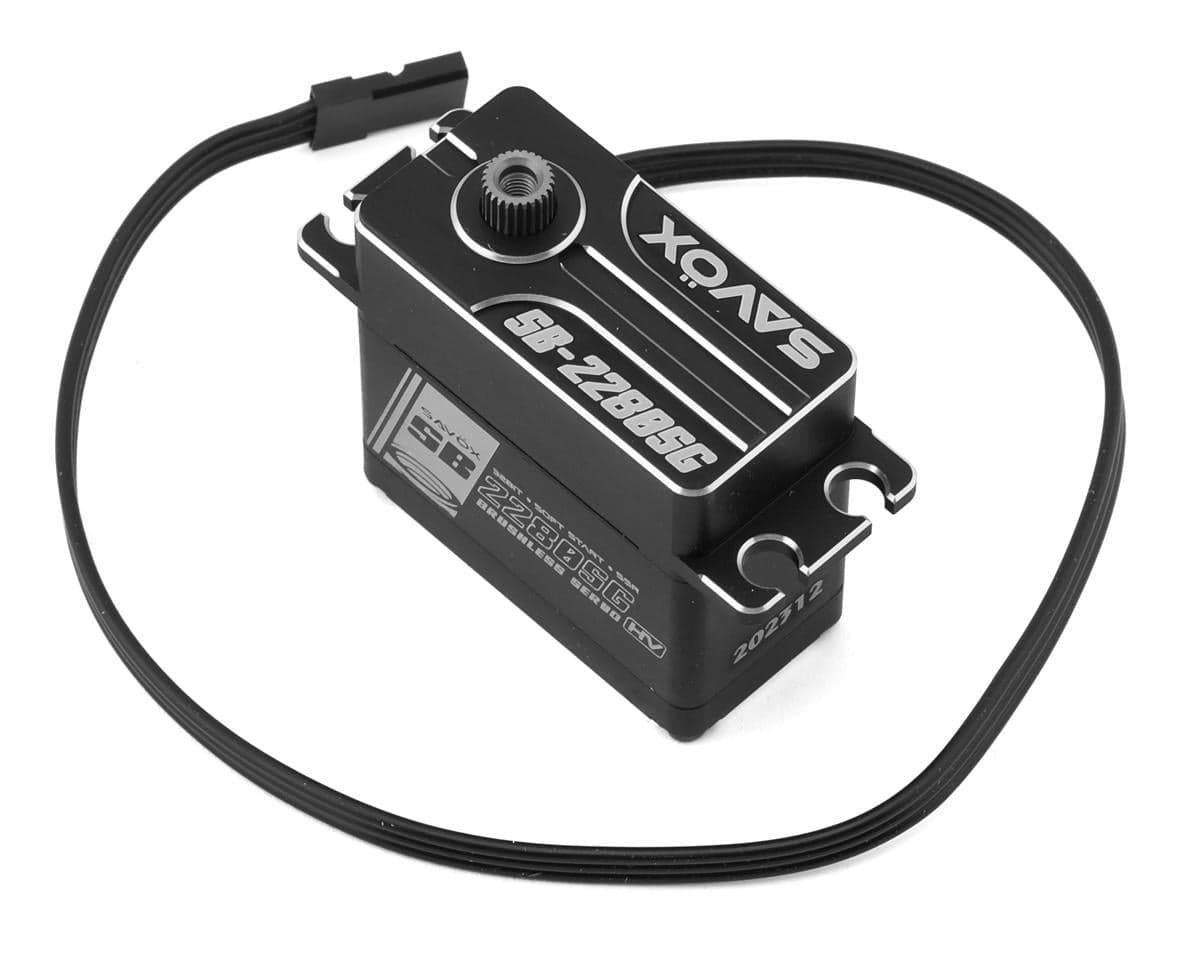

Aluminum “Monster Torque” Brushless Servo
The Savox SB-2280SGP Aluminum “Monster Torque” Brushless Steel Gear Servo is built for extreme performance and demanding RC applications. Designed to deliver massive torque and precise control, it’s ideal for 1/8 scale buggies, crawlers, and large-scale aircraft. With advanced electronics and a robust construction, this servo is engineered to handle high loads and punishing conditions. Whether you're racing, crawling, or flying, it provides the power and reliability needed to stay in control.
About the SB-2280SGP Aluminum “Monster Torque” Servo
Monster Torque And HV Performance
The SB-2280SGP lives up to its name with incredible torque output, reaching up to 833.2 oz-in at 8.4V. Its high-voltage capability allows it to fully utilize modern LiPo power systems, delivering unmatched strength for heavy-duty steering and control applications. This immense power ensures confident handling even in the most demanding environments.
Brushless Motor Efficiency And Precision
Equipped with a brushless motor, this servo offers superior efficiency, smoother operation, and extended lifespan compared to traditional brushed designs. Combined with 12-bit (4096) resolution technology, it provides ultra-precise control and consistent positioning. This results in smoother inputs and more accurate response during high-performance use.
Durable Steel Gear And Aluminum Construction
Featuring a unique steel gear train, the SB-2280SGP is built to withstand heavy loads and harsh conditions without compromising performance. The aluminum case enhances durability while improving heat dissipation for consistent operation. As part of the “Plus” series, it also includes Soft Start and Sanwa SSR compatibility for added protection and versatility.
Features:
- Extreme Torque Output Up To 833.2 oz-in
- High-Voltage (HV) Compatible
- Brushless Motor Design
- 12-Bit 4096 Resolution Technology
- Durable Steel Gear Train
- Aluminum Case Construction
- Fast 0.12 sec/60° Speed At 8.4V
- Soft Start Functionality
- Sanwa SSR Compatibility
- Ideal For 1/8 Buggies, Crawlers, And Aircraft
Includes:
- (1) SB-2280SGP Aluminum "Monster Torque" Brushless Steel Gear Servo

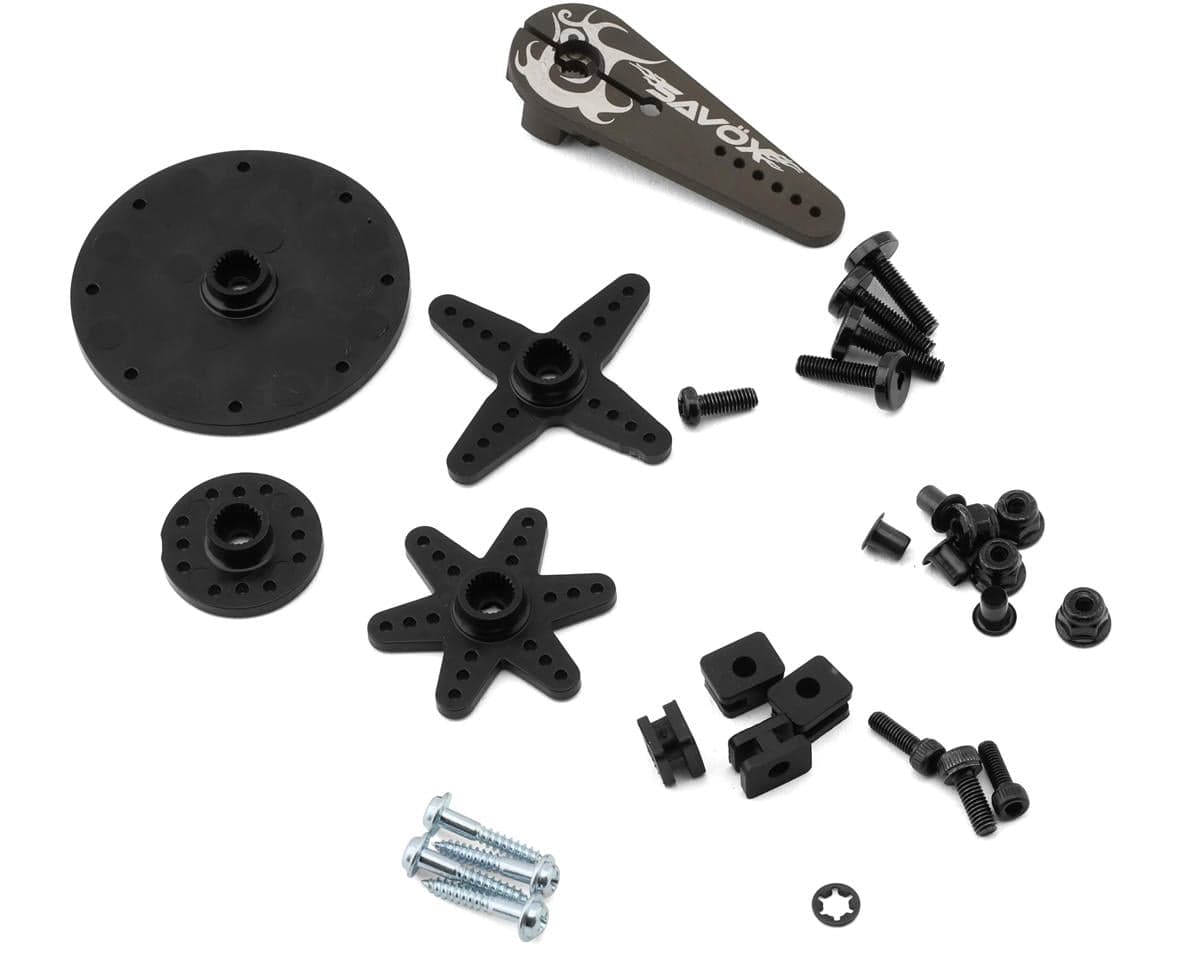

- Servo Horns & Accessories
Specifications:
| Application | 1/10-1/8 |
|---|---|
| Input Voltage | 6.0-8.4V |
| Operating Speed @ 6.0V | 0.17 sec/60° |
| Operating Speed @ 8.4V | .12 sec/60° |
| Dynamic Torque @ 6.0V | 555.5oz-in (40.0kg-cm) |
| Dynamic Torque @ 8.4V | 833.2oz-in (60.0kg-cm) |
| Gear Material | Metal |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.57x0.80x1.52in (40.3x20.2x38.7mm) |
| Weight | 2.93oz (83g) |
