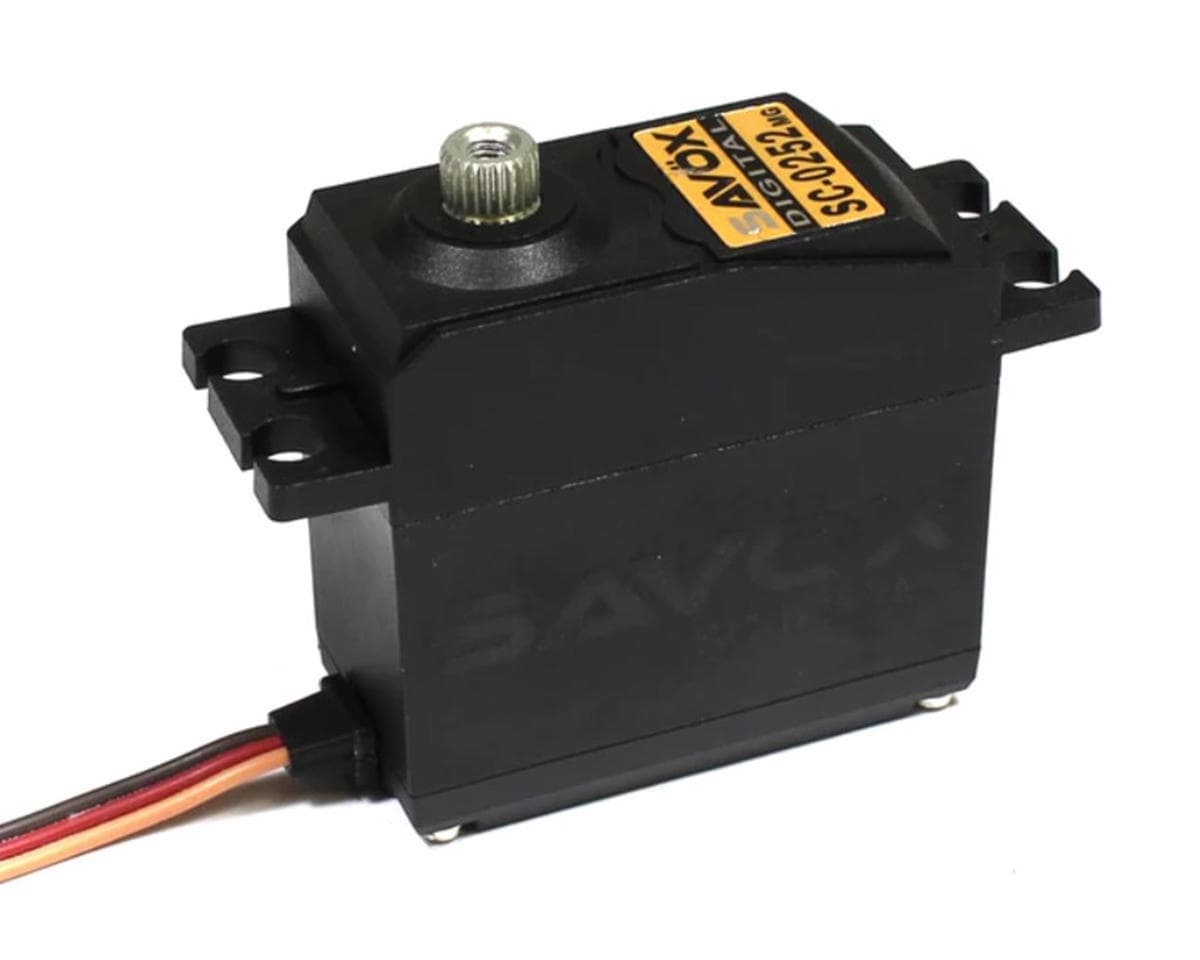

Savox SC-0252MGP Standard Metal Gear Digital Servo
About this part
Digital Servo Overview:
The Savox SC-0252MGP is a dependable standard-size digital servo that offers increased torque and durability over typical plastic-geared servos. Featuring a rugged metal geartrain and proven digital electronics, it's an excellent upgrade for sport aircraft, RC vehicles, and other applications that demand reliable steering and control performance. Plus-series features include Soft Start and Sanwa SSR compatibility.
About the SB-2263MG
Durable Metal Gear Construction
Built with a heavy-duty metal geartrain, the SC-0252MGP is designed to withstand the demands of everyday RC use. The durable gears provide increased strength and longevity compared to plastic-geared servos, helping maintain consistent performance in harsh operating conditions.
Reliable Torque Output
Delivering up to 10.5kg-cm (145.8 oz-in) of torque at 6.0V, this servo provides noticeably more holding power than many standard RTR servos. The added torque makes it well suited for 30-60 size aircraft and a variety of surface vehicle applications where dependable control is important.
Digital Precision Technology
The digital control system offers smooth and accurate operation for improved response and positioning accuracy. Plus-series enhancements such as Soft Start and Sanwa SSR compatibility further improve servo operation and system integration for compatible radio setups.
Features:
- Standard-size digital servo
- Heavy-duty metal geartrain
- Up to 10.5kg-cm (145.8 oz-in) torque at 6.0V
- Digital electronics for precise control
- Soft Start technology
- Sanwa SSR compatible
- Excellent upgrade from plastic-geared servos
Includes:
- (1) SC-0252MGP Standard Metal Gear Digital Servo
Specifications:
| Application | 1:10 |
|---|---|
| Operating Voltage | 4.8-6.0V |
| Operating Temperature | - |
| Operating Speed @ 4.8V | 0.23sec/60° sec |
| Operating Speed @ 6.0V | 0.19sec/60° sec |
| Dynamic Torque @ 4.8V | 100.0oz-in (7.2 kg-cm) |
| Dynamic Torque @ 6.0V | 145.8oz-in (10.5 kg-cm) |
| Motor Type | Coreless |
| Output Shaft | 25T |
| Gears | Metal |
| Weight | 1.7oz (49g) |
| Dimensions | 1.6x0.77x1.5in (40.7x19.6x39.4mm) |
